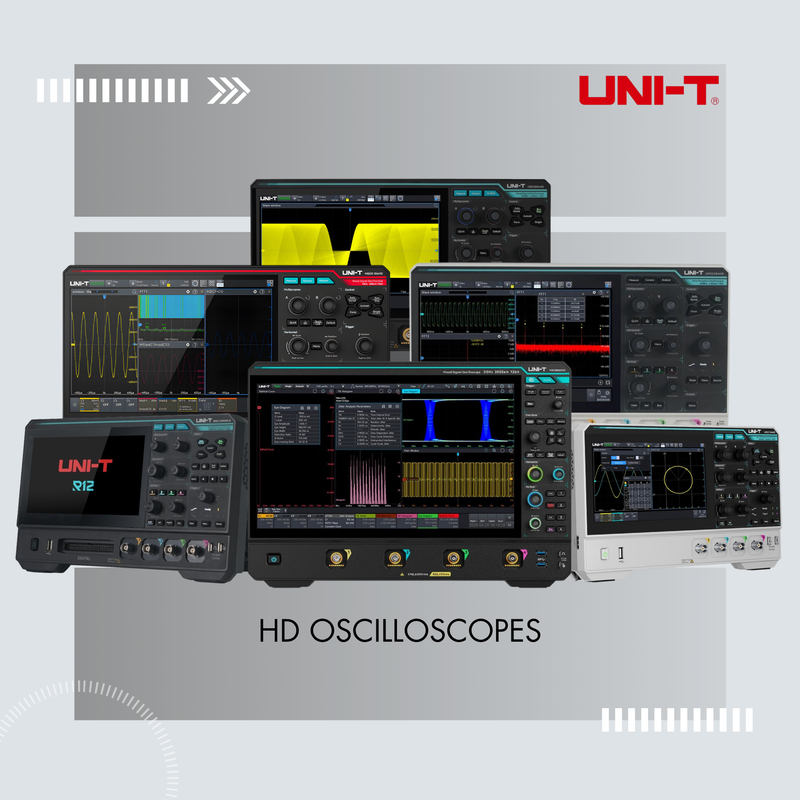

HD Oscilloscopes (12-bit)

High-definition (HD) oscilloscopes use 12-bit analog-to-digital converters to deliver 16Γ— the vertical resolution of standard 8-bit instruments β€” the right tool for power-integrity work, sensor-signal characterization, low-noise analog measurement, and any application where small signal details ride on top of larger waveforms. The UNI-T HD line spans 70 MHz entry-tier to 8 GHz lab-grade bandwidth at two-channel, four-channel, six-channel, and eight-channel configurations, with sample rates up to 20 GSa/s and memory depths to 2 Gpts. Every HD model uses a lifetime-unlock option architecture β€” advanced analysis capabilities (power, jitter and eye-diagram, timing), serial-bus decode for automotive and aerospace protocols, AWG, logic analyzer, and bandwidth upgrades are each a one-time purchase, permanently activated to the instrument.

HD Oscilloscopes (12-bit)

HD Oscilloscopes (12-bit)

  Bandwidth Analog Ch. Sample Rate Max Memory Waveform Rate Digital Ch. Display
MSO8000HD Oscilloscopes 5GHz - 8GHz 4 20GSa/s 2Gpts (opt) 1,000,000wfms/s 16 15.6in Touch Screen
MSO8000HD Oscilloscopes
MSO6000HDP Oscilloscopes 1GHz - 2GHz 4 10GSa/s 1Gpts 2,000,000wfms/s 16 12.1in Touch Screen
MSO6000HDP Oscilloscopes
UPO6000HD Oscilloscopes 350MHz - 1GHz 6 or 8 5GSa/s 500Mpts 1,000,000wfms/s N/A 12.1in Touch Screen
UPO6000HD Oscilloscopes
UPO6000LP Rack-Mount Oscilloscopes 350MHz - 1GHz 4 or 8 5GSa/s 500Mpts 1,000,000wfms/s N/A N/A (Rack-Mount)
UPO6000LP Rack-Mount Oscilloscopes
MSO5000HD Oscilloscopes 350MHZ - 1GHz 4 5.0GSa/s 500Mpts 1,500,000wfms/s 16 10.1in Touch Screen
MSO5000HD Oscilloscopes
MSO3000HD Oscilloscopes 200MHz - 500MHz 4 2.5GSa/s 500Mpts 1,500,000wfms/s 16 10.1in Touch Screen
MSO3000HD Oscilloscopes
MSO1000HD Oscilloscopes 150MHz - 250MHz 4 2.5GSa/s 100Mpts 1,000,000wfms/s 16 7in Touch Screen
MSO1000HD Oscilloscopes
UPO2000HD Oscilloscopes 70MHz - 200MHz 2/4 2.5GSa/s 100Mpts 1,000,000wfms/s N/A 10.1in Touch Screen
UPO2000HD Oscilloscopes
UPO1000HD Oscilloscopes 80MHz - 150MHz 2/4 1.25GSa/s 100Mpts 500,000wfms/s N/A 7in Touch Screen
UPO1000HD Oscilloscopes

Buying Guide

UNI-T High-Definition Oscilloscope β€” Buyer's Guide

Which HD Oscilloscope Is Right for You?

UNI-T's high-definition oscilloscope lineup gives every model 12-bit vertical resolution, 16Γ— the detail of a conventional 8-bit scope. Nine series span 70 MHz to 8 GHz, from portable bench scopes and 1U rack-mount units through six- and eight-channel benches up to lab-grade flagships. Past the shared 12-bit baseline, you're choosing bandwidth, channel count, form factor, memory depth, display size, and whether you need a signal generator or logic channels.

What Every HD Model Shares

Vertical Resolution
12-bit ADC β€” 16Γ— detail of an 8-bit scope
Noise Floor
Down to 60 Β΅Vrms β€” surfaces detail conventional scopes smooth away
Integrated Tools
Scope, FFT spectrum analyzer, protocol decoder, power analyzer
Waveform Capture Rate
Up to 2,000,000 wfms/s in sequence mode, depending on series
Touchscreen
Touch display on every bench model; the UPO6000LP is a headless 1U rack unit
Upgrade Path
Bandwidth and feature upgrades via software license
Protocol Decode
UART, IΒ²C, SPI, CAN, LIN, CAN-FD, FlexRay, more (optional)
Warranty
3+2 years β€” parts and labor, when you register the instrument for free

The 12-bit baseline applies to every model. Past that, choose the series that matches your bandwidth and workflow.

Decision 1: Choose Your Series

Nine HD series, organized by bandwidth tier and target workflow. Pick the lowest bandwidth that covers your needs. Bandwidth headroom should be 3–5Γ— the highest signal frequency you'll measure.

UPO1000HD

80 / 150 MHz
Best for: Education, portable bench, hobbyist work, 2 or 4 channels, 7" touch display

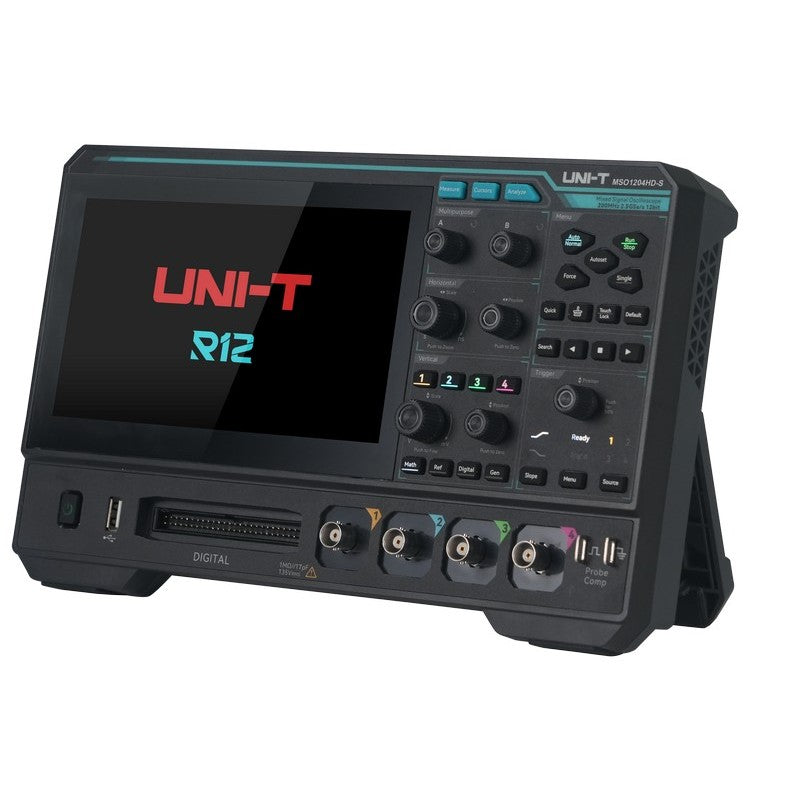

MSO1000HD

150 / 250 MHz
Best for: Entry-level mixed-signal, embedded development, 4+16 channels, optional built-in signal generator

UPO2000HD

70 – 200 MHz
Best for: R&D bench, signal-fidelity work, embedded systems, 2 or 4 channels, 10.1" touch display

MSO3000HD

200 – 500 MHz
Best for: Mid-range MSO, automotive CAN-FD, industrial, advanced analog + 16 logic channels

MSO5000HD

350 MHz – 1 GHz
Best for: High-speed systems, R&D, protocol-rich automotive (CAN-XL, FlexRay), 5 GSa/s acquisition

UPO6000HD

350 MHz – 1 GHz
Best for: Multi-phase motor drives, multi-rail power, wide analog captures, 6 or 8 channels, 12.1" touch display

UPO6000LP

350 MHz – 1 GHz
Best for: ATE racks and production test, 4 or 8 channels in a 1U headless chassis, SCPI over LAN

MSO6000HDP

1 / 2 GHz
Best for: High-speed serial, USB 2.0 and Ethernet compliance, jitter and eye diagrams, 4+16 channels, 10 GSa/s

MSO8000HD

5 / 6 / 8 GHz
Best for: Lab-grade signal and power integrity, USB 2.0 / Ethernet / MIPI D-PHY compliance, 20 GSa/s, 15.6" touch display

Decision 2: How Many Channels, and Where Will It Sit?

You need Series Why
2 or 4 analog channels UPO1000HD, UPO2000HD Lowest cost per 12-bit channel for analog-only work

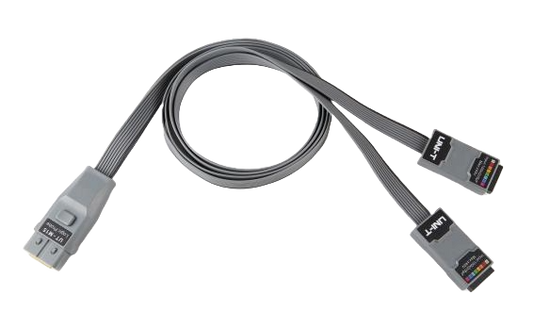

4 analog + 16 digital channels MSO1000HD, MSO3000HD, MSO5000HD, MSO6000HDP, MSO8000HD Bus and control-signal capture on the same time base as the analog
6 or 8 analog channels on a bench UPO6000HD Three phase voltages and three phase currents on one screen, or every rail of a multi-supply board at once
4 or 8 analog channels in a rack UPO6000LP Same 12-bit acquisition in a 1U chassis with no display, controlled over LAN by SCPI or the web interface

Decision 3: Need a Built-In Signal Generator?

Standard HD Models

Full 12-bit scope without on-board AWG. Use an external function generator if you need to drive a circuit. Lowest cost option per series.

Choose if you already have a bench signal source, or your workflow is purely measurement-driven.

HD-S Models & Generator-Equipped

MSO1000HD-S adds a 25 MHz built-in signal generator. MSO3000HD, MSO5000HD, MSO6000HDP, MSO8000HD and the 4-channel UPO6000LP models take an arbitrary waveform generator option (50–60 MHz, 1 or 2 channels). See each series page.

Choose if you want a single integrated bench instrument: stimulus + measurement in one chassis, no second power outlet or LAN cable.

Built-In Generator Quick Reference

Series Generator How It Ships
UPO1000HD No Standard models only β€” pair with external AWG
MSO1000HD 25 MHz, 1 channel Built into MSO1154HD-S and MSO1254HD-S variants
UPO2000HD No Standard models only β€” pair with external AWG
MSO3000HD 50 MHz, 2 channels (Optional) MSO3000HD-AWG option
MSO5000HD 50 MHz, 2 channels + Bode plot (Optional) MSO5000HD-AWG option
UPO6000HD No Analog-only β€” pair with external AWG
UPO6000LP 50 MHz, 1 channel + Bode plot (Optional) UPO6000LP-GEN option, 4-channel models only
MSO6000HDP 50 MHz, 2 channels + Bode plot (Optional) MSO6000HDP-GEN option
MSO8000HD 60 MHz, 2 channels (Optional) MSO8000HD-AWG option

Complete Model Comparison

Model Bandwidth Channels Sample Rate Memory Generator Display
UPO1082HD 80 MHz 2 1.25 GSa/s 100 Mpts β€” 7" Touch
UPO1084HD 80 MHz 4 1.25 GSa/s 100 Mpts β€” 7" Touch
UPO1152HD 150 MHz 2 1.25 GSa/s 100 Mpts β€” 7" Touch

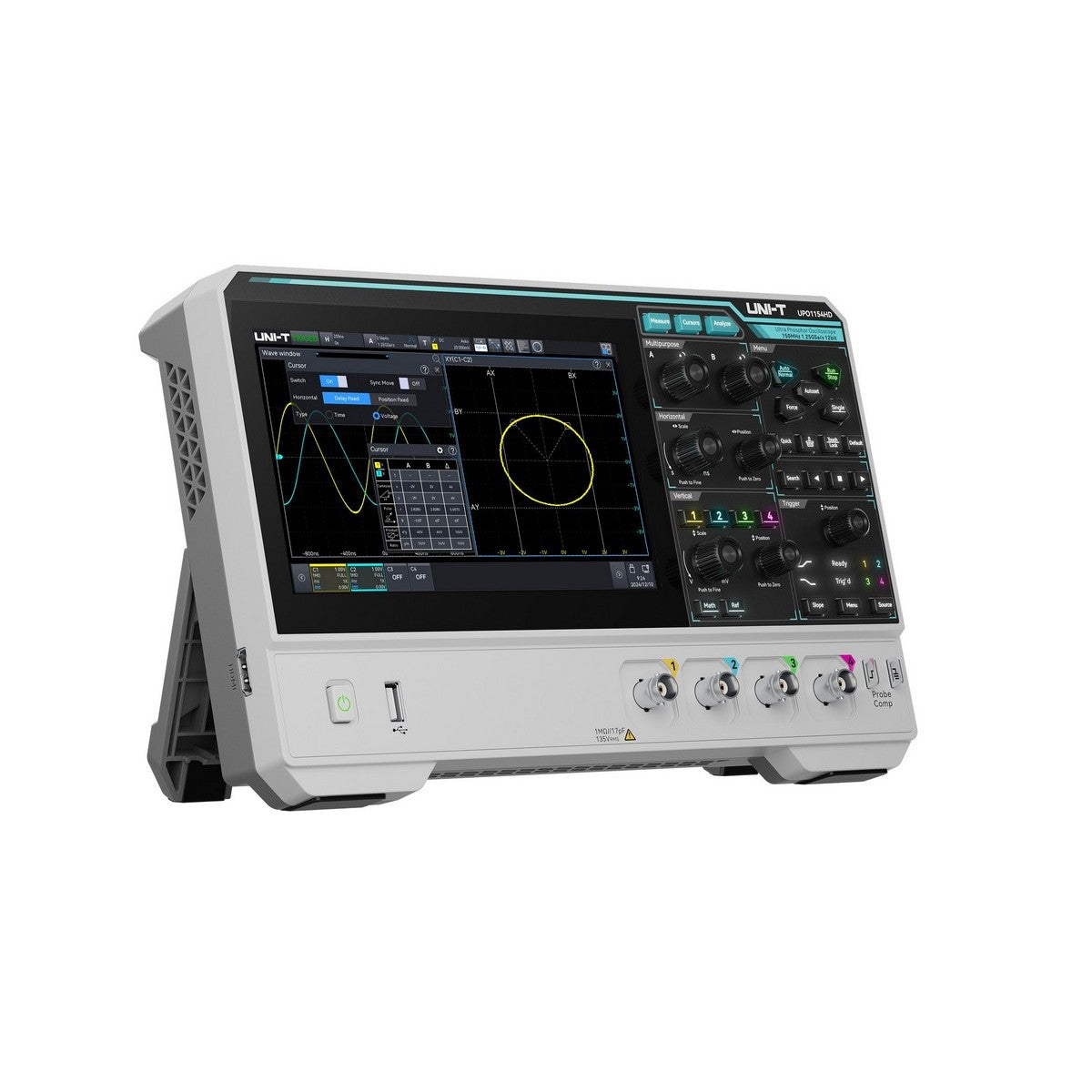

UPO1154HD 150 MHz 4 1.25 GSa/s 100 Mpts β€” 7" Touch
MSO1154HD 150 MHz 4 + 16D 2.5 GSa/s 100 Mpts β€” 7" Touch
MSO1154HD-S 150 MHz 4 + 16D 2.5 GSa/s 100 Mpts 25 MHz 7" Touch
MSO1254HD 250 MHz 4 + 16D 2.5 GSa/s 100 Mpts β€” 7" Touch
MSO1254HD-S 250 MHz 4 + 16D 2.5 GSa/s 100 Mpts 25 MHz 7" Touch
UPO2072HD 70 MHz 2 2.5 GSa/s 100 Mpts β€” 10.1" Touch
UPO2074HD 70 MHz 4 2.5 GSa/s 100 Mpts β€” 10.1" Touch
UPO2102HD 100 MHz 2 2.5 GSa/s 100 Mpts β€” 10.1" Touch
UPO2104HD 100 MHz 4 2.5 GSa/s 100 Mpts β€” 10.1" Touch
UPO2202HD 200 MHz 2 2.5 GSa/s 100 Mpts β€” 10.1" Touch

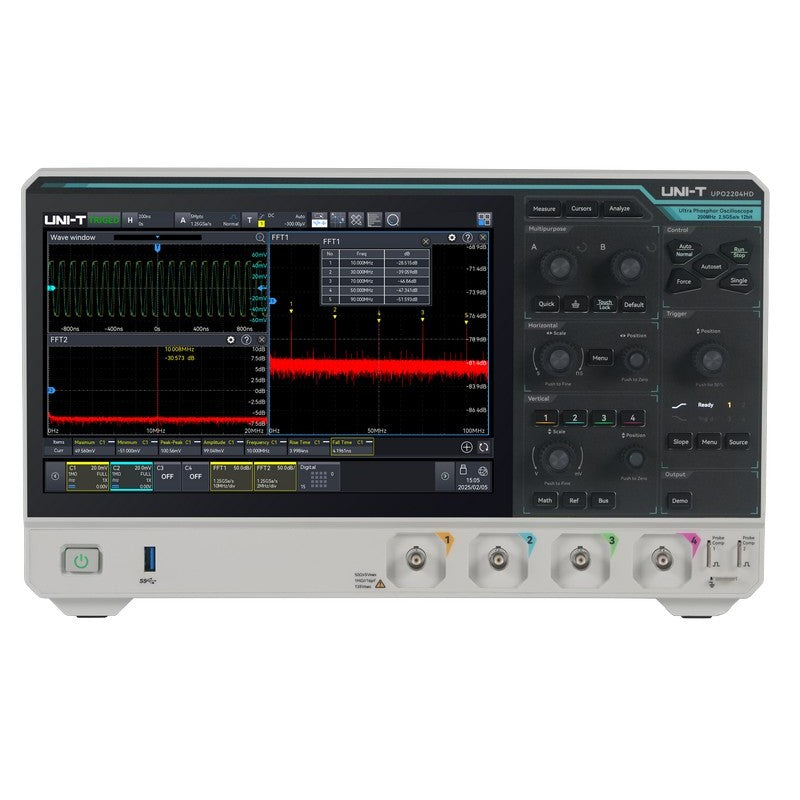

UPO2204HD 200 MHz 4 2.5 GSa/s 100 Mpts β€” 10.1" Touch
MSO3024HD 200 MHz 4 + 16D 2.5 GSa/s 500 Mpts 50 MHz opt 10.1" Touch
MSO3034HD 350 MHz 4 + 16D 2.5 GSa/s 500 Mpts 50 MHz opt 10.1" Touch

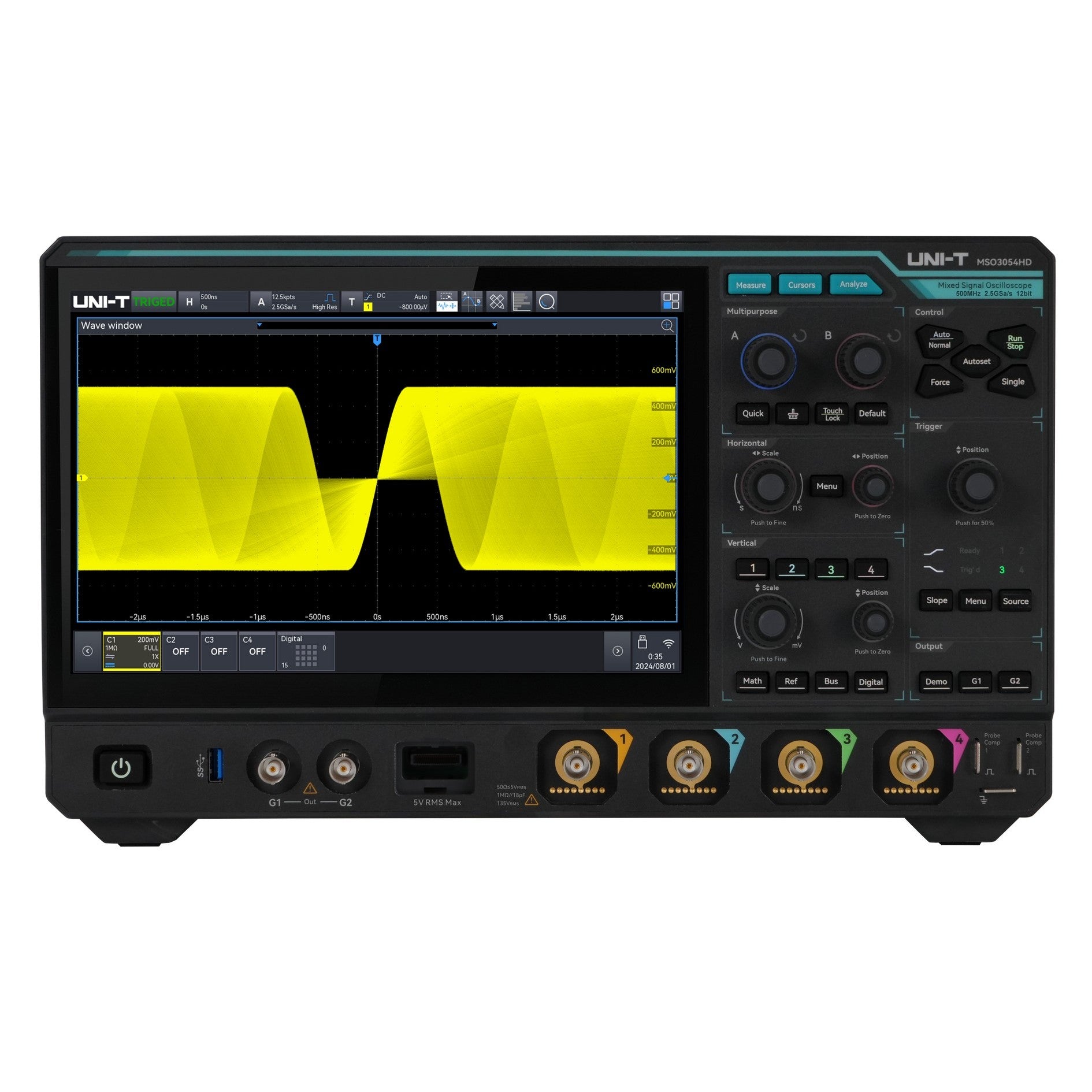

MSO3054HD 500 MHz 4 + 16D 2.5 GSa/s 500 Mpts 50 MHz opt 10.1" Touch
MSO5034HD 350 MHz 4 + 16D 5 GSa/s 500 Mpts 50 MHz opt 10.1" Touch
MSO5054HD 500 MHz 4 + 16D 5 GSa/s 500 Mpts 50 MHz opt 10.1" Touch

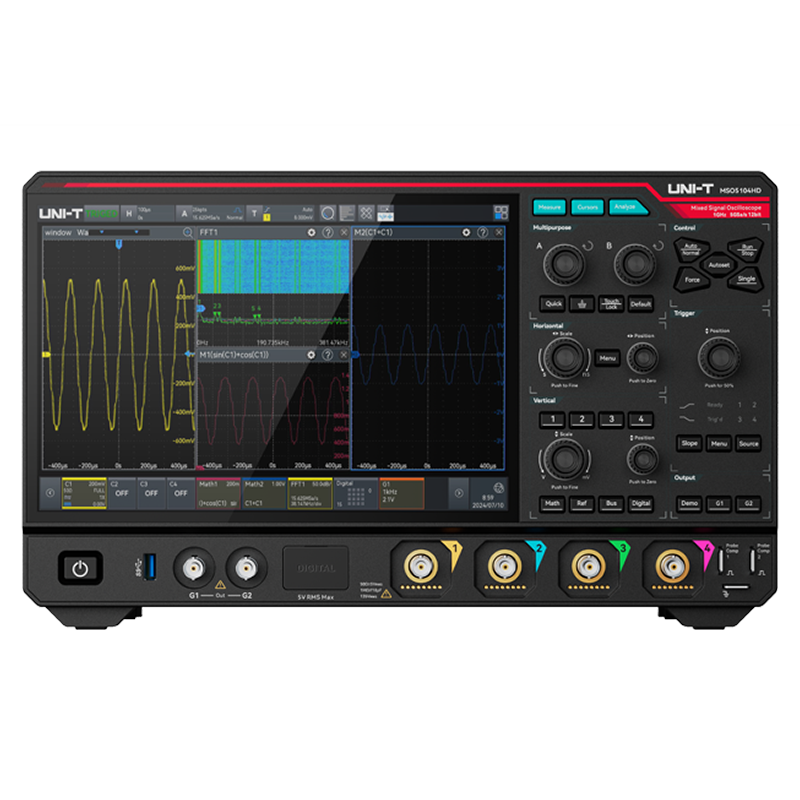

MSO5104HD 1 GHz 4 + 16D 5 GSa/s 500 Mpts 50 MHz opt 10.1" Touch
UPO6036HD 350 MHz 6 5 GSa/s 500 Mpts β€” 12.1" Touch
UPO6038HD 350 MHz 8 5 GSa/s 500 Mpts β€” 12.1" Touch
UPO6056HD 500 MHz 6 5 GSa/s 500 Mpts β€” 12.1" Touch
UPO6058HD 500 MHz 8 5 GSa/s 500 Mpts β€” 12.1" Touch
UPO6106HD 1 GHz 6 5 GSa/s 500 Mpts β€” 12.1" Touch
UPO6108HD 1 GHz 8 5 GSa/s 500 Mpts β€” 12.1" Touch
UPO6034LP 350 MHz 4 5 GSa/s 500 Mpts 50 MHz opt None (1U rack)
UPO6038LP 350 MHz 8 5 GSa/s 500 Mpts β€” None (1U rack)
UPO6054LP 500 MHz 4 5 GSa/s 500 Mpts 50 MHz opt None (1U rack)
UPO6058LP 500 MHz 8 5 GSa/s 500 Mpts β€” None (1U rack)
UPO6104LP 1 GHz 4 5 GSa/s 500 Mpts 50 MHz opt None (1U rack)
UPO6108LP 1 GHz 8 5 GSa/s 500 Mpts β€” None (1U rack)
MSO6104HDP 1 GHz 4 + 16D opt 10 GSa/s 1 Gpts 50 MHz opt 12.1" Touch
MSO6204HDP 2 GHz 4 + 16D opt 10 GSa/s 1 Gpts 50 MHz opt 12.1" Touch
MSO8504HD 5 GHz 4 + 16D opt 20 GSa/s 1 Gpts (2 Gpts opt) 60 MHz opt 15.6" Touch
MSO8604HD 6 GHz 4 + 16D opt 20 GSa/s 1 Gpts (2 Gpts opt) 60 MHz opt 15.6" Touch

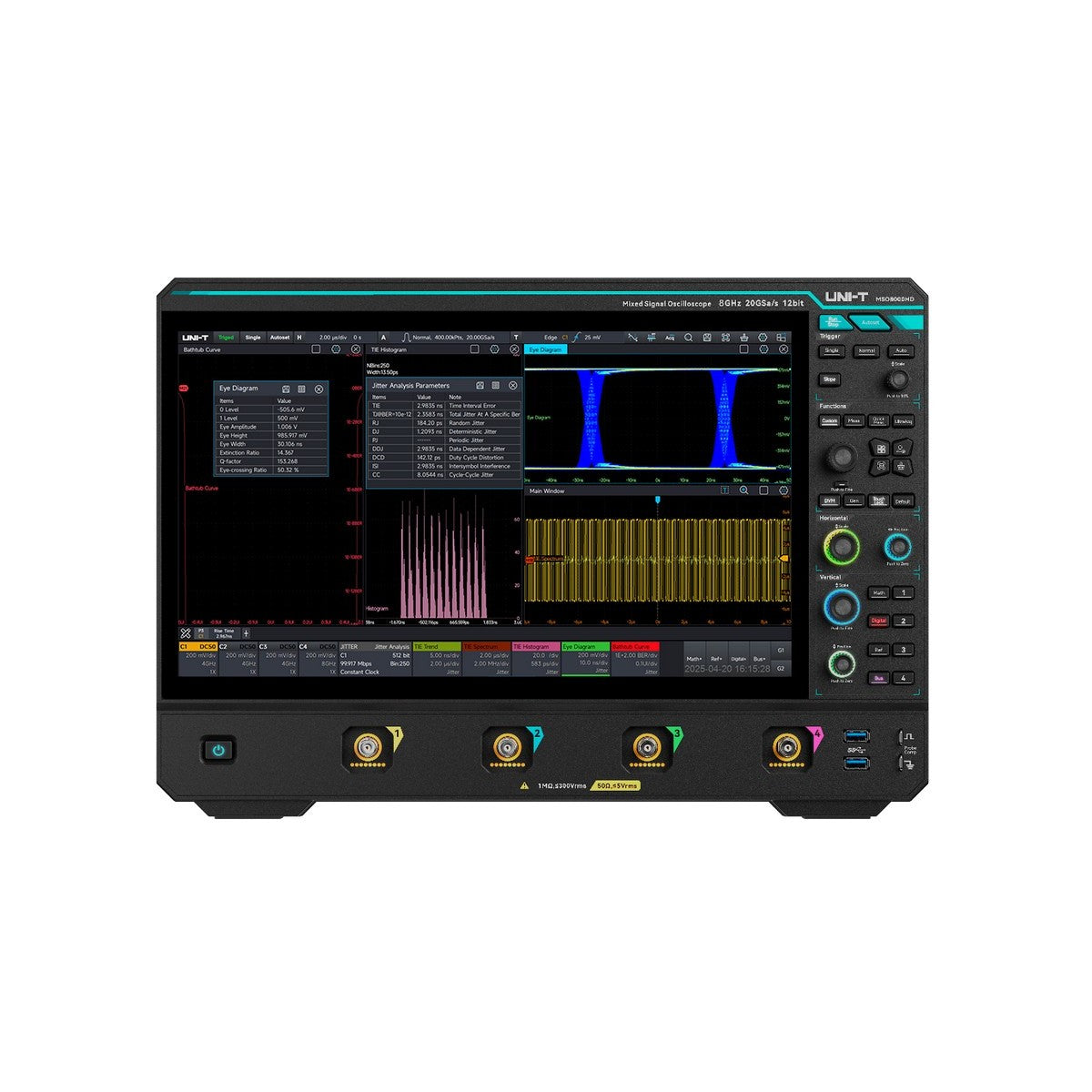

MSO8804HD 8 GHz 4 + 16D opt 20 GSa/s 1 Gpts (2 Gpts opt) 60 MHz opt 15.6" Touch

Recommended Configurations

Education / Teaching Lab

UPO1082HD or UPO1152HD

Most affordable 12-bit entry. 80 or 150 MHz covers Arduino, Raspberry Pi GPIO, audio circuits, and most teaching content. 7" touch display, compact bench footprint.

Embedded Development

MSO1254HD-S or MSO3034HD

16 logic channels for digital bus capture. MSO1254HD-S adds a built-in 25 MHz generator for stimulus. MSO3034HD adds CAN-FD decode and 500 Mpts memory for longer protocol captures.

R&D Bench, Signal Fidelity

UPO2204HD or MSO5054HD

200–500 MHz at 12-bit gives genuine ENOB headroom for low-amplitude debug. 10.1" touch reduces menu drilling. MSO5054HD adds logic channels and 5 GSa/s for tighter timing analysis.

Automotive (CAN-FD, FlexRay, SENT)

MSO3054HD + AUTO bundle

500 MHz analog + 16 logic, automotive serial bundle covers CAN, CAN-FD, LIN, FlexRay, SENT. Step up to MSO5054HD for CAN-XL.

Power Electronics Validation

MSO5054HD + PWR option

12-bit captures switching ripple and crossover detail; advanced power analysis adds ripple, harmonics, switching loss, and SOA testing. Logic channels for gate-drive monitoring.

Multi-Phase Motor Drives and Multi-Rail Power

UPO6058HD or UPO6108HD + PWR option

Eight 12-bit channels show three phase voltages, three phase currents and two more signals on one time base. The PWR option (Optional) adds three-phase power analysis.

High-Speed Serial / Compliance

MSO6204HDP or MSO8000HD + compliance options

MSO6204HDP: 2 GHz at 10 GSa/s with USB 2.0, 100BASE-TX and 1000BASE-T compliance options and jitter analysis (all Optional). Step up to the MSO8000HD for 5, 6 or 8 GHz at 20 GSa/s.

ATE and Production Racks

UPO6034LP or UPO6108LP

12-bit acquisition in a 1U chassis, 4 or 8 channels, driven over LAN by SCPI. No display to pay for in a rack that nobody looks at.

Why Choose UNI-T HD?

12-Bit Standard

Every HD model ships with a 12-bit ADC β€” not a high-resolution mode toggled off when you need bandwidth. Detail and dynamic range are baseline, not a premium option.

Integrated Toolset

Scope, FFT spectrum, logic analysis, protocol decode, power analysis, and (on -S/AWG models) signal generation in one chassis. Fewer instruments, fewer cables, less drift.

Upgrade Path

Bandwidth and feature options activate via software license β€” start with what fits today's project, scale up without replacing the instrument.

5-Year Warranty

3 years standard plus 2 more years when you register the instrument for free, on every HD model, parts and labor. Industry-standard is 3 years; this is 5.

FAQ

Is 12-bit always better than 8-bit?

For amplitude precision, yes β€” 12-bit resolves 4096 levels vs 256 for 8-bit, surfacing detail in low-level signals and improving measurement accuracy. For raw bandwidth and sample rate at the same price point, 8-bit scopes can sometimes go higher. Choose based on whether amplitude detail or top-end bandwidth matters more to your application.

What's the difference between MSO and UPO?

MSO = Mixed-Signal Oscilloscope, includes 16-channel logic analyzer capability. UPO = standard analog-only oscilloscope. If you're capturing digital buses (SPI, IΒ²C, parallel logic), pick MSO. If you only need analog channels, UPO is more cost-effective per channel.

Do I need 6 or 8 channels?

A three-phase inverter or motor drive takes six channels to see every phase voltage and current together, which is what the 6-channel UPO6000HD models cover. Choose 8 channels when you also want the DC bus or a gate signal, or when you supervise more rails than a 4-channel scope can hold.

Can I upgrade bandwidth after purchase?

Yes on MSO3000HD, MSO5000HD, UPO2000HD, UPO6000HD and MSO6000HDP, which offer bandwidth upgrade licenses. UPO1000HD, MSO1000HD, UPO6000LP and MSO8000HD bandwidth is fixed at purchase.

Can I add the signal generator later?

On MSO3000HD, MSO5000HD, MSO6000HDP, MSO8000HD and the 4-channel UPO6000LP models, the generator is a software-activated option you can add at any time. On MSO1000HD, the -S variant ships with the generator built in and it can't be added later, so choose -S up front if you want it. UPO1000HD, UPO2000HD and UPO6000HD have no generator.

What probes are included?

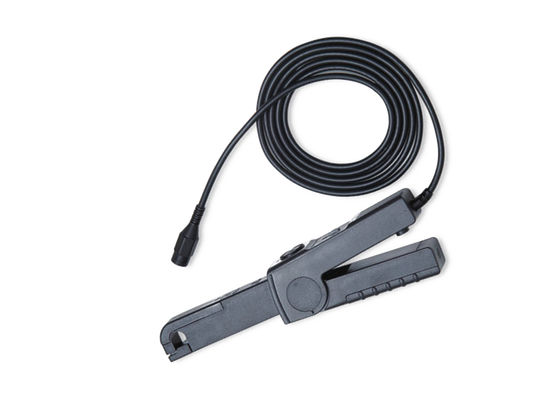

Each HD model ships with passive probes matched to its bandwidth. Differential, current, and high-voltage probes are available separately.

What's covered under the 5-year warranty?

Parts and labor for the full 5-year term: 3 years standard, plus 2 more years when you register the instrument for free.

12-bit precision from bench to lab β€” choose the HD scope that fits your workflow.
