MSO1000HD Oscilloscopes

  The UNI-T MSO1000HD Series high-resolution oscilloscopes deliver 12-bit precision, 250 MHz bandwidth, and advanced mixed-signal capabilities in a compact, accessible package. Powered by Ultra Phosphor 3.0 and offering up to 1,000,000 wfms/s waveform capture rate, these scopes uncover details hidden from conventional 8-bit instruments. With nine integrated tools—including oscilloscope, logic analyzer, function generator (on “-S” models), spectrum and protocol analyzers—engineers gain unmatched visibility across analog, digital, and power domains. The 7-inch capacitive touchscreen with gesture support enhances usability in both lab and field environments. Whether you're debugging embedded systems, validating analog designs, or teaching the next generation of engineers, the MSO1000HD Series provides professional-grade performance and versatility in a cost-effective footprint.
Bundle Up and Save!
Now through 12/31/25 save up to 30% on UNI-T MSO/UPO3000 or MSO/UPO2000 series oscilloscopes with Free Software bundles.
Learn More Here
Sort by
Filter by
Availability
Bandwidth
Channels
Memory Depth
Logic Probes
Signal Generator

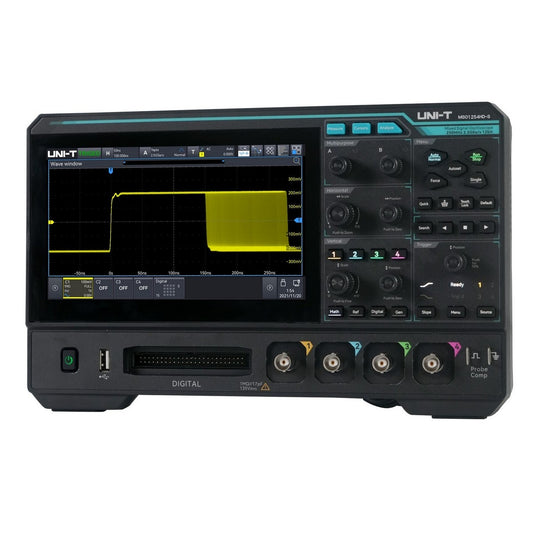

MSO1254HD-S 250MHz 4Ch MSO with 1Ch AWG

Contact Us for Lead Time
$899.00

MSO1254HD 250MHz 4Ch MSO

Contact Us for Lead Time
$769.00

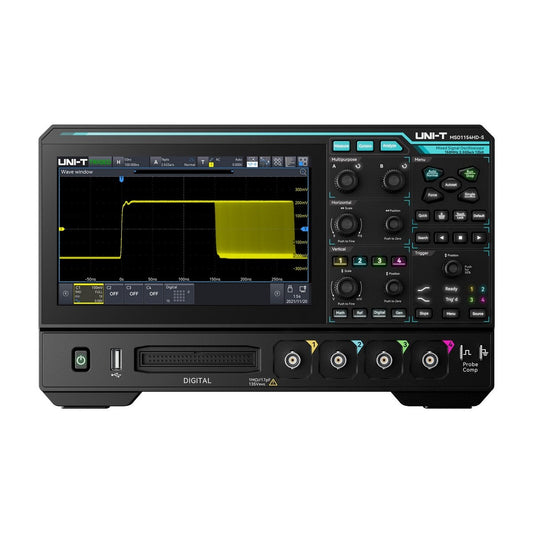

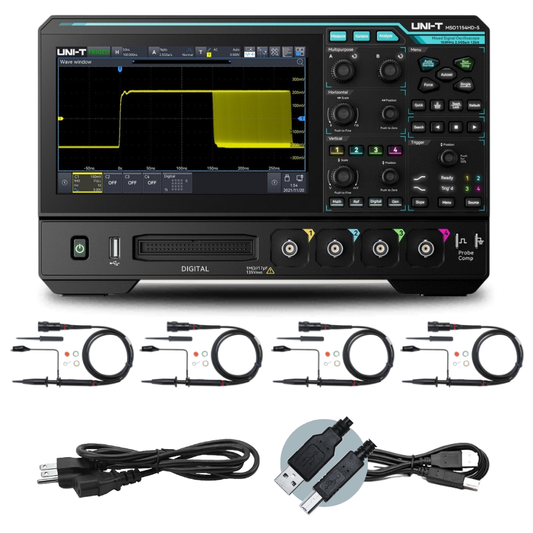

MSO1154HD-S 150MHz 4Ch MSO with 1Ch AWG

Contact Us for Lead Time
$769.00

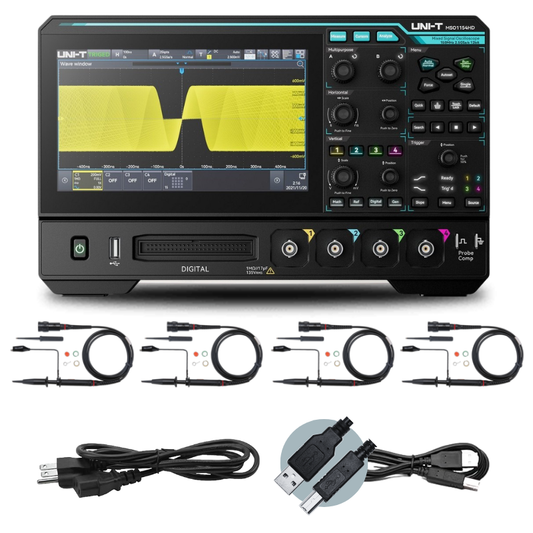

MSO1154HD 150MHz 4Ch MSO

Contact Us for Lead Time
$659.00

MSO1000HD Oscilloscopes DOWNLOADS - User Manual, Data Sheet, Guides, Firmware

UNI-T High-Definition Oscilloscope Buying Guide

Choose the Right 12-Bit MSO for Your Needs

UNI-T’s high-definition oscilloscopes offer 12-bit resolution, exceptional signal fidelity, deep acquisition memory, and built-in analysis tools—all at highly competitive pricing. This guide will help you select the right model for your workflow, whether you’re in embedded design, power electronics, education, or high-speed validation.

Why UNI-T HD?

  • 12-bit ADC — 16× more detail than 8-bit scopes
  • Low noise floor — down to 60 μVrms
  • Integrated toolset — Oscilloscope, Logic Analyzer, Spectrum Analyzer, Generator, Protocol Decoder, Power Analyzer
  • Ultra Phosphor 3.0 — Up to 1.5M wfms/s with 256-level color grading
  • Gesture-based Zone Trigger — Intuitive signal isolation
  • Upgradeable bandwidth & options — Scale as your needs grow

Compare All HD Series

Series Bandwidth Channels Sample Rate Memory Generator Display Best For
UPO1000HD 80 / 150 MHz 2 or 4 1.25 GSa/s 100 Mpts None 7" Touch Education, portable use
MSO1000HD 150 / 250 MHz 4 + 16D 2.5 GSa/s 100 Mpts 25 MHz (1ch) 7" Touch Entry-level mixed signal
UPO2000HD 70 – 200 MHz 2 or 4 2.5 GSa/s 100 Mpts None 10.1" Touch R&D, embedded systems
MSO3000HD 200 –500 MHz 4 + 16D 2.5 GSa/s 500 Mpts 50 MHz (2ch) 10.1" Touch Advanced embedded, industrial, automotive
MSO5000HD 350 MHz – 1 GHz 4 + 16D 5 GSa/s 500 Mpts 50 MHz (2ch) 10.1" Touch High-speed systems, R&D, medical

Recommended Use Cases

  • UPO1000HD: Education, portable test stations
  • MSO1000HD: Embedded development, automotive basics
  • UPO2000HD: Lab testing, signal analysis, power debug
  • MSO3000HD: Medium-speed MSO, CAN-FD, advanced analog
  • MSO5000HD: High-speed interfaces, precision power, protocol-rich systems

Protocol & Power Analysis Options

Add advanced capabilities through optional bundles:

  • Protocols: UART, I²C, SPI, CAN, LIN, CAN-FD, FlexRay, SENT, Audio, MIL-STD, ARINC
  • Power: Ripple, harmonics, switching loss, startup, modulation, SOA
  • Logic Probes: UT-M15, UT-M26
  • Probe Types: Passive, differential, current, high-voltage

Summary

Budget-conscious? Choose UPO1000HD or MSO1000HD.
Need balance? UPO2000HD and MSO3000HD offer depth without high cost.
Need top-tier power? MSO5000HD leads in speed, resolution, and integration.
