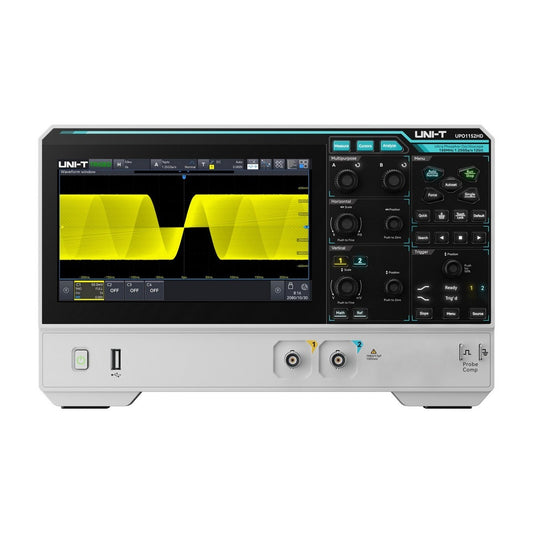

UPO1000HD Oscilloscopes

  The UNI-T UPO1000HD Series offers 12-bit resolution, up to 150 MHz bandwidth, and deep 100 Mpts memory in a compact, USB-C powered form. With Ultra Phosphor 3.0 technology and up to 1,000,000 wfms/s capture rate, these scopes reveal signal details missed by standard 8-bit models. Each unit integrates seven tools—oscilloscope, spectrum and protocol analyzers, DVM, frequency counter, power analysis, and logic functions—into one touchscreen instrument. Ideal for embedded, analog, and power applications, the UPO1000HD Series combines performance, portability, and value.
Bundle Up and Save!
Now through 12/31/25 save up to 30% on UNI-T MSO/UPO3000 or MSO/UPO2000 series oscilloscopes with Free Software bundles.
Learn More Here
Sort by
Filter by
Availability
Bandwidth
Channels
Memory Depth
Logic Probes
Signal Generator

UPO1000HD Oscilloscopes DOWNLOADS - User Manual, Data Sheet, Guides, Firmware

UNI-T High-Definition Oscilloscope Buying Guide

Choose the Right 12-Bit MSO for Your Needs

UNI-T’s high-definition oscilloscopes offer 12-bit resolution, exceptional signal fidelity, deep acquisition memory, and built-in analysis tools—all at highly competitive pricing. This guide will help you select the right model for your workflow, whether you’re in embedded design, power electronics, education, or high-speed validation.

Why UNI-T HD?

  • 12-bit ADC — 16× more detail than 8-bit scopes
  • Low noise floor — down to 60 μVrms
  • Integrated toolset — Oscilloscope, Logic Analyzer, Spectrum Analyzer, Generator, Protocol Decoder, Power Analyzer
  • Ultra Phosphor 3.0 — Up to 1.5M wfms/s with 256-level color grading
  • Gesture-based Zone Trigger — Intuitive signal isolation
  • Upgradeable bandwidth & options — Scale as your needs grow

Compare All HD Series

Series Bandwidth Channels Sample Rate Memory Generator Display Best For

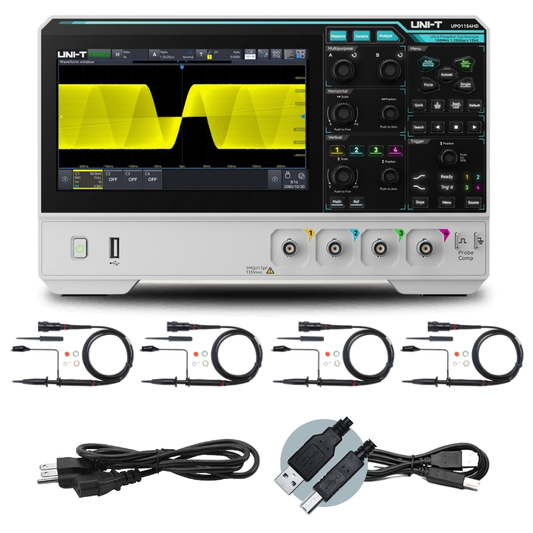

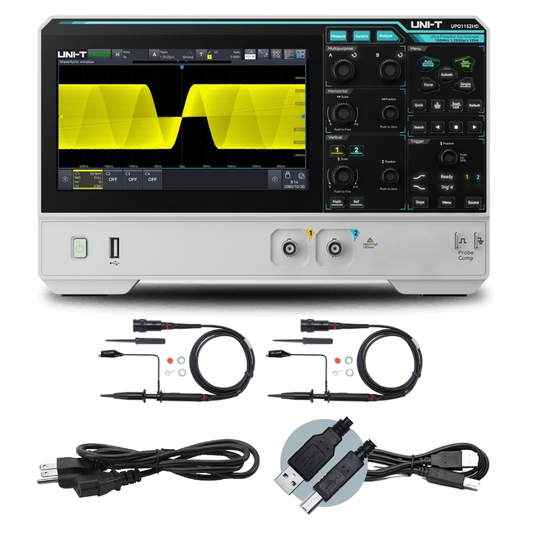

UPO1000HD 80 / 150 MHz 2 or 4 1.25 GSa/s 100 Mpts None 7" Touch Education, portable use
MSO1000HD 150 / 250 MHz 4 + 16D 2.5 GSa/s 100 Mpts 25 MHz (1ch) 7" Touch Entry-level mixed signal
UPO2000HD 70 – 200 MHz 2 or 4 2.5 GSa/s 100 Mpts None 10.1" Touch R&D, embedded systems
MSO3000HD 200 –500 MHz 4 + 16D 2.5 GSa/s 500 Mpts 50 MHz (2ch) 10.1" Touch Advanced embedded, industrial, automotive
MSO5000HD 350 MHz – 1 GHz 4 + 16D 5 GSa/s 500 Mpts 50 MHz (2ch) 10.1" Touch High-speed systems, R&D, medical

Recommended Use Cases

  • UPO1000HD: Education, portable test stations
  • MSO1000HD: Embedded development, automotive basics
  • UPO2000HD: Lab testing, signal analysis, power debug
  • MSO3000HD: Medium-speed MSO, CAN-FD, advanced analog
  • MSO5000HD: High-speed interfaces, precision power, protocol-rich systems

Protocol & Power Analysis Options

Add advanced capabilities through optional bundles:

  • Protocols: UART, I²C, SPI, CAN, LIN, CAN-FD, FlexRay, SENT, Audio, MIL-STD, ARINC
  • Power: Ripple, harmonics, switching loss, startup, modulation, SOA
  • Logic Probes: UT-M15, UT-M26
  • Probe Types: Passive, differential, current, high-voltage

Summary

Budget-conscious? Choose UPO1000HD or MSO1000HD.
Need balance? UPO2000HD and MSO3000HD offer depth without high cost.
Need top-tier power? MSO5000HD leads in speed, resolution, and integration.

Need Help?

Contact our team to configure your ideal oscilloscope with the right probes and software.

🛠️ Ready to upgrade your test bench? Explore UNI-T’s HD series and experience unmatched clarity and value.
