Complete Your Test Solution
Combine this AWG option with the MSO8000HD-BND Protocol Analysis & Jitter Suite for stimulus-response testing of serial protocols. The AWG provides signal generation capabilities for creating test patterns, while the bundle delivers comprehensive protocol analysis and jitter measurement.
This powerful combination enables closed-loop testing of communication interfaces, allowing you to both generate protocol traffic and analyze the response in a single instrument. Both feature perpetual licensing with zero recurring fees, potentially saving $10,000+ over the instrument's lifetime.
Compatibility Information
Compatible Models: MSO8804HD, MSO8504HD (planned release)
Installation: Software license activation - no hardware modification required

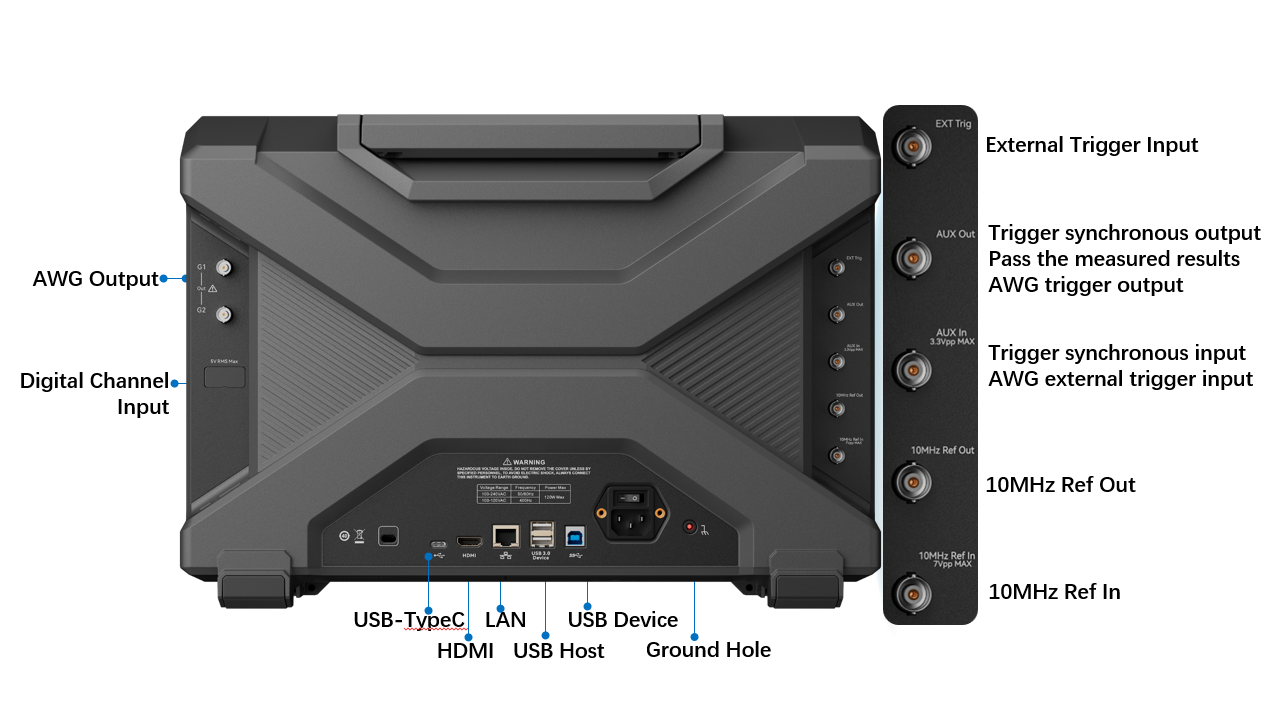

Output Connectors: Dedicated BNC connectors on rear panel
Synchronization: Fully synchronized with oscilloscope timebase and triggering
Application Examples
Power Supply Response Testing
Generate precise load transients to characterize switching power supply response, stability margins, and recovery times. The synchronized measurement capability captures complete transient behavior including overshoot, settling time, and regulation accuracy under dynamic load conditions.
Amplifier Characterization
Create complex multi-tone test signals for intermodulation distortion analysis, or generate swept-frequency stimuli for automated frequency response measurements. The high sample rate and 14-bit resolution ensure accurate representation of test signals across the full audio and RF spectrum.
Communication System Testing
Generate protocol-compliant test patterns, modulated carrier signals, or custom communication waveforms. The arbitrary waveform capability enables creation of realistic communication signals including noise, interference, and protocol violations for comprehensive system validation.
Sensor Simulation
Replicate sensor outputs for testing control systems, data acquisition hardware, or signal conditioning circuits. Custom waveforms can simulate temperature profiles, vibration signatures, or any other sensor-specific signal characteristics.
Frequently Asked Questions
Can the AWG be synchronized with oscilloscope triggering?
Yes, the MSO8000HD-AWG is fully integrated with the oscilloscope triggering system. Waveform generation can be triggered by the same events that trigger acquisition, ensuring perfect timing correlation between stimulus and measurement.
What is the maximum waveform length for arbitrary waveforms?
Each AWG channel supports up to 1M points of arbitrary waveform memory, allowing creation of complex, long-duration custom waveforms or high-resolution signal reproduction.
Can I import waveforms from other sources?
Yes, the AWG supports standard waveform file formats and includes tools for importing captured signals, mathematical constructions, or externally generated waveform data.
Is this option included in the MSO8000HD-BND Protocol Analysis & Jitter Suite?
No, this option is not included in the MSO8000HD-BND Protocol Analysis & Jitter Suite. The bundle focuses specifically on protocol analysis capabilities (15 protocol decoders) and advanced jitter analysis. However, this option complements the bundle perfectly for engineers requiring both protocol analysis and Arbitrary Waveform Generation. Both can be purchased together to create a comprehensive solution, and like all UNI-T software options, they feature perpetual licensing with zero recurring fees.
Complete Your Test Solution
The MSO8000HD-AWG upgrade transforms your oscilloscope into a comprehensive test platform that eliminates the complexity, cost, and timing uncertainties of multi-instrument setups. Whether performing device characterization, stimulus-response testing, or system validation, this integrated solution provides the precision and convenience that modern engineering demands.
Ready to integrate stimulus generation with your measurements? Order the MSO8000HD-AWG or explore the comprehensive MSO8000HD-BND Complete Suite for maximum capability and value.
