UNI-T 8-Bit Oscilloscope — Buyer's Guide
About This Collection

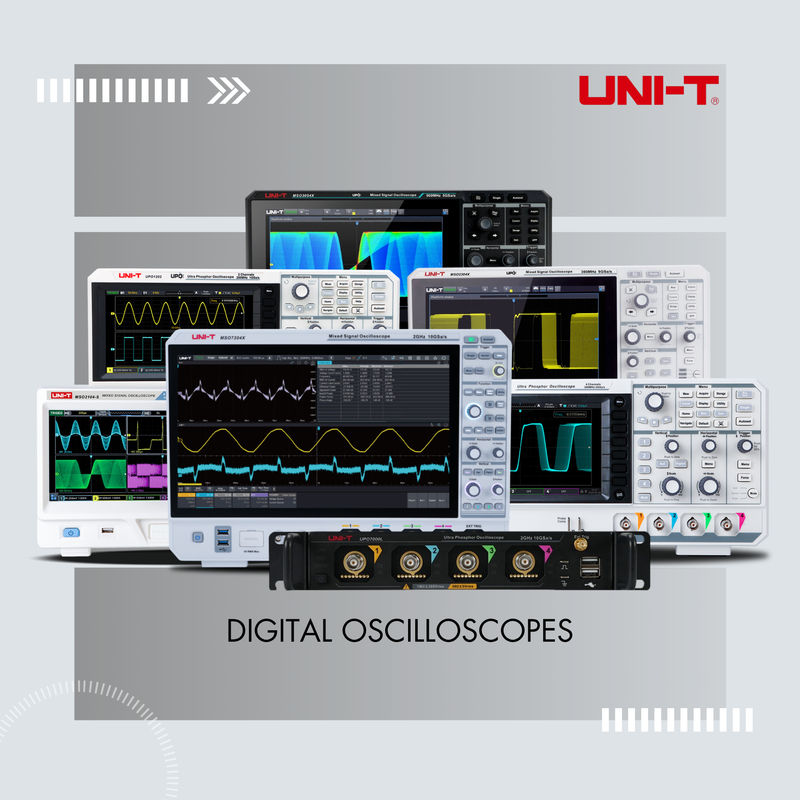

The 8-bit family covers 45 active models across two architectures: 24 DSO (Digital Storage Oscilloscope — analog channels only) and 21 MSO (Mixed Signal Oscilloscope — analog plus 16 digital channels). All resolve voltage to 256 vertical steps and all carry the UNI-T 3+2 warranty.
If your work is power electronics, motor drives, audio, or precision analog where you need to see small signals on top of large ones, you want 12-bit HD scopes instead — this guide covers the 8-bit side of the catalog.
What Every 8-Bit UNI-T Scope Shares
Vertical resolution
8-bit (256 levels) with Hi-Res averaging mode for noise reduction
Memory depth
Up to 1 Gpts depending on series
Update rate
Up to 2,000,000 waveforms/sec (X-series) for catching infrequent events
Protocol decode
I²C, SPI, UART, RS-232/485, CAN, LIN included on every model
Triggers
Edge, pulse-width, slope, runt, video, serial bus, logic pattern
Math
FFT, +/−/×/÷, derivative, integral, advanced waveform math
Connectivity
USB-Host, USB-Device standard; LAN on mid- and upper-tier
Warranty
3+2 years — parts and labor, when you register the instrument for free
Decision 1: DSO or MSO?
DSO (Digital Storage Oscilloscope)
Analog channels only
Best for: analog work, signal integrity, RF debugging, education, basic protocol debug (single bus, decoded from analog channels). Smaller chassis, lower cost, simpler workflow. Pick DSO when you don't need to capture parallel logic alongside the analog.
MSO (Mixed Signal Oscilloscope)
Analog + 16 digital channels
Best for: embedded design, FPGA debug, bus protocol analysis, control loops, anywhere you want to see analog and parallel logic on the same time base. The 16 digital channels capture parallel buses, address lines, control signals — the things that drive embedded systems.
Decision 2: Pick Your Bandwidth Tier
Bandwidth determines what edge rates you can capture cleanly. Rule of thumb: scope bandwidth should be 5× the highest signal frequency of interest, or 3× the highest digital clock rate.
| Tier |
Bandwidth |
Series |
Best for |
| Entry |
50 – 200 MHz |
UTD2000CL/CL+, UTD2000CEX+
|
Education, hobby, repair, basic analog and slow logic |
| General-purpose |
50 – 200 MHz |
UPO1000, UPO1002, UPO1000CS, MSO/UPO2000
|
Embedded, sensor, audio, slow-to-mid digital, lab and field work |
| Engineering |
100 – 350 MHz |
MSO2000X, MSO3000E, MSO3000X
|
Mid-speed digital, fast embedded, signal integrity, protocol-heavy debug |
| Lab |
500 MHz |
MSO3504E, MSO3054X
|
FPGA, fast logic, complex serial buses, design verification |
| Rack-mount lab |
1 – 2 GHz |
UPO7000L
|
1U rack-mount ATE, automated test, headless production. For 12-bit in a rack, see the UPO6000LP in the HD line. |
| Lab-grade flagship |
1 – 2 GHz |
MSO7104X, MSO7204X |
High-speed digital, RF, USB 3, PCIe Gen 1/2, advanced research |
Series at a Glance
| Series |
Models |
Bandwidth |
Architecture |
What's special |
| UTD2000CL / CL+ |
4 DSO |
50 – 150 MHz |
DSO, 2-channel |
Entry-tier, 7" display, education and field repair |
| UTD2000CEX+ |
3 DSO |
50 – 200 MHz |
DSO, 2-channel |
Higher-sample-rate UTD2000 variant, value-pick education |
| UPO1002 |
2 DSO |
100 / 200 MHz |
DSO, 2-channel |
Compact value-pick, 8" display, USB logging |
| UPO1000CS |
2 DSO |
100 / 200 MHz |
DSO, 2-channel |
Compact 2-channel bench scope |
| UPO1000 |
3 DSO |
50 – 200 MHz |
DSO, 4-channel |
4-channel value bench, Ultra Phosphor 2.0 display |
| MSO/UPO2000 |
8 MSO + 4 DSO |
100 / 200 MHz |
MSO + signal-gen variants, DSO |
Built-in arbitrary waveform generator on the -S variants |
| MSO2000X / 2200X / 2300X |
3 MSO |
100 – 300 MHz |
MSO, X-series |
5 GSa/s, deep memory, 2 Mwfms/s update rate |
| MSO3000E / UPO3000E |
6 MSO + 4 DSO |
350 / 500 MHz |
MSO and DSO, value engineering tier |
2.5 GSa/s, signal-generator variants |
| MSO3000X |
2 MSO |
350 / 500 MHz |
MSO, X-series |
5 GSa/s, 500 Mpts memory |
| UPO7000L |
2 DSO |
1 – 2 GHz |
DSO, 1U rack-mount, 8-in-1 |
Headless lab-grade, automated rack integration |
| MSO7000X |
2 MSO |
1 – 2 GHz |
MSO, 9-in-1 flagship |
10 GSa/s, 15.6" touch, lab-grade benchtop |
Recommended Configurations
Education and hobby
Pick: UTD2052CL+ or UTD2102CL+ — 50–100 MHz DSO at the entry price point. 2-channel, 500 MSa/s, 7" display, covers everything an electronics course or a hobbyist bench needs.
Embedded design & firmware debug
Pick: MSO2104 or MSO2204 — 100–200 MHz 4-channel MSO with 16 digital channels. Decode I²C, SPI, UART, CAN inline; capture parallel buses alongside analog rails. The -S variants add a built-in signal generator for stimulus.
RF and high-speed analog
Pick: UPO1204 through UPO3504E — DSO from 200 to 500 MHz, 4-channel, fast update rate. Pick by your highest signal frequency × 5.
FPGA, fast logic, signal integrity
Pick: MSO3054X or MSO7104X — 500 MHz to 1 GHz MSO with deep memory, fast capture rate, and full protocol decode. MSO7104X is the 9-in-1 flagship for serious lab work.
Rack-mount production / ATE
Pick: UPO7000L — 1U headless chassis, SCPI over LAN, 1 or 2 GHz at 10 GSa/s. Drop into automated test racks for production validation, design verification, or accelerated reliability testing. Need 12-bit or 8 channels in a rack? See the UPO6000LP.
Lab-grade flagship
Pick: MSO7204X — 2 GHz, 4-channel, 10 GSa/s, 15.6" touch display, nine-in-one capability set including logic analyzer, function generator, jitter analyzer, power analyzer, spectrum analyzer, protocol analyzer, counter, and DMM. The single instrument that replaces a bench rack.
Why Choose UNI-T 8-Bit Scopes?
Nine-in-one architecture
Mid- and upper-tier scopes can run oscilloscope, logic analyzer, function generator, jitter and eye analyzer, power analyzer, spectrum analyzer, protocol analyzer, counter, and digital multimeter in one chassis, depending on the series and the options you add.
Protocol decode standard
I²C, SPI, UART, RS-232/485, CAN, LIN decoded inline on every model in the line. Add 1553B, FlexRay, USB on the X-series.
Deep memory, fast capture
Up to 1 Gpts capture depth and 2,000,000 waveforms/sec acquisition rate on X-series. Rare glitches and infrequent events become visible without persistence-display tricks.
5-year warranty
3 years standard plus 2 more years when you register the instrument for free, parts and labor — longer than the 2- and 3-year warranties typical at competing brands, at every price point from $209 entry to lab-grade flagship.
FAQ
How do I pick between MSO and DSO in the same bandwidth class?
If you ever need to see digital signals alongside analog — embedded design, FPGA, bus protocols, control systems — pick MSO. The 16 digital channels make the difference. If you work purely with analog signals or single-bus serial debug, DSO is the simpler, lower-cost choice.
Are the -S variants worth the upcharge?
The -S variants add a built-in dual-channel arbitrary waveform generator (typically 25 MHz, 200 MSa/s). If you currently use a separate signal generator for stimulus during debug, integrating it saves bench space and one instrument's worth of budget. If you already own a function generator or your work is observation-only, the base variant is the right pick.
What's the difference between the E-series and X-series at 350–500 MHz?
X-series uses faster ASICs: 5 GSa/s real-time sample rate, deeper memory, higher waveform-per-second update rate, and richer trigger options including parametric and serial-bus triggers. E-series runs 2.5 GSa/s with the same general feature set at a lower price point. Pick X-series if waveform capture rate or trigger sophistication matter; pick E-series for value at the same bandwidth.
Can I add logic channels later to a DSO?
The UPO1000, UPO2000, and UPO3000E series accept an optional MSO logic pod that adds 16 digital channels. Upgrading a DSO to MSO capability is a single SKU purchase rather than a chassis replacement, useful when you don't need logic on day one but might later.
I'm shopping the 1 GHz tier. 12-bit or 8-bit?
At 1 GHz with 4 analog channels you can choose 12-bit (MSO5104HD or MSO6104HDP) or 8-bit (MSO7104X). Pick 12-bit if your work involves power, motor drives, EV, audio, or precision analog where amplitude resolution matters; the MSO6104HDP adds 10 GSa/s and an upgrade path to 2 GHz. Pick MSO7104X for the 9-in-one feature set. Need 6 or 8 channels at 1 GHz? See the 12-bit UPO6106HD and UPO6108HD.
What probes ship in the box?
Every UNI-T scope ships with passive probes matched to the bandwidth class (one per analog channel). Current probes, high-voltage differential probes, and active probes for fast-edge or floating-rail work are sold separately under oscilloscope accessories.
DSO for analog work. MSO for mixed-signal. Bandwidth × 5 over your fastest signal. The rest is the same instrument family.
