UPO2000HD Oscilloscopes

The UPO2000HD line is a 6-SKU 12-bit oscilloscope series covering 70 MHz, 100 MHz, and 200 MHz bandwidth at 2-channel and 4-channel configurations. All six models share 2.5 GSa/s sample rate, 100 Mpts memory depth, and a 10.1-inch touch display. 12-bit vertical resolution at the entry-mid bandwidth tier serves power-integrity work, sensor characterization, and applications where 8-bit dynamic range constrains the measurement. Nine serial-bus protocol decoders are included standard — RS-232/UART, I²C, SPI, CAN, CAN-FD, LIN, FlexRay, SENT, and Audio — with no license fees and no time-boxed unlocks. The UPO2000HD uses a lifetime-unlock option architecture for advanced power analysis and bandwidth upgrades — each a one-time purchase, permanently activated to the instrument.

Resources

Documents & Downloads

Data Sheets 1

UPO2000HD Series Digital Oscilloscopes - Data Sheet →

User Manuals 1

UPO2000HD Series Digital Oscilloscopes - User Manual →

Programming Manuals 1

UPO2000HD Series Digital Oscilloscopes - Programming Manual →

Software 2

UPO2000HD Options

4 items

UNI-T High-Definition Oscilloscope Buying Guide

Choose the Right 12-Bit Oscilloscope for Your Needs

UNI-T’s high-definition oscilloscopes offer 12-bit resolution, exceptional signal fidelity, deep acquisition memory, and built-in analysis tools—all at highly competitive pricing. This guide will help you select the right model for your workflow, whether you’re in embedded design, power electronics, education, or high-speed validation.

Why UNI-T HD?

12-bit ADC — 16× more detail than 8-bit scopes
Low noise floor — down to 60 μVrms
Integrated toolset — Oscilloscope, Logic Analyzer, Spectrum Analyzer, Generator, Protocol Decoder, Power Analyzer
Ultra Phosphor 3.0 — Up to 1.5M wfms/s with 256-level color grading
Gesture-based Zone Trigger — Intuitive signal isolation
Upgradeable bandwidth & options — Scale as your needs grow

Compare All HD Series

Series	Bandwidth	Channels	Sample Rate	Memory	Generator	Display	Best For
UPO1000HD	80 / 150 MHz	2 or 4	1.25 GSa/s	100 Mpts	None	7" Touch	Education, portable use
MSO1000HD	150 / 250 MHz	4 + 16D	2.5 GSa/s	100 Mpts	25 MHz (1ch, -S models)	7" Touch	Entry-level mixed signal
UPO2000HD	70 – 200 MHz	2 or 4	2.5 GSa/s	100 Mpts	None	10.1" Touch	R&D, embedded systems
MSO3000HD	200 – 500 MHz	4 + 16D	2.5 GSa/s	500 Mpts	50 MHz (2ch, Optional)	10.1" Touch	Advanced embedded, industrial, automotive
MSO5000HD	350 MHz – 1 GHz	4 + 16D	5 GSa/s	500 Mpts	50 MHz (2ch, Optional)	10.1" Touch	High-speed systems, R&D, medical
UPO6000HD	350 MHz – 1 GHz	6 or 8	5 GSa/s	500 Mpts	None	12.1" Touch	Multi-phase drives, multi-rail power
UPO6000LP	350 MHz – 1 GHz	4 or 8	5 GSa/s	500 Mpts	50 MHz (1ch, Optional, 4-ch models)	None (1U rack-mount)	ATE, production test
MSO6000HDP	1 / 2 GHz	4 + 16D	10 GSa/s	1 Gpts	50 MHz (2ch, Optional)	12.1" Touch	High-speed serial, compliance testing
MSO8000HD	5 / 6 / 8 GHz	4 + 16D	20 GSa/s	1 Gpts (2 Gpts Optional)	60 MHz (2ch, Optional)	15.6" Touch	Lab-grade signal and power integrity

Full model-by-model comparison: HD Oscilloscope Buyer's Guide.

Recommended Use Cases

UPO1000HD: Education, portable test stations
MSO1000HD: Embedded development, automotive basics
UPO2000HD: Lab testing, signal analysis, power debug
MSO3000HD: Medium-speed MSO, CAN-FD, advanced analog
MSO5000HD: High-speed interfaces, precision power, protocol-rich systems
UPO6000HD: Three-phase inverters and motor drives, multi-rail power with 6 or 8 channels
UPO6000LP: ATE racks and production test in a 1U chassis
MSO6000HDP: 1–2 GHz serial links, jitter and eye diagrams, USB 2.0 and Ethernet compliance
MSO8000HD: 5–8 GHz lab-grade signal and power integrity

Protocol & Power Analysis Options

Add advanced capabilities through optional bundles:

Protocols: UART, I²C, SPI, CAN, LIN, CAN-FD, FlexRay, SENT, Audio, MIL-STD, ARINC
Power: Ripple, harmonics, switching loss, startup, modulation, SOA
Logic Probes: UT-M15, UT-M26
Probe Types: Passive, differential, current, high-voltage

Summary

Budget-conscious? Choose UPO1000HD or MSO1000HD.
Need balance? UPO2000HD and MSO3000HD offer depth without high cost.
Need more channels? UPO6000HD gives you 6 or 8 on a bench; UPO6000LP gives you 4 or 8 in a rack.
Need gigahertz bandwidth? MSO5000HD goes to 1 GHz, MSO6000HDP to 2 GHz and MSO8000HD to 8 GHz.

Need Help?

Contact our team to configure your ideal oscilloscope with the right probes and software.

🛠️ Ready to upgrade your test bench? Explore UNI-T’s HD series and experience unmatched clarity and value.

UPO2000HD Oscilloscopes

UPO2072HD70 MHz 2Ch 12-Bit High-Resolution Oscilloscope

UPO2074HD70 MHz 4Ch 12-Bit High-Resolution Oscilloscope

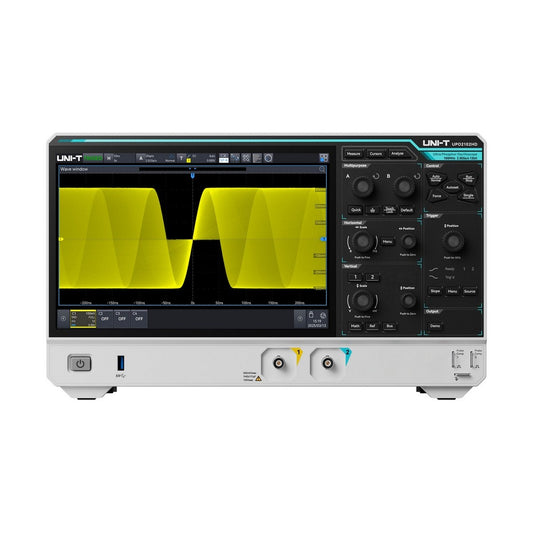

UPO2102HD100 MHz 2Ch 12-Bit High-Resolution Oscilloscope

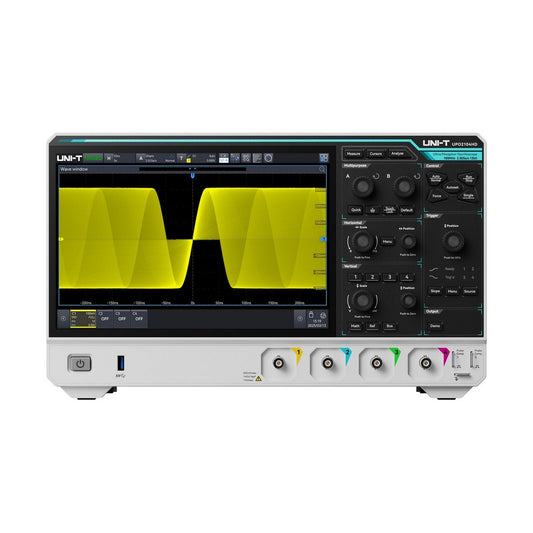

UPO2104HD100 MHz 4Ch 12-Bit High-Resolution Oscilloscope

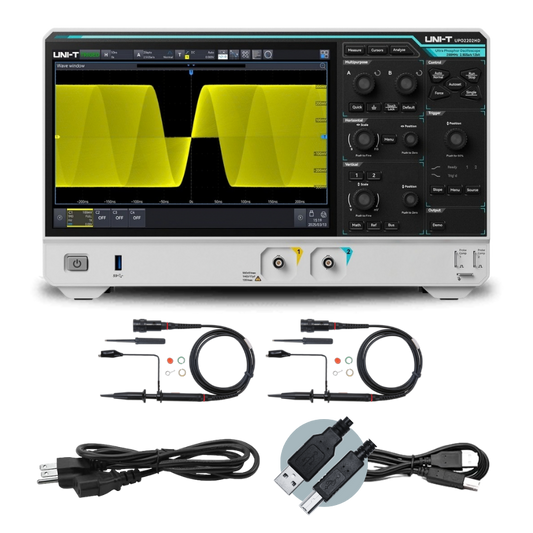

UPO2202HD200 MHz 2Ch 12-Bit High-Resolution Oscilloscope

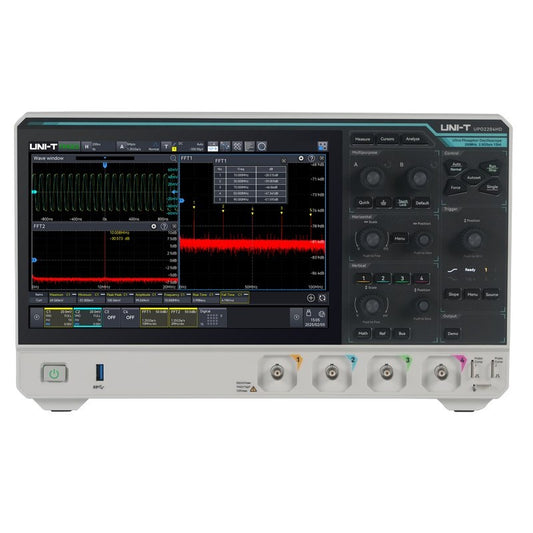

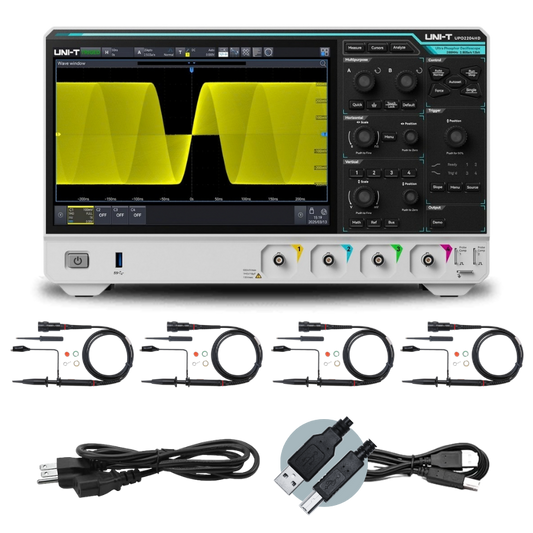

UPO2204HD200 MHz 4Ch 12-Bit High-Resolution Oscilloscope
