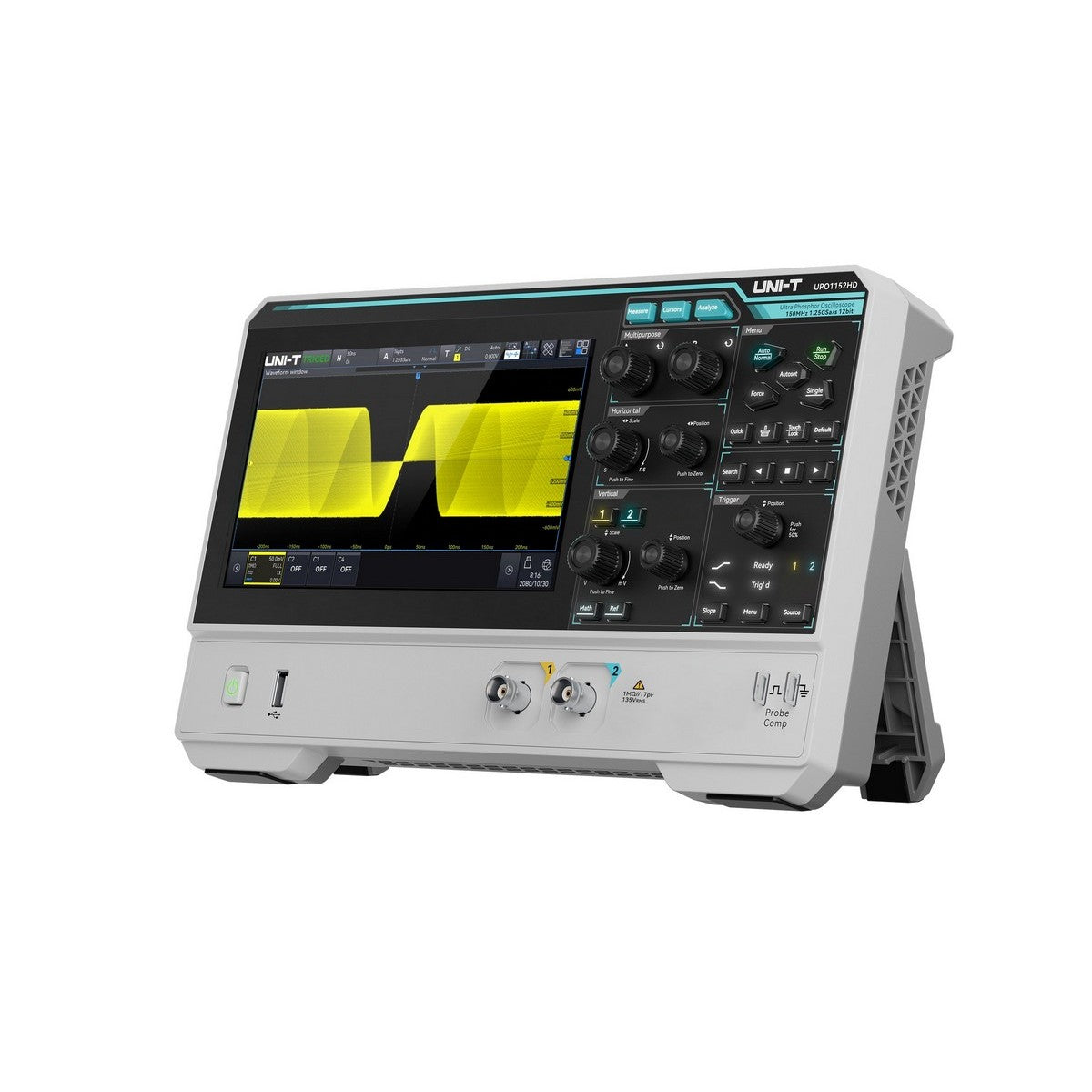

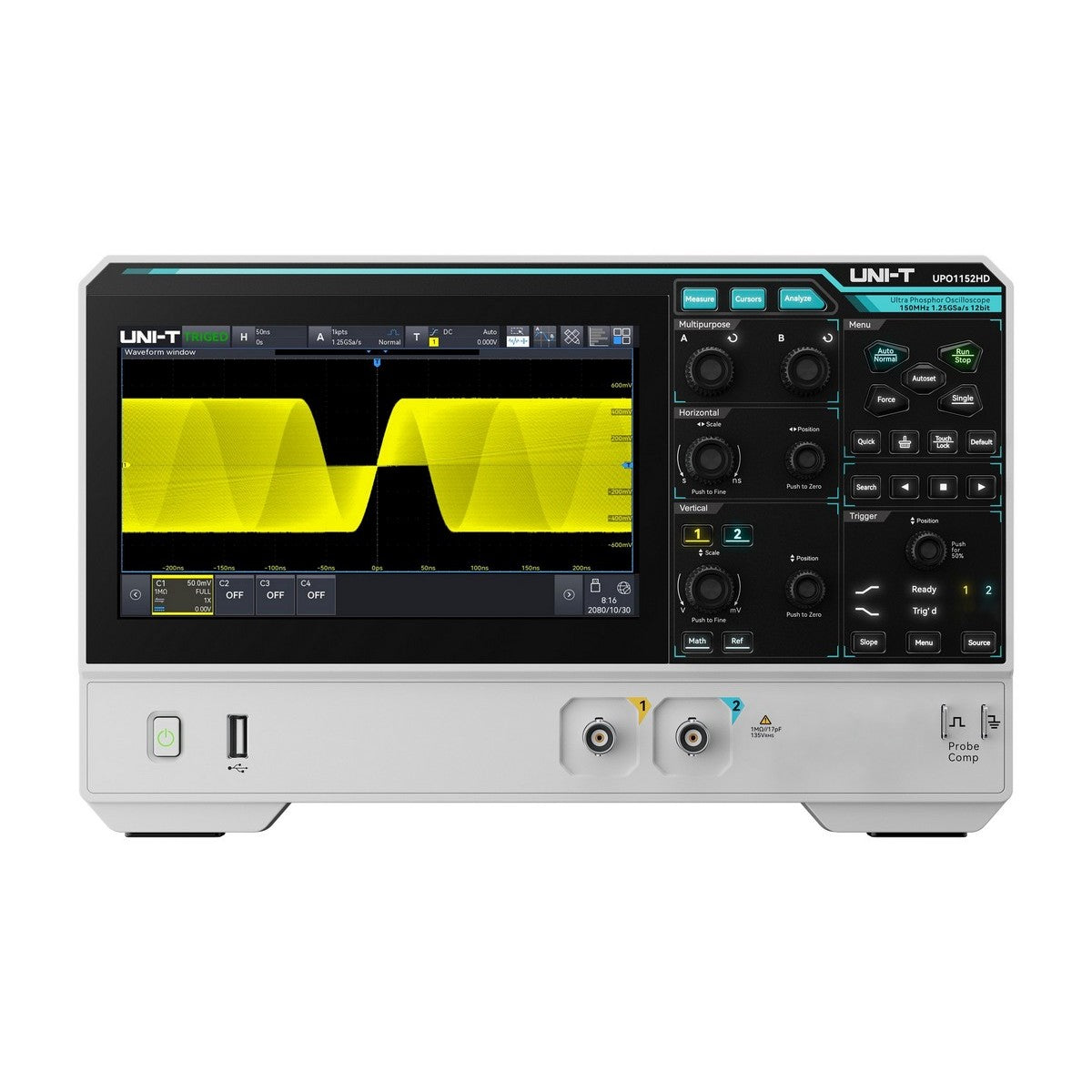

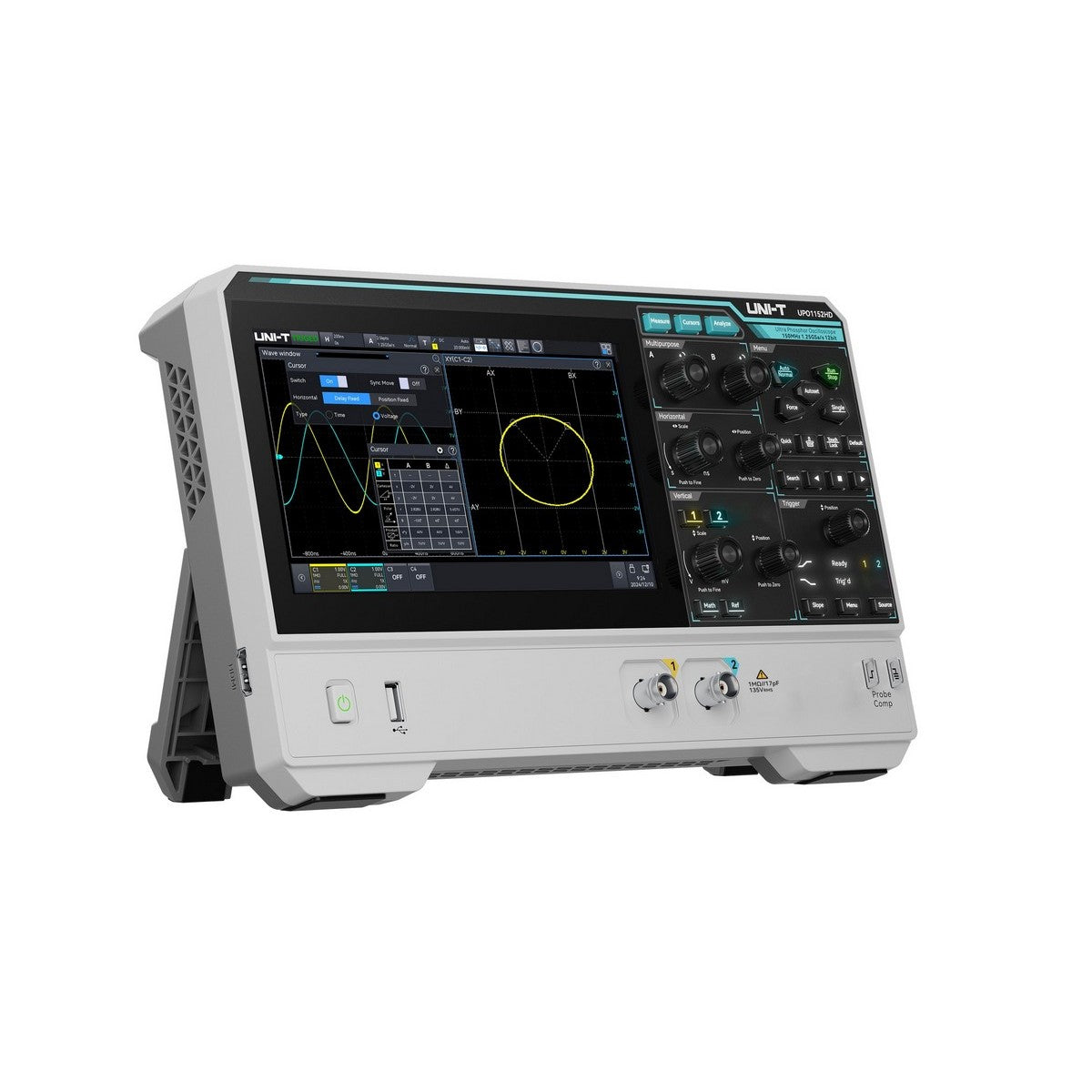

UPO1152HD

150 MHz 2Ch 12-Bit Digital Storage Oscilloscope

$439.00
Sale Contact Us For Lead Time

47 in stock

REQUEST A QUOTE

12-bit 150 MHz 2-channel high-resolution oscilloscope with 1.25 GSa/s sample rate and 100 Mpts memory depth. Six-in-one R12 platform for embedded developers.

View full details

Overview

The UPO1152HD is a 150 MHz, 2-channel high-resolution oscilloscope built around UNI-T's R12™ 12-bit ADC architecture, with 1.25 GSa/s real-time sample rate, 100 Mpts memory depth, and a 7-inch capacitive touchscreen. Native 12-bit resolution gives 4,096 vertical levels — 16× the detail of an 8-bit instrument — enough to resolve power-supply ripple, sensor outputs, and small AC signals riding on DC offsets where 8-bit scopes lose them in the quantization floor.

At 150 MHz with a ≤ 2.2 ns rise time, the UPO1152HD resolves the harmonics and switching transients that drive power-electronics design decisions — GaN/SiC switching nodes, gate-drive ringing, and EMI source identification on switch-mode supplies. USB-C power-bank operation and VESA mounting extend the scope to field characterization where standard AC-powered scopes don't fit.

Key Features

  • R12™ — Real 12-Bit Resolution — Native 12-bit ADC with 4,096 vertical levels at full bandwidth and full sample rate, no ERES averaging required.
  • 150 MHz Bandwidth, 2 Channels — 1.25 GSa/s real-time sample rate, ≤ 2.2 ns calculated rise time.
  • 100 Mpts Memory Depth — Capture full switching cycles and long protocol sequences without trading sample rate for memory.
  • Ultra Phosphor 3.0 Display — Up to 500,000 wfms/s waveform capture rate with 256-level intensity grading, fast enough to catch the intermittent events that slower oscilloscopes spend hours missing.
  • 5 Protocol Decoders Standard — RS-232/UART, I²C, SPI, CAN, LIN included; no optional licenses.
  • Built-In Power Analysis — 12 measurement functions including switching loss, SOA, harmonics, ripple, and startup time.
  • 4-Digit DVM and 6-Digit Frequency Counter — Hardware-accelerated, parallel to scope acquisition.
  • Enhanced FFT to 1 Mpts — Spectrum view with waterfall, four traces, and marker list.
  • 56 Automated Measurements — Statistics, histograms, and trend charts, with up to 21 parameters on screen at once.
  • Zone Trigger — Draw a rectangle on the display to isolate sporadic events without rebuilding the trigger setup.
  • USB-C Power-Bank Operation — Run off any 12V/3A PD source; full bench performance without an AC outlet.
  • VESA 100×100 mm Mounting — Standard mounting interface on the rear panel for tight benches and mobile carts.
  • SCPI + WebServer Control — LAN remote control via SCPI; browser-based access from PC or mobile.

Detailed Features

R12™ — Real 12-Bit Architecture

R12™ is UNI-T's native 12-bit ADC architecture. It samples at 4,096 quantization levels — sixteen times the vertical detail of a conventional 8-bit oscilloscope — and holds that resolution at the full 150 MHz bandwidth and 1.25 GSa/s sample rate. There's no ERES averaging step, no sample-rate trade, and no asterisk on the spec sheet. Background noise is 60 µVrms at full bandwidth, low enough that the Real 12-bit resolution actually shows up on the screen instead of being buried in the noise floor.

For switching-power-supply ripple, sensor signal conditioning, audio-band measurements, and any application where a small AC signal rides on a larger DC offset, the resolution gain is the difference between a usable trace and quantization steps.

12-bit waveform display showing fine vertical detail
12-bit waveform display
× 12-bit waveform display showing fine vertical detail 12-bit waveform display

Ultra Phosphor 3.0

Ultra Phosphor 3.0 pushes waveform mapping to a 20 Gbps processing rate with 256-level intensity grading. The result is a waveform capture rate of up to 500,000 wfms/s in sequence mode (100,000 wfms/s standard) — fast enough to catch the intermittent events that slower oscilloscopes spend hours missing. Intensity grading reveals signal probability density at a glance: rare anomalies show up as faint streaks against a bright baseline trace, where flat-color displays just paint over them.

Built-In Power Analysis

Power analysis is standard, not an optional package. Twelve measurement functions cover power quality, current harmonics, switching loss, RDS(on), SOA, modulation, output ripple, startup/shutdown time, conversion rate, and power efficiency. Connect the appropriate voltage and current probe (UT-P30 / UT-P31 / UT-P32 differential probes and the UT-P40 series current probes are available as accessories), pick the analysis type, and the oscilloscope drives the rest of the workflow.

For an oscilloscope at this tier, this is the line where the UPO1152HD stops behaving like a value-tier instrument. Most scopes in this price band expect a separate power analyzer or a paid software unlock; this one ships with the analysis built in.

Built-in power analysis cycling through ripple, SOA, harmonics, and switching loss measurements
12 power analysis functions, standard
× Built-in power analysis cycling through ripple, SOA, harmonics, and switching loss measurements 12 power analysis functions, standard

Protocol Decoding Included

RS-232/UART, I²C, SPI, CAN, and LIN trigger and decode are standard — no protocol licenses, no add-on packages. Decoded bus traffic overlays the waveform with field-level annotation, and event-list view exports the captured frames for offline analysis. Up to four parallel decode windows run at once, useful when correlating an SPI command stream against a CAN response on a mixed automotive or industrial control board.

Serial bus decoding showing protocol traffic annotated on waveform
5 protocol decoders, included standard
× Serial bus decoding showing protocol traffic annotated on waveform 5 protocol decoders, included standard

Zone Trigger and Sequence Mode

Zone trigger isolates a region of interest by rectangle drawing on the display: must-intersect or must-not-intersect, two zones, any of CH1–CH2 as source. The waveform doesn't have to stabilize first — the zone captures and stabilizes simultaneously, which is what zone trigger is actually for. Combined with twelve trigger types (edge, pulse width, video, runt, slope, delay, timeout, duration, setup-and-hold, Nth edge, code pattern), it handles the trigger conditions that drive engineers to a higher-tier scope on most other platforms.

Sequence mode captures up to 500,000 trigger-conditioned frames at 2 ns minimum intervals, with hardware real-time recording up to 100,000 frames available for non-stop signal logging and USB export.

56 Automated Measurements + DVM + Frequency Counter

56 automated measurements cover voltage, time, frequency, edges, burst, setup-and-hold, delay, and phase, with up to 21 parameters on screen simultaneously and statistics (mean, max, min, standard deviation, count) available per parameter. Histograms and trend charts make distribution and drift visible without exporting to a PC.

A 4-digit DVM (DC, AC RMS, AC+DC RMS) and a 6-digit hardware frequency counter run on the same channels in parallel with scope acquisition — no probe swapping, no separate instrument.

56 automated measurement parameters with statistics on screen
56 automated measurements
× 56 automated measurement parameters with statistics on screen 56 automated measurements

USB-C Power-Bank Operation and VESA Mounting

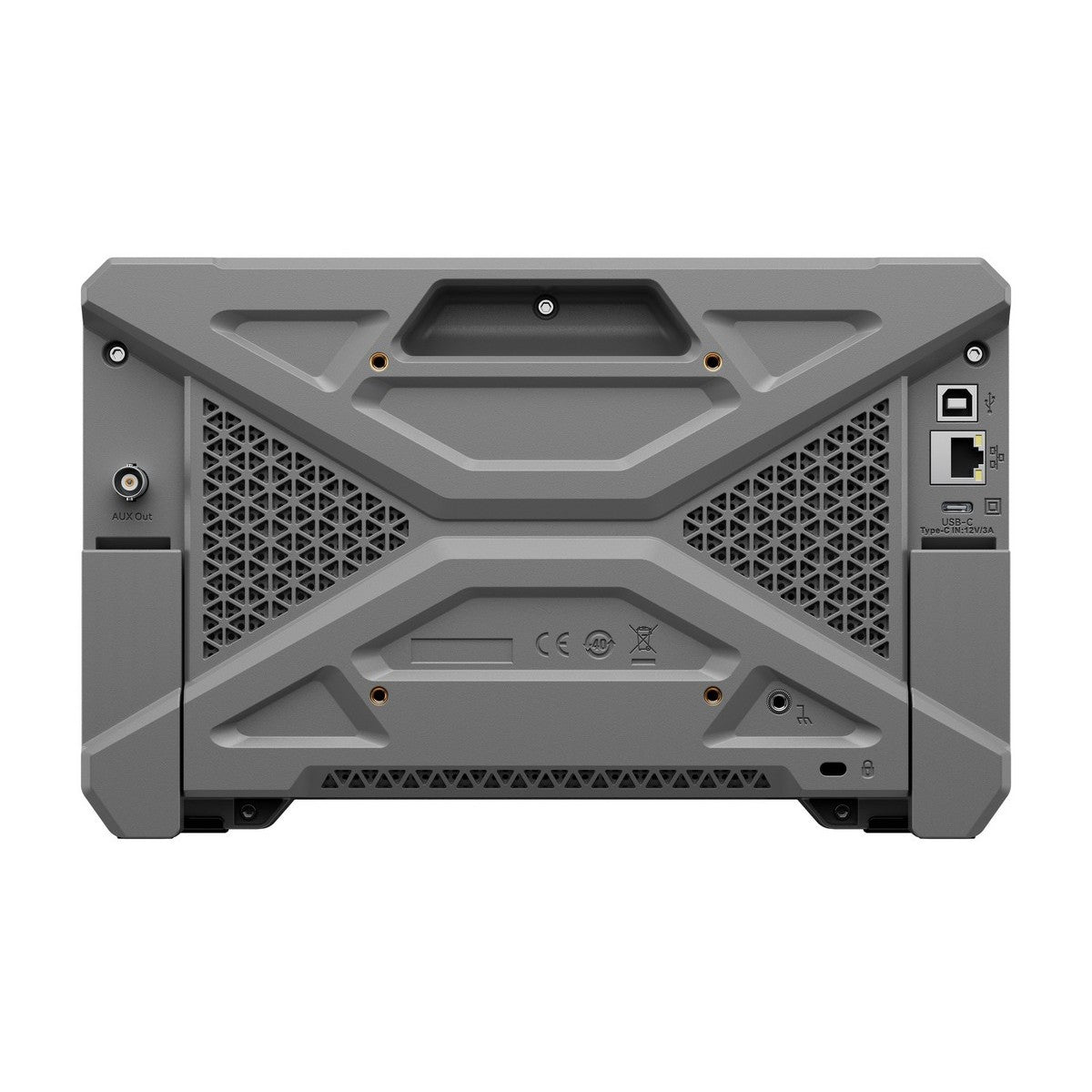

The UPO1152HD runs off any 12V/3A PD-protocol USB-C power source. A field-rated power bank, a vehicle PD adapter, or a workbench USB-C charger all qualify. Combined with the 1.56 kg chassis and a VESA 100×100 mm mounting pattern on the rear panel, the scope deploys on a service truck, a flight-test rack, a teaching cart, or a wall-mounted bench where standard AC-powered scopes don't fit.

Power consumption is 65 W maximum.

UPO1152HD running off USB-C PD power bank with VESA mount
USB-C PD power-bank operation
× UPO1152HD running off USB-C PD power bank with VESA mount USB-C PD power-bank operation

SCPI + WebServer + Touch UI

SCPI over LAN handles automated test integration. WebServer access — built into the firmware — exports waveforms, runs SCPI from a browser, and displays the user manual on a phone or PC, no client install required. The 7-inch 1024×600 capacitive touchscreen supports tap, drag, pinch-zoom, and rectangle-draw gestures alongside the front-panel knobs and keys, plus mouse and keyboard if a buyer wants them. AUX Out carries Trig Out, Pass/Fail, and DVM signals; HDMI drives an external monitor or projector for classroom and review-meeting setups.

Applications

Embedded Systems Development (R&D)

  • Serial-bus debug on microcontroller boards using the five included protocol decoders alongside 12-bit analog capture.
  • Firmware bring-up with 100 Mpts memory holding entire boot sequences without a sample-rate trade.
  • Sensor-conditioning circuit characterization where 8-bit quantization noise hides the actual signal.
  • USB-C operation lets the scope move with the prototype to lab, conference room, or customer site.

Power-Electronics Design and Validation

  • GaN/SiC half-bridge characterization: 150 MHz bandwidth and ≤ 2.2 ns rise time resolve switching-node ringing and gate-drive interactions that 80 MHz scopes can't see.
  • Switching-loss, RDS(on), and SOA measurement with the standard power-analysis package — no separate power analyzer or software unlock.
  • Multi-rail sequence validation across DUT power-up: 100 Mpts memory holds full startup sequences while resolving µs-scale events.
  • EMI source identification on switch-mode supplies using the 1 Mpts enhanced FFT with waterfall view.

Field Service and Mobile Applications

  • Service-truck installation off vehicle 12V via USB-C PD adapter — no inverter, no AC outlet required.
  • 1.56 kg chassis fits a standard tool roll-up and rides between sites without the heft of a typical bench scope.
  • SCPI-over-LAN runs the same automated test scripts off-site that run in the design lab.

Accessories & In the Box

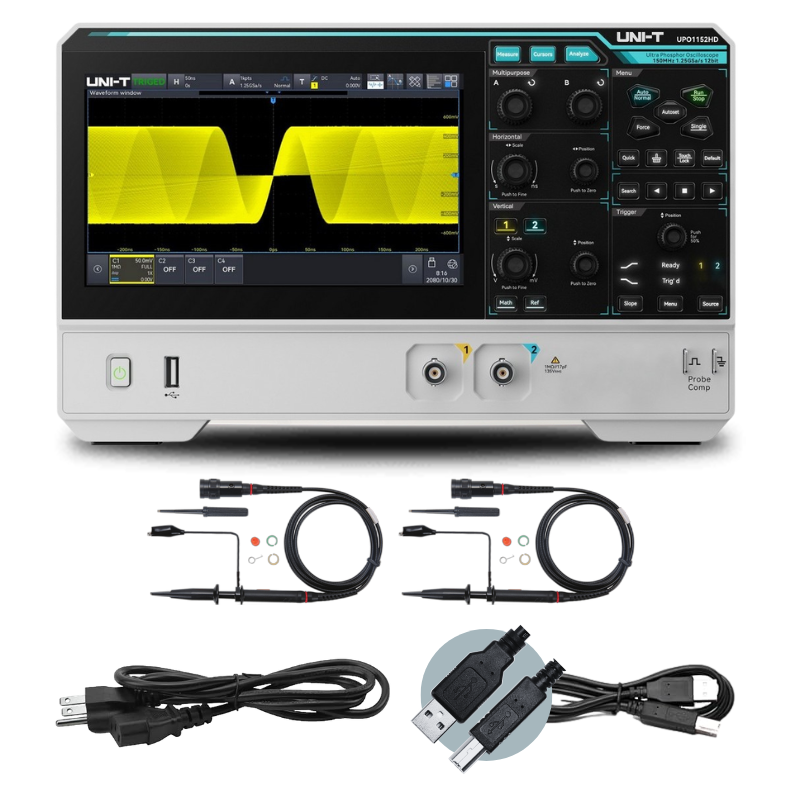

Included with Every UPO1152HD

  • Power cable (national standard)
  • USB 2.0 data cable — UT-D14
  • 2 × passive probes — UT-P05 (200 MHz, one per channel)

Recommended Accessories (sold separately)

Frequently Asked Questions

What protocol decoders are included?

RS-232/UART, I²C, SPI, CAN, and LIN — five protocols, all standard. There are no optional protocol licenses; the full decoder set ships with the instrument.

What is the advantage of 12-bit resolution at this bandwidth tier?

A 12-bit ADC provides 4,096 vertical levels compared to 256 for an 8-bit scope — 16× greater detail. On switching power supplies, sensor signal-conditioning circuits, and any waveform with a small AC component riding on a DC offset, the resolution gain is the difference between a usable measurement and a quantization-stepped trace. The UPO1152HD's R12™ architecture holds Real 12-bit resolution at the full 150 MHz bandwidth and 1.25 GSa/s sample rate — no ERES averaging step.

Can the UPO1152HD run on battery or USB-C power bank?

Yes. Any USB-C power source delivering 12V/3A over the PD protocol will run the scope at full performance — USB-C power banks, vehicle PD adapters, and workbench USB-C chargers all qualify. The included AC adapter is a USB-C PD source as well.

Does the UPO1152HD include a built-in signal generator?

No. The UPO1000HD series is a pure DSO with no AWG. For a 1-channel 25 MHz built-in AWG in the same 2-channel chassis, see the MSO1154HD-S or MSO1254HD.

Is firmware upgradeable in the field?

Yes. Firmware updates are free for the lifetime of the product, delivered through the WebServer interface or by USB drive at the front panel.

Part of the UPO1000HD oscilloscope series. See the series page to compare bandwidth and channel options across the lineup.

Warranty

This instrument is backed by UNI-T's 3+2 Year Warranty — 3 years of standard coverage, plus 2 additional years free when you register your product. That's 5 years of total protection at no extra cost.

The warranty covers manufacturing defects and component failures under normal use conditions. UNI-T instruments are built for professional daily use, and our warranty reflects that commitment to long-term reliability.
