Oscilloscope Accessories and Options

5.0 / 5.0

(1) 1 total reviews

• Padded Interior: Protects the instrument display and enclosure during transport.
• Compatible Instruments: Sized for UNI-T bench instruments . See product description for specific model compatibility.

3.0 / 5.0

(1) 1 total reviews

• For use with UNI-T oscilloscopes: Demonstrates basic oscilloscope functions including waveform display, triggering, and measurement.
• Training and Demonstration: Provides standard test signals for learning oscilloscope operation, triggering, and measurement functions.
• Portable Design: Compact board that connects directly to oscilloscope inputs for benchtop or classroom use.

• Bandwidth: 100MHz
• Diff Input Voltage: 800Vpp
• CMRR: >80dB @ 60Hz, >60dB @ 100Hz, >50dB @ 1MHz
• Common-Mode Voltage: 5kVrms

3.0 / 5.0

(1) 1 total reviews

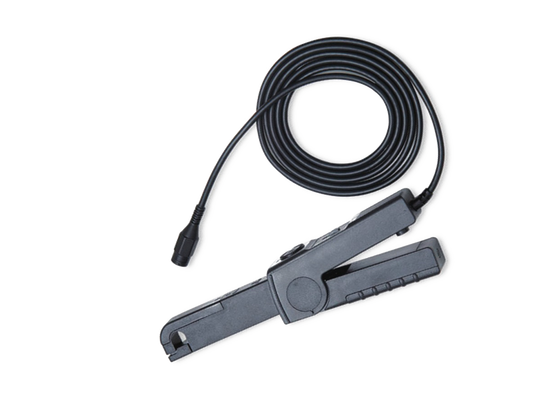

• Bandwidth: 100kHz
• Max Current: 60A
• Cable Length: 200cm

• Bandwidth: 250MHz
• Attenuation: 100:1
• Max Voltage: 1500Vrms
• Input Capacitance: 5.5pF

• Bandwidth: 100MHz
• Attenuation: 1:1, 10:1
• Max Voltage: 600Vpp
• Input Capacitance: 14.5pF-17.5pF

• Bandwidth: 40MHz
• Attenuation: 1000:1
• Max Voltage: DC 10kV / AC 7kVrms
• Input Capacitance: 3.0pF

• Bandwidth: 200MHz
• Attenuation: 1:1, 10:1
• Max Voltage: 600Vpp
• Input Capacitance: 14.5pF-17.5pF

• Compatible with UNI-T oscilloscopes: For use with UNI-T oscilloscopes .
• Signal Injection: Provides isolated swept-sine signal injection for safe Bode plot measurements on live power supplies.
• Required for Bode Plot Option: Used with the MSO2000-S-BODE or MSO3000CS-S-BODE Bode plot software option.

• Built-In AWG: Independent output channels with sine, square, ramp, pulse, noise, DC, and arbitrary waveforms. No external generator needed.
• Bode Plot Analysis: Automated frequency response — define start/stop frequency and stimulus amplitude, get gain and phase plots. Essential for filter, amplifier, and loop stability verification.
• Stimulus-Response: Generate and capture on the same instrument. No sync issues or ground loops.
• Lifetime License Activation: Activate once, owned for the life of the instrument. No subscriptions, no renewals, no maintenance fees.

• Bandwidth: 300MHz
• Attenuation: 1:1, 10:1
• Max Voltage: 600Vpp
• Input Capacitance: 14.5pF-17.5pF

• Bandwidth: 100MHz
• Attenuation: 100:1
• Max Voltage: 2000Vpp
• Input Capacitance: 10pF

• Bandwidth: 25MHz
• Max Current: 20A

• Bandwidth: 150kHz
• Max Current: 200A

• Bandwidth: 100kHz
• Max Current: 100A

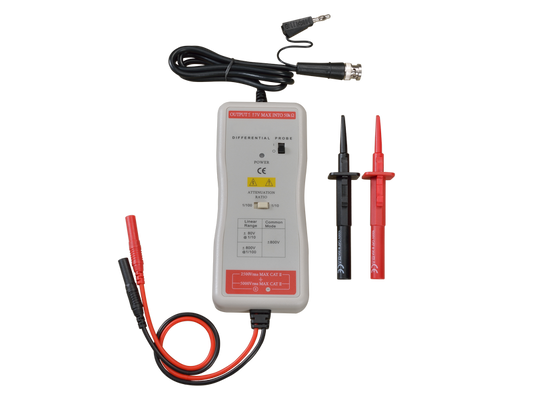

• Bandwidth: 50MHz
• Diff Input Voltage: 1300Vpp
• CMRR: ≥80dB DC, ≥60dB 100Hz, ≥50dB 1MHz
• Common-Mode Voltage: 1000Vrms

• Bandwidth: 350MHz
• Attenuation: 10:1
• Max Voltage: 600Vpp
• Input Capacitance: 6.5pF-14.5pF

• Bandwidth: 60MHz
• Attenuation: 10:1
• Max Voltage: 600Vpp
• Input Capacitance: 14.5pF-17.5pF

• Bandwidth: 50MHz
• Max Current: 40A

• Bandwidth: 50MHz
• Diff Input Voltage: 3000Vpp
• CMRR: >80dB @ 50Hz, >60dB @ 100kHz, >50dB @ 1MHz
• Common-Mode Voltage: 5kVrms

• Bandwidth: 100MHz
• Diff Input Voltage: 1500Vpp
• CMRR: >80dB @ 60Hz, >60dB @ 100Hz, >50dB @ 1MHz
• Common-Mode Voltage: 5kVrms

• Bandwidth: 500MHz
• Attenuation: 10:1
• Max Voltage: 600Vpp
• Input Capacitance: 6.5pF-14.5pF
