MSO5000HD Oscilloscopes

The MSO5000HD line is a 3-SKU 12-bit mixed-signal oscilloscope series covering 350 MHz, 500 MHz, and 1 GHz bandwidth at 4 analog channels plus 16 integrated logic channels. All three models share 5 GSa/s sample rate, 500 Mpts memory depth, and a 10.1-inch capacitive multi-touch display. 12-bit vertical resolution at gigahertz bandwidth serves power-integrity, signal-integrity, and high-resolution embedded debug work where 8-bit quantization buries the detail. Base configuration covers digital oscilloscope, 16-channel logic analyzer, digital voltmeter, frequency counter, and protocol analyzer. Beyond the base instrument, the MSO5000HD uses a lifetime-unlock option architecture — every option is a one-time purchase, permanently activated to the instrument. The AWG license adds a 50 MHz 2-channel arbitrary waveform generator with Bode plot. The PWR license adds advanced power analysis for ripple, harmonics, and switching-loss measurement. The TIMING license adds advanced timing analysis. Bus-decode licenses cover automotive (CAN-FD, CAN-XL, FlexRay, LIN, SENT), aerospace (MIL-STD-1553, ARINC429), and embedded (I3C, 1-Wire, Manchester, Audio) protocols. Bandwidth upgrade licenses raise the analog bandwidth tier up to 1 GHz across the 350 MHz and 500 MHz base models.

PROMOTION FREE software bundles available on select oscilloscope purchases through June 30, 2026.See Eligible Models →
View
  • New

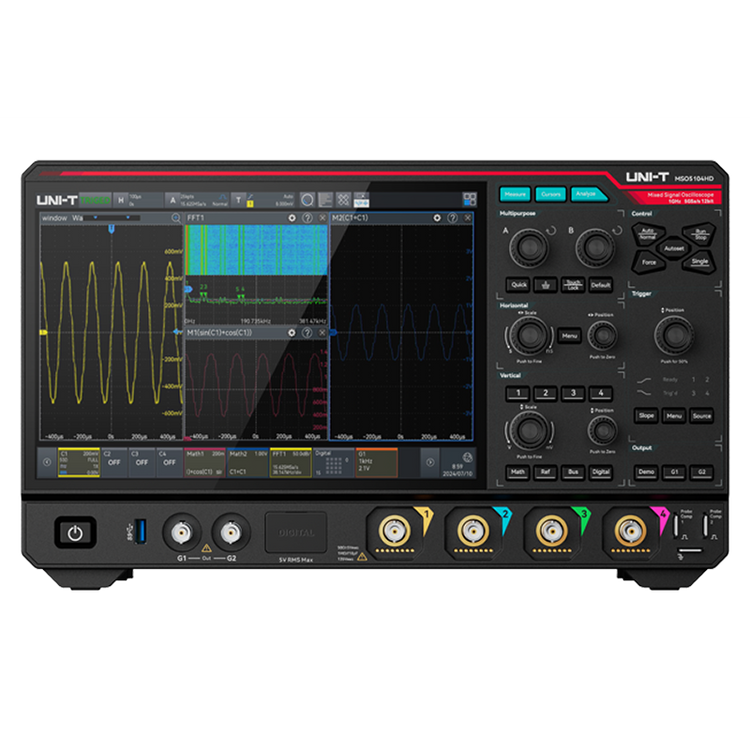

    MSO5034HD350 MHz 4Ch 12-Bit Mixed Signal Oscilloscope

    • Bandwidth: 350MHz
    • Channels: 4Ch+16D (opt)
    • Sample Rate: 5GSa/s
    • Memory Depth: 500Mpts
    • Vertical Resolution: 12 bits
    • Logic Probes: Optional
    $3,699.00
    17 in stock
    Learn More
  • New

    MSO5054HD500 MHz 4Ch 12-Bit Mixed Signal Oscilloscope

    • Bandwidth: 500MHz
    • Channels: 4Ch+16D (opt)
    • Sample Rate: 5GSa/s
    • Memory Depth: 500Mpts
    • Vertical Resolution: 12 bits
    • Logic Probes: Optional
    $4,699.00
    19 in stock
    Learn More
  • New

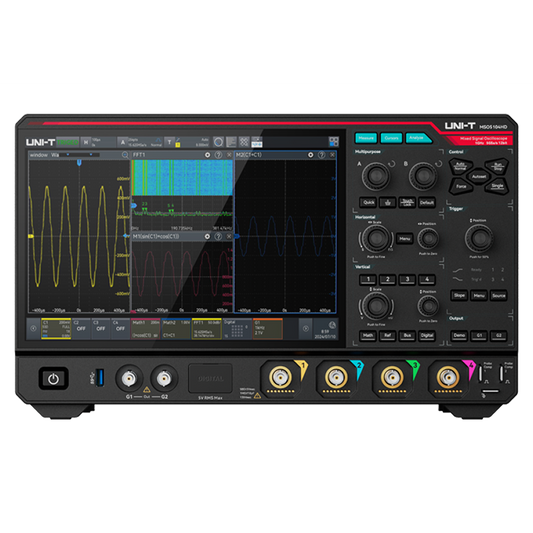

    MSO5104HD1 GHz 4Ch 12-Bit Mixed Signal Oscilloscope

    • Bandwidth: 1GHz
    • Channels: 4Ch+16D (opt)
    • Sample Rate: 5GSa/s
    • Memory Depth: 500Mpts
    • Vertical Resolution: 12 bits
    • Logic Probes: Optional
    $6,299.00
    17 in stock
    Learn More

Resources

MSO5000HD Oscilloscopes Documents and Downloads

Datasheets, manuals, software

MSO5000HD Options

MSO5000HD Options

18 items

UNI-T High-Definition Oscilloscope Buying Guide

Choose the Right 12-Bit MSO for Your Needs

UNI-T’s high-definition oscilloscopes offer 12-bit resolution, exceptional signal fidelity, deep acquisition memory, and built-in analysis tools—all at highly competitive pricing. This guide will help you select the right model for your workflow, whether you’re in embedded design, power electronics, education, or high-speed validation.

Why UNI-T HD?

  • 12-bit ADC — 16× more detail than 8-bit scopes
  • Low noise floor — down to 60 μVrms
  • Integrated toolset — Oscilloscope, Logic Analyzer, Spectrum Analyzer, Generator, Protocol Decoder, Power Analyzer
  • Ultra Phosphor 3.0 — Up to 1.5M wfms/s with 256-level color grading
  • Gesture-based Zone Trigger — Intuitive signal isolation
  • Upgradeable bandwidth & options — Scale as your needs grow

Compare All HD Series

Series Bandwidth Channels Sample Rate Memory Generator Display Best For
UPO1000HD 80 / 150 MHz 2 or 4 1.25 GSa/s 100 Mpts None 7" Touch Education, portable use
MSO1000HD 150 / 250 MHz 4 + 16D 2.5 GSa/s 100 Mpts 25 MHz (1ch) 7" Touch Entry-level mixed signal
UPO2000HD 70 – 200 MHz 2 or 4 2.5 GSa/s 100 Mpts None 10.1" Touch R&D, embedded systems
MSO3000HD 200 –500 MHz 4 + 16D 2.5 GSa/s 500 Mpts 50 MHz (2ch) 10.1" Touch Advanced embedded, industrial, automotive
MSO5000HD 350 MHz – 1 GHz 4 + 16D 5 GSa/s 500 Mpts 50 MHz (2ch) 10.1" Touch High-speed systems, R&D, medical

Recommended Use Cases

  • UPO1000HD: Education, portable test stations
  • MSO1000HD: Embedded development, automotive basics
  • UPO2000HD: Lab testing, signal analysis, power debug
  • MSO3000HD: Medium-speed MSO, CAN-FD, advanced analog
  • MSO5000HD: High-speed interfaces, precision power, protocol-rich systems

Protocol & Power Analysis Options

Add advanced capabilities through optional bundles:

  • Protocols: UART, I²C, SPI, CAN, LIN, CAN-FD, FlexRay, SENT, Audio, MIL-STD, ARINC
  • Power: Ripple, harmonics, switching loss, startup, modulation, SOA
  • Logic Probes: UT-M15, UT-M26
  • Probe Types: Passive, differential, current, high-voltage

Summary

Budget-conscious? Choose UPO1000HD or MSO1000HD.
Need balance? UPO2000HD and MSO3000HD offer depth without high cost.
Need top-tier power? MSO5000HD leads in speed, resolution, and integration.

Need Help?

Contact our team to configure your ideal oscilloscope with the right probes and software.

🛠️ Ready to upgrade your test bench? Explore UNI-T’s HD series and experience unmatched clarity and value.
