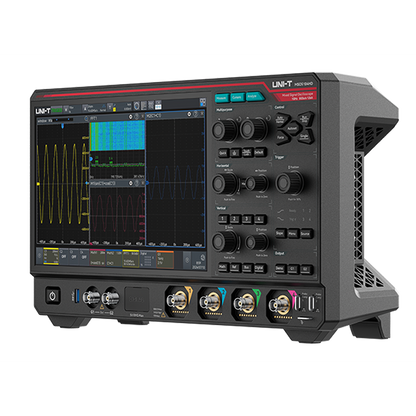

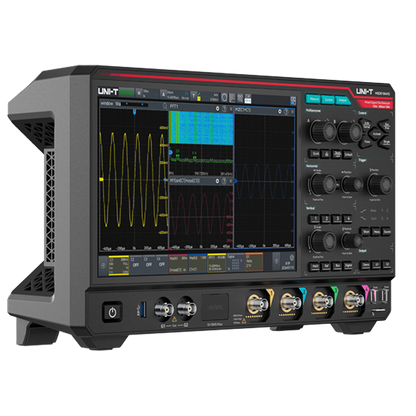

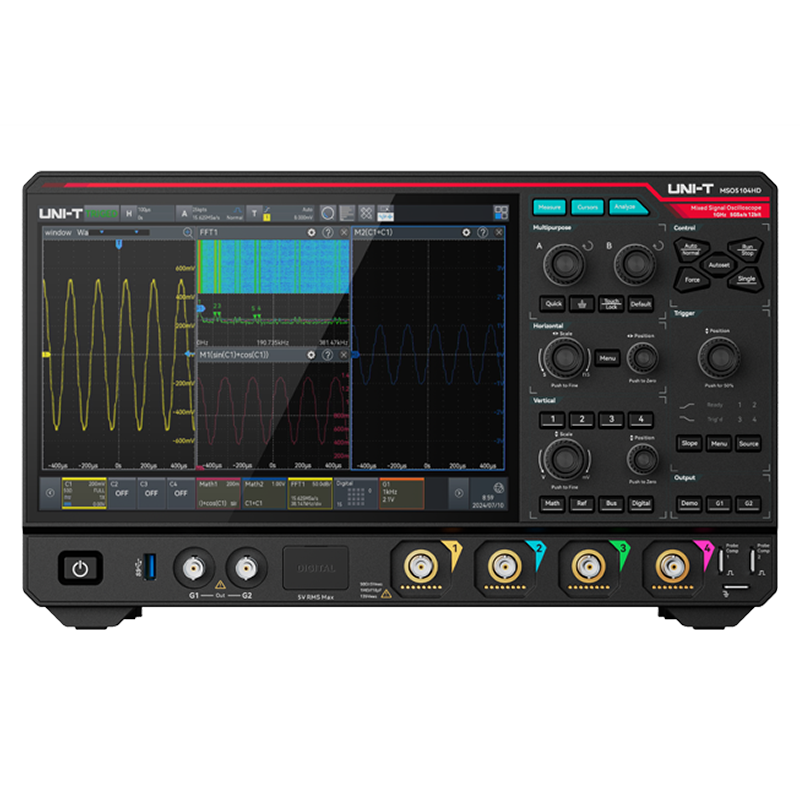

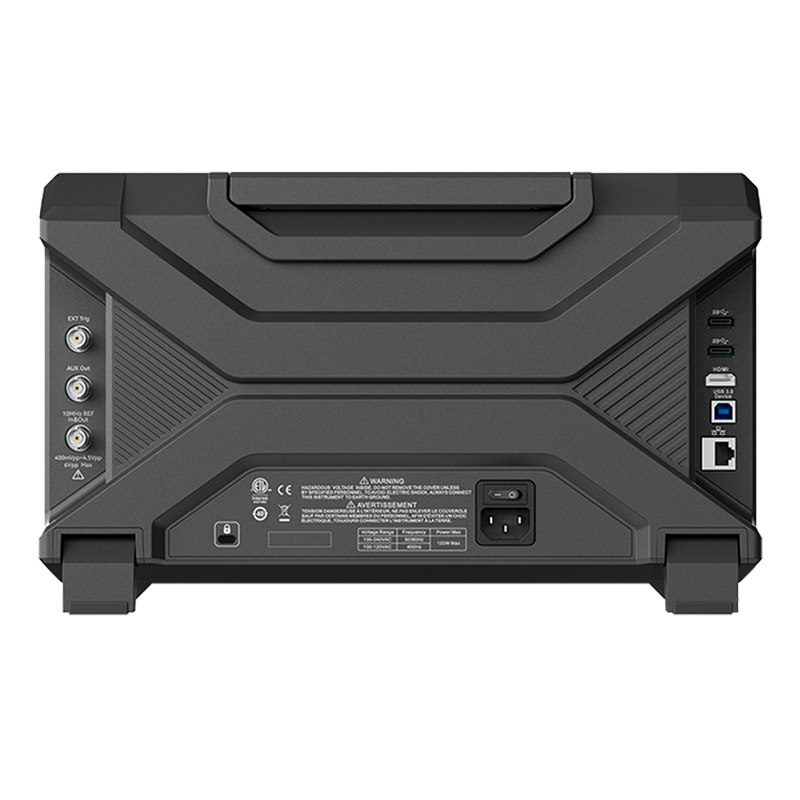

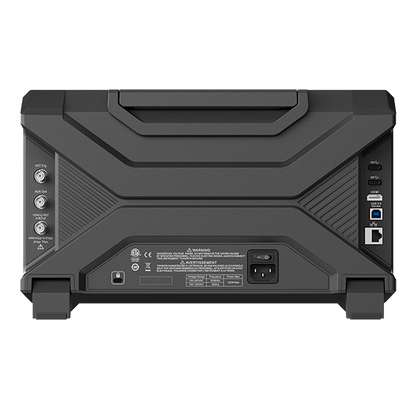

MSO5104HD | 1 GHz 4Ch 12-Bit Mixed Signal Oscilloscope

Name: MSO5104HD | 1 GHz 4Ch 12-Bit Mixed Signal Oscilloscope
Brand: UNI-T
SKU: 181100300117X
Price: 6299.00 USD
Availability: InStock

$6,299.00

Sale Contact Us For Lead Time

Shipping calculated at checkout.

8 in stock

12-bit 4-channel mixed signal oscilloscope with 5 GSa/s sample rate, 500 Mpts memory depth. Premium nine-in-one benchtop platform for power electronics engineers.

View full details

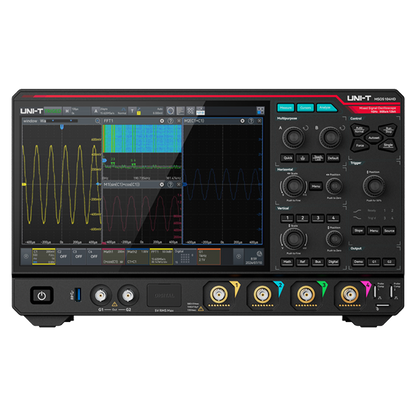

MSO5104HD | 1 GHz 4Ch 12-Bit Mixed Signal Oscilloscope

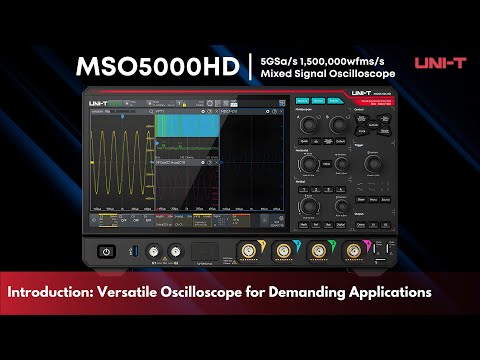

Overview

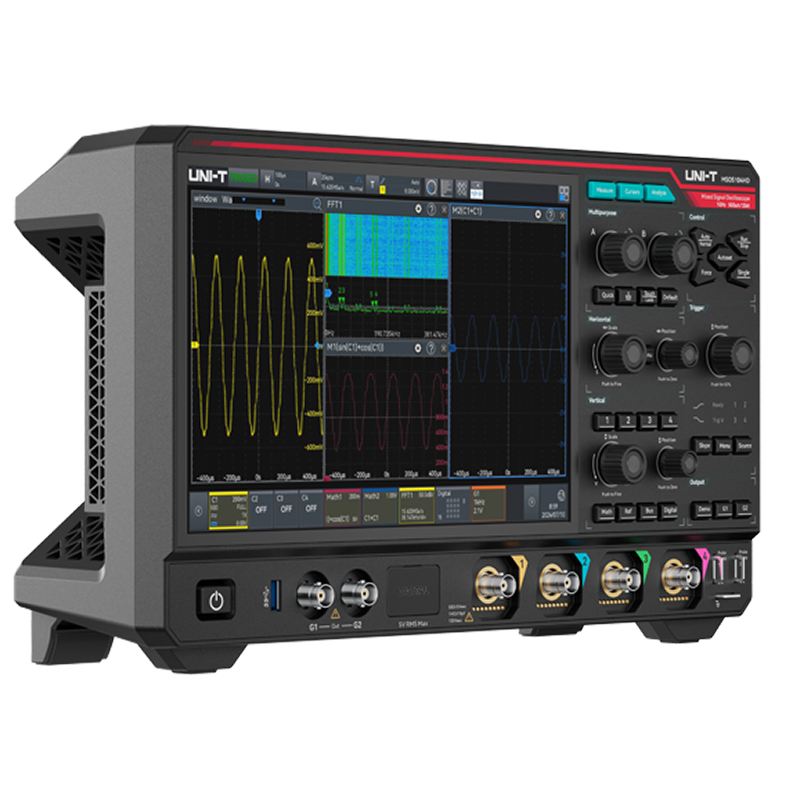

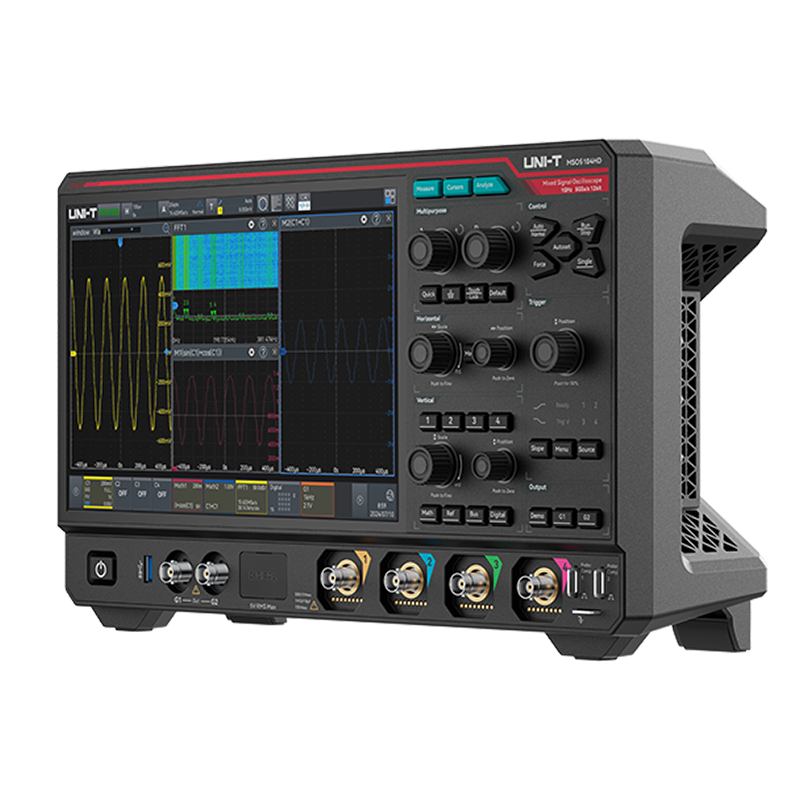

The MSO5104HD is a 1 GHz 4-channel 12-bit bench oscilloscope with a 10.1-inch capacitive touchscreen. It samples at 5 GSa/s with 500 Mpts memory depth and captures waveforms at up to 1,500,000 wfms/s using Ultra Phosphor 3.0 display technology. The 12-bit ADC provides 16× greater vertical resolution than conventional 8-bit oscilloscopes — a significant advantage for resolving small signals, measuring power supply ripple, and characterizing precision analog circuits.

RS-232, UART, I²C, SPI, CAN, LIN decoding is included standard. Additional protocols (CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester, 1-Wire, CAN-XL, I3C) are available as optional licenses.

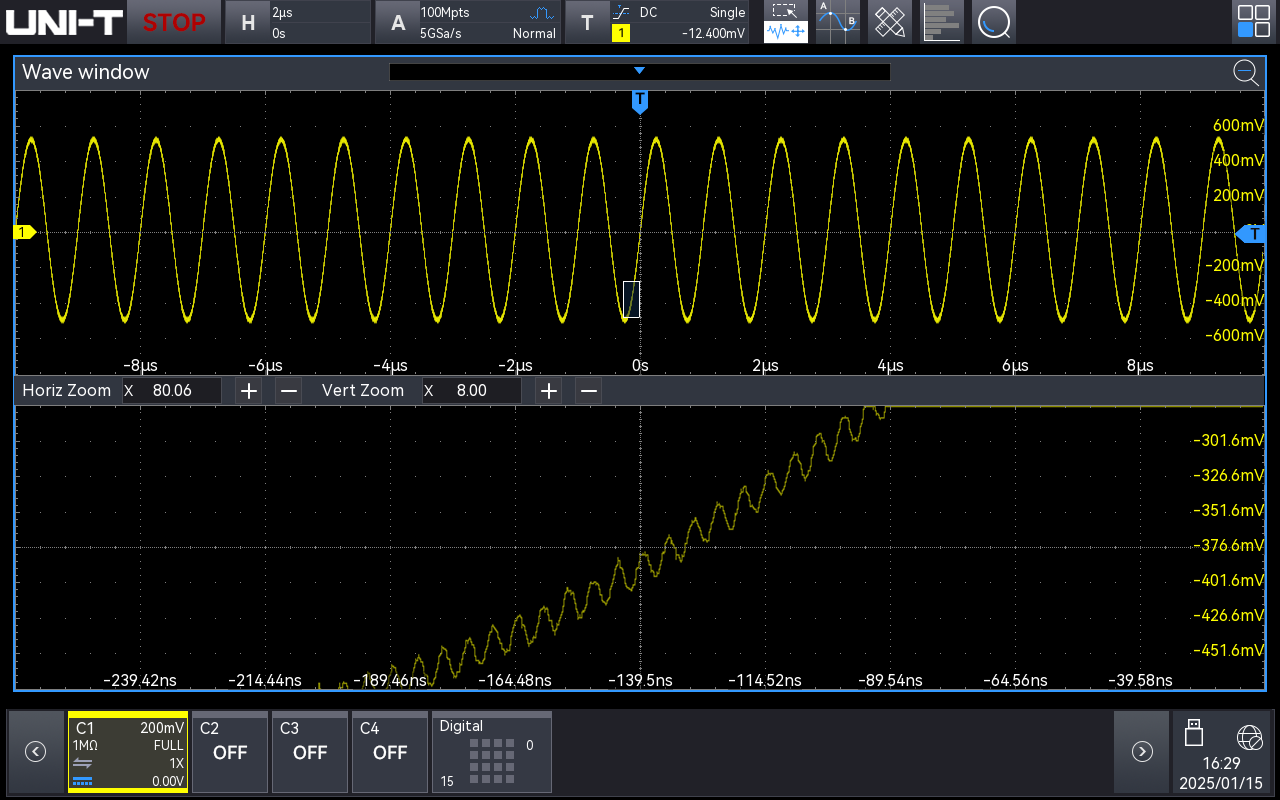

MSO5000HD 12-bit enhanced resolution — 12-bit ADC with ERES mode for enhanced vertical detail

Key Features

1 GHz Bandwidth, 4 Channels — 4-channel capture with 5 GSa/s sample rate and 12-bit vertical resolution.
500 Mpts Memory Depth — Deep memory for extended signal capture without reducing sample rate.
1,500,000 wfms/s Capture Rate — Ultra Phosphor 3.0 intensity-graded display reveals rare anomalies.
12-Bit ADC Resolution — 16× greater vertical detail than 8-bit instruments for precision analog measurement.
Included Protocol Decoding — RS-232, UART, I²C, SPI, CAN, LIN included standard.
Optional Protocols — CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester, 1-Wire, CAN-XL, I3C.
Optional AWG — Add a 50 MHz arbitrary waveform generator for stimulus-response testing and Bode plot analysis.
Optional Logic Analyzer — Add 16 digital channels with the UT-M15 logic probe pod.
56 Automated Measurements — Comprehensive waveform characterization with statistics.
10.1-inch Capacitive Touchscreen — Multi-gesture navigation for efficient operation.

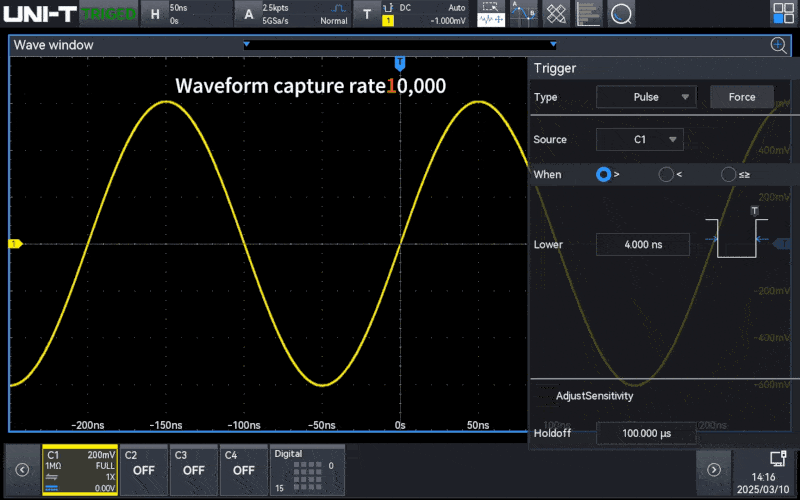

Ultra Phosphor 3.0 with 5 GSa/s Sampling

The 5 GSa/s sample rate — double the MSO3000HD — captures faster edges and higher-frequency content with greater timing accuracy. Combined with the 12-bit ADC and 1,500,000 wfms/s Ultra Phosphor 3.0 capture rate, the MSO5000HD reveals signal details that lower-bandwidth and lower-resolution instruments miss.

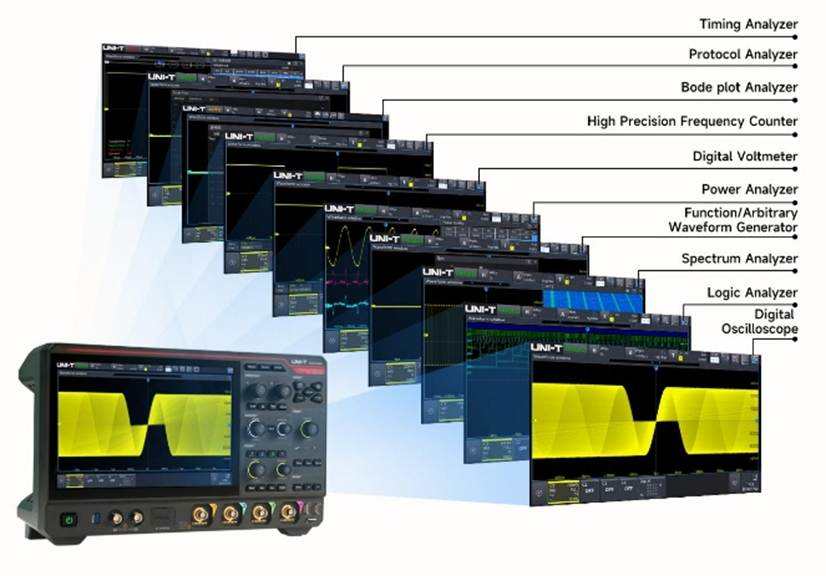

MSO5000HD nine-in-one — Nine integrated instruments

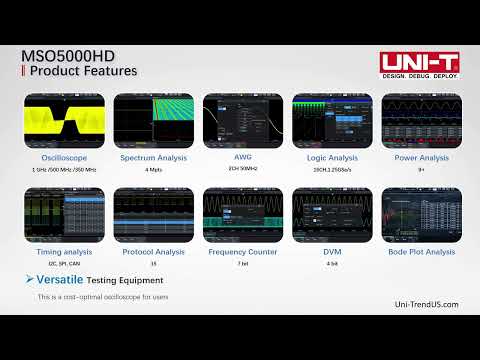

Nine-in-One Platform

Oscilloscope, spectrum analyzer, protocol analyzer, arbitrary waveform generator, digital voltmeter, frequency counter, Bode plot analyzer, power analyzer, and pattern generator in one instrument. The MSO5000HD expands the protocol library with next-generation interfaces including I3C, CAN-XL, and 1-Wire.

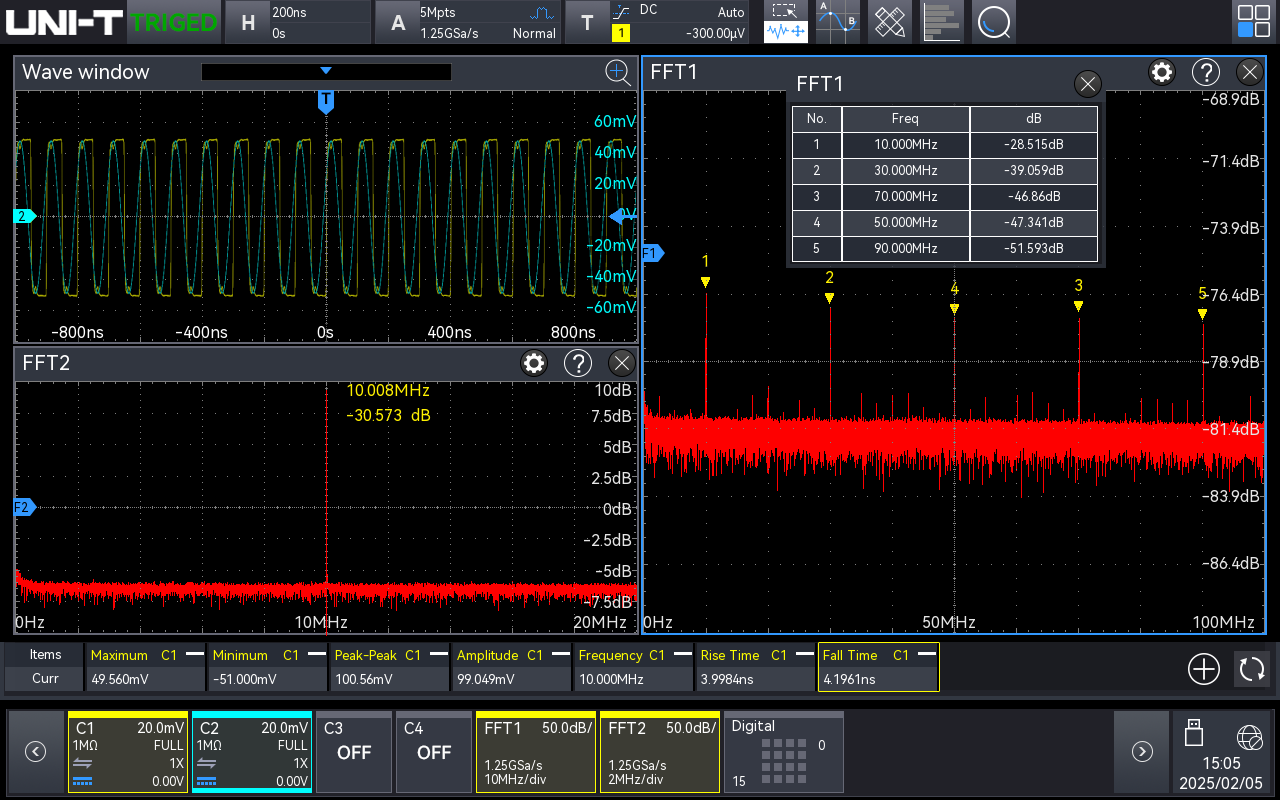

Spectrum Analyzer up to 2.5 GHz

The spectrum analyzer leverages the 5 GSa/s sample rate for up to 2.5 GHz frequency span — useful for characterizing wideband signals, identifying spurious emissions, and verifying clock harmonics at frequencies beyond what 2.5 GSa/s instruments can analyze.

MSO5000HD spectrum analyzer — Spectrum analyzer with up to 2.5 GHz span

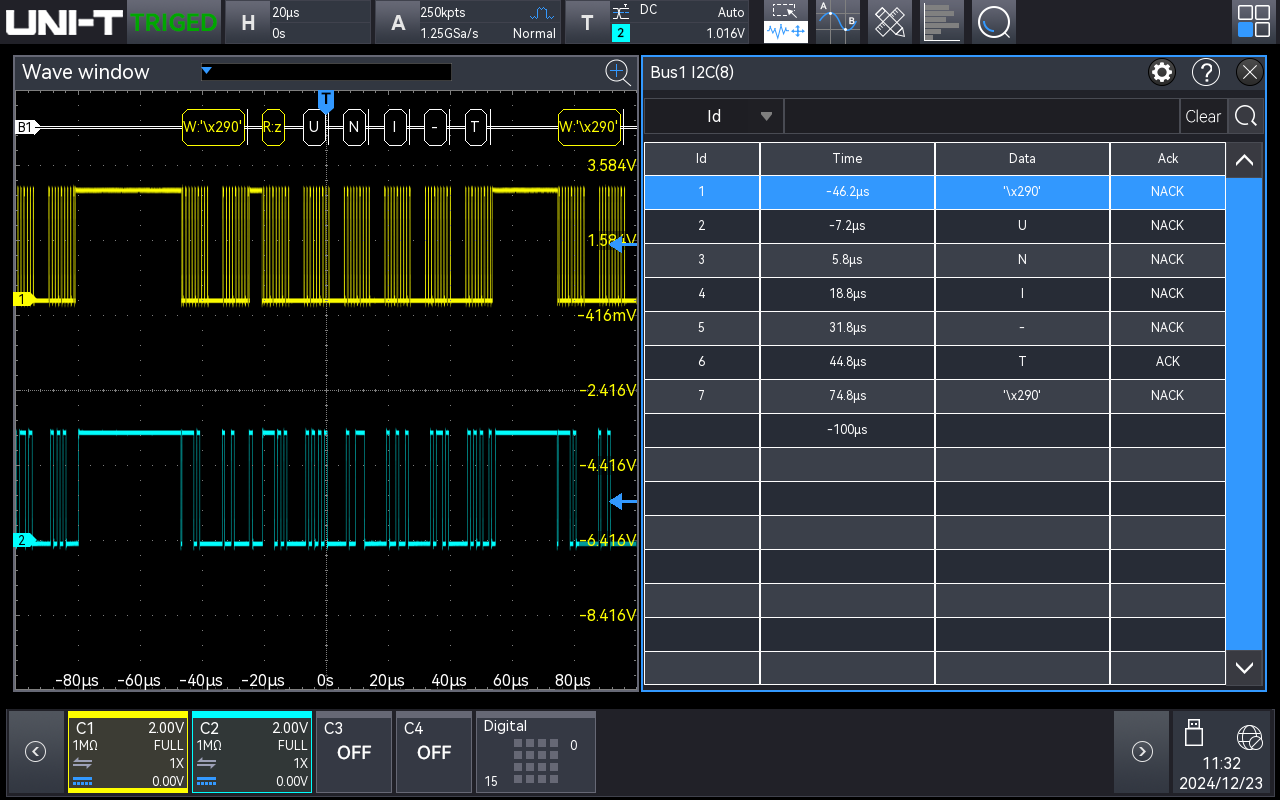

MSO5000HD protocol decoding — Expanded protocol library

Expanded Protocol Support

CAN and LIN are included standard alongside RS-232, UART, I²C, and SPI. Optional licenses add CAN-FD, FlexRay, SENT, MIL-STD-1553, ARINC 429, Manchester, 1-Wire, CAN-XL, and I3C — covering both legacy automotive and next-generation embedded interfaces.

Professional Applications

Embedded Systems Development — 12-bit resolution and included protocol decoding for debugging mixed-signal circuits with simultaneous analog and digital analysis.
Power Electronics — Characterize switching waveforms with high vertical resolution. Built-in or optional power analysis for efficiency, SOA, and harmonics measurement.
Multi-Channel Signal Analysis — Four channels for simultaneous capture of input, output, reference, and feedback signals in complex circuits.
Education and Research — 12-bit resolution and comprehensive protocol support provide a professional-grade learning platform.

Frequently Asked Questions

What protocols are included?

RS-232, UART, I²C, SPI, CAN, LIN are included at no additional cost. CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester, 1-Wire, CAN-XL, I3C are available as optional licenses.

What is the advantage of 12-bit resolution?

A 12-bit ADC provides 4,096 vertical levels compared to 256 for 8-bit scopes — 16× greater detail. This reveals small signals riding on large ones, reduces quantization noise, and improves measurement accuracy on low-amplitude signals like power supply ripple, sensor outputs, and precision analog circuits.

Can I add digital channels?

Yes. The UT-M15 logic probe pod adds 16 digital channels for mixed-signal debugging with time-correlated analog and digital views.

Can I add an AWG?

The AWG is available as an optional software license. Once activated, it provides dual-channel 50 MHz output.

Part of the MSO5000HD oscilloscope series. See the series page to compare bandwidth and channel options across the lineup.

Warranty

This instrument is backed by UNI-T's 3+2 Year Warranty — 3 years of standard coverage, plus 2 additional years free when you register your product. That's 5 years of total protection at no extra cost.

The warranty covers manufacturing defects and component failures under normal use conditions. UNI-T instruments are built for professional daily use, and our warranty reflects that commitment to long-term reliability.
