Buyer's Guide to Acoustic Imaging Cameras

Understanding the Technology Shift

For decades, ultrasonic leak detection relied on heterodyne conversion technology—devices that shifted ultrasonic frequencies (typically 38-42 kHz) down to the audible range so technicians could hear leaks through headphones. While effective, this method had significant limitations: it required slowly sweeping a directional probe across potential leak points, interpreting audio signals by ear, and relying on the technician's experience to distinguish between actual leaks and background noise.

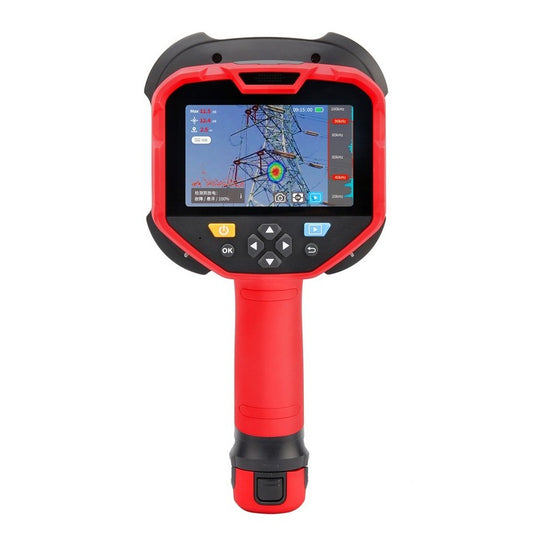

Acoustic imaging cameras represent a quantum leap forward. Using an array of MEMS microphones (often 30-120+ sensors), these devices capture ultrasonic sound from multiple directions simultaneously, process the data in real-time, and overlay the results onto a visual image. Instead of hearing a leak, you see it—displayed as a color-coded heat map that shows exactly where compressed air, vacuum, or gas is escaping.

The Economics of Compressed Air Leaks

Compressed air is often called the "fourth utility" in manufacturing, yet it's also one of the most expensive and wasteful. Consider these realities:

Energy Cost of Leaks:

• A 1/4" diameter leak at 100 PSI costs approximately $2,500-$3,000 per year in wasted electricity
• A 1/8" leak costs roughly $600-$800 annually
• Multiple small leaks (1/16" to 1/8") throughout a facility easily add up to $5,000-$15,000 in annual waste

Real-World Impact: An automotive parts manufacturer in the Midwest discovered 47 leaks during their first acoustic imaging survey. Their three largest leaks alone were wasting $8,400 annually. After repairs costing $1,200, they achieved a payback period of less than two months and reduced their compressor runtime by 18%.

A food processing plant running 24/7 found that weekend leaks (when production stopped) kept their compressors running at 40% capacity. By identifying and repairing leaks with an acoustic camera, they reduced weekend energy consumption by 65%, saving $23,000 annually.

Beyond Energy Costs:

• Equipment life extension: Compressors running unnecessarily to maintain pressure due to leaks experience accelerated wear
• Production disruptions: Inadequate system pressure from leaks can cause equipment malfunctions or quality issues
• Bottled gas expenses: For facilities using nitrogen, argon, CO2, or specialty gases, leak-related losses directly impact your gas bill

Traditional vs. Acoustic Imaging: A Practical Comparison

Traditional Ultrasonic Leak Detector:

• Time required: 4-6 hours to survey a 50,000 sq ft facility
• Documentation: Written notes, approximate locations
• Accessibility: Must physically reach near the suspected leak point
• Limitations: Background noise interference, subjective interpretation, challenging in loud environments

Acoustic Imaging Camera:

• Time required: 1-2 hours for the same facility
• Documentation: Photographs and videos with leak locations, estimated flow rates, and GPS coordinates
• Accessibility: Detect leaks up to 100+ feet away (depending on leak size)
• Advantages: Works in noisy environments, provides objective visual evidence, identifies leaks you might miss with traditional methods

Key Applications Beyond Compressed Air

While compressed air leak detection is the primary use case, acoustic imaging cameras excel in several other applications:

Pressurized Gas Systems:

• Nitrogen purge systems
• Natural gas distribution
• Refrigerant lines (HVAC, cold storage)
• Hydrogen fuel systems
• Process gas lines (chemical plants)

Electrical Applications:

• Partial discharge detection in switchgear, transformers, and insulators
• Corona discharge on power lines and substations
• Arc flash prediction in high-voltage equipment

Mechanical Systems:

• Steam trap failures
• Vacuum system leaks
• Bearing deterioration (early ultrasonic indicators)

What to Look for When Buying

1. Microphone Array Size More microphones generally mean better sensitivity and accuracy. Entry-level units typically have 30-64 channels, while professional models feature 120+. For most industrial applications, 64+ channels provide excellent results.

2. Detection Range and Sensitivity Consider the environments you'll be working in:

• Small leaks (1/16" or smaller) require higher sensitivity
• Large facilities benefit from extended detection ranges (50-100+ feet)
• Outdoor applications need cameras that can filter wind noise

3. Image Overlay Quality The visual camera resolution matters—you need to clearly identify the leak's exact location on pipes, fittings, or equipment. Look for at least 720p visual resolution, with 1080p preferred.

4. Frequency Range Standard range is 20-65 kHz for most industrial leaks. Some applications (like certain electrical PD detection) may benefit from extended high-frequency response.

5. Quantification Capabilities Advanced models can estimate leak flow rates (CFM or L/s) and calculate the annual cost of each leak based on your electricity rates. This feature justifies repairs and helps prioritize which leaks to fix first.

6. Documentation and Reporting Built-in reporting tools that generate professional PDF reports with photos, leak locations, estimated costs, and repair recommendations save significant time and help communicate findings to management.

7. Ruggedness and Battery Life Industrial environments are demanding. Look for:

• IP54 or better protection rating
• 4+ hours of continuous operation
• Durable housing that survives the occasional drop

Building Your ROI Case

Most acoustic imaging cameras pay for themselves within 6-18 months through identified savings. Here's how to calculate your facility's potential return:

Step 1: Estimate your compressed air system's energy cost

• Find your compressor's power rating (typically 15-200+ HP)
• Calculate annual runtime hours
• Multiply by your electricity rate (industrial average: $0.08-$0.12/kWh)

Step 2: Apply the leak factor

• Typical facilities lose 20-30% to leaks
• Well-maintained facilities still lose 10-15%
• Poorly maintained facilities can lose 40%+

Step 3: Calculate potential savings If you're spending $50,000 annually on compressed air and losing 25% to leaks, that's $12,500 in recoverable costs. An acoustic camera costing $3,000-$8,000 (depending on model) delivers payback in 3-8 months.

Making the Investment Work

Create a Leak Detection Program:

• Quarterly or bi-annual facility surveys
• Prioritize leaks by cost and accessibility
• Track repair completion and verified savings
• Document trends over time

Train Your Team: Acoustic cameras are intuitive, but effective leak detection programs benefit from trained users who understand air system fundamentals and leak repair techniques.

Start with Quick Wins: Your first survey will likely identify numerous obvious leaks. Fix the largest first to generate immediate savings and build management support for the program.

The shift from listening for leaks to seeing them represents more than just technological advancement—it's a fundamental change in how facilities approach compressed air system management. With payback periods measured in months and the ability to document and track improvements over time, acoustic imaging cameras have become essential tools for any facility serious about energy management and operational efficiency.
