UNI-T High-Definition Mixed Signal Oscilloscope Buying Guide
The Professional's Guide to Selecting the Perfect High-Resolution MSO
Welcome to UNI-T's comprehensive buying guide for High-Definition Mixed Signal Oscilloscopes. Whether you're a power electronics specialist, embedded systems designer, or precision measurement professional, this guide will help you navigate our advanced high-resolution oscilloscope lineup with confidence. UNI-T's HD series features exceptional 12-bit resolution, bandwidths from 200MHz to 1GHz, four analog channels, 16 digital channels, and up to nine integrated instruments in one powerful package. Let's explore the essential features, decode technical terminology, and highlight practical applications to help you select the perfect UNI-T High-Definition MSO for your professional requirements.
Essential Features to Consider
1. High-Resolution ADC Technology: Precision Beyond Standard Oscilloscopes
UNI-T's HD series stands apart with advanced 12-bit ADC technology, providing:
- 4,096 Quantization Levels: 16 times greater resolution than traditional 8-bit oscilloscopes
- Enhanced Resolution Mode (ERES): Further increases effective resolution up to 16-bit
- Ultra-Low Noise Floor: Just 70-75 μVrms at full bandwidth enables precise measurement of small signal details
- Exceptional Signal Fidelity: Critical for power analysis, precision analog circuits, and sensitive measurements
This high-resolution architecture reveals signal details that would remain hidden with conventional oscilloscopes, making the HD series ideal for applications requiring exceptional measurement precision.
2. Bandwidth Options: Matching Performance to Application
UNI-T offers two HD series with multiple bandwidth configurations to suit various professional needs:
MSO3000HD Series:
- MSO3024HD (200MHz): Excellent entry point for general electronics development, educational laboratories, and moderate frequency applications

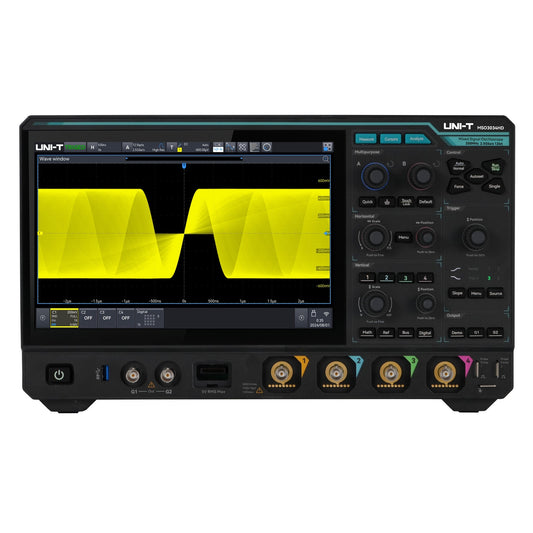

- MSO3034HD (350MHz): Ideal for embedded systems development, power electronics, and medium-speed digital designs
- MSO3054HD (500MHz): Perfect for advanced signal analysis, higher-speed digital circuits, and demanding professional applications
MSO5000HD Series:
- MSO5034HD (350MHz): Professional-grade solution for power electronics, embedded systems, and automotive electronics
- MSO5054HD (500MHz): Advanced capabilities for precision measurements, embedded systems, and medium-complexity designs
- MSO5104HD (1GHz): Premium solution for high-speed digital interfaces, precision analog circuits, and research applications
When selecting bandwidth, remember that your oscilloscope should have at least 5 times the bandwidth of the highest frequency signal you'll need to measure accurately.
3. Deep Memory and Fast Sampling
UNI-T's HD series combines exceptional sampling capabilities with industry-leading memory depth:
MSO3000HD Series:
- 2.5 GSa/s Maximum Sampling Rate: Captures fast signal transitions with precision
- 500 Mpts Maximum Memory Depth: Maintains high sampling rates over extended time periods
- Up to 1,500,000 wfms/s Capture Rate: Dramatically increases the probability of capturing intermittent events
MSO5000HD Series:
- 5 GSa/s Maximum Sampling Rate (interleaved): Superior capture of high-frequency signals
- 500 Mpts Maximum Memory Depth: Industry-leading storage capacity for complex analysis
- Up to 1,500,000 wfms/s Capture Rate: Exceptional visibility of rare signal anomalies
This combination ensures you can capture both high-frequency details and long-duration events in a single acquisition, essential for identifying elusive anomalies and analyzing complex system behavior.
4. Multi-Instrument Integration
UNI-T's HD series delivers exceptional value by integrating multiple essential instruments in one package:
MSO3000HD Series integrates up to 9 instruments:
- Digital Oscilloscope: High-resolution signal visualization and analysis
- Logic Analyzer: 16 digital channels for digital system debugging
- Function/Arbitrary Waveform Generator (Optional): Signal generation capabilities
- Spectrum Analyzer: Advanced FFT with comprehensive controls
- Digital Voltmeter: Precision DC and AC RMS measurements
- Frequency Counter: Hardware frequency measurements
- Protocol Analyzer: Decoding for 12 different serial communication standards
- Bode Plot Analyzer (Optional): System stability analysis capabilities
- Power Analyzer (Optional): Power system measurement package
MSO5000HD Series integrates 9 instruments with enhanced capabilities:
- All MSO3000HD functions plus:
- Enhanced Spectrum Analyzer: 4M FFT with waterfall display and comprehensive frequency domain controls
- Higher-Precision Frequency Counter: 7-digit hardware frequency measurements with adjustable refresh time
- Advanced Protocol Analyzer: Support for 15 different serial protocols
- Superior Power Analysis: Detailed power system measurements including power quality, harmonics, and switching loss
This integration eliminates the need for multiple instruments, saving both bench space and equipment investment while streamlining your measurement workflow.
5. Advanced Triggering and Analysis
UNI-T's HD series offers sophisticated triggering and analysis capabilities:
- Multiple Trigger Types: Edge, pulse width, video, ramp, runt pulse, setup & hold, and more
- Zone Trigger: Visual definition of signal regions for event isolation
- Protocol Triggering: Specialized triggers for various communication protocols
- Comprehensive Automatic Measurements: Up to 54 parameter measurements with statistics
- Mathematical Operations: Advanced signal processing functions
- Waveform Navigation and Search: Efficiently locate events of interest in deep memory acquisitions
The MSO5000HD series adds additional capabilities including enhanced template testing and more sophisticated zone triggering options.
These capabilities transform complex debugging tasks into straightforward workflows, accelerating problem identification and resolution.
6. Intuitive User Interface
UNI-T's HD series features an advanced user interface designed for professional efficiency:
- 10.1-inch HD Capacitive Touch Screen: Intuitive multi-gesture operation
- Traditional Controls: Familiar knobs and buttons for precise adjustments
- Quick Autoset Strategy: Rapidly configures optimal settings for unknown signals
- Multi-Window Display: Simultaneous viewing of multiple signal representations
- Ultra Phosphor Technology: Superior waveform visualization with intensity grading
The MSO5000HD features enhanced Ultra Phosphor 3.0 technology with 256 gray levels and superior visualization capabilities.
This thoughtfully designed interface makes advanced measurement capabilities accessible to users of all experience levels while maximizing productivity for experienced professionals.
7. Connectivity and Remote Operation
UNI-T's HD series integrates seamlessly into modern laboratory environments:
- USB Host/Device Ports: For data transfer and storage
- LAN Connectivity: Network operation and remote control
- HDMI Output: External display capability
- Wi-Fi Connectivity (select models): Wireless operation and control
- WebServer Functionality: Browser-based instrument access
These connectivity options enable flexible integration into your workflow, whether for automated testing, remote operation, or collaborative analysis.
Understanding Technical Terminology
| Term | Definition |
|---|---|
| Vertical Resolution | The number of bits used to digitize the input signal (12-bit in HD series) |
| Quantization Levels | The number of discrete voltage levels the ADC can represent (4,096 in 12-bit systems) |
| ERES | Enhanced Resolution - a technique to increase effective vertical resolution through signal processing |
| Ultra Phosphor | UNI-T's advanced display technology with intensity grading for superior signal visualization |
| Waveform Capture Rate | The number of waveforms the oscilloscope can acquire per second |
| Zone Trigger | A visual triggering method allowing users to define regions where signals should or should not pass |
| Interleaved Sampling | A technique that combines multiple ADCs to achieve higher sampling rates |
| Hardware Accelerated Template Testing | High-speed comparison of signals against reference templates |
| Real-time Waveform Recording | Continuous capture and playback of multiple waveform frames |
| Multi-window Display | Simultaneous viewing of multiple signal representations or analysis results |
Professional Applications by Model
UNI-T MSO3000HD Series
MSO3024HD (200MHz) - Ideal For:
- Educational laboratories and professional training
- General electronics development and troubleshooting
- Power supply design and verification
- Embedded system development with moderate speed requirements
- Industrial electronics and motor control systems
- Medical device prototype testing
MSO3034HD (350MHz) - Ideal For:
- Professional electronics development and verification
- Power electronics and converter design
- Medium-speed digital system debugging
- Automotive electronics development
- Telecommunications equipment testing
- Industrial control system development
MSO3054HD (500MHz) - Ideal For:
- High-precision analog circuit development
- Advanced embedded systems design
- High-speed digital interface debugging
- Professional electronic manufacturing test
- Medical electronics development
- Research and development laboratories
Professional Use Case: "As a power electronics engineer, I rely on the MSO3034HD's 12-bit resolution to accurately measure switching waveforms and output ripple components. The combination of high vertical resolution and the integrated Bode plot analyzer has transformed how we validate our power supply designs. We can now identify stability issues and optimize performance with confidence—all with a single instrument." - Elena S., Power Electronics Engineer
UNI-T MSO5000HD Series
MSO5034HD (350MHz) - Ideal For:
- Automotive electronics engineering
- Power battery performance analysis
- Mixed-signal embedded systems
- Industrial automation controllers
- Power electronics optimization
- Professional field service engineering
MSO5054HD (500MHz) - Ideal For:
- Medium-complexity designs with mixed signal requirements
- Professional electronics development
- Power electronics with higher frequency components
- Automotive electronics with multiple bus systems
- Precision analog circuit development
- Medical device electronics verification
MSO5104HD (1GHz) - Ideal For:
- Research and development laboratories
- High-speed digital interfaces
- Precision analog circuits requiring maximum bandwidth
- Advanced power electronics with GaN or SiC devices
- Medical electronics with high-frequency components
- Professional test and validation environments
Professional Use Case: "The MSO5104HD has become our go-to instrument for troubleshooting complex embedded system issues in our medical device development lab. The 1GHz bandwidth handles our fastest digital interfaces, while the 12-bit resolution provides the precision we need for sensitive analog measurements. What really sets this oscilloscope apart is the intuitive user interface—the touchscreen gestures and zone triggering have reduced the learning curve for our team and made sophisticated measurements accessible to all our engineers." - Ahmed K., Medical Electronics Designer
MSO3000HD vs. MSO5000HD: Choosing the Right Series
| Feature | MSO3000HD Series | MSO5000HD Series |
|---|---|---|
| Bandwidth Options | 200MHz, 350MHz, 500MHz | 350MHz, 500MHz, 1GHz |
| Maximum Sample Rate | 2.5 GSa/s | 5 GSa/s (interleaved), 2.5 GSa/s (non-interleaved) |
| Calculated Rise Time | 200MHz: ≤1.80ns 350MHz: ≤1.00ns 500MHz: ≤0.80ns |
350MHz: ≤1.00ns 500MHz: ≤0.70ns 1GHz: ≤0.35ns |
| Waveform Capture Rate | 500,000 wfms/s (1,500,000 wfms/s in sequence mode) |
800,000 wfms/s (1,500,000 wfms/s in sequence mode) |
| Display Technology | Multi-level intensity grading | Ultra Phosphor 3.0 with 256 gray levels |
| Protocol Support | 12 serial protocols | 15 serial protocols |
| Dimensions (W×H×D) | 364mm × 209mm × 106mm | 361mm × 209mm × 106mm |
| Weight | 3.83kg | 3.97kg |
| Ideal Applications | General electronics, power electronics, educational, industrial | Advanced R&D, high-speed digital, precision analog, medical electronics |
| Best For | Professionals requiring excellent resolution at accessible price points | Engineers needing maximum bandwidth, superior visualization, and advanced protocol support |
Optional Capabilities and Accessories
Enhance your UNI-T HD oscilloscope with these valuable additions:
Functional Extensions
- MSO3000HD/5000HD-AWG: Dual-channel 50MHz arbitrary waveform generator with Bode plot capabilities
- MSO3000HD/5000HD-PWR: Advanced power analysis package for comprehensive power system characterization
- MSO3000HD/5000HD-BND: Complete serial bus protocol package including automotive, embedded, aerospace, and audio protocols
- MSO3000HD/5000HD-AUTO: Automotive protocols package (CAN, CAN-FD, LIN, FlexRay, SENT)
- Bandwidth Upgrades: Expand capabilities as your needs evolve
Professional Probes
| Model | Description | Specifications |
|---|---|---|
| UT-P05 | Passive Probe | 200MHz bandwidth, suitable for MSO3024HD |
| UT-P07A | Passive High-Resistance Probe | 10X, DC to 500MHz, for MSO5054HD and MSO3054HD |
| UT-P08A | Passive High-Resistance Probe | 10X, DC to 350MHz, for MSO5034HD and MSO3034HD |
| UT-P20 | High-Resistance Probe | DC to 100MHz, Probe coefficient 100:1 |
| UT-V23 | High Voltage Probe | DC to 100MHz, Maximum voltage: 2000 Vpp |
| UT-P30/31/32/33 | High Voltage Differential Probes | Various voltage ranges up to 14 kVpp |
| UT-PA2000 | Active Single-Ended Probe | 10X, DC to 2 GHz, Input capacitance: ≤1 pF |
| UT-P4150/P4500 | High-Frequency Current Probes | Bandwidth up to 12 MHz, Current ranges up to 500A |
| UT-M15 | 16-Channel Logic Analyzer Probe | Input impedance: 101 kΩ ±1%, Capacitive load: 9.0 pF |
Making Your Selection: Practical Considerations
When selecting your UNI-T HD oscilloscope, consider these practical factors:
-
Application Requirements: Match bandwidth and capabilities to your specific measurement needs
- For general electronics and education: MSO3024HD (200MHz)
- For power electronics and embedded systems: MSO3034HD/MSO5034HD (350MHz)
- For advanced mixed-signal applications: MSO3054HD/MSO5054HD (500MHz)
- For high-speed digital and research: MSO5104HD (1GHz)
-
Budget Allocation: Balance initial investment with optional extensions as budget permits
- MSO3000HD series offers excellent value for professionals with budget constraints
- MSO5000HD series provides premium features for demanding applications
-
Future Growth: Consider bandwidth upgrade paths to accommodate evolving requirements
- Both series offer bandwidth upgrades to protect your investment
-
Complementary Equipment: Evaluate which probes and accessories will maximize your oscilloscope's utility
- Match probe bandwidth to your instrument for optimal measurement fidelity
-
Workspace Integration: Plan for bench space, connectivity, and workflow integration
- Both series offer similar form factors and comprehensive connectivity options
Why Choose UNI-T HD Series Oscilloscopes
UNI-T's HD series represents our commitment to professional excellence through:
- Innovative Technology: 12-bit resolution, Ultra Phosphor technology, and advanced triggering capabilities
- Exceptional Value: Multiple instruments in one package with professional-grade performance
- Superior Usability: Intuitive touch interface, optimized controls, and streamlined workflows
- Reliability: Robust construction and comprehensive three-year warranty
- Comprehensive Support: Global technical support network and application expertise
Frequently Asked Questions
What makes 12-bit resolution so valuable compared to standard 8-bit oscilloscopes?
The 12-bit ADC in UNI-T's HD series provides 4,096 quantization levels—16 times more than the 256 levels in conventional 8-bit oscilloscopes. This higher resolution reveals signal details that would otherwise be lost in quantization noise, enabling engineers to observe small signal variations within larger waveforms. For applications like power electronics, where accurately measuring small ripple components on DC voltage rails is critical, or in precision analog circuits where subtle signal variations contain important information, this enhanced resolution delivers significant advantages.
How does the zone trigger feature simplify capturing complex signal events?
The zone trigger function revolutionizes the process of isolating specific signal events by allowing engineers to visually define regions of interest directly on the screen. Rather than configuring complex combinations of conventional trigger parameters, users simply draw rectangles around the signal areas they want to capture or exclude. The oscilloscope then triggers only when signals enter, exit, or remain within these defined zones, making it remarkably easy to isolate irregular signal patterns.
Can UNI-T HD series oscilloscopes be integrated into automated test environments?
Yes, both the MSO3000HD and MSO5000HD series are designed for seamless integration into automated test systems through multiple connectivity options and comprehensive remote control capabilities. The instruments support both LAN (VXI-11) and USB interfaces for physical connection to test controllers, and include a built-in WebServer that enables browser-based instrument access and control. Both series fully support SCPI (Standard Commands for Programmable Instruments), providing a standardized command interface for automated operation.
What advantages does the built-in function/arbitrary waveform generator provide?
The optional dual-channel function/arbitrary waveform generator transforms your HD oscilloscope from a passive measurement tool into an active test solution. With 50 MHz performance, 16-bit vertical resolution, and a comprehensive library of built-in waveforms, this integrated generator eliminates the need for a separate stimulus instrument in many applications. When combined with the Bode plot analyzer function, the integrated generator enables complete closed-loop testing of power supplies, filters, and amplifiers without additional equipment.
Which HD series is better for power electronics applications?
Both the MSO3000HD and MSO5000HD series excel in power electronics applications, but with different strengths. The MSO3000HD series offers excellent 12-bit resolution and optional power analysis capabilities at more accessible price points, making it ideal for general power electronics development. The MSO5000HD series adds higher waveform capture rates, more comprehensive protocol support, and enhanced display technology, providing advantages for advanced power electronics with GaN or SiC devices or systems with multiple communication buses. For most power electronics applications, the MSO3034HD (350MHz) or MSO5034HD (350MHz) provides an excellent balance of performance and value.
Conclusion: High-Resolution Signal Analysis for Today's Engineering Challenges
UNI-T's High-Definition Mixed Signal Oscilloscope series delivers the advanced signal fidelity, intuitive operation, and integrated measurement capabilities that modern electronics professionals demand. With exceptional 12-bit resolution, comprehensive analysis functions, and an intuitive user interface, these powerful instruments transform complex debugging tasks into straightforward visual analysis. Whether you're designing next-generation power electronics, troubleshooting embedded systems, or characterizing precision analog circuits, UNI-T's HD series provides the measurement confidence you need to accelerate design innovation and ensure product quality.
