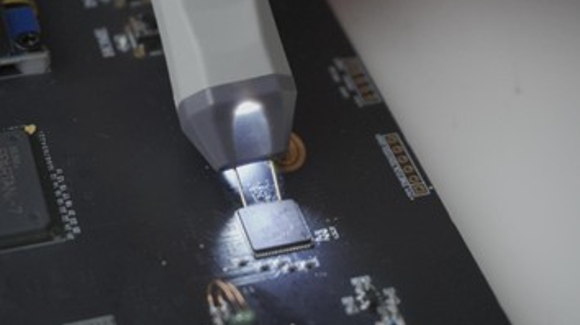

UT-PD1500 1.5GHz Active Differential Probe
Overview
1.5 GHz active differential oscilloscope probe with 10:1 attenuation and ±4V dynamic range. Safely measures floating voltages across motor drives, power converters, and bridge circuits without ground referencing. Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Key Features
- 1.5GHz Bandwidth — Captures signal content up to 1.5GHz for accurate waveform measurement.
- 10:1 Attenuation — Divides the input signal for measuring higher-voltage circuits.
- ±4 V Maximum Input Voltage — Rated input voltage for safe operation.
- Standard BNC Connection — Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Warranty
This product includes a standard 1-year warranty covering manufacturing defects and component failures under normal use conditions.
UNI-T stands behind every product we sell. If you experience any issues within the warranty period, our US-based support team is here to help with troubleshooting, repair, or replacement.
| Bandwidth | 1.5GHz |
|---|---|
| Attenuation | 10:1 |
| Instrument Type | Active Differential Probe |
Full specifications (6)
| Details | |
|---|---|
| Max Input Voltage | ±4 V |
| Cable Length | 1.2m |
| General Information | |
| Dimensions (W×H×D) | 19.33 × 18.30 × 103.50 mm |
| Weight | 0.1 kg |
| Warranty | 1 year |
| Certifications | CE |
