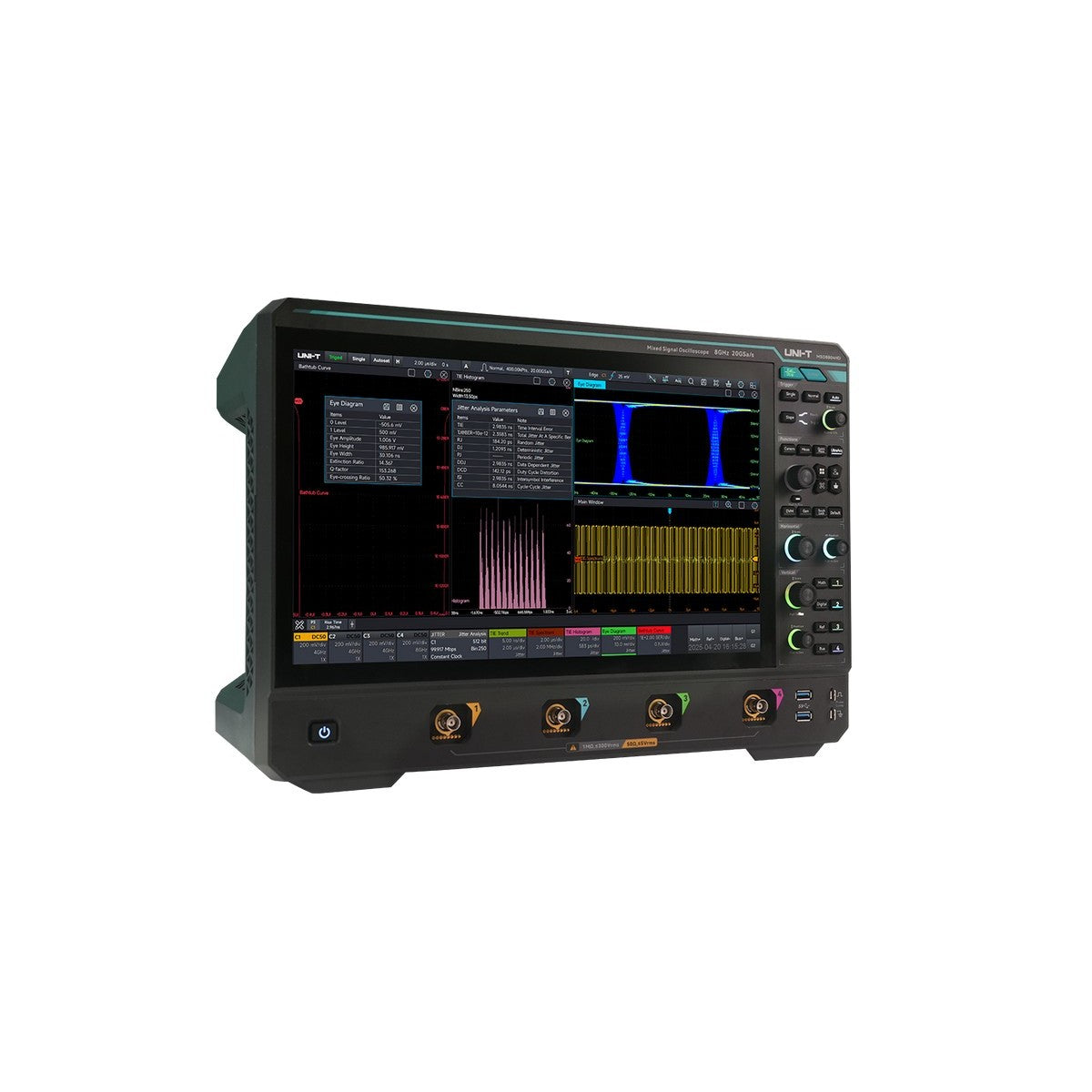

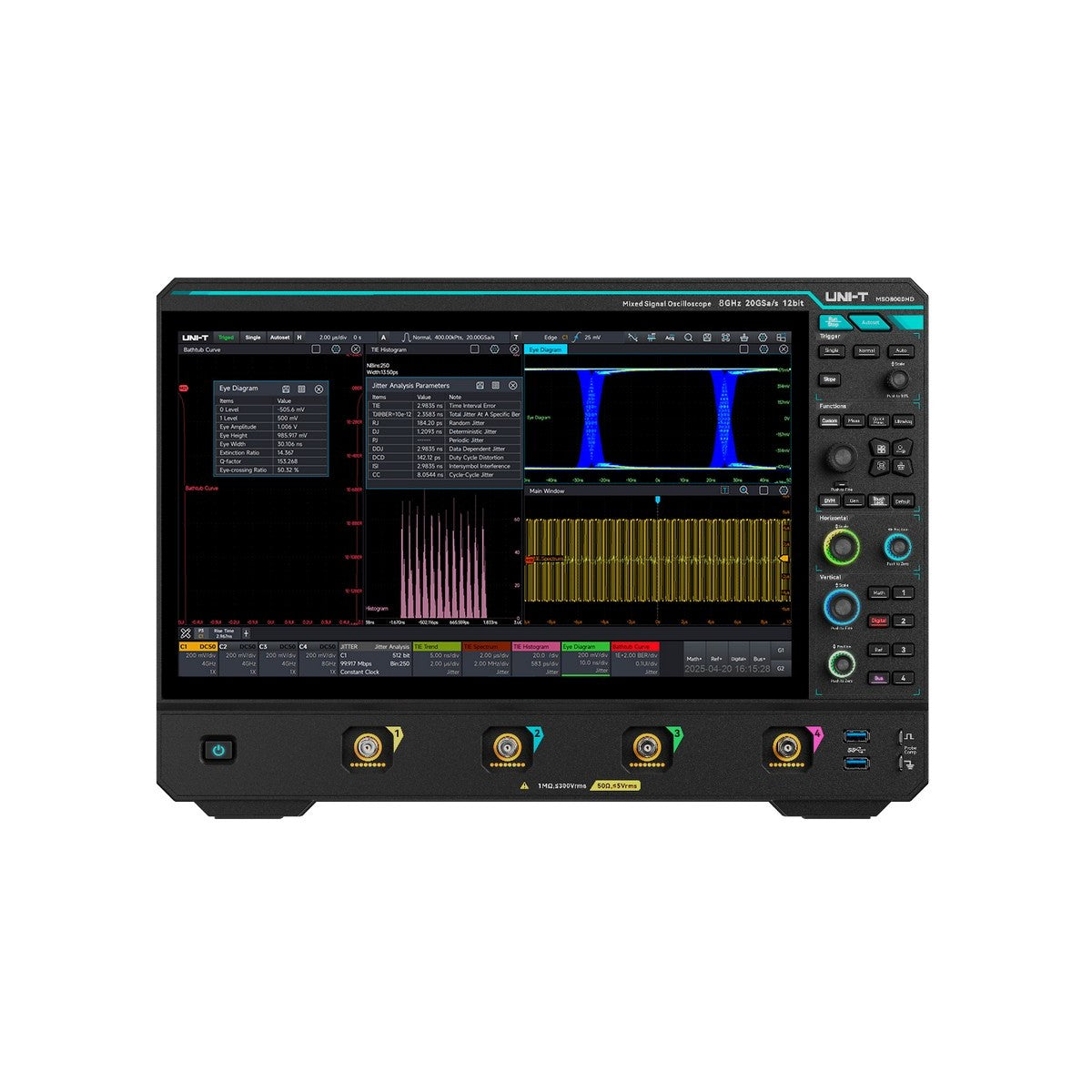

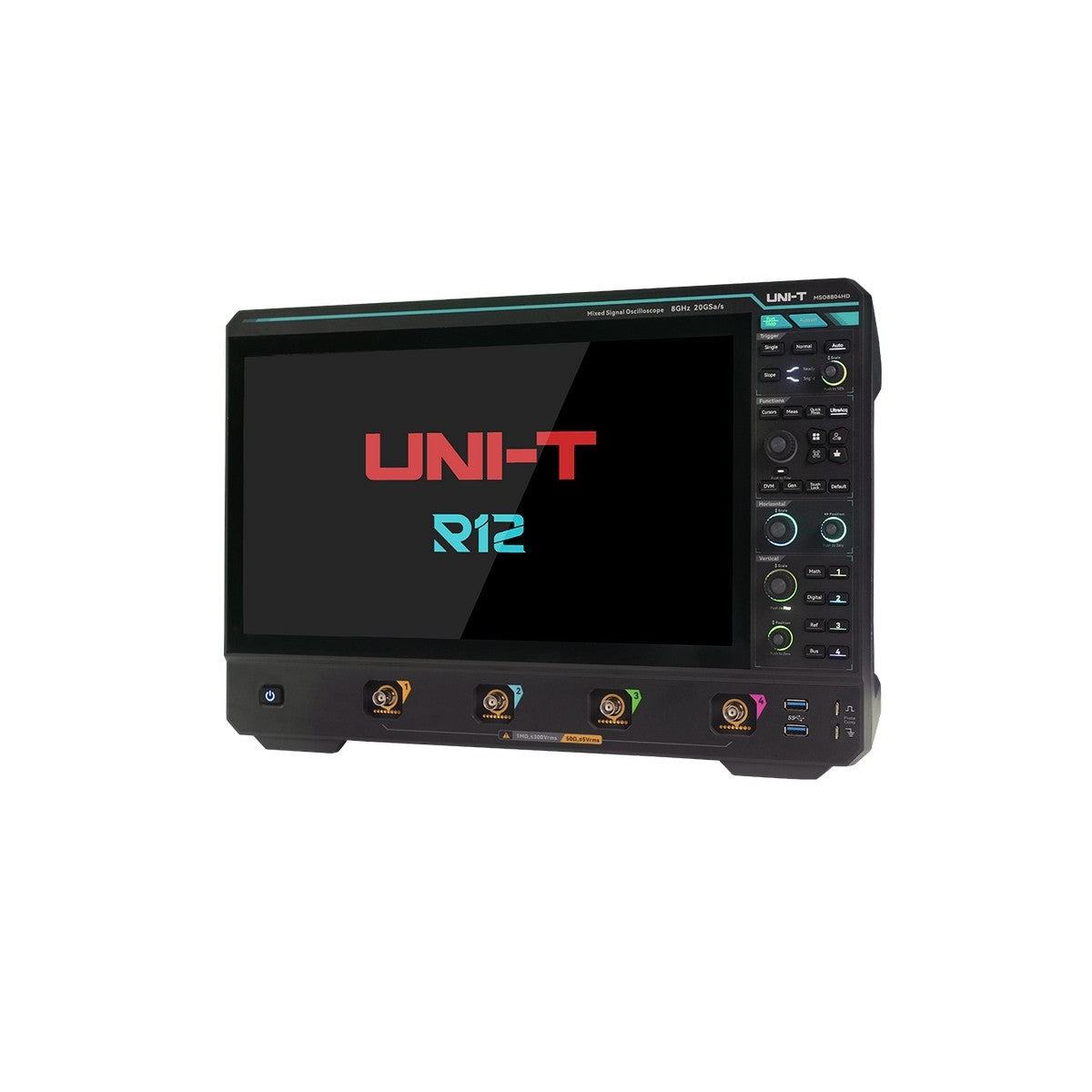

UNI-T MSO8804HD | 8GHz High-Performance Mixed Signal Oscilloscope
Overview
The UNI-T MSO8804HD represents the pinnacle of mixed signal oscilloscope technology, delivering professional-grade 8GHz bandwidth with 20GSa/s real-time sampling and industry-leading 12-bit vertical resolution. Engineered for the most demanding high-speed digital design and validation applications, the MSO8804HD combines exceptional signal fidelity with comprehensive protocol analysis capabilities.
Featuring an ultra-low noise floor of ≤800μV and 7-bit ENOB at full bandwidth, this flagship instrument delivers measurement accuracy that rivals oscilloscopes costing twice as much. With support for 21+ serial protocols, advanced jitter analysis, and automated compliance testing, the MSO8804HD is the definitive solution for semiconductor design, 5G communications, automotive electronics, and aerospace applications.

Key Features
- 8GHz Analog Bandwidth — Full bandwidth available in optimized dual-channel mode (C1, C3, or C1+C3).
- 20GSa/s Sample Rate — Maximum performance in optimized dual-channel configuration for differential signal analysis.
- 12-bit Vertical Resolution — Superior 4096-level quantization reveals signal details missed by 8-bit scopes.
- Ultra-Low Noise Floor — Industry-leading ≤800μV noise enables measurement of weak signals.
- Up to 2Gpts Memory Depth — Capture long protocol sequences and intermittent events.
- 1M+ Waveform Capture Rate — Sequence mode delivers exceptional event detection capability.
- 21+ Protocol Analysis — Comprehensive serial bus decoding from embedded to aerospace standards.
- Hardware Jitter Analysis — Real-time eye diagrams and automated jitter decomposition.
- 15.6" FHD Touchscreen — Large capacitive display with gesture support and Windows OS.
- Automated Compliance Testing — Built-in test suites for USB 2.0, PCIe, and Ethernet standards.
- Advanced Mathematical Processing — MATLAB embedded programming and sophisticated filter design.
- Optional 60MHz AWG — Dual-channel arbitrary waveform generator with 625MSa/s output.
UNI-T MSO8804HD Optimized Channel Architecture
The MSO8804HD features an intelligent channel architecture that maximizes performance when you need it most. For maximum bandwidth and sample rate (8GHz, 20GSa/s), the instrument operates in optimized dual-channel mode using channels C1, C3, or both simultaneously. This configuration is ideal for differential signal analysis, high-speed serial interfaces, and critical timing measurements where ultimate performance is essential.
When analyzing complex systems requiring three or four channels simultaneously, the MSO8804HD automatically provides 4GHz bandwidth and 10GSa/s sampling across all channels—still exceptional performance that exceeds most competing instruments. The intelligent architecture ensures you always get optimal performance for your specific measurement requirements.

UNI-T MSO8804HD Superior 12-Bit Signal Fidelity
The MSO8804HD's 12-bit analog-to-digital converter delivers 16 times finer vertical resolution than conventional 8-bit oscilloscopes, enabling precise characterization of high-speed digital signals, power integrity measurements, and weak signal analysis. Combined with Enhanced Resolution (ERES) mode, users can achieve up to 16-bit precision for the most demanding measurement applications.
The industry-leading noise floor of just 800μV at full bandwidth ensures that small signals remain visible above the noise, while the superior 7-bit ENOB at 8GHz maintains measurement accuracy even at maximum bandwidth. This exceptional signal integrity makes the MSO8804HD ideal for validating next-generation semiconductor designs and high-speed communication systems.

UNI-T MSO8804HD Comprehensive Protocol Analysis
Supporting more than 21 serial protocols, the MSO8804HD eliminates the need for multiple specialized instruments. Standard protocol support includes RS-232/422/485/UART, SPI, I²C, CAN, and LIN, while optional packages add high-speed protocols like PCIe 2.0, USB 2.0, Ethernet, CAN-FD, FlexRay, and aerospace standards including MIL-STD-1553 and ARINC 429.
Real-time protocol decoding with color-coded overlays allows engineers to quickly identify communication errors, timing violations, and data corruption. The synchronized analog and digital views provide complete system visibility, enabling rapid debug of complex mixed-signal designs where protocol integrity depends on precise timing relationships.

UNI-T MSO8804HD Advanced Jitter and Eye Diagram Analysis
The MSO8804HD's hardware-accelerated jitter analysis engine provides real-time separation of random and deterministic jitter components, eliminating the need for offline processing tools. Automated measurements include Total Integrated Error (TIE), period jitter, cycle-to-cycle jitter, and advanced decomposition into random jitter (RJ), deterministic jitter (DJ), and sub-components like data-dependent jitter (DDJ) and duty cycle distortion (DCD).
Real-time eye diagram generation with compliance templates enables immediate pass/fail assessment against industry standards. The comprehensive jitter analysis suite makes the MSO8804HD essential for validating high-speed serial interfaces, clock distribution networks, and timing-critical digital communication systems.

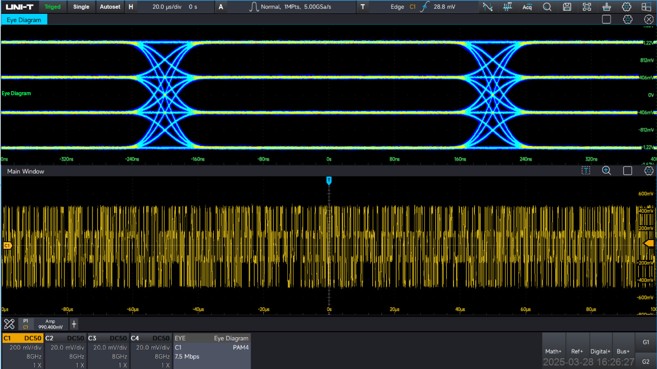

UNI-T MSO8804HD PAM-N Signal Analysis
Supporting advanced pulse amplitude modulation from PAM-3 to PAM-16, the MSO8804HD addresses the growing complexity of next-generation high-speed digital communications. PAM-4 signaling, increasingly adopted in 400G Ethernet, PCIe 6.0, and DDR5 memory interfaces, requires sophisticated analysis capabilities that traditional oscilloscopes cannot provide.
The MSO8804HD's PAM-N analysis includes eye diagram generation for each amplitude level, comprehensive jitter and noise measurements, and automated parameter extraction. This advanced capability enables engineers to validate signal integrity margins, optimize equalization settings, and ensure compliance with emerging high-speed digital standards.

UNI-T MSO8804HD Automated Compliance Testing
The MSO8804HD includes automated compliance test suites that eliminate manual configuration errors and reduce test time by up to 90%. Current support includes USB 2.0 and 10/100/1000 Mbps Ethernet protocols, with planned expansion to automotive Ethernet, MIPI, and PCIe standards.
Each compliance package provides guided setup wizards, automated test execution, and comprehensive pass/fail reporting with detailed margin analysis. Test results include waveform captures, parametric measurements, and compliance margins, enabling engineers to quickly identify and resolve interface issues while maintaining thorough documentation for regulatory submissions.

UNI-T MSO8804HD Advanced Mathematical Processing
The MSO8804HD supports embedded MATLAB programming, allowing engineers to create custom analysis routines and visualizations directly on the instrument. This powerful capability eliminates the need to export data to external tools, enabling real-time processing of complex algorithms and immediate display of results.
The advanced filter designer supports multiple filter topologies including Butterworth, Chebyshev Type I/II, and Elliptic filters. Users can design custom filters using sampling methods, Remez algorithms, or window functions, enabling sophisticated signal conditioning and noise reduction for specialized measurement applications.

UNI-T MSO8804HD Professional Applications
Semiconductor Design & Validation
The MSO8804HD excels in high-speed semiconductor validation where signal integrity directly impacts product success. Its 8GHz bandwidth and ultra-low noise floor enable accurate characterization of DDR4/DDR5 memory interfaces, PCIe 4.0/5.0 links, and high-speed SerDes designs. The 12-bit resolution reveals subtle signal anomalies that could cause intermittent system failures, while deep memory capture ensures complete transaction visibility during long protocol sequences.
5G & High-Speed Communications
Next-generation wireless infrastructure demands precise analysis of PAM-4 signals, complex modulation schemes, and ultra-low jitter clock distribution. The MSO8804HD's PAM-N analysis capabilities, combined with advanced jitter decomposition, provide the measurement accuracy required for 400G optical modules, 5G base station validation, and high-speed backplane characterization. Real-time eye diagram analysis with compliance templates ensures first-pass design success.
Automotive Electronics Development
Modern vehicles rely on high-speed communication networks where timing violations can cause safety-critical failures. The MSO8804HD supports comprehensive automotive protocol analysis including CAN-FD, FlexRay, and emerging automotive Ethernet standards. Its mixed-signal capability enables simultaneous analysis of sensor signals, control logic, and communication protocols, providing complete system visibility during ECU validation and network troubleshooting.
Aerospace & Defense Systems
Military and aerospace applications require compliance with stringent standards like MIL-STD-1553 and ARINC 429. The MSO8804HD's protocol analysis packages include these specialized interfaces while maintaining the signal fidelity needed for EMI validation and interference analysis. The instrument's rugged design and comprehensive measurement capabilities make it suitable for both laboratory development and field testing environments.
Technical Specifications
Parameter | Specification |
---|---|
Analog Bandwidth | 8 GHz (-3dB) optimized dual-channel mode* 4 GHz full-channel mode |
Rise Time | 55 ps (typical) |
Input Channels | 4 analog + EXT, 16 digital (optional) |
Vertical Resolution | 12-bit (16-bit with ERES) |
Sample Rate | 20 GSa/s (optimized dual-channel mode), 10 GSa/s (full channels) |
Memory Depth | Standard: 500Mpts/CH (full), 1Gpts/CH (optimized) Optional: 1Gpts/CH (full), 2Gpts/CH (optimized) |
Capture Rate | ≥1,000,000 wfms/s (sequence mode) |
Display | 15.6" FHD capacitive touchscreen (1920×1080) |
Vertical Sensitivity | 1mV/div to 1V/div (50Ω) |
Input Impedance | 50Ω ±2% |
Noise Floor | ≤800μV (50mV/div, full bandwidth) |
ENOB | >7 bits (full bandwidth, 50Ω, 50mV/div, -3dBFS) |
Standard Protocols | RS-232/422/485/UART, SPI, I²C, CAN, LIN |
Optional Protocols |
CAN-FD, SENT, FlexRay, AudioBus, MIL-STD-1553, ARINC429, USB 2.0, PCIe 2.0, Ethernet, I3C, PSI5, and more |
AWG (Optional) | 2-channel, 60MHz, 625MSa/s with arbitrary waveform capability |

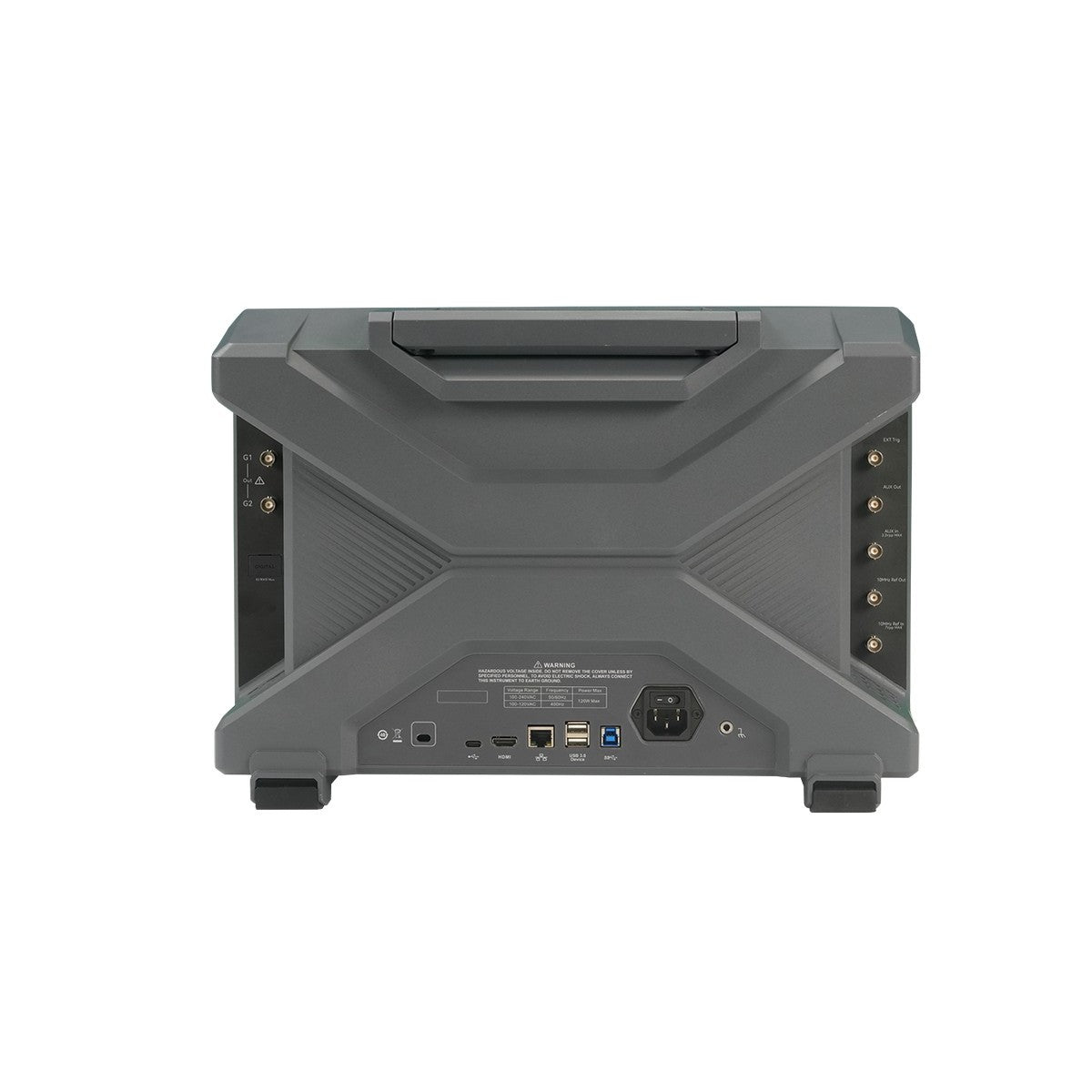

Connectivity | USB-C, 4× USB-A, Gigabit LAN, HDMI |
Operating System | Windows 10 |
*Optimized dual-channel mode: C1, C3, or C1+C3 simultaneously for maximum performance
MSO8000HD Series Comparison Table
Feature | MSO8804HD | MSO8504HD* |
---|---|---|
Bandwidth | 8 GHz | 5 GHz |
Rise Time | 55 ps | 88 ps |
Sample Rate | 20/10 GSa/s | 20/10 GSa/s |
Memory Depth | Up to 2 Gpts/CH | Up to 2 Gpts/CH |
Vertical Resolution | 12-bit (16-bit ERES) | 12-bit (16-bit ERES) |
Protocol Analysis | 21+ protocols | 21+ protocols |
Target Applications | High-speed digital, 5G, PCIe 5.0 | Automotive, industrial, PCIe 4.0 |
*MSO8504HD planned for future release
Optional Accessories & Upgrades
Option | Description | Benefit |
---|---|---|
MSO8000HD-LA | 16-channel MSO upgrade | Mixed-signal analysis capability |
MSO8000HD-MD2G | Memory depth upgrade to 2Gpts/CH | Extended capture for long protocols |
MSO8000HD-AWG | 60MHz dual-channel AWG | Integrated stimulus generation |
MSO8000HD-BND Bundle | Complete upgrade suite with jitter analysis and protocols | Maximum value package for advanced analysis |
Advanced Jitter Analysis | Hardware-accelerated jitter and eye diagram analysis | Essential for high-speed digital validation |
UT-GBE-FT | Ethernet test fixture | Compliance testing setup |
UT-USB20-SQ-HD | USB 2.0 test fixture | USB compliance testing |
Package Contents
- UNI-T MSO8804HD Mixed Signal Oscilloscope
- 2× UT-JLC12 SMA Cables (12GHz, 1m)
- 2× UT-KJG12 BNC to SMA Adapters (50Ω)
- 2× UT-L45 BNC-BNC Cables
- UT-D30 USB 3.0 Data Cable
- Front Panel Protective Cover
- Region-Specific Power Cord
- Calibration Certificate
Frequently Asked Questions
What makes the MSO8804HD's 12-bit resolution significant for high-speed digital design?
The 12-bit ADC provides 16 times finer vertical quantization than 8-bit scopes, revealing subtle signal integrity issues in high-speed digital interfaces. This resolution is crucial for PAM-4 signal analysis, power integrity measurements, and detecting small timing violations that could cause intermittent system failures.
How does the MSO8804HD compare to competitive 8GHz oscilloscopes?
The MSO8804HD delivers comparable or superior performance to instruments from Keysight, LeCroy, and R&S at approximately half the cost. Key advantages include the 12-bit resolution, ultra-low noise floor, deep memory options, and comprehensive protocol analysis package.
Can the MSO8804HD perform automated compliance testing?
Yes, the MSO8804HD includes automated test suites for USB 2.0 and Ethernet protocols, with additional standards being added regularly. The compliance packages provide guided setup, automated execution, and detailed pass/fail reporting with margin analysis.
What protocol analysis capabilities are included?
Standard protocols include RS-232/422/485/UART, SPI, I²C, CAN, and LIN. Optional packages add high-speed protocols like PCIe, USB, Ethernet, automotive protocols (CAN-FD, FlexRay), and aerospace standards (MIL-STD-1553, ARINC 429). Over 21 protocols are supported in total.
Is the MSO8804HD suitable for PAM-4 signal analysis?
Absolutely. The MSO8804HD supports PAM-3 through PAM-16 analysis with dedicated eye diagram generation, jitter measurements, and compliance testing capabilities. This makes it ideal for next-generation high-speed digital interfaces using advanced modulation schemes.
What support and warranty are provided?
The MSO8804HD includes UNI-T's Exclusive 3+2 Warranty with comprehensive technical support, regular software updates, and access to application engineers for specialized measurement challenges.
Warranty & Support
The UNI-T MSO8804HD includes our Exclusive 3+2 Warranty—a comprehensive 3-year standard warranty covering parts and labor under normal operating conditions, plus an additional 2 years of coverage at no charge when you complete our free product registration. UNI-T provides ongoing software updates, technical support, and access to application engineers for specialized measurement requirements.
Experience Next-Generation Oscilloscope Performance
The UNI-T MSO8804HD redefines what's possible in high-performance mixed signal oscilloscopes. Combining 8GHz bandwidth, 12-bit resolution, and comprehensive protocol analysis in a single instrument, it delivers the measurement accuracy and analysis capabilities required for today's most challenging engineering applications.
Ready to elevate your measurement capabilities? View the MSO8804HD or contact our sales team today for a demonstration and pricing information.
Feature | Specification |
---|---|
Model Number | MSO8804HD |
Scope Type | MSO |
Bandwidth | 8GHz |
Channels | 4Ch |
Scope Sample Rate | 20GSa/s |
Memory Depth | 2Gpts (opt) |
Refresh Rate | 1,000,000wfms/s |
Vertical Scale @1MΩ | 1mV/div to 1V/div |
# Automatic Measurements | 52 |
Included Bus Protocols | RS232 UART I2C SPI CAN LIN RS422 RS485 |
Optional Bus Protocols | CAN-FD FlexRay SENT Audio MIL-STD-1553B ARNIC429 Manchester I3C PSI5 USB2.0 PCIe2.0 10/100Mb/s Ethernet NRZ 8b/10b SMBUS SPMI |
Logic Pod Included | Optional |
Signal Generator Function | Optional |
Frequency Meter | 8-bit |
Display Size (in) | 15.6in |
Touchscreen | Yes |
Warranty | 3 years |
Certifications | CE/cTUVus |
Documents | English download guide, multi-language safety manual, calibration report (COC) |
Standard Accessories | Power cord, USB3.0 printing cable |
