UNI-T MSO8000HD-LA | 16-Channel Logic Analyzer Option

Overview

The UNI-T MSO8000HD-LA option transforms your oscilloscope into a powerful mixed-signal analysis platform by adding 16 high-speed digital channels to complement the industry-leading 8 GHz analog performance. This comprehensive solution enables simultaneous capture and analysis of analog signals, digital control lines, and serial communication protocols, providing complete system visibility for complex electronic designs.

Engineered for professionals working with embedded systems, FPGA development, and mixed-signal circuit validation, the LA option delivers professional-grade logic analysis capabilities with seamless integration into the MSO8000HD's advanced measurement and analysis ecosystem. The high-speed digital channels operate at 1.25 GSa/s sample rates, ensuring accurate capture of modern high-speed digital interfaces and control signals.

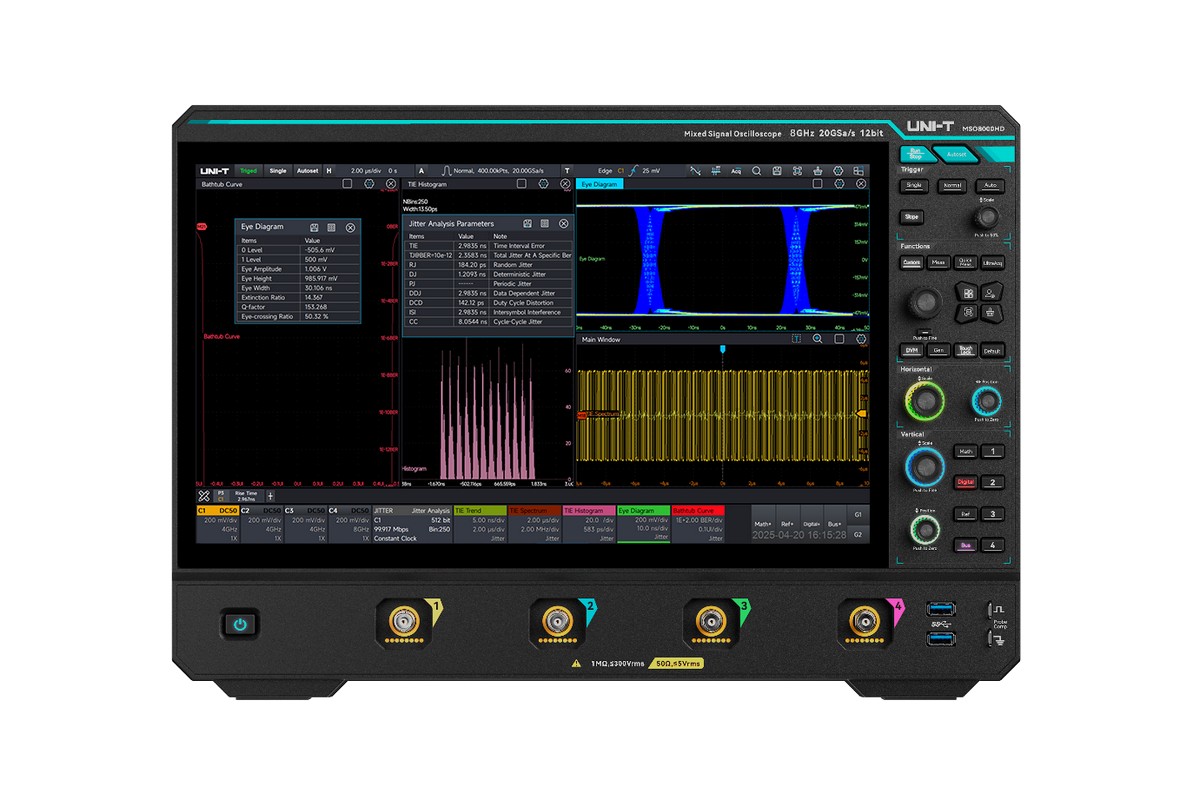

UNI-T MSO8804HD Mixed Signal Analysis
Complete mixed-signal analysis platform with 4 analog + 16 digital channels

Key Features

• 16 high-speed digital channels with 1.25 GSa/s sample rate per channel
• Seamless integration with 4 analog channels for complete mixed-signal analysis
• Professional UT-M15 16-channel logic analyzer probe required (sold separately)
• Time-correlated analog and digital waveform display
• Advanced digital triggering on complex logic patterns and state changes
• High-resolution timing measurements with sub-nanosecond accuracy
• Flexible channel grouping and bus analysis capabilities
• Integrated with MSO8000HD's advanced analysis tools and measurement suite
• Automatic setup and channel assignment for common digital interfaces
• Export capabilities for integration with FPGA development tools

Required UT-M15 Logic Analyzer Probe

The MSO8000HD-LA option requires the professional UT-M15 16-channel logic analyzer probe (sold separately), featuring high-quality construction with reliable spring-loaded connectors and color-coded channel identification. The probe provides clean signal acquisition with minimal loading effects and excellent signal integrity for accurate digital measurements.

Compatibility Information

Compatible Models: MSO8804HD, MSO8504HD (planned release)

Installation: Hardware upgrade requiring UT-M15 probe (sold separately) and software license activation

Digital Sample Rate: 1.25 GSa/s per channel across all 16 channels

Logic Thresholds: TTL, CMOS, and user-definable threshold levels

Mixed-Signal Protocol Analysis

Pair this Logic Analyzer option with the MSO8000HD-BND Protocol Analysis & Jitter Suite for complete mixed-signal protocol analysis. The LA provides 16 digital channels for monitoring control signals and parallel buses, while the bundle delivers comprehensive serial protocol and jitter analysis.

This combination enables correlation between parallel and serial buses, making it ideal for debugging complex embedded systems with multiple interface types. Both feature perpetual licensing with zero recurring fees, potentially saving $10,000+ over the instrument's lifetime.

UNI-T MSO8000HD-LA Analysis Capabilities

Mixed-Signal Correlation Analysis

The true power of mixed-signal analysis emerges when analog and digital domains are analyzed simultaneously with perfect time correlation. The MSO8000HD-LA option enables engineers to observe how digital control signals affect analog performance, identify timing relationships between domains, and validate system-level behavior across the complete signal chain.

Advanced triggering capabilities allow you to trigger on complex combinations of analog conditions and digital patterns, enabling capture of intermittent system behaviors and rare failure modes. Cross-domain measurements provide timing analysis between analog edges and digital transitions, essential for validating setup and hold times in mixed-signal systems.

MSO8000HD Protocol Analysis
Integrated protocol analysis across analog and digital channels

High-Speed Digital Interface Analysis

Modern embedded systems rely heavily on high-speed digital communication interfaces that require precise timing analysis and protocol validation. The MSO8000HD-LA's 1.25 GSa/s digital sampling rate provides the resolution needed to accurately capture fast digital edges and analyze timing relationships in high-speed interfaces including SPI, I²C, UART, and USB.

The deep memory capability inherited from the MSO8000HD platform enables long-duration captures of digital communication sequences, essential for analyzing protocol compliance, identifying intermittent communication errors, and validating system startup sequences that may span millions of clock cycles.

Advanced Digital Triggering and Pattern Analysis

Complex digital systems require sophisticated triggering capabilities to isolate specific system states and failure conditions. The MSO8000HD-LA provides advanced pattern triggering, state-based triggering, and sequential triggering capabilities that enable precise capture of complex digital system behaviors.

Pattern search and navigation tools allow engineers to quickly locate specific digital sequences within long captures, while automated pattern recognition can identify recurring digital signatures and anomalies. These capabilities significantly accelerate digital system debug and validation processes.

Professional Applications

Embedded System Development and Debug

Validate embedded system designs by simultaneously monitoring processor control lines, memory interfaces, and peripheral communication buses. The mixed-signal capability enables correlation between software execution states and analog sensor inputs, power consumption, and actuator control signals. This comprehensive visibility accelerates system integration and reduces time-to-market for embedded products.

FPGA and Digital IC Validation

Verify FPGA implementations and custom digital IC designs with comprehensive I/O analysis and timing verification. The high-speed digital channels enable analysis of modern FPGA I/O standards while the analog channels provide power supply analysis and signal integrity characterization. Timing analysis between clock domains and I/O validation ensures robust digital system operation.

Automotive ECU Development

Automotive electronic control units require validation of complex interactions between sensors, actuators, and communication networks. The MSO8000HD-LA enables simultaneous analysis of CAN/LIN communication, sensor signal conditioning, and actuator control logic, providing complete system visibility during ECU development and integration testing.

IoT and Wireless System Integration

Internet of Things devices combine analog sensor interfaces with digital communication and control logic. The mixed-signal analysis capability enables validation of sensor signal processing, wireless communication protocol compliance, and power management effectiveness in a single comprehensive measurement setup, essential for battery-powered IoT device optimization.

Technical Specifications

Digital Channel Performance

Parameter Specification
Digital Channels 16 channels (D0-D15)
Digital Sample Rate 1.25 GSa/s per channel
Digital Memory Depth

Standard: 62.5Mpts

Option: 125Mpts (requires purchase of the MSO8000HD-MD2G memory depth upgrade option)
Input Threshold Levels TTL (1.4V), CMOS 3.3V (1.65V), CMOS 2.5V (1.25V), User-definable
Minimum Detectable Pulse Width 3.2 ns (typical)
Input Impedance 101 kΩ ± 2%
Maximum Input Voltage ±40V (non-destructive)

Triggering and Analysis Features

Feature Capability
Pattern Triggering Any combination of High, Low, Don't Care across all 16 channels
Edge Triggering Rising, Falling, or Either edge on any channel
Pulse Width Triggering Less than, Greater than, Equal to, or Not Equal to specified width
State Analysis Clock-qualified data capture with user-defined clock source
Sequential Triggering Multi-stage triggering with up to 8 sequential conditions
Cross-Domain Triggering Trigger on analog conditions combined with digital patterns

Protocol Integration

Protocol Category Supported Protocols Analysis Capability
Embedded Serial RS232/422/485/UART, I²C, SPI Automatic decode, trigger on protocol events
Automotive CAN, LIN, CAN-FD, FlexRay, SENT Message decode, error detection, timing analysis
High-Speed Digital USB 2.0, PCIe, Ethernet Packet analysis, protocol compliance
Power Management SMBUS, SPMI, I3C, PSI5 Power state analysis, command tracking

Required Accessories

Component Description Key Features
UT-M15 Logic Analyzer Probe Professional 16-channel probe assembly (sold separately) Color-coded channels, spring-loaded connectors, low loading
Probe Accessories Ground leads, IC test clips, flying leads Multiple connection options for different test scenarios
Software License Logic analyzer functionality activation Full mixed-signal analysis and triggering capabilities

Related Options

Option Synergy with MSO8000HD-LA
MSO8000HD-MD2G Extended memory depth for long digital captures and protocol analysis
MSO8000HD-CANFD Advanced CAN-FD protocol analysis with mixed-signal correlation
MSO8000HD-USB2 USB protocol analysis with analog signal integrity verification
MSO8000HD-I3C Next-generation I3C protocol analysis for embedded systems
MSO8000HD-PWR Power analysis correlated with digital control signals

Installation & Activation

  • Hardware installation: Connect UT-M15 probe to dedicated logic analyzer input
  • Software license activation through instrument menu system
  • Automatic channel assignment and setup for common digital interfaces
  • Integration with existing protocol analysis options
  • Immediate mixed-signal analysis capability after installation
  • Comprehensive user documentation and application examples included

Frequently Asked Questions

What is the maximum digital sample rate and how does it compare to dedicated logic analyzers?

The MSO8000HD-LA provides 1.25 GSa/s per channel across all 16 digital channels simultaneously. This sample rate is optimized for mixed-signal analysis and provides excellent timing resolution for most embedded system applications. The key advantage over dedicated logic analyzers is the perfect time correlation with high-performance analog channels.

Can I trigger on combinations of analog and digital conditions?

Yes, the MSO8000HD-LA supports advanced cross-domain triggering, allowing you to trigger on complex combinations of analog signal conditions and digital patterns. This capability is essential for capturing intermittent system behaviors and validating mixed-signal system interactions.

How does the logic analyzer integrate with protocol analysis options?

All MSO8000HD protocol analysis options seamlessly work with the logic analyzer channels. You can assign protocol decoding to appropriate digital channels while simultaneously using analog channels for signal integrity analysis of the same interface, providing comprehensive protocol validation capability.

What types of probing accessories are included with the UT-M15 probe?

The UT-M15 probe includes color-coded flying leads for flexible connections, IC test clips for direct IC probing, ground leads for proper signal referencing, and various adapters for different connection requirements. The spring-loaded connectors provide reliable connections with minimal signal loading.

How much additional memory depth is shared between analog and digital channels?

The digital channels share memory depth with the analog channels. With the standard configuration, you get up to 1 Gpts per channel, and with the MSO8000HD-MD2G option, this extends to 2 Gpts per channel. Memory is allocated dynamically based on the number of active channels and sampling rates.

Can the logic analyzer channels be used independently of the analog channels?

Yes, the 16 digital channels can operate independently for pure logic analysis applications. However, the real value of the MSO8000HD-LA is realized when using it for mixed-signal analysis where analog and digital signals are analyzed together with perfect time correlation.

Is this option included in the MSO8000HD-BND Protocol Analysis & Jitter Suite?

No, this option is not included in the MSO8000HD-BND Protocol Analysis & Jitter Suite. The bundle focuses specifically on protocol analysis capabilities (15 protocol decoders) and advanced jitter analysis. However, this option complements the bundle perfectly for engineers requiring both protocol analysis and Logic Analysis. Both can be purchased together to create a comprehensive solution, and like all UNI-T software options, they feature perpetual licensing with zero recurring fees.

Warranty & Support

The MSO8000HD-LA option is covered under UNI-T's Exclusive 3+2 Warranty program when installed on a qualifying MSO8000HD instrument—3 years standard coverage plus an additional 2 years at no charge when you complete our free product registration.

Unlock Complete Mixed-Signal Analysis

The MSO8000HD-LA option delivers the comprehensive mixed-signal analysis capabilities essential for modern embedded system development, FPGA validation, and complex digital design verification. By combining 16 high-speed digital channels with world-class analog performance, this option provides the complete system visibility needed to accelerate development and ensure robust operation across your most demanding applications.

Ready to transform your mixed-signal testing capabilities? Order the MSO8000HD-LA or get it included in the MSO8000HD-BND Complete Suite for maximum analysis power and exceptional value.
