MSO8000HD-CTS100 100MBASE-Tx Ethernet Compliance Test Option

$2,999.00
Save {price}%

Description

Automates 100BASE-Tx Ethernet conformance testing per IEEE 802.3 standards, ensuring interoperability of automotive and industrial Ethernet systems.

Register today for a 15% EDU Discount

Guarantee safe & secure checkout

trust2

UNI-T MSO8000HD Options Series

OVERVIEW

DOCUMENTATION

UNI-T MSO8000HD-CTS100 | 100BASE-TX Ethernet Compliance Testing Option

Overview

The MSO8000HD-CTS100 option provides comprehensive automated compliance testing for 100BASE-TX Fast Ethernet interfaces according to IEEE 802.3 standards. This professional-grade test suite eliminates the time-consuming manual configuration and measurement processes traditionally required for Ethernet compliance validation, reducing test time by up to 90% while ensuring consistent, repeatable results.

Essential for Ethernet product development, certification, and manufacturing testing, this option delivers automated test execution, detailed pass/fail reporting, and comprehensive margin analysis. Engineers can validate PHY implementations, ensure interoperability between vendors, and maintain compliance documentation required for regulatory submissions and customer qualification processes.

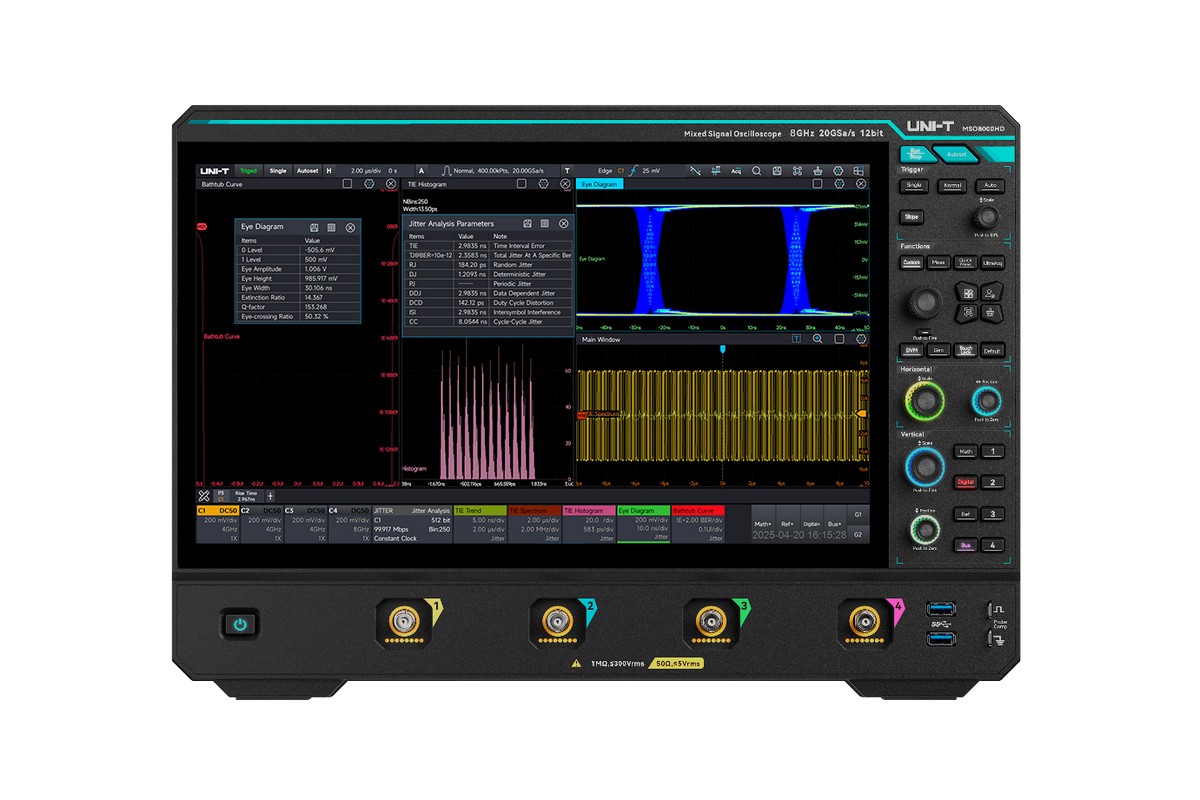

MSO8804HD main unit
Professional automated Ethernet compliance testing

Automated Compliance Testing Advantage

Reduce testing time by 90% while ensuring 100% consistent results. The MSO8000HD-CTS100 eliminates human error, provides repeatable measurements, and generates comprehensive documentation automatically—transforming hours of manual testing into minutes of automated validation.

Key Benefits

  • Automated Test Execution — Complete IEEE 802.3 100BASE-TX test suite with minimal user intervention.
  • 90% Time Reduction — Automated testing eliminates lengthy manual measurement procedures.
  • Comprehensive Coverage — All required transmitter and receiver compliance tests included.
  • Professional Documentation — Detailed test reports with pass/fail status and margin analysis.
  • Consistent Results — Eliminates human error and measurement variations between operators.
  • Regulatory Compliance — Generates documentation suitable for certification and qualification processes.

UNI-T MSO8000HD-CTS100 Comprehensive Test Coverage

IEEE 802.3 100BASE-TX compliance testing encompasses dozens of individual measurements covering transmitter characteristics, signal quality parameters, timing specifications, and receiver performance criteria. Manual execution of these tests requires extensive setup time, precise measurement techniques, and detailed documentation—a process that can consume days of engineering time per device under test.

The MSO8000HD-CTS100 option automates the entire compliance test suite, automatically configuring the oscilloscope for each measurement, executing standardized test procedures, and generating comprehensive reports with pass/fail determinations and detailed margin analysis. This automation ensures consistent test execution while freeing engineers to focus on design optimization rather than repetitive measurement tasks.

Complete Validation Solution

Pair this Compliance Test option with the MSO8000HD-BND Protocol Analysis & Jitter Suite for end-to-end interface validation. The Compliance Test option provides automated standards conformance testing, while the bundle delivers protocol decoding and detailed signal integrity analysis.

This combination creates a comprehensive validation platform that can both verify protocol operation and certify standards compliance for interfaces. Both feature perpetual licensing with zero recurring fees, potentially saving $10,000+ over the instrument's lifetime compared to competitors' subscription models.

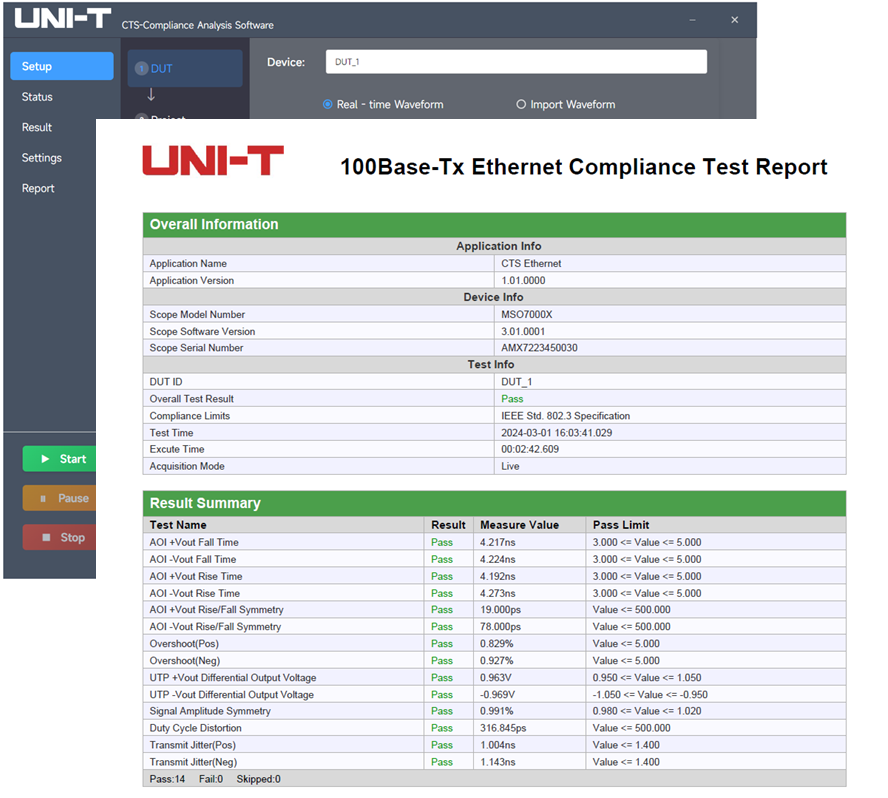

Automated compliance testing
Automated IEEE 802.3 compliance test execution

UNI-T MSO8000HD-CTS100 Professional Test Documentation

Compliance testing generates extensive documentation requirements for regulatory submissions, customer qualifications, and internal design validation processes. Traditional manual testing approaches often result in inconsistent documentation formats, missing measurements, or inadequate margin analysis that can delay product launches or certification processes.

The CTS100 option automatically generates professional-quality test reports that include comprehensive measurement results, statistical analysis, waveform captures, and detailed pass/fail assessments with margin calculations. These reports meet industry standards for compliance documentation while providing the detailed technical analysis needed for design optimization and troubleshooting.

High-resolution signal analysis
Precise measurements ensure compliance margin analysis

Compatibility Information

Compatible Models: MSO8804HD, MSO8504HD (planned release)

Installation: Software license activation - no hardware modification required

Required Accessories: UT-GBE-FT Ethernet Test Fixture

Test Standards: IEEE 802.3 100BASE-TX specifications

IEEE 802.3 100BASE-TX Test Coverage

Test Category Specific Tests Compliance Parameters
Transmitter Tests Output voltage, rise/fall times, symmetry Amplitude accuracy, timing specifications
Signal Quality Distortion, jitter, droop, overshoot Signal integrity, eye diagram parameters
Frequency Domain Power spectral density, harmonics Spectral mask compliance, EMI considerations
Timing Analysis Clock accuracy, duty cycle, jitter Phase noise, timing margins
Return Loss Impedance matching, reflections S-parameter validation
Common Mode Common mode output voltage EMC compliance, differential signaling

Test Automation Features

Feature Capability Benefit
Guided Setup Visual connection diagrams and setup instructions Eliminates setup errors and reduces configuration time
Automated Execution Sequential test execution with minimal user intervention Consistent results and reduced operator dependence
Real-Time Results Immediate pass/fail indication during testing Early identification of compliance issues
Comprehensive Reporting Detailed PDF reports with waveform captures Professional documentation for certification
Margin Analysis Quantifies compliance margins for all parameters Enables design optimization and reliability assessment
Batch Testing Multiple device testing with consolidated reporting Efficient production testing and quality control

Application Examples

Ethernet PHY Development

Validate new Ethernet PHY designs during development cycles to ensure compliance with IEEE 802.3 specifications before tape-out. Automated testing enables rapid design iteration while maintaining comprehensive compliance validation throughout the development process.

Manufacturing Quality Control

Implement automated compliance testing in production environments to ensure every manufactured unit meets specification requirements. Batch testing capabilities enable high-volume validation with consistent quality standards and comprehensive documentation.

Vendor Qualification

Evaluate Ethernet components from multiple suppliers using standardized test procedures that eliminate vendor-specific measurement variations. Automated testing provides objective comparison data for sourcing decisions and supplier quality assessments.

Customer Certification Support

Generate professional compliance documentation required for customer qualification processes and regulatory submissions. Automated test reports provide the detailed technical data needed for certification agencies and customer validation requirements.

Required Test Fixture

Accessory Function Specifications
UT-GBE-FT Ethernet Test Fixture Standardized test interface for Ethernet compliance IEEE 802.3 compliant, 100Ω differential, precision components

Related Options

Option Synergy with MSO8000HD-CTS100
MSO8000HD-NET Ethernet protocol analysis complements compliance testing
MSO8000HD-JITTER Advanced jitter analysis for detailed timing validation
MSO8000HD-8B10B Physical layer encoding analysis for Ethernet signals
MSO8000HD-MD2G Extended capture for long compliance test sequences

Installation & Activation

  • Software-only upgrade - no hardware modification required
  • License key provided upon purchase
  • Activation through instrument menu system
  • UT-GBE-FT test fixture required (sold separately)
  • Immediate functionality after activation and fixture connection
  • Includes comprehensive user documentation and test procedures

Frequently Asked Questions

What test fixture is required for compliance testing?

The UT-GBE-FT Ethernet Test Fixture is required for proper compliance testing. This precision fixture provides the standardized test interface specified by IEEE 802.3 standards and ensures accurate, repeatable measurements.

How much time does automated testing save compared to manual methods?

Automated compliance testing reduces total test time by approximately 90% compared to manual procedures. A complete compliance test suite that might take 8-10 hours manually can be completed in under an hour with automation.

Are the test reports suitable for regulatory submissions?

Yes, the automated test reports include comprehensive measurement data, statistical analysis, and detailed documentation that meets industry standards for regulatory submissions and certification processes.

Can multiple devices be tested in sequence?

Yes, the CTS100 option supports batch testing capabilities that allow sequential testing of multiple devices with consolidated reporting, making it suitable for production testing and quality control applications.

Is this option included in the MSO8000HD-BND Protocol Analysis & Jitter Suite?

No, this option is not included in the MSO8000HD-BND Protocol Analysis & Jitter Suite. The bundle focuses specifically on protocol analysis capabilities (15 protocol decoders) and advanced jitter analysis. However, this option complements the bundle perfectly for engineers requiring both protocol analysis and Compliance Testing. Both can be purchased together to create a comprehensive solution, and like all UNI-T software options, they feature perpetual licensing with zero recurring fees.

Warranty & Support

The MSO8000HD-CTS100 option is covered under UNI-T's Exclusive 3+2 Warranty program when installed on a qualifying MSO8000HD instrument—3 years standard coverage plus an additional 2 years at no charge when you complete our free product registration.

Streamline Your Ethernet Compliance Testing

The MSO8000HD-CTS100 option transforms time-consuming manual compliance testing into efficient automated validation that delivers consistent, professional results. Whether supporting product development, manufacturing quality control, or regulatory certification, this option provides the automation and documentation needed for successful Ethernet product validation.

Ready to automate your Ethernet compliance testing? Order the MSO8000HD-CTS100 for $2,999, plus the required UT-GBE-FT test fixture.
