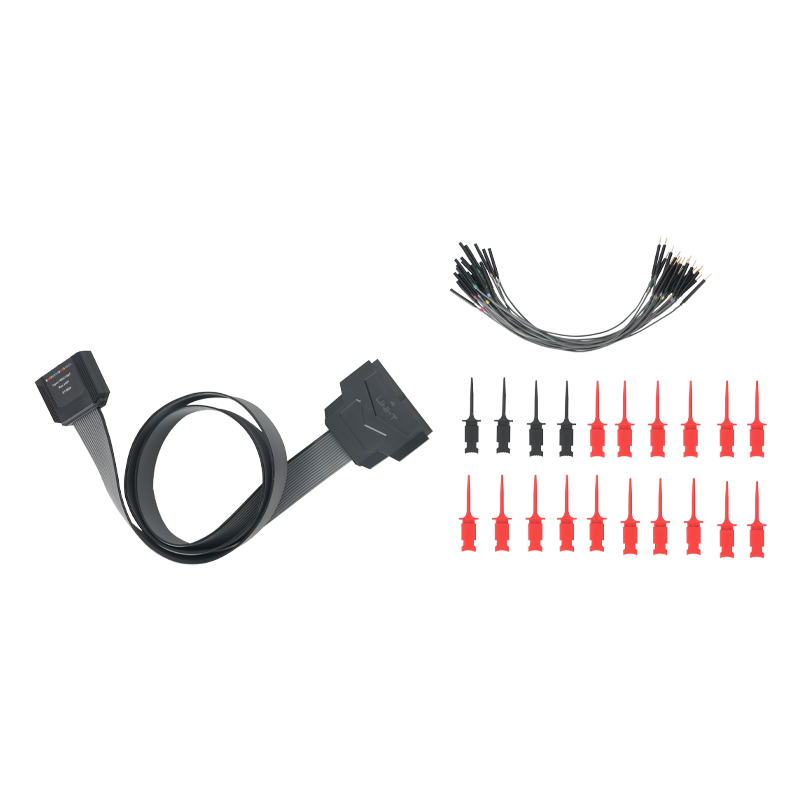

UT-M26 16-Channel Logic Analyzer Probe

Premium Digital Signal Analysis for MSO1000HD Series Oscilloscopes

Product Overview

The UT-M26 is UNI-T's professional-grade 16-channel logic analyzer probe designed specifically for the MSO1000HD series of mixed-signal oscilloscopes. This high-performance accessory transforms your oscilloscope into a powerful digital debugging system, enabling comprehensive analysis of complex digital circuits and communication protocols.

With separate high 8-bit and low 8-bit connections, the UT-M26 simplifies connection to your device under test, making it ideal for debugging microprocessor-based systems, FPGA designs, embedded systems, and digital communication interfaces. The probe's minimal loading ensures your measurements reflect the actual circuit behavior without distortion.

Key Features

16 Digital Channels — Simultaneous capture and analysis of complex digital systems
1.25 GSa/s Sampling Rate — Capture high-speed digital signals with precision timing
100 Mpts Memory Depth — Extended signal capture for comprehensive debugging
5 ns Minimum Pulse Detection — Identify ultra-short glitches and timing violations
Exceptional Electrical Characteristics — 101 kΩ ± 1% input impedance with only 9.0 pF capacitive load
Direct Connection Compatible — Connects directly to 16x2 square pins (2.54 mm pitch)

Unleash the Full Potential of Your MSO1000HD

The MSO1000HD series oscilloscopes feature built-in 16-channel logic analyzer hardware as standard. Adding the UT-M26 logic probe unlocks this capability, transforming your oscilloscope into a complete mixed-signal test solution with both analog and digital domain analysis. Synchronize analog waveforms with digital signals for comprehensive system debugging and troubleshooting.

Comprehensive Protocol Decoding

When paired with your MSO1000HD oscilloscope, the UT-M26 enables powerful protocol analysis across 9 different communication standards:

Protocol Type	Applications
RS-232/UART	Computer serial bus communications
I²C, SPI	Embedded serial bus interfaces
CAN, LIN, CAN-FD	Automotive networks
FlexRay	Automotive sensor bus
SENT	Computer serial communications
Audio	Audio interface protocols

The protocol analyzer provides intuitive triggering, decoding, and analysis capabilities that dramatically simplify debugging of serial communication interfaces. Decode operations can be performed in both pause and record modes, with full support for event listing and search functions to quickly locate specific data patterns.

Applications

Embedded System Development

Debug microcontroller-based systems with comprehensive visibility into both analog and digital domains. Correlate software execution with hardware signals to quickly isolate timing-related issues and protocol communication errors.

Digital Circuit Verification

Validate complex digital designs with precise timing measurements and state analysis. Identify setup and hold time violations, glitches, and other digital integrity issues across multiple signal lines simultaneously.

Communication Protocol Debugging

Decode and analyze serial protocols including I²C, SPI, UART, CAN, and more. Trigger on specific protocol events and quickly isolate communication errors for efficient debugging of interface issues.

Automotive Electronics Testing

Diagnose automotive communication networks including CAN, LIN, CAN-FD, and FlexRay. Monitor multiple control signals simultaneously while validating proper network operation across vehicle systems.

Technical Specifications

Model	UT-M26
Channel Count	16 digital channels (8 high + 8 low)
Maximum Sampling Rate	1.25 GSa/s
Memory Depth	100 Mpts
Minimum Detectable Pulse Width	5 ns
Input Impedance	101 kΩ ± 1%
Capacitive Load	9.0 pF
Connection Type	Direct connection to 16x2 square pins (2.54 mm)
