UT-USB20-SQ-HD USB 2.0 Test Fixture
Overview
The UT-USB20-SQ-HD is UNI-T's USB 2.0 signal quality test fixture, for USB 2.0 compliance testing with the MSO8000HD-CTSUSB20 and MSO6000HDP-CTSUSB20 options.
It supports all High-, Full- and Low-Speed signal quality tests and all signal and non-signal quality tests except receiver sensitivity. Power tests are not supported with this fixture.
Key Features

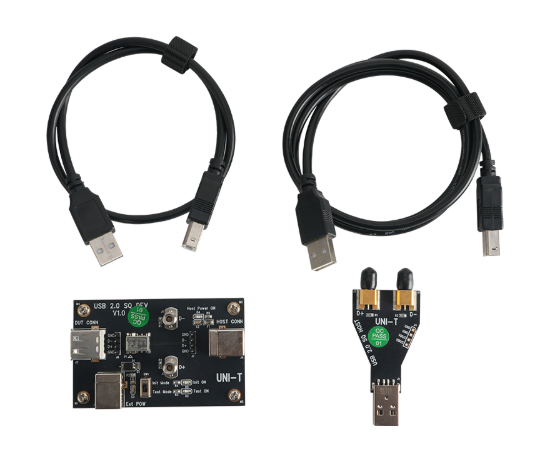

- Host and device fixtures β a High-Speed Host signal quality fixture and a High-Speed Device signal quality fixture.
- Cables β a 10 cm USB 2.0 communication cable and a 20 cm USB 2.0 power cable.
- Test points β D+ and Dβ outputs to the oscilloscope by SMA, near-end and far-end test points, and a VBUS test point.
- Probes β use an active differential probe such as the UT-PD2500 and active single-ended probes such as the UT-PA2000.
Specifications
| Standards Supported | USB 2.0 |
| Speeds | High-Speed, Full-Speed and Low-Speed signal quality |
Warranty
This product includes a standard 1-year warranty covering manufacturing defects and component failures under normal use conditions.
UNI-T stands behind every product we sell. If you experience any issues within the warranty period, our US-based support team is here to help with troubleshooting, repair, or replacement.
| Standards Supported | USB 2.0 |
|---|---|
| Instrument Type | Test Fixture |
Full specifications (1)
| General Information | |
|---|---|
| Warranty | 1 year |
