UTS7040A 40GHz Interceptor-Series Signal Analyzer

UTS7040A (40GHz) - Base Model (40MHz RTSA, upgradeable to 255MHz) The flagship choice for advanced 5G mmWave research, aerospace/defense contractors, and cutting-edge RF development requiring maximum bandwidth. Delivers 100% Probability of Intercept with 40MHz real-time bandwidth (upgradeable to 255MHz) covering the complete mmWave spectrum to 40GHz.

$55,999.00

Save {price}% Contact Us for Lead Time

26 items in stock

2Hz–40GHz Frequency Range	1Hz to 3MHz (10% Steps), 4MHz, 5MHz, 8MHz. 10MHz RBW
-110 dBc/Hz @10kHz Phase Noise	-167dBm/Hz DANL
100,001 Sweep Points	Not Available Tracking Generator

Find a Distributor

Guarantee safe & secure checkout

UNI-T UTS7040A Interceptor-Series Signal Analyzer

Overview

The UNI-T UTS7040A Interceptor-Series signal analyzer extends professional spectrum analysis from 2 Hz through 40 GHz, providing complete Ka-band coverage for the full range of 5G mmWave bands (n257/n258/n260), 77-81 GHz automotive radar sub-harmonic analysis, comprehensive satellite communications across all commercial bands, and emerging millimeter-wave applications through 40 GHz. With exceptional -167 dBm/Hz sensitivity maintained across the entire frequency range, guaranteed 100% Probability of Intercept, and upgradeable real-time bandwidth from 40 MHz to 255 MHz, the UTS7040A delivers the most extensive frequency coverage in the Interceptor-Series without compromising the superior specifications that define professional-grade spectrum analysis.

You're developing complete 5G mmWave systems across all bands including n260 (37-40 GHz), characterizing 77-81 GHz automotive long-range radar through sub-harmonic measurement at 38.5-40.5 GHz, testing advanced satellite terminals across Ku/Ka/Q-bands, or working with emerging applications in the millimeter-wave spectrum through 40 GHz. The UTS7040A provides comprehensive frequency coverage—extending through complete Ka-band to 40 GHz—while maintaining the same exceptional sensitivity, guaranteed signal capture, and comprehensive measurement capabilities as lower-frequency models. This is the flagship Interceptor-Series analyzer for engineers requiring maximum frequency coverage with professional specifications.

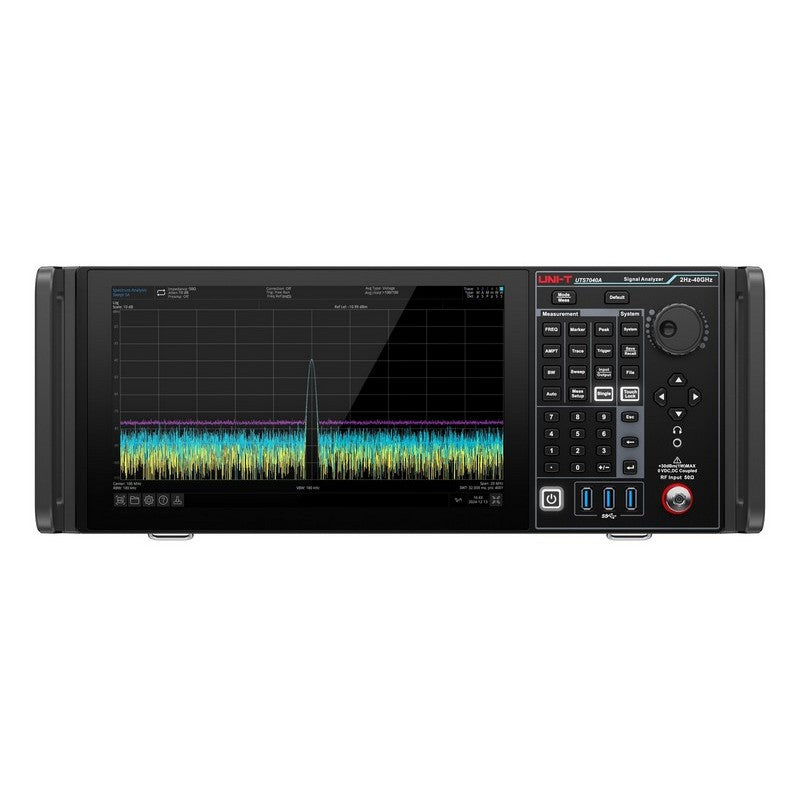

UTS7040A Signal Analyzer — UTS7040A with complete Ka-band coverage through 40 GHz for comprehensive mmWave applications

Key Specifications

Frequency Range

2 Hz to 40 GHz

DANL (typical)

-167 dBm/Hz

Real-Time Bandwidth

40 MHz std, up to 255 MHz

100% POI

4.5 μs @ 255 MHz

Phase Noise

-110 dBc/Hz (1 GHz, 10 kHz)

Sweep Points

Up to 100,001

Display

11.6" HD Touch (1920×1080)

Warranty

5 Years

Key Features

Complete Ka-Band Coverage to 40 GHz - Maximum frequency range for all 5G mmWave bands, 77-81 GHz radar sub-harmonic analysis, and comprehensive satellite applications
Complete 5G mmWave Coverage (n257/n258/n260) - Direct measurement of all 5G NR millimeter-wave bands including n260 (37-40 GHz) without external mixers
77-81 GHz Radar Sub-Harmonic Analysis - Measure 77-81 GHz automotive long-range radar at 2nd sub-harmonic (38.5-40.5 GHz) with full amplitude accuracy
Q-Band Satellite Capability - Extended coverage into Q-band (33-50 GHz) enables characterization of advanced satellite systems through 40 GHz
Exceptional -167 dBm/Hz Sensitivity - Industry-leading DANL maintained through 40 GHz for weak mmWave signal detection
100% Probability of Intercept - Guaranteed 4.5 μs signal capture with up to 255 MHz real-time bandwidth
Upgradeable Real-Time Bandwidth - 40 MHz standard expands to 85/160/255 MHz for wideband 5G carriers
2 Hz Starting Frequency - Complete coverage from near-DC through 40 GHz in single instrument
Superior Phase Noise Performance - Critical for mmWave local oscillator characterization
5-Year Warranty - Extended coverage for advanced 5G and automotive radar development

Primary Applications

Complete 5G mmWave (n257/n258/n260)

The UTS7040A provides direct measurement capability for all 5G NR millimeter-wave bands: n257 (26.5-29.5 GHz), n258 (24.25-27.5 GHz), and n260 (37-40 GHz). This comprehensive coverage enables complete 5G mmWave development without frequency limitations—characterize transmitters across all bands, verify ACLR and EVM per 3GPP requirements, capture TDD switching transients with 100% POI.

Critical advantage: Band n260 is only accessible with the UTS7040A. Complete 5G mmWave validation requires n260 coverage.

77-81 GHz Automotive Radar (Sub-Harmonic)

Long-range automotive radar operates at 77-81 GHz for adaptive cruise control and autonomous emergency braking. The UTS7040A enables 77-81 GHz radar characterization through 2nd sub-harmonic measurement at 38.5-40.5 GHz—measuring half the radar frequency with full amplitude accuracy. This provides practical 77-81 GHz measurement at dramatically lower cost than W-band analyzers.

Applications: FMCW radar chirp characterization, output power verification, frequency accuracy, harmonic and spurious emissions.

Complete Satellite Communications (Ku/Ka/Q)

Comprehensive coverage across all commercial satellite bands: Ku-band (10.7-18 GHz), Ka-band (18-40 GHz), and partial Q-band (33-40 GHz). Test receive sensitivity across downlink bands, validate transmitter performance on uplink bands, and characterize next-generation Q-band satellite systems—all with a single analyzer.

Coverage: Ku/K/Ka-band uplinks and downlinks, Q-band through 40 GHz.

Point-to-Point Microwave (Up to 40 GHz)

Licensed point-to-point microwave systems extend into the 38 GHz and 39 GHz bands for ultra-high-capacity backhaul. The UTS7040A provides complete coverage through 40 GHz for advanced microwave systems—transmitter characterization, receiver sensitivity, link budget analysis, and interference characterization.

Applications: 5G densification backhaul, ultra-high-speed enterprise networks, infrastructure communications.

Competitive Advantage

Specification	UTS7040A	Typical Competing Analyzer	Your Advantage
Frequency Range	2 Hz - 40 GHz	9 kHz - 40 GHz	Extended low-frequency
DANL (typical)	-167 dBm/Hz	-163 dBm/Hz	4 dB better sensitivity
RTSA Maximum	255 MHz	160 MHz	+95 MHz wider
Warranty	5 Years	3 Years	+2 years coverage

Frequently Asked Questions

Why choose 40 GHz coverage instead of 32 GHz?

Choose the UTS7040A if you need complete 5G mmWave coverage including band n260 (37-40 GHz), 77-81 GHz automotive radar characterization through sub-harmonic measurement, Q-band satellite applications, or point-to-point microwave above 32 GHz. This is the flagship Interceptor-Series model providing maximum frequency coverage with professional specifications.

Can I measure 77-81 GHz radar directly or only sub-harmonics?

The UTS7040A measures 77-81 GHz radar through 2nd sub-harmonic analysis at 38.5-40.5 GHz, not directly at the fundamental frequency. This provides accurate power, frequency, and spectral measurements suitable for development, pre-compliance testing, and production validation at significantly lower cost than W-band analyzers.

Does the UTS7040A cover all 5G mmWave bands?

Yes—the UTS7040A provides complete coverage of all three 5G NR millimeter-wave bands: n257 (26.5-29.5 GHz), n258 (24.25-27.5 GHz), and n260 (37-40 GHz). This is the only Interceptor-Series model covering n260, making it essential for comprehensive 5G mmWave development.

Maximum frequency coverage through 40 GHz—complete 5G mmWave, automotive radar sub-harmonic analysis, and comprehensive satellite communications.

Feature	Specification
Model Number	UTS7040A
Frequency Range	2Hz–40GHz
RBW	1Hz to 3MHz (10% Steps), 4MHz, 5MHz, 8MHz. 10MHz
DANL	-167dBm/Hz
Traces	6
Scan Points	100,001
Tracking Generator	Not Available
Touchscreen	Yes
Warranty	3 years
Product Dimensions (L x W x H)	19 in x 19 in x 7.5 in
Certifications	CE/cETLus
Documents	English download guide, multi-language safety manual, calibration report (COC)
Standard Accessories	Power cord, USB2.0 printing cable
