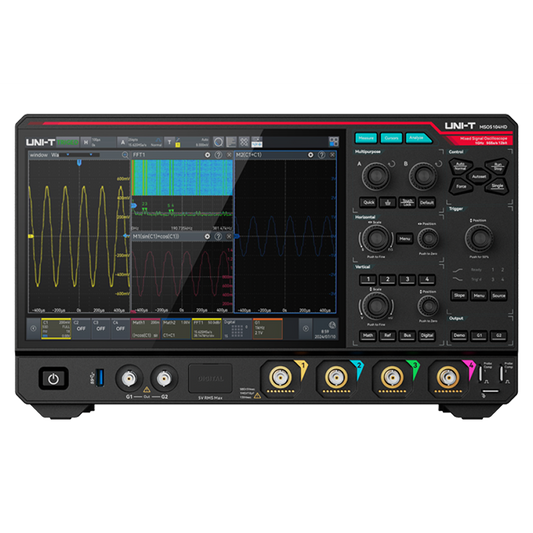

MSO5034HD 12-Bit 350MHz 4Ch Mixed Signal Oscilloscope

A 12-Bit, Nine-in-One Benchtop powerhouse. The UNI-T MSO5034HD offers one instrument that can be a 350MHz, 4Ch High-Definition Digital Oscilloscope, Logic Analyzer, Function/Arbitrary Waveform Generator, Spectrum Analyzer, Digital Voltmeter, High-Precision Frequency Counter, Protocol Analyzer, Bode Plot Analyzer, and Power Analyzer. All with up to 5 years warranty.

350MHz Bandwidth	4Ch Channels
5.0GSa/s Sample Rate	500Mpts Max. Memory Depth
1,500,000wfms/s Waveform Capture Rate	Optional Digital Channels

$3,699.00

Save {price}%

26 items in stock

Find a Distributor

Guarantee safe & secure checkout

UNI-T MSO5034HD | High-Resolution 350MHz Mixed Signal Oscilloscope

Overview

The UNI-T MSO5034HD is a cost-effective mixed signal oscilloscope offering high-resolution 12-bit vertical accuracy, 350MHz analog bandwidth, and up to 5GSa/s real-time sampling. Designed for engineers and educators alike, the MSO5034HD balances advanced signal analysis with an intuitive user experience.

Powered by Ultra Phosphor 3.0 technology and a vibrant 10.1-inch capacitive touch screen, it delivers a waveform capture rate up to 1,500,000 wfms/s in sequence mode. With 4 analog and 16 digital channels, plus built-in protocol decoding and waveform generation options, the MSO5034HD is a versatile tool for every lab bench.

Key Features

12-bit Vertical Resolution – Reveals signal details missed by conventional 8-bit oscilloscopes.
350MHz Analog Bandwidth – Ideal for embedded, automotive, and educational applications.
Up to 5GSa/s Sampling – Capture high-speed signal transitions with confidence.
16 Digital Channels – Mixed-signal analysis made simple with synchronized digital capture.
Ultra Phosphor 3.0 Engine – Up to 1.5M wfms/s sequence mode with 256-level display grading.
Touchscreen Display – 10.1-inch HD capacitive screen with gesture support.
4M FFT Points – Enhanced spectral analysis with waterfall view and multi-marker support.
Optional Function Generator – 50MHz dual-channel AWG with Bode Plot capability.
Protocol Decoding – UART, I²C, SPI standard; CAN, LIN, FlexRay optional.
Advanced Triggering – Includes zone trigger, runt, pattern, and setup/hold triggers.

High-Resolution 12-bit Technology

Equipped with a 12-bit analog-to-digital converter (ADC), the MSO5034HD provides 4096 levels of vertical resolution, greatly surpassing traditional 8-bit scopes. Combined with a low noise floor of just 75 μVrms, it reveals signal detail essential for sensitive analog and mixed-signal designs.

With Enhanced Resolution (ERES), users can achieve up to 16-bit precision, unlocking finer measurements on low-amplitude signals.

12-bit ADC with ERES — Reveal hidden waveform detail with 12- to 16-bit resolution

Ultra Phosphor 3.0 Visualization

The MSO5034HD’s Ultra Phosphor 3.0 engine delivers brilliant waveform displays and a blazing capture rate of 1,500,000 wfms/s in sequence mode. Its 256-level color grading helps expose transient signal events and timing glitches with ease.

Ultra Phosphor 3.0 display — Highlight signal anomalies with advanced color rendering

All-in-One Instrument Integration

Unify your test bench with 9 integrated instruments in a single device: oscilloscope, logic analyzer, spectrum analyzer, waveform generator, voltmeter, frequency counter, protocol analyzer, Bode plot analyzer, and power analyzer. The MSO5034HD reduces equipment clutter and improves measurement reliability.

9 instruments in one — Save bench space and maximize capability with all-in-one design

Advanced Protocol Analysis

The MSO5034HD includes standard decoding for UART, I2C, and SPI. Optional packages add support for CAN, LIN, FlexRay, SENT, and aerospace protocols like ARINC 429 and MIL-STD-1553. Decode data in real-time or during replay with synchronized views of analog and digital signals.

Protocol support — Streamline debug with robust multi-protocol analysis

Spectrum Analysis

Perform detailed frequency domain analysis with a built-in spectrum analyzer featuring up to 4M point FFT and a frequency range suitable for EMI detection and harmonic evaluation. Waterfall views and multiple marker tools enable deep inspection of spectral characteristics.

Comprehensive Measurement & Analysis

The MSO5034HD automates 54 measurement parameters and provides advanced statistical and trend analysis. Perform math operations, data logging, and long-duration acquisition with confidence and precision.

Comprehensive measurement and analysis — Advanced stats and visual trends for parameter analysis

Digital Filtering & Signal Conditioning

Reduce unwanted noise and highlight signal behavior using built-in FIR filtering. Filters can be configured per channel with adjustable frequency ranges for tailored signal presentation.

Digital filtering capabilities — Clean up signals with adjustable bandwidth FIR filtering

Precise Timing Analysis

Use advanced timing tools to examine pulse widths, edge transitions, and timing violations. Perfect for verifying communication bus timing, setup/hold requirements, and logic timing relationships.

Hardware-Accelerated Mask Testing

Mask testing lets you rapidly validate waveform compliance using predefined templates. Hardware acceleration enables pass/fail testing to 6σ standards in seconds, eliminating tedious visual inspection.

Professional Applications

Power Electronics Testing

Optimize power system performance with precise measurements for switching behavior, efficiency analysis, and EMI diagnostics. The MSO5034HD’s 12-bit resolution and low noise floor make it ideal for capturing ripple and switching events in power converters, while the optional power analysis module and Bode plot tools support frequency response analysis and feedback loop tuning.

Semiconductor Device Analysis

High-definition waveform acquisition enables accurate capture of rise/fall times, propagation delays, and noise margin behavior in semiconductor devices. Use the MSO5034HD to characterize transistors, diodes, and ICs with ultra-low amplitude measurements made possible by 4096 vertical quantization levels.

Educational & Research Applications

Designed for both instruction and innovation, the MSO5034HD simplifies lab setup by integrating 9 instruments in one. Educators can demonstrate waveform behavior, logic states, and protocol transactions clearly on the responsive 10.1" capacitive touchscreen. Advanced features like zone triggering and math analysis promote exploration in student projects and research labs.

Automotive System Debugging

Ensure robust communication and power integrity in modern vehicles. The MSO5034HD supports key automotive serial buses such as CAN, CAN-FD, LIN, and FlexRay with optional decoders. Its mixed signal capability allows time-correlated analysis of digital control logic, analog sensor outputs, and communication protocols within ECUs and body systems.

Technical Specifications

Parameter	Specification
Analog Bandwidth	350 MHz
Calculated Rise Time	≤ 1.00 ns
Input Channels	4 analog, 16 digital
Vertical Resolution	12-bit (16-bit with ERES)
Sample Rate	5 GSa/s
Memory Depth	Up to 500 Mpts
Capture Rate	800,000 wfms/s; 1.5M in sequence mode
Display	10.1" HD capacitive touchscreen
Vertical Scale	500 μV/div – 10 V/div (1 MΩ), 500 μV/div – 1 V/div (50 Ω)
Trigger Types	Edge, pulse, runt, logic, pattern, zone
Standard Protocols	UART, SPI, I²C
Optional Protocols	CAN, LIN, FlexRay, SENT, ARINC 429, MIL-STD-1553, I3C, etc.
AWG	Optional, 50 MHz dual-channel, 16-bit
Connectivity	USB 3.0, LAN, HDMI, WiFi
Dimensions	361 × 209 × 106 mm
Weight	3.97 kg

MSO5000HD Series Comparison Table

Feature	MSO5104HD	MSO5054HD	MSO5034HD
Bandwidth	1 GHz	500 MHz	350 MHz
Rise Time	≤ 350 ps	≤ 700 ps	≤ 1.00 ns
Sampling Rate	5 GSa/s	5 GSa/s	5 GSa/s
Memory Depth	Up to 500 Mpts	Up to 500 Mpts	Up to 500 Mpts
Upgrade Options	—	Up to 1 GHz	To 500 MHz / 1 GHz
Price	Premium	Mid-range	Entry-level

MSO5034HD Upgrade Options

Option	Description	Benefit
MSO5000HD-BW3M5T5M	350MHz → 500MHz upgrade	Unlocks higher bandwidth without new hardware
MSO5000HD-BW3M5T1G	350MHz → 1GHz upgrade	Maximum available bandwidth for entry model
MSO5000HD-BND	All protocol decoding bundle	Cost-effective decoding package
MSO5000HD-PWR	Power analysis module	Analyze power integrity and harmonics
MSO5000HD-TIME	Timing analysis module	Capture timing violations and critical events

Package Contents

UNI-T MSO5034HD Oscilloscope
4 × UT-P07A 500MHz Passive Probes
USB Cable (UT-D30)
BNC-BNC Cable (UT-L45)
Alligator Leads (UT-L02A)
Power Cord
Calibration Certificate

Warranty & Support

All UNI-T MSO5000HD Series oscilloscopes include a 3-year warranty covering parts and labor under normal use. Standard accessories (including probes and cables) are covered by a 1-year warranty. Register your MSO5000HD for a free, 2-year warranty extension.

Explore the Possibilities with MSO5034HD

The UNI-T MSO5034HD blends premium signal integrity, smart protocol analysis, and upgrade flexibility in one device. Whether you're developing embedded systems, teaching next-gen engineers, or debugging automotive networks — it's the essential scope for modern test labs.

Frequently Asked Questions

Can the MSO5034HD decode automotive protocols like CAN and LIN?

Yes, optional software licenses allow decoding of CAN, CAN-FD, LIN, FlexRay, SENT, and more.

Does the MSO5034HD include a signal generator?

A 50 MHz dual-channel function/arbitrary waveform generator is available as an optional upgrade.

What makes the 12-bit resolution significant?

12-bit resolution means 16 times finer granularity than standard 8-bit scopes, revealing subtle signal variations crucial in sensitive analog and power applications.

Is this oscilloscope suitable for use in an academic lab?

Absolutely. The intuitive interface, built-in measurements, and protocol decoding features make it ideal for classroom instruction and hands-on learning.

Feature	Specification
Model Number	MSO5034HD
Scope Type	MSO
Bandwidth	350MHz
Channels	4Ch
Scope Sample Rate	5.0GSa/s
Memory Depth	500Mpts
Refresh Rate	1,500,000wfms/s
Vertical Scale @1MΩ	500μV/div to 10V/div
# Automatic Measurements	56
Included Bus Protocols	RS232 UART I2C SPI CAN LIN
Optional Bus Protocols	CAN-FD FlexRay SENT Audio MIL-STD-1553B ARNIC429 Manchester 1-WIRE CAN-XL I3C
Logic Pod Included	Optional
Signal Generator Function	Optional
Frequency Meter	7-bit
Display Size (in)	10.1in
Touchscreen	Yes
Warranty	3 years
Certifications	CE/cETLus
Documents	English download guide, multi-language safety manual, calibration report (COC)
Included Accessories	Oscilloscope probe (UT-P08A)*4, BNC straight-through cable (UT-L45), BNC to alligator clip cable (UT-L02A)
Standard Accessories	Power cord, USB3.0 printing cable
