MSO3054HD 12-Bit 500MHz 4Ch Mixed Signal Oscilloscope

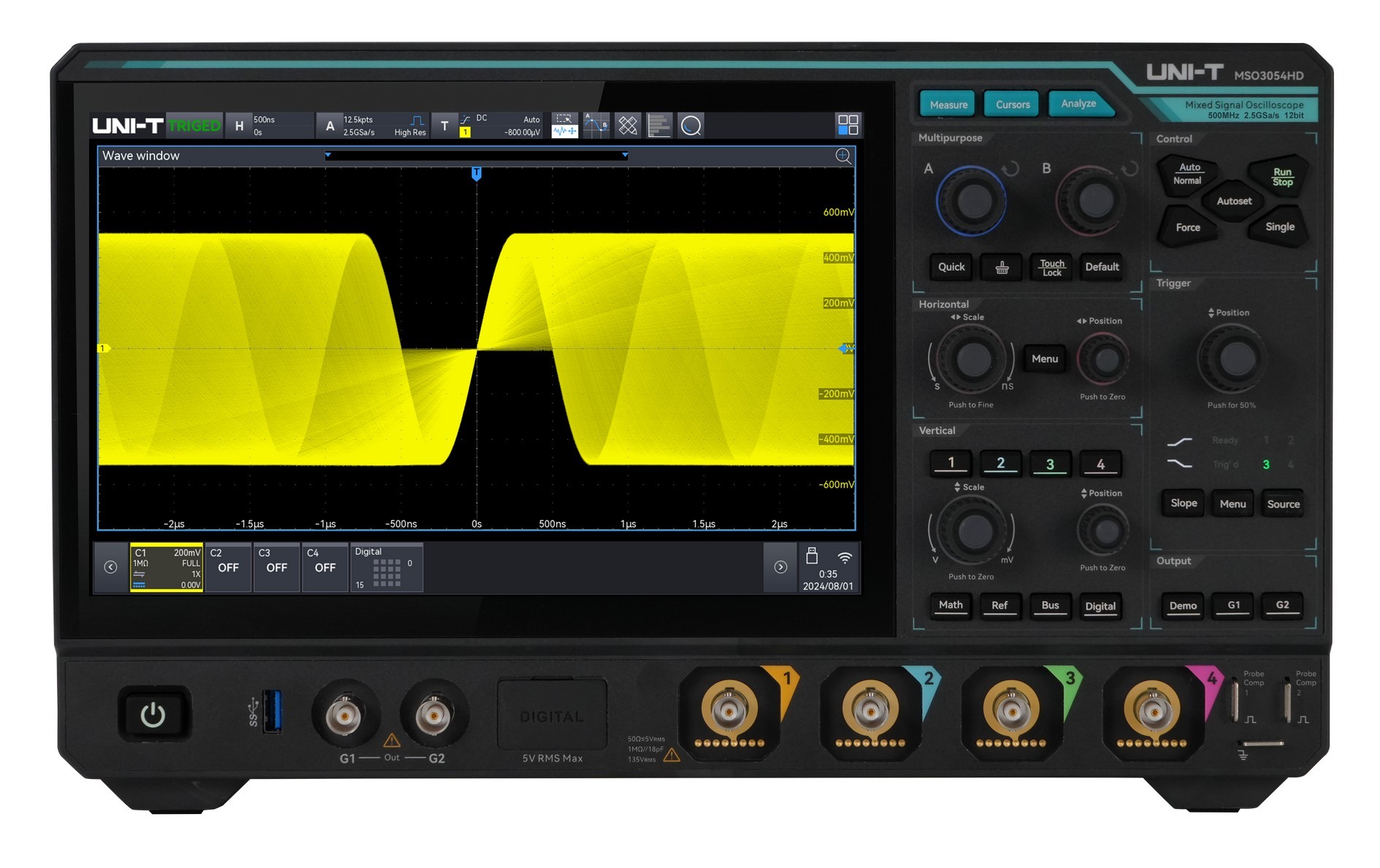

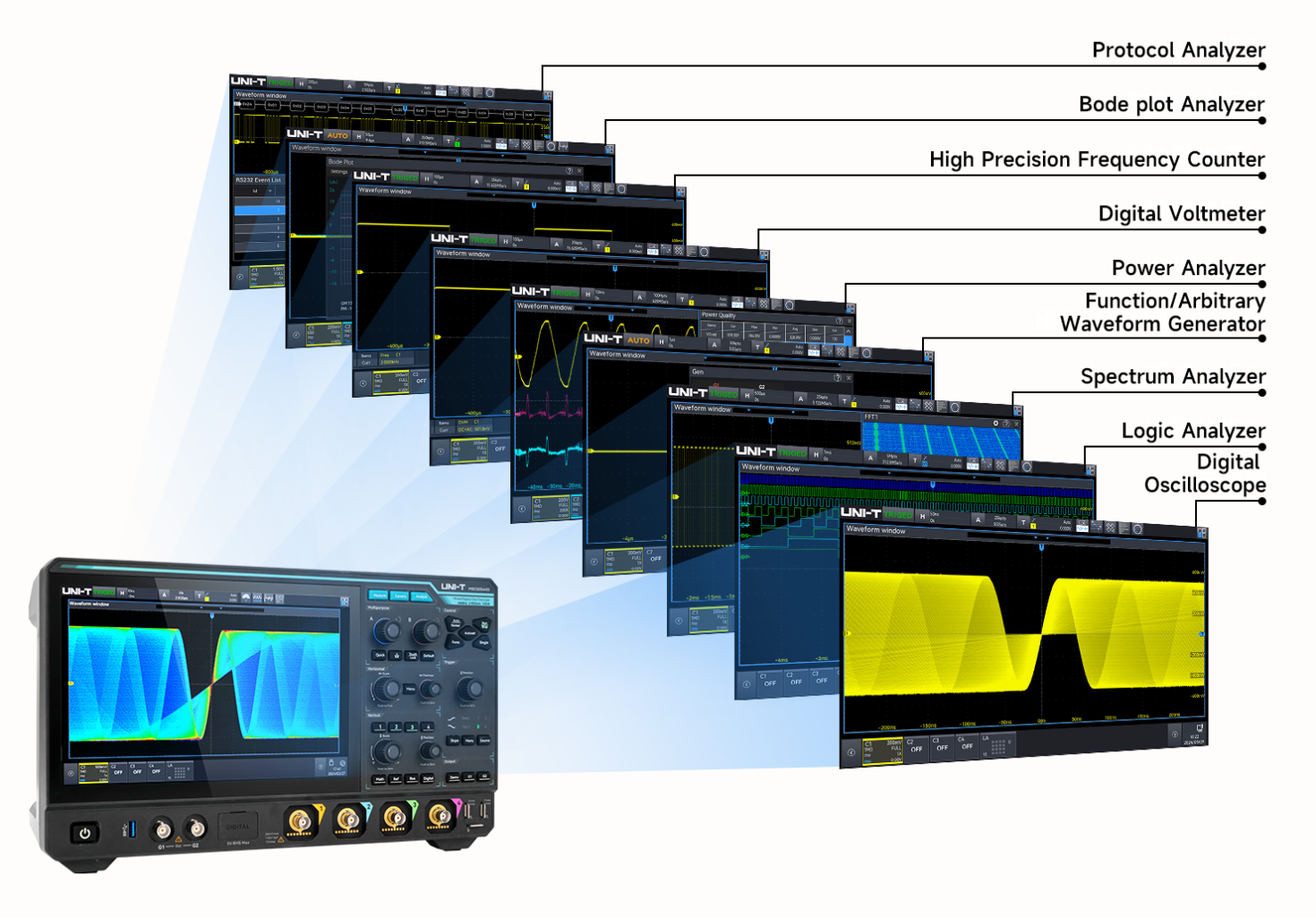

A 12-Bit, Nine-in-One Benchtop powerhouse. The UNI-T MSO3054HD offers one instrument that can be a 500MHz, 4Ch High-Definition Digital Oscilloscope, Logic Analyzer, Function/Arbitrary Waveform Generator, Spectrum Analyzer, Digital Voltmeter, High-Precision Frequency Counter, Protocol Analyzer, Bode Plot Analyzer, and Power Analyzer. All with up to 5 years warranty.

500MHz Bandwidth	4Ch Channels
2.5GSa/s Sample Rate	500Mpts Max. Memory Depth
1,500,000wfms/s Waveform Capture Rate	Optional Digital Channels

$3,899.00

Save {price}% Contact Us for Lead Time

26 items in stock

Find a Distributor

Guarantee safe & secure checkout

▪ Bandwidth: 500MHz Also available MSO3034HD 350MHz
▪ Vertical Resolution: 12-bit HD, 16-bit ERES
▪ 4 Analog Ch/16 Digital Ch, Logic Analyzer SW included (probes optional)
▪ Max Sample Rate: 5GSa/s per channel
▪ Memory Depth: 500Mpts per channel
▪ Max Capture Rate: 1,500,000 wfms/s per channel
▪ Arb Waveform Generator: Dual Channel 50MHz option

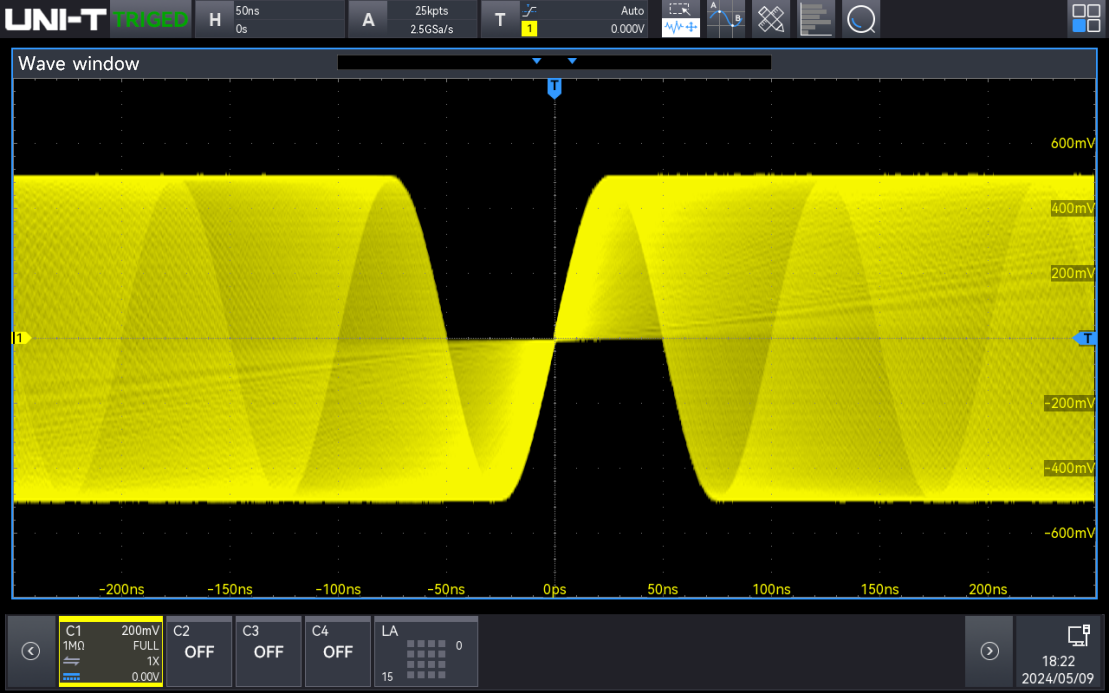

▪ 10.1-Inch UltraPhosphor3 Touchscreen Display
▪ 5-Year Warranty

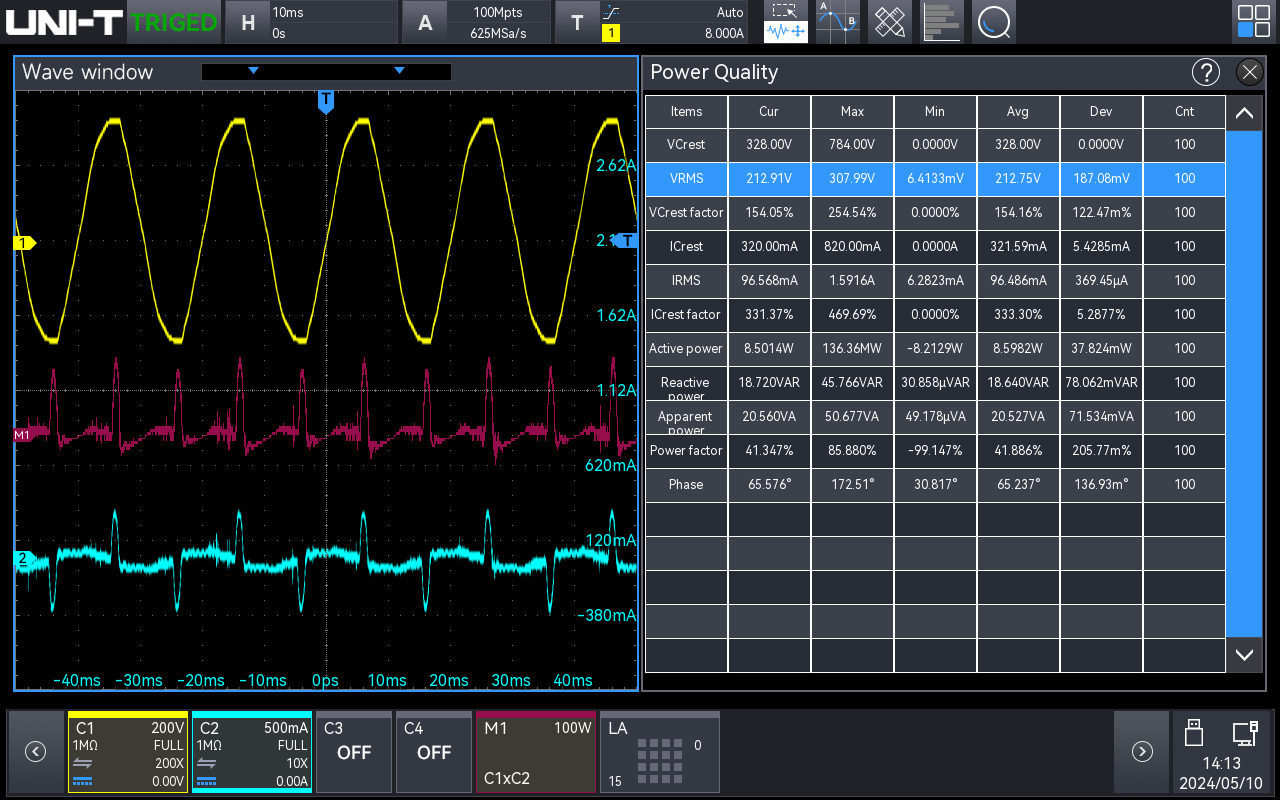

Power Analyzer: (option) power quality, harmonics, switching loss, ripple wave, loop analysis, safety operation area

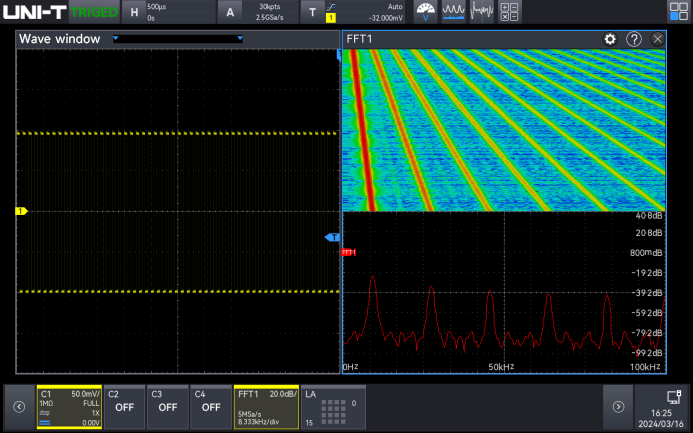

Spectrum Analyzer: up to 1GHz. Up to 4Mpts enhanced FFT, functions such as frequency setting, waterfall plot, detection setting, and marker are included
Bode Plot Analyzer: Option (also requires AWG option)

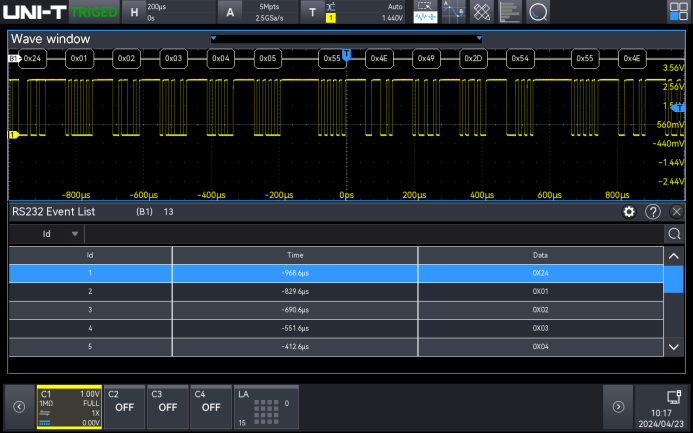

Bus Decode: Included: RS232/422/485/UART, I2C, SPI
Option: CAN, CAN-FD, FlexRay, LIN, SENT, MIL-STD-1553, ARINC429, Manchester, I2S/LJ/RJ/TDM (audio)
DVM/Frequency Counter: 7-bit

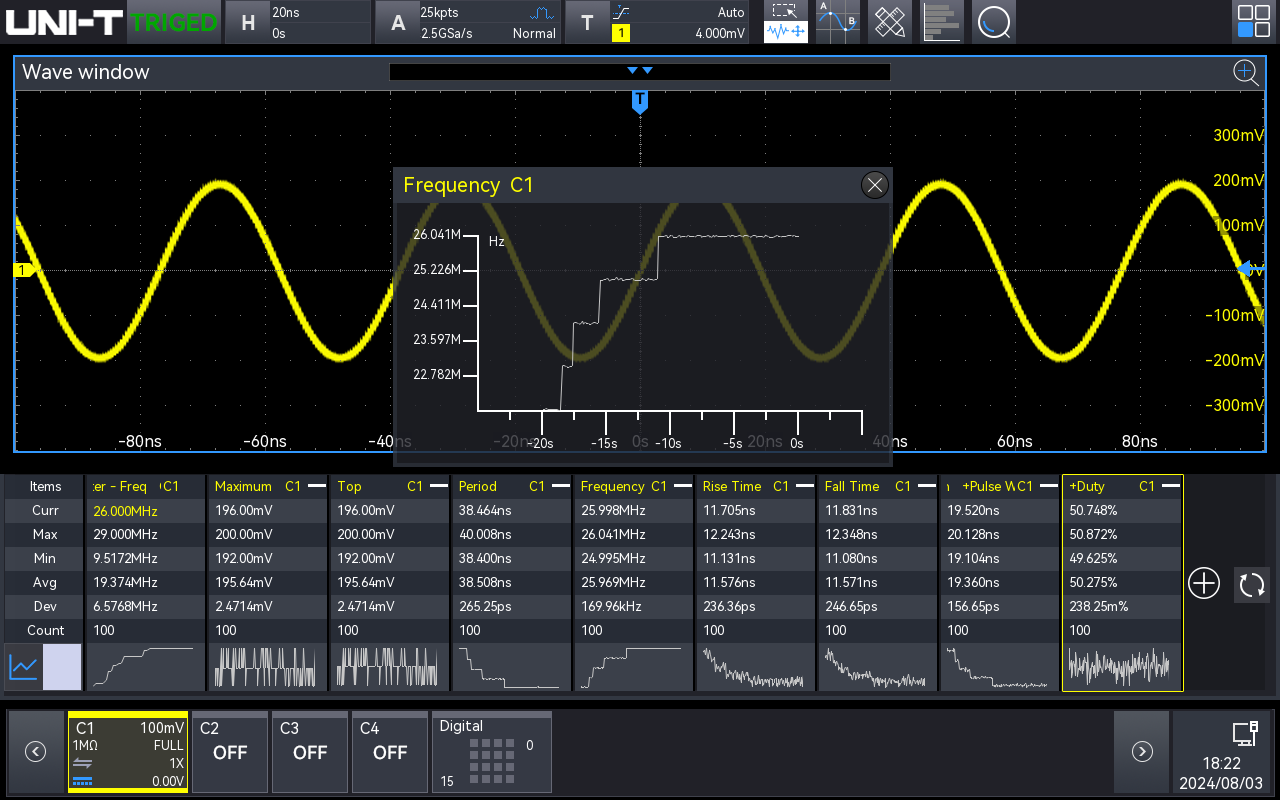

Measures up 54 measurement parameters

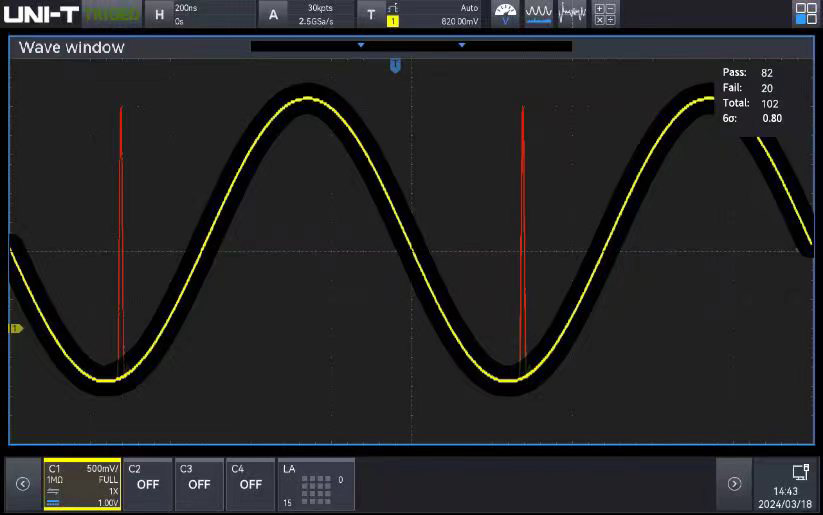

Mask limit testing
Web server (SCPI control, remote access wired and Wi-Fi)

Feature	Specification
Model Number	MSO3054HD
Scope Type	MSO
Bandwidth	500MHz
Channels	4Ch
Scope Sample Rate	2.5GSa/s
Memory Depth	500Mpts
Refresh Rate	1,500,000wfms/s
Vertical Scale @1MΩ	500μV/div to 10V/div
# Automatic Measurements	54
Included Bus Protocols	RS232 UART I2C SPI RS422 RS485
Optional Bus Protocols	CAN-FD FlexRay SENT Audio MIL-STD-1553B ARNIC429 Manchester
Logic Pod Included	Optional
Signal Generator Function	Optional
Frequency Meter	7-bit
Display Size (in)	10.1in
Touchscreen	Yes
Warranty	3 years
Certifications	CE/cETLus/UKCA
Documents	English download guide, multi-language safety manual, calibration report (COC)
Included Accessories	Oscilloscope probe (UT-P07A)*4, BNC straight-through cable (UT-L45), BNC to alligator clip cable (UT-L02A)
Standard Accessories	Power cord, USB3.0 printing cable
