Description

The UPO1102 digital oscilloscope is equipped with cutting-edge digital 3D tech known as Ultra Phosphor 2.0.

Top Specifications

100MHz, 1 GSa/s, 2 CH, Memory Depth: 56 Mpts, 500,000 wfm/s, 7in display
Register for up to 15% EDU Discount

Guarantee safe & secure checkout

trust2

OVERVIEW

SPECIFICATIONS

DOCUMENTATION

ACCESSORIES

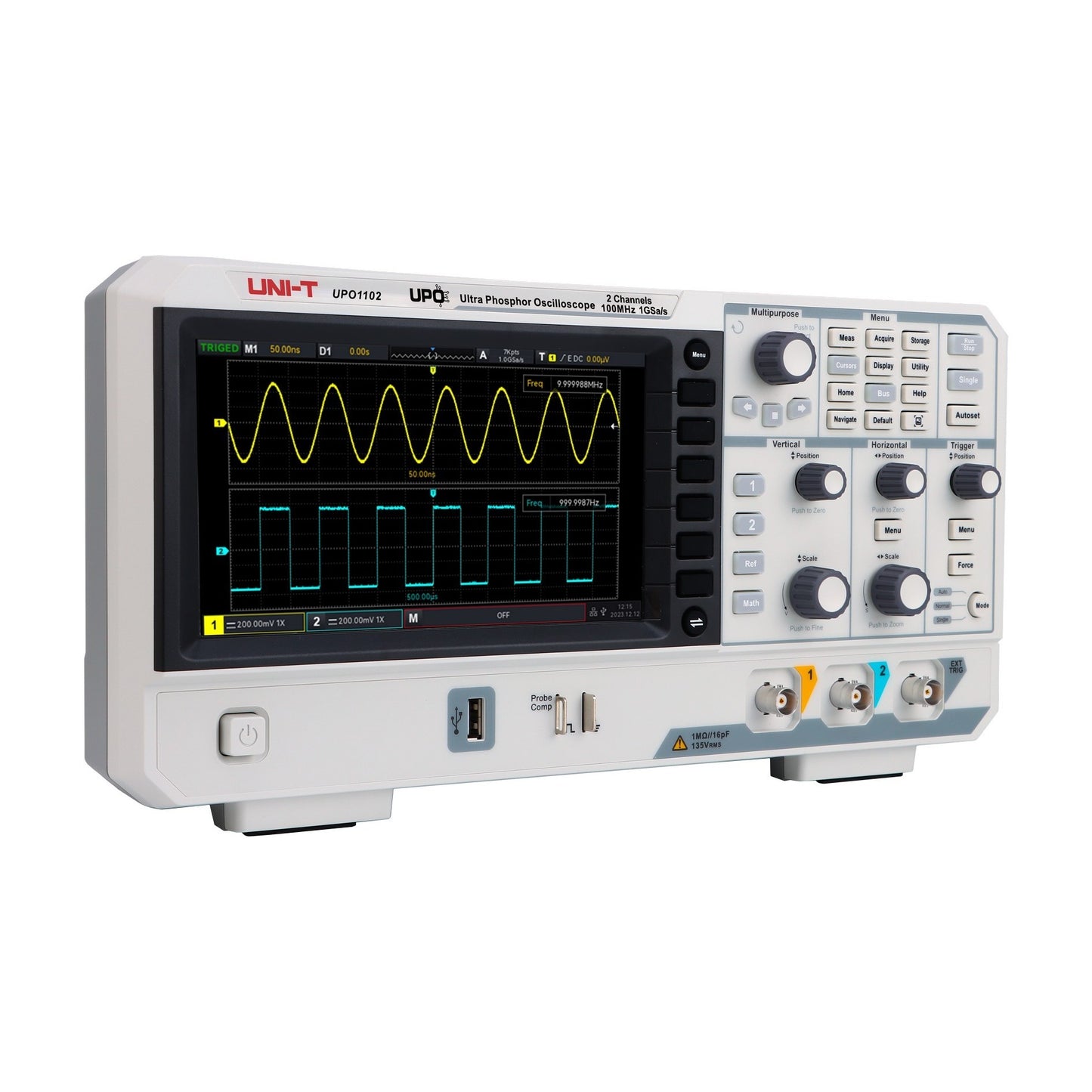

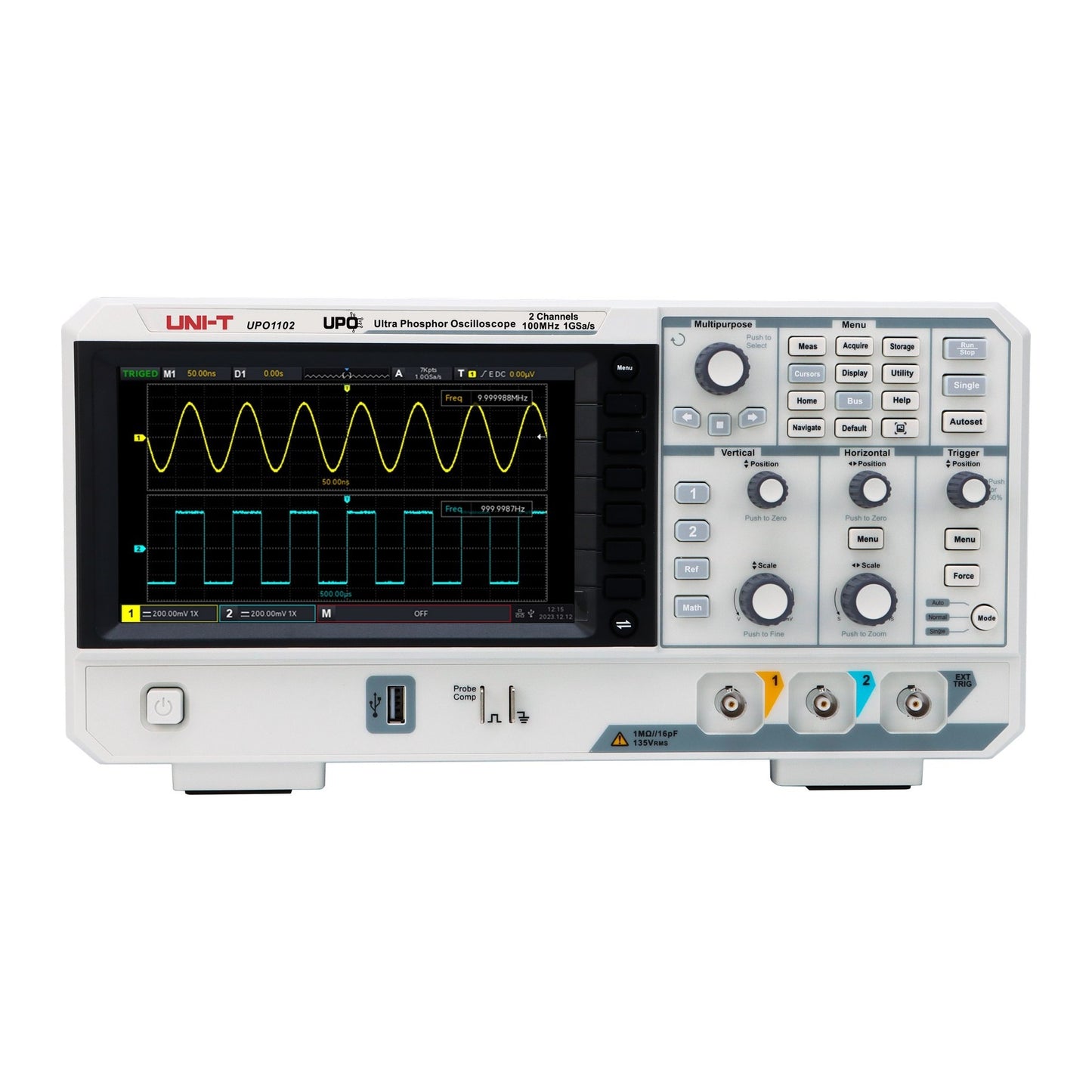

Uni-T UPO1102 Digital Phosphor Oscilloscope – Your Ultimate Companion for Elevated Electronic Excellence

Are you ready to elevate your electronic and electrical projects to new heights? Introducing the Uni-T UPO1102 Digital Phosphor Oscilloscope – the ultimate solution designed for professionals and enthusiasts alike. Whether you're involved in electronic design, debugging, education, or industrial applications, the UPO1102 stands out with its advanced features and budget-friendly pricing.

UPO1102 Top Specifications:



  • Bandwidth: Experience high-performance signal analysis with a bandwidth of 100MHz, ensuring the efficient handling of electronic and electrical projects.

  • Analog Channels: Benefit from the versatility of 2 analog channels, allowing for comprehensive monitoring and analysis in various applications.

  • Real-Time Sample Rate: Achieve precision in data acquisition with a remarkable real-time sample rate of 1GSa/s, ensuring accurate representation of waveforms.

  • Max. Memory Depth: Capture and retain intricate details within waveforms effortlessly, thanks to the substantial maximum memory depth of 56Mpts.

  • Waveform Capture Rate: Enhance efficiency with a waveform capture rate of 500,000wfms/s, providing real-time insights for prompt decision-making.

What's in it for Engineers?

The inclusion of an independent DVM module, robust trigger and bus decoding functions, and full-memory hardware real-time decoding speaks directly to the needs of engineers working across various technical domains. The Uni-T UPO1102 is an invaluable tool for tasks related to communication, semiconductor, computer, integrated circuit design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, and research and development.


Understand the Uni-T UPO1102 Better with These Great Features


Uni-T UPO1000 Storage Depth
Uni-T UPO1002 Series Storage Depth

Impressive Storage Depth

Experience a maximum storage depth of 56Mpts, allowing for the capture and retention of intricate waveform details. This substantial storage capacity, coupled with the system's commitment to capturing comprehensive signal nuances, exemplifies its advanced capabilities in waveform analysis.

1Mpts FFT Sampling Point for Precise Frequency Analysis

The oscilloscope's 1Mpts FFT sampling points enables in-depth frequency domain signal analysis. You can customize spectrum analyzer functions for comprehensive signal examination, including frequency range, detection mode, and spectrum marking.


Uni-T UPO1000 Series Navigation FUnctions
Uni-T UPO1002 Series Navigation Functions

Cursor and Navigation Functions

When "Cursor" is turned on, the parameters of the waveform in the cursor area can be measured. The cursor function can measure the time and voltage of CH1, CH2, MATH, REF at the same time. Navigation functions include time navigation, marker navigation, and segment navigation.

Real-Time Insights with Serial Bus Trigger and Hardware Decoding

Incorporating cutting-edge hardware decoding technology ensures seamless and instantaneous decoding of information in real-time. This forward-thinking approach facilitates swift and efficient data processing, keeping you at the forefront of technological advancements.


Uni-T UPO1000 Series Cursor Functions
Uni-T UPO1002 Series Cursor Functions

Extensive Storage Capacity for In-Depth Waveform Analysis

Boasting an impressive 56M sampling points per channel, the UPO1002 series stands out in sustaining a high sampling rate across a broad time base range. This feature facilitates a meticulous analysis of waveforms while preserving a comprehensive perspective, greatly improving your capacity to capture and scrutinize anomalous waveforms.

Ultra Phosphor 2.0

The UPO1002 series digital oscilloscope adopts the newly created digital 3D technology Ultra Phosphor 2.0. This series is equipped with three levels of bandwidth of 50MHz/100MHz/200MHz, and the real-time sampling rate is as high as 1GSa/s. The whole series is equipped with 2 channels as standard.


Uni-T UPO1000 Series Oscilloscope Innovative Hardware Decoding
Uni-T UPO1002 Series Oscilloscope Innovative Hardware Decoding

The Uni-T UPO1002 Digital Phosphor Oscilloscope Series sets a new standard for electronic and electrical projects. Whether you're an experienced engineer or a passionate enthusiast, this versatile tool enables you to approach complex tasks with assurance. Enhance your projects and embrace innovation with the UPO1002 series. Obtain it now to embark on a journey towards heightened precision and efficiency in your work. Your next breakthrough awaits!

FeatureSpecification
Model Number UPO1102
Scope Type DSO
Bandwidth 100MHz
Channels 2Ch
Scope Sample Rate 1.0GSa/S
Memory Depth 56Mpts
Refresh Rate 500,000wfms/s
Logic Pod Included false
Signal Generator Function false
Display Size (in) 7in
Touchscreen false
Warranty 3 years

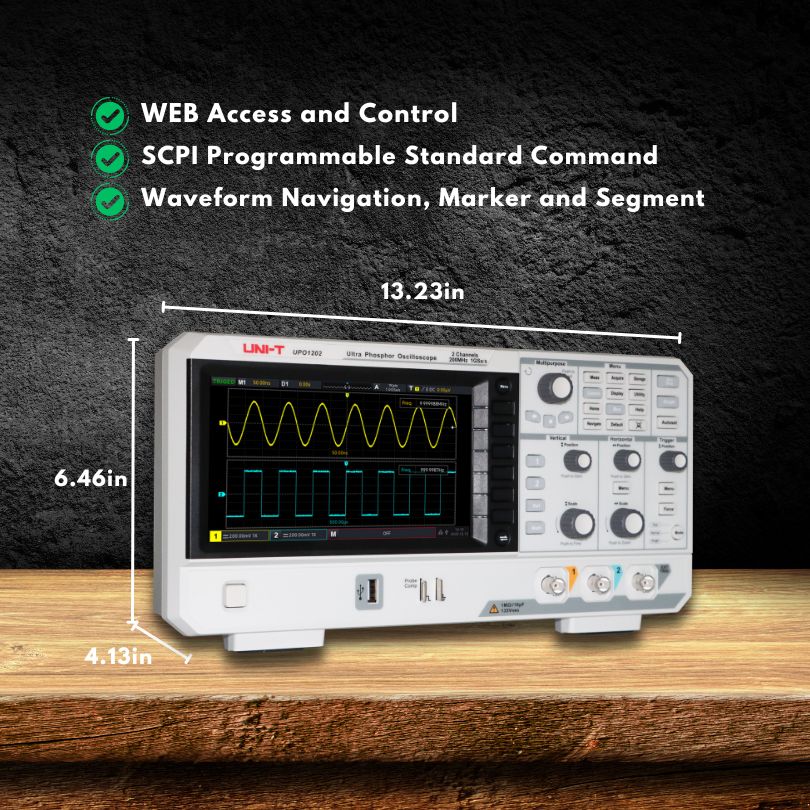

Shipping Dimmensions (L x W x H) 19 in x 11 in x 14 in
Shipping Weight 11 lb
Documents English download guide, multi-language safety manual, calibration report (COC)

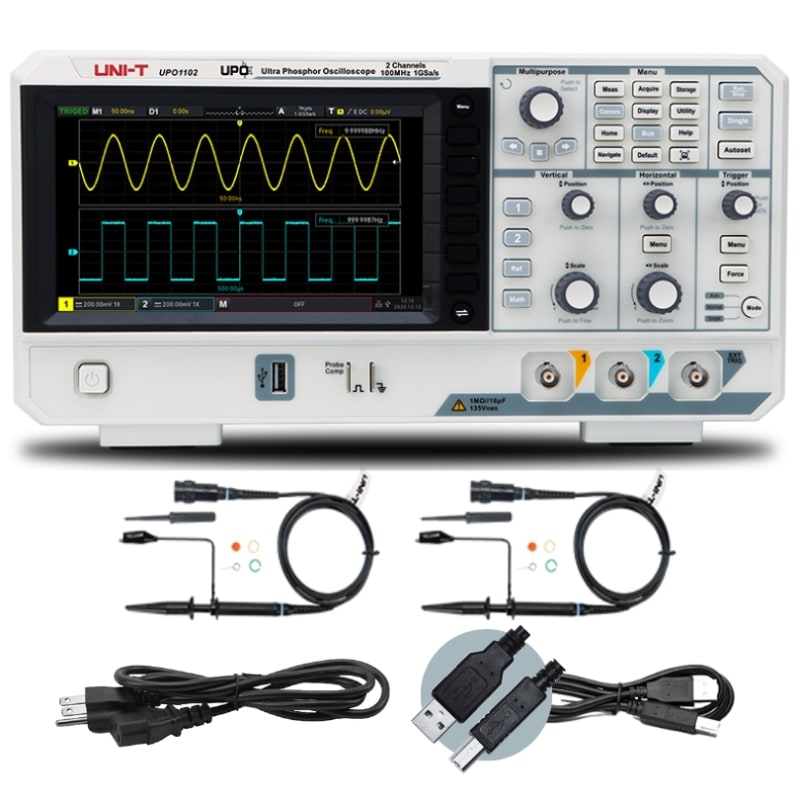

Included Accessories Power cord, USB2.0 printing cable, Oscilloscope probe (UT-P04)*2
