Overview

The UTS3015T+ and UTS3032T+ bring 1.5 GHz and 3.2 GHz spectrum analysis, a built-in tracking generator, and reflection measurement into a single bench instrument under two thousand dollars. For a small hardware team or a contract test bench, that means one box covers signal search, scalar network checks, and pre-compliance screening without three separate purchases.

Both models hold a typical displayed average noise level to −161 dBm (preamp on, a shared series figure), phase noise below −98 dBc/Hz at 10 kHz offset, and full-amplitude accuracy under 0.7 dB — numbers that hold up under real measurement conditions, not peak-only figures. A 10.1-inch 1280×800 capacitive touch screen and full SCPI control over USB and LAN make the instrument scriptable from day one.

Tracking generator is built in on every T+ model — it is the defining difference of the T+ line and is standard, not an added option. Analog demodulation, the advanced measurement kit, and EMI pre-compliance remain field-installable options when a project needs them.

Choosing Your Model — UTS3000T+ Performance-Series

The UTS3000T+ name spans two materially different instrument classes. The four models below do not share the same sweep engine, trace count or demodulation capability — the differences go well beyond frequency reach. Compare the full series before selecting:

Within the UTS3015T+/UTS3032T+ class, choose by frequency reach (1.5 GHz vs 3.2 GHz). Within the UTS3036T+/UTS3084T+ class, choose 3.6 GHz or 8.4 GHz reach. Across classes the UTS3036T+/UTS3084T+ models add a 40,001-point sweep (4× the depth), six traces instead of four, and PM demodulation in addition to AM/FM — confirm which class a model belongs to before assuming a shared specification.

Key Features

UNI-T UTS3000T+ Performance-Series Details

Spectrum Coverage and the Built-in Tracking Generator

The UTS3015T+ sweeps 9 kHz to 1.5 GHz and the UTS3032T+ to 3.2 GHz. Both carry a built-in tracking generator (−40 dBm to 0 dBm output, 0.5 dB resolution), so a swept frequency-response measurement on a filter or amplifier is set up on the analyzer itself rather than wired to an external generator.

×Built-in tracking generator output

Sensitivity for Weak-Signal Work

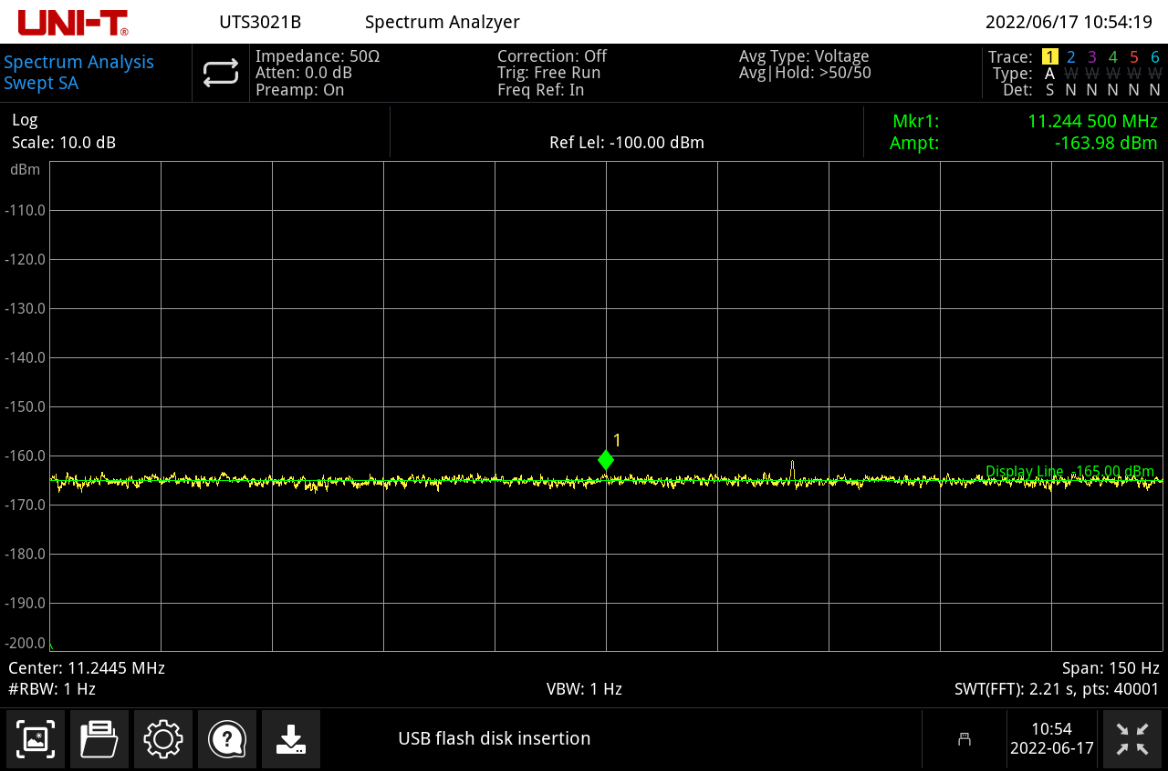

With the preamp enabled, typical displayed average noise level reaches −161 dBm (500 kHz to 200 MHz band). This is a shared series figure — both models hold the same typical noise floor at their respective top frequencies. A low noise floor is what lets a small signal be seen rather than buried, which matters for spur hunting and low-level emissions checks.

×Low displayed average noise level

Resolution Bandwidth and Selectivity

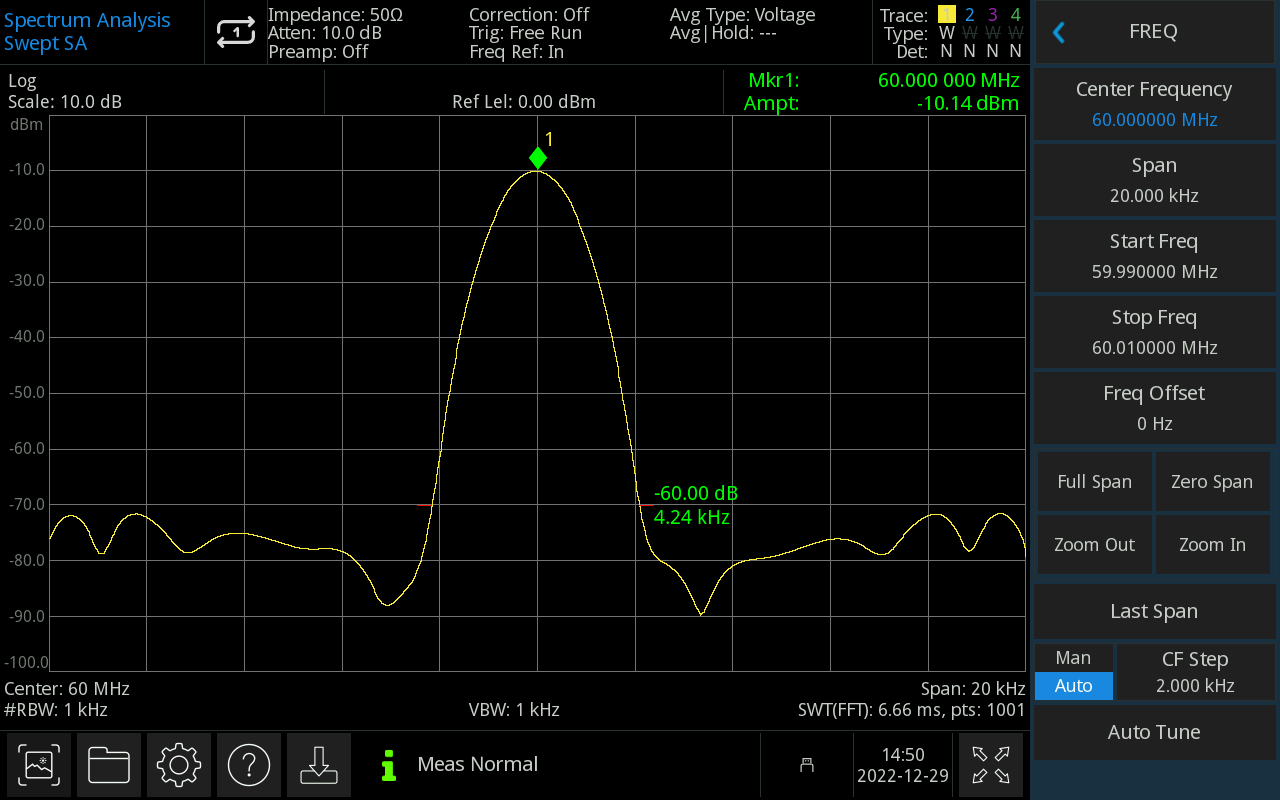

RBW is settable from 1 Hz to 3 MHz in 1-3-10 steps. The < 4.8:1 (60 dB/3 dB) shape factor resolves adjacent signals of unequal amplitude — the case where a strong carrier would otherwise mask a nearby weak product.

×RBW selectivity, unequal-amplitude signals

10,001-Point Sweep

Each trace carries 10,001 points across the selected span, giving the frequency resolution needed to catch narrow signals that a coarser sweep would step over.

×10,001-point sweep

Reflection Measurement

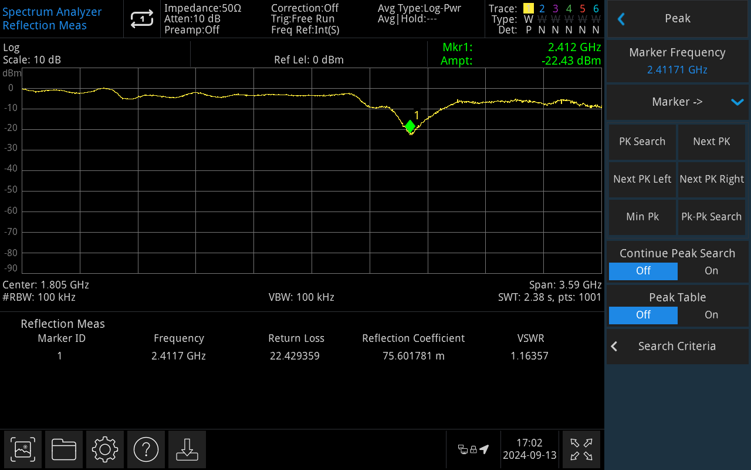

With the optional VSWR bridge and the built-in tracking source, the analyzer measures S11 return loss, reflection coefficient and VSWR. After an Open calibration, a marker on the trace reads the value at any frequency — enough for antenna tuning and cable-fault checks without a dedicated VNA.

×S11 return loss / VSWR

10.1-inch Multi-Touch Operation

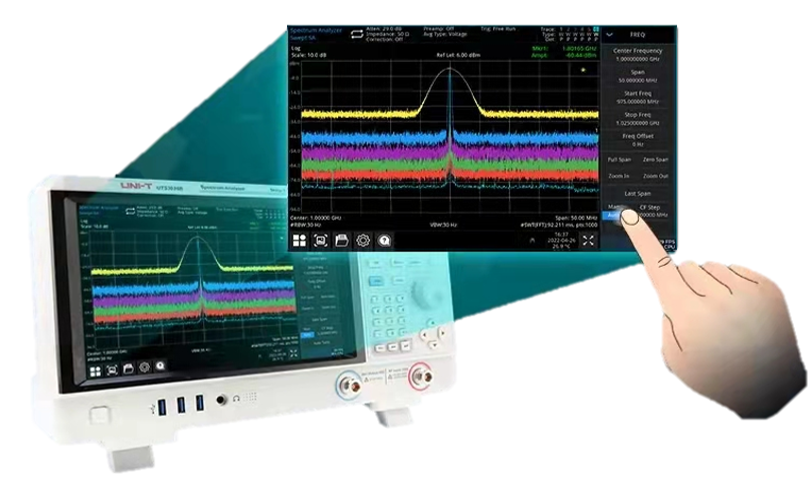

The 1280×800 capacitive screen supports drag, expand and zoom directly on the trace, with a fixed menu layout that keeps common settings one or two presses away.

×10.1-inch capacitive touch

Applications

Contract Test Labs and Design Consultancies

For a single-digit-engineer shop, bench space and budget are both finite. One UTS3015T+ or UTS3032T+ covers signal search, scalar network response with the built-in tracking generator, return-loss checks with the reflection-measurement bridge, and — with the EMI option — early conducted/radiated screening before a formal CISPR run. SCPI over LAN drops it straight into a Python or LabVIEW acceptance-test procedure. No per-feature license conversations: the options are one-time installs, not recurring fees.

Bench RF Design and Validation

On a design bench, the same instrument verifies oscillator output, checks harmonic and spurious content against a target, characterizes a filter or matching network with the tracking generator, and confirms antenna match with the VSWR bridge. The < 0.7 dB full-amplitude accuracy and −161 dBm typical DANL mean the numbers used in a design-verification report hold up under the conditions they were measured in.

Specifications

Accessories and Family Options

The tracking generator is built in on every UTS3015T+ / UTS3032T+ model. Field-installable options: UTS3000-AMA Analog Demodulation, UTS3000-AMK Advanced Measurement Kit, UTS3000-EMI EMI Pre-Compliance. The tracking generator is standard — it is not an added option on the T+ line.

Frequently Asked Questions

Does the tracking generator cost extra on the T+?

No. The tracking generator is built in and standard on every UTS3000T+ model, including the UTS3015T+ and UTS3032T+. It is the defining feature of the T+ line.

What is the difference between the UTS3015T+ and the UTS3032T+?

Frequency reach and sensitivity. The UTS3015T+ covers 9 kHz to 1.5 GHz; the UTS3032T+ covers 9 kHz to 3.2 GHz. Both models share the same typical noise floor at their top frequencies, plus the same 10,001-point sweep engine, four traces, RBW range, touch interface and built-in tracking generator. The difference is frequency reach: 1.5 GHz versus 3.2 GHz. See Choosing Your Model above.

Can it do EMI pre-compliance?

With the optional UTS3000-EMI kit, yes. It adds CISPR-bandwidth RBWs (200 Hz, 9 kHz, 120 kHz, 1 MHz), quasi-peak and EMI-average detectors and editable limit lines for screening with a near-field probe set before a formal compliance run.

How is it controlled remotely?

Full SCPI over USB or LAN (VXI11). It integrates with Python, LabVIEW and MATLAB through standard VISA.

Warranty

This instrument is backed by UNI-T's 3+2 Year Warranty — 3 years of standard coverage, plus 2 additional years free when you register your product. That's 5 years of total protection at no extra cost.

The warranty covers manufacturing defects and component failures under normal use conditions. UNI-T instruments are built for professional daily use, and our warranty reflects that commitment to long-term reliability.
