UPO7000L Rack-Mount Oscilloscopes
-

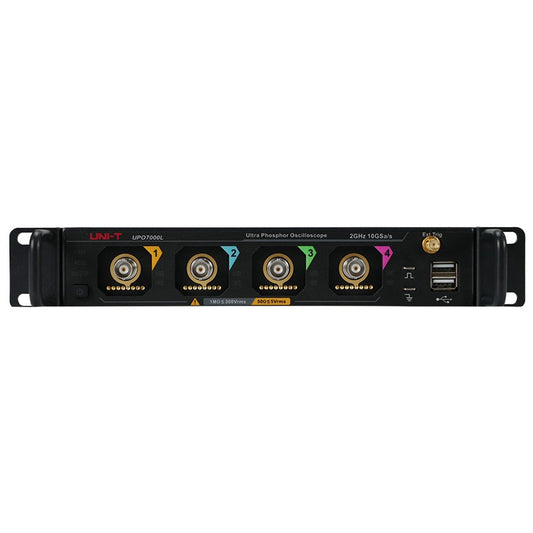

UPO7104L1 GHz 4Ch Eight-in-One Rack-Mount Oscilloscope
- Bandwidth: 1GHz
- Channels: 4Ch
- Sample Rate: 10GSa/s
- Memory Depth: 1Gpts
- Vertical Resolution: 8 bits
- Signal Generator: Optional
Regular price $9,999.008 in stock -

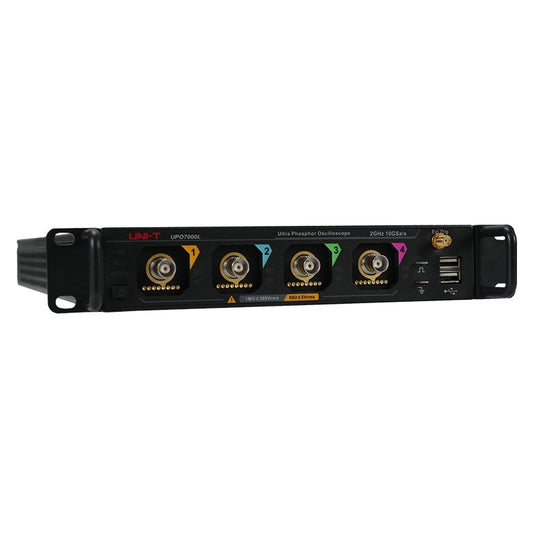

UPO7204LLab-Grade 2 GHz 4Ch Eight-in-One Rack-Mount Oscilloscope
- Bandwidth: 2GHz
- Channels: 4Ch
- Sample Rate: 10GSa/s
- Memory Depth: 1Gpts
- Vertical Resolution: 8 bits
- Signal Generator: Optional
Regular price $13,999.00Only 2 in stock
UNI-T Rack-Mount Oscilloscope — Buyer's Guide
Which Rack-Mount Scope Is Right for You?
UNI-T builds two rack-mount oscilloscope series for system integration, ATE, and high-density validation: the UPO6000LP (12-bit high-definition) and the UPO7000L (8-bit lab-grade). Both are 1U chassis with rear connectivity, headless operation, and bench-equivalent acquisition engines. The choice between them comes down to resolution vs. bandwidth: 12-bit precision or higher bandwidth and deeper memory.
What Both Series Share
Both deliver UNI-T's full benchtop feature set in a rack-friendly chassis. The differences are vertical resolution, bandwidth ceiling, and channel density.
Decision 1: Resolution or Bandwidth?
UPO6000LP — 12-Bit HD
Vertical resolution of 12 bits — 16× the detail of an 8-bit scope. Bandwidth from 350 MHz to 1 GHz, 4 or 8 analog channels, 5 GSa/s, 500 Mpts memory.
Choose if you need precision at lower amplitudes (switching ripple, power integrity, low-level signal characterization) or high channel density in a 1U chassis. The 8-channel models double the channel count of competing rack-mount scopes — ideal for multi-rail power monitoring and parallel bus capture.
UPO7000L — Lab-Grade 8-Bit
1 GHz or 2 GHz bandwidth with 10 GSa/s sample rate and 1 Gpts memory — 2× the memory and up to 2× the bandwidth of the UPO6000LP. 8-bit resolution, 4 channels.
Choose if you need high-speed acquisition (fast edges, RF signals, high-speed serial protocols), long captures at full sample rate, or synchronized stacking for very high channel-count ATE installations.
Decision 2: Pick Your Model
Each model name encodes its specs. UPO6108LP = 1 GHz, 8 channels, Low-Profile rack-mount. UPO7204L = 2 GHz, 4 channels, rack-mount Lab-grade.
UPO6000LP — 12-Bit Rack-Mount
UPO7000L — Lab-Grade Rack-Mount
Complete Model Comparison
| Model | Bandwidth | Channels | Sample Rate | Memory | Resolution | Ideal For |
|---|---|---|---|---|---|---|
| UPO6034LP | 350 MHz | 4 | 5 GSa/s | 500 Mpts | 12-bit | HD entry, power integrity |
| UPO6038LP | 350 MHz | 8 | 5 GSa/s | 500 Mpts | 12-bit | Multi-rail monitoring |
| UPO6054LP | 500 MHz | 4 | 5 GSa/s | 500 Mpts | 12-bit | Mid-BW HD validation |
| UPO6058LP | 500 MHz | 8 | 5 GSa/s | 500 Mpts | 12-bit | Switching converter test |
| UPO6104LP | 1 GHz | 4 | 5 GSa/s | 500 Mpts | 12-bit | HD top spec, 4 channels |
| UPO6108LP | 1 GHz | 8 | 5 GSa/s | 500 Mpts | 12-bit | HD flagship, 8 channels at 1 GHz |
| UPO7104L | 1 GHz | 4 | 10 GSa/s | 1 Gpts | 8-bit | Lab-grade ATE, 1 GHz |
| UPO7204L | 2 GHz | 4 | 10 GSa/s | 1 Gpts | 8-bit | Top-spec lab-grade ATE |
Recommended Configurations
Switching Power Supply Validation
12-bit resolution surfaces ripple, transient response, and crossover detail that 8-bit smooths away. 8 channels cover multi-rail SMPS and synchronous-rectifier topologies in a single chassis.
EV / Battery Test Station
UPO6038LP + DC loads + DAQ
8-channel 12-bit precision for cell-balancing analysis, BMS communication, and inverter waveform integrity. Rack-mount form factor stacks with electronic loads and DC sources.
High-Speed ATE / Production Test
1 Gpts memory captures long protocol sequences at full sample rate. 2 GHz bandwidth covers high-speed serial standards. Synchronized stacking scales channel count for fixture-mounted UUTs.
Multi-Rail Power Integrity
8 channels of 12-bit at 1 GHz — monitor every rail on a multi-supply system simultaneously without juggling probes or stacking scopes.
RF / High-Speed Serial Validation
2 GHz analog bandwidth with 10 GSa/s captures the fast edges and RF signals 12-bit scopes can't reach. Optional jitter and eye-diagram analysis for compliance work.
Why Choose UNI-T Rack-Mount?
1U With No Compromise
Same acquisition engine and analysis features as UNI-T's benchtop scopes. The form factor saves rack space — it doesn't strip performance.
Headless by Design
Built for SCPI and web-based remote operation from the start. No touchscreen tax on rack depth, no front-panel workarounds — the scope is the API.
Channel Density Choice
UPO6000LP's 8-channel models double the channel count of competing 1U scopes. One chassis covers multi-rail systems that would otherwise need stacked instruments.
5-Year Coverage
3-year warranty plus 2-year extension on every unit — covers the long deployment cycles of ATE and production test installations.
FAQ
Can I mix UPO6000LP and UPO7000L in one rack?
Yes. Both are 1U chassis with the same SCPI interface and can coexist in any combination on the same LAN segment.
Does either series support a local display?
Both are headless by design. Remote control via SCPI or web interface is the primary workflow. A monitor can be connected for setup if needed.
How is multi-unit synchronization handled?
UPO7000L supports synchronized stacking via rear-panel reference clock and trigger connections. Multiple units operate as a single capture system.
What probes are included?
Each model ships with passive probes matched to its bandwidth. Differential, current, and high-voltage probes are available separately for specialized measurements.
Can I upgrade bandwidth after purchase?
UPO7000L supports a 1 GHz to 2 GHz bandwidth upgrade option. UPO6000LP bandwidth is fixed at purchase — choose the right model up front.
What's covered under the 5-year warranty?
Parts, labor, and return shipping for the full term. 3 years standard plus 2 additional years included on every unit — no registration or extended-warranty purchase required.
Rack-mount precision and rack-mount bandwidth — pick the engine that fits your system.
