UPO2202 200MHz 2Ch MSO (w/o Logic Pod)

UPO2202 200MHz 2Ch MSO (w/o Logic Pod)
UPO2202 200MHz 2Ch MSO (w/o Logic Pod)

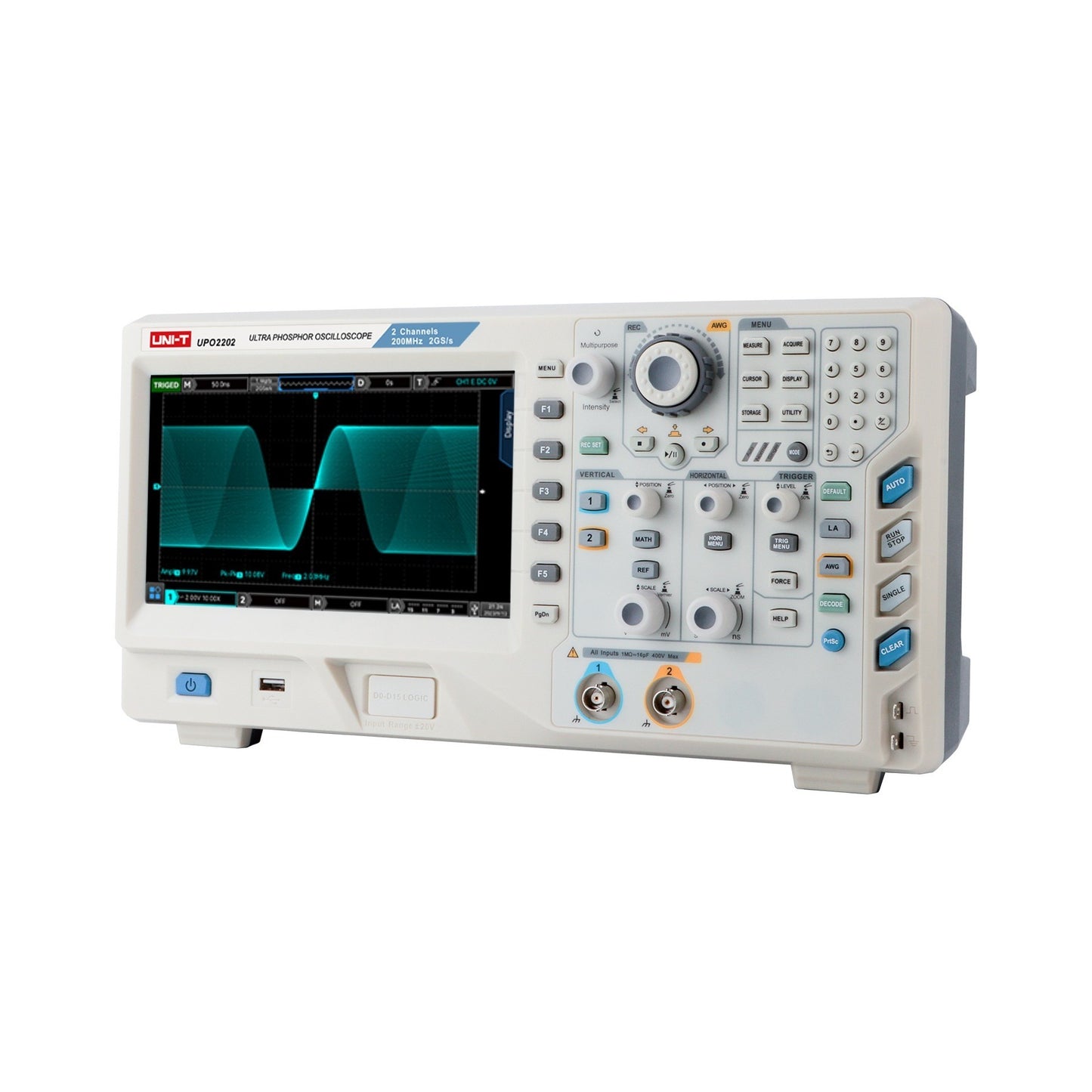

Uni-T UPO2202 200MHz 2Ch MSO (w/o Logic Pod) Isometric Image
UPO2202 200MHz 2Ch MSO (w/o Logic Pod)
UPO2202 200MHz 2Ch MSO (w/o Logic Pod)
UPO2202 200MHz 2Ch MSO (w/o Logic Pod)
UPO2202 200MHz 2Ch MSO (w/o Logic Pod)
Uni-T UPO2202 200MHz 2Ch MSO (w/o Logic Pod) Isometric Image
UPO2202 200MHz 2Ch MSO (w/o Logic Pod)
UPO2202 200MHz 2Ch MSO (w/o Logic Pod)
approvals
When you need to analyze analog waveforms, the UNI-T UPO2202 is a great choice! Add the UT-M15 to decode digital bus signals.
200MHz
Bandwidth
 2Ch
Channels
2.0GSa/s
Sample Rate
 56Mpts
Max. Memory Depth
1,000,000wfms/s
Waveform Capture Rate
 Optional
Digital Channels
$699.00
$785.00

26 items in stock

Includes 5-Year Warranty*

(click for details) 3 years standard warranty. Get 2 free years when you register your instrument!
Register today for a 10% EDU Discount
Find a Distributor

Guarantee safe & secure checkout

trust2

OVERVIEW

SPECIFICATIONS

DOCUMENTATION

OPTIONS
ACCESSORIES
UPO2000E-Display

Digital fluorescent display

256-level grayscale display capability, timely reflecting the probability of the appearance of the waveform, and the waveform change is clearly visible.

Excellent storage depth

Up to 56Mpts storage depth, users can capture longer Time signal without losing waveform details.

UPO2000E-Memory
UPO2000E-Capture

Up to 80,000wfms/s waveform capture rate

Up to 80,000wfms/s waveform capture rate, discover occasional problems in time, greatly improve the ability to capture extremely low-probability events, and observe signal jitter and glitches more intuitively

Independent time base adjustable

The time base of each channel is independently adjustable, which is convenient for users to observe four channels of frequencies at the same time Significantly different signals

 UPO2000E-Base
UPO2000E-Measures

Rich data measurement functions

Support 34 kinds of automatic measurement parameter functions, Support Zoom, Math, statistics and advanced calculation functions.
Feature Specification
Model Number UPO2202
Scope Type MSO
Bandwidth 200MHz
Channels 2Ch
Scope Sample Rate 2.0GSa/s
Memory Depth 56Mpts
Refresh Rate 1,000,000wfms/s
Vertical Scale @1MΩ 500μV/div to 20V/div
# Automatic Measurements 36
Included Bus Protocols None
Optional Bus Protocols RS232 UART I2C SPI CAN CAN-FD LIN FlexRay
Logic Pod Included Optional
Signal Generator Function Not Available
Frequency Meter 7-bit
Display Size (in) 8in
Touchscreen Yes
Warranty 3 years
Product Dimensions (L x W x H) 15 in x 5 in x 7 in
Product Weight 10 lb
Certifications CE/cETLus/UKCA
Documents English download guide, multi-language safety manual, calibration report (COC)

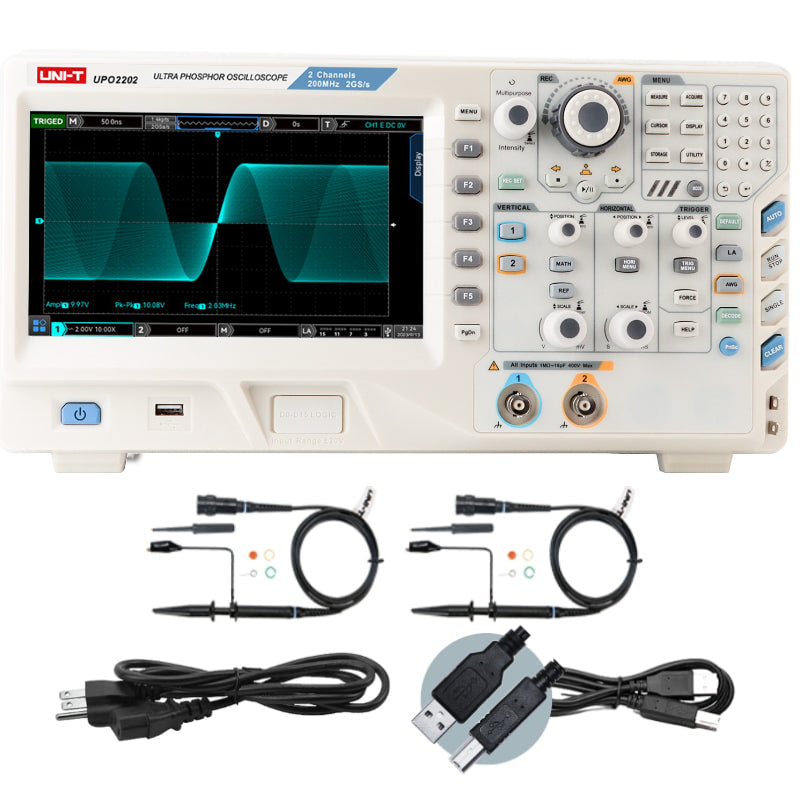

Included Accessories Oscilloscope probe (UT-P05)*2
Standard Accessories Power cord, USB2.0 printing cable
approvals
DATA SHEETS and MANUALS
Click here to download UPO2202 documents
SOFTWARE/FIRMWARE DOWNLOADS
Click here to download UPO2202 Software and/or Firmware updates
Need to add specific functionality to your Uni-Trend Mixed Signal Oscilloscope? You're in the right place. Here are our options for specific applications and measurement types. Have a question? Feel free to contact us at
MSO/UPO2000-AUTO
MSO/UPO2000-BND
MSO/UPO2000-CAN
MSO/UPO2000-CAN FD
MSO/UPO2000-COM
MSO/UPO2000-EMBD
MSO/UPO2000-FlexRay
MSO/UPO2000-I2C
MSO/UPO2000-LIN
MSO/UPO2000-SPI
MSO2000-S-BODE
UPO2000-LA16
