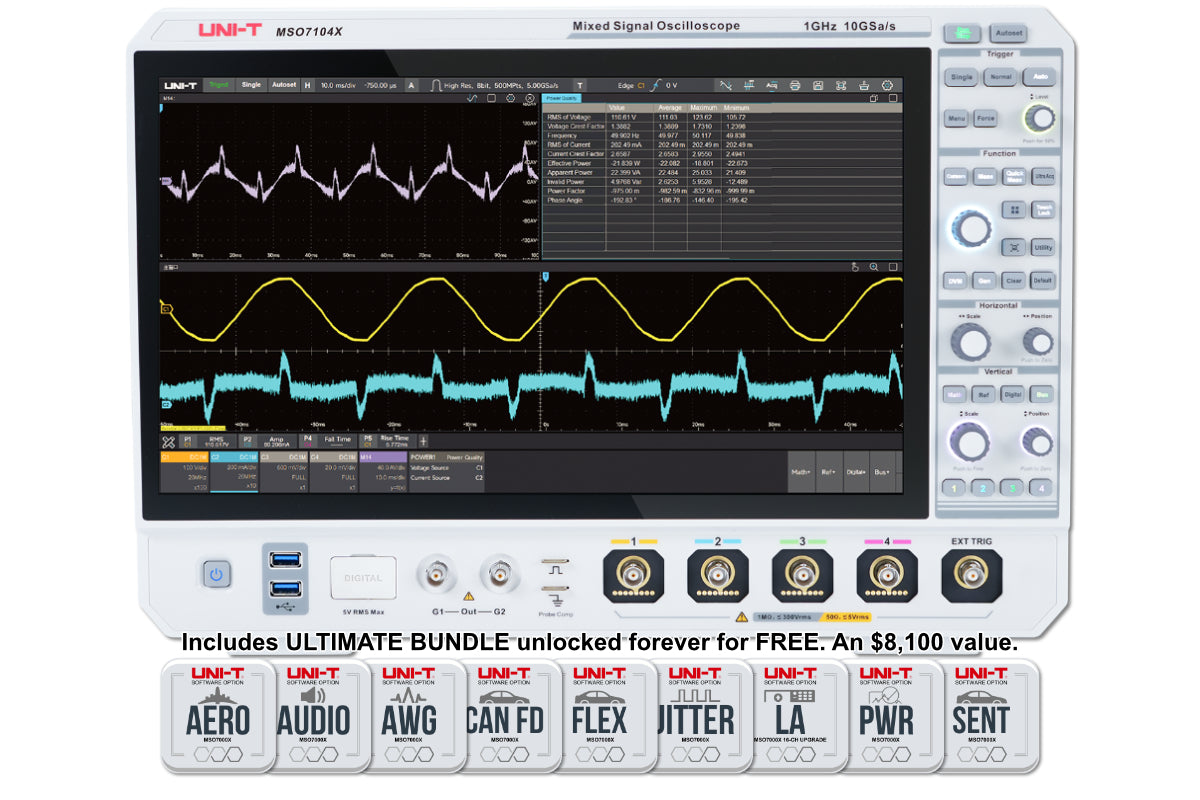

MSO7104X | 1 GHz 4Ch Nine-in-One Oscilloscope

MSO7104X | 1 GHz 4Ch Nine-in-One Oscilloscope

$10,399.20
$12,999.00 $10,399.20
Sale Contact Us For Lead Time
Shipping calculated at checkout.

7 in stock

4-channel mixed signal oscilloscope with 10 GSa/s sample rate. Versatile nine-in-one platform for engineering, production, and field applications.

View full details

MSO7104X | 1 GHz 4Ch Nine-in-One Oscilloscope

Overview

The MSO7104X is a 1 GHz 4-channel nine-in-one oscilloscope platform that integrates a digital oscilloscope, spectrum analyzer, protocol analyzer, arbitrary waveform generator, digital voltmeter, frequency counter, Bode plot analyzer, power analyzer, and pattern generator into a single 15.6-inch touchscreen instrument. It samples at 10 GSa/s with 1 Gpts memory depth and captures waveforms at up to 2,000,000 wfms/s using Ultra Phosphor 3.0 display technology. The 15.6-inch full HD display provides ample workspace for multi-window layouts, and optional jitter/eye diagram analysis supports high-speed serial data characterization.

Embedded serial protocols (RS-232, UART, I²C, SPI, CAN, LIN, RS-422, RS-485) are included standard. Automotive protocols (CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester) and the AWG, logic analyzer, and power analysis functions are available as optional software licenses.

MSO7000X nine-in-one instrument integration
Nine instruments in one premium platform
× MSO7000X nine-in-one instrument integration Nine instruments in one premium platform

Key Features

  • 1 GHz Bandwidth, 4 Analog Channels — Four-channel capture at up to 1 GHz with 10 GSa/s sample rate.
  • 1 Gpts Memory Depth — Deep memory for capturing long signal records without reducing sample rate.
  • 2,000,000 wfms/s Capture Rate — Ultra Phosphor 3.0 display reveals rare glitches, runts, and timing violations.
  • Nine-in-One Integration — Oscilloscope, spectrum analyzer, protocol analyzer, AWG, DVM, frequency counter, Bode plot, power analyzer, and pattern generator.
  • Included Protocol Decoding — RS-232, UART, I²C, SPI, CAN, LIN, RS-422, RS-485 — included at no additional cost.
  • Optional Protocols — CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester available as software licenses.
  • Optional Logic Analyzer — Add 16 digital channels with the UT-M15 logic probe pod.
  • Optional AWG — Dual-channel 50 MHz arbitrary waveform generator for stimulus-response testing.
  • Zone Trigger — Draw a region on screen to trigger when a waveform enters or exits it.
  • 48 Automated Measurements — Time, voltage, frequency, and statistical measurements with real-time tracking.
  • 15.6-inch Capacitive Touchscreen — Multi-gesture navigation with multi-window layout support.
  • Connectivity — USB 3.0, LAN, HDMI, AUX, Gen Out ×2, 10 MHz In/Out.
  • Optional Jitter/Eye Analysis — Jitter decomposition and eye diagram for high-speed serial data quality assessment.

High-Speed Oscilloscope Engine

The 10 GSa/s sample rate and 1 Gpts memory maintain full waveform fidelity across the 1 GHz bandwidth. The 2,000,000 wfms/s capture rate is among the fastest available, increasing the probability of catching rare anomalies that slower scopes miss. Ultra Phosphor 3.0 uses intensity grading to show signal frequency of occurrence — frequent signals appear brighter, making it intuitive to distinguish normal behavior from intermittent faults.

MSO7000X oscilloscope display
10 GSa/s oscilloscope with 1 Gpts memory depth
× MSO7000X oscilloscope display 10 GSa/s oscilloscope with 1 Gpts memory depth
MSO7000X spectrum analyzer
Built-in spectrum analyzer with waterfall display

Built-In Spectrum Analyzer

Switch to frequency domain analysis at the push of a button. The spectrum analyzer provides FFT-based spectral measurement with peak table, markers, and channel power calculations. Use it to identify harmonics, characterize EMI, verify clock signal purity, or analyze modulated signals — all without an external instrument.

× MSO7000X spectrum analyzer Built-in spectrum analyzer with waterfall display

Protocol Analysis and Decoding

The MSO7104X includes RS-232, UART, I²C, SPI, CAN, LIN, RS-422, RS-485 decoding standard — decoded frames display directly on waveform traces with field-level annotation for immediate correlation between protocol events and analog signal behavior. Additional protocols (CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester) are available as optional software licenses.

MSO7000X protocol analysis
Serial bus decode including CAN, LIN, I²C, SPI, and more
× MSO7000X protocol analysis Serial bus decode including CAN, LIN, I²C, SPI, and more
MSO7000X Bode plot loop analysis
Bode plot for power supply control loop characterization

Bode Plot Analysis

Automated frequency response measurement sweeps a signal source across a frequency range while measuring gain and phase. The result is a Bode plot displayed directly on screen — essential for characterizing power supply control loops, verifying filter rolloff, and measuring amplifier bandwidth. Requires the optional AWG or an external signal source.

× MSO7000X Bode plot loop analysis Bode plot for power supply control loop characterization

Jitter and Eye Diagram Analysis

The optional jitter analysis package decomposes timing jitter into random and deterministic components, and generates eye diagrams for serial data quality assessment. This is critical for engineers working on high-speed digital interfaces — USB, PCIe, Ethernet, or custom serial links — where timing margins determine whether a design passes or fails compliance testing.

MSO7000X jitter and eye diagram analysis
Optional jitter decomposition and eye diagram for serial data quality
× MSO7000X jitter and eye diagram analysis Optional jitter decomposition and eye diagram for serial data quality
MSO7000X zone trigger
Zone trigger for isolating anomalies in complex signals

Zone Trigger and Advanced Triggering

Zone trigger lets you draw a region on the display and trigger when a waveform enters or exits it — effective for catching anomalies in signals where you know the expected shape but not when the fault will occur. Combined with edge, pulse width, slope, runt, video, pattern, and serial protocol triggers, you can isolate virtually any signal condition.

× MSO7000X zone trigger Zone trigger for isolating anomalies in complex signals

Professional Applications

  • Embedded Systems Development — Correlate analog signals with decoded serial bus traffic. Included protocols cover the most common embedded interfaces; automotive protocols available as upgrades.
  • Power Electronics — Characterize switching behavior with deep memory, analyze control loop stability with Bode plot, and quantify losses with optional power analysis.
  • High-Speed Digital Design — 10 GSa/s sample rate and optional jitter/eye analysis for verifying signal integrity on fast serial interfaces.
  • RF and Communications — Built-in spectrum analyzer for signal characterization, EMI troubleshooting, and modulation analysis.
  • Education and Research — Nine-in-one integration reduces equipment count and cost for teaching labs and research workstations.

Frequently Asked Questions

What protocols are included standard?

RS-232, UART, I²C, SPI, CAN, LIN, RS-422, RS-485 decoding is included at no additional cost. CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester are available as optional software licenses.

Is the AWG included?

No. The arbitrary waveform generator is an optional software license. Once activated, it provides dual-channel 50 MHz output from the Gen Out connectors on the rear panel.

Can I add digital (logic) channels?

Yes. The UT-M15 logic probe pod adds 16 digital channels. You also need the logic analyzer software license for your series.

What is the advantage of the 15.6-inch display?

The larger display supports multi-window layouts — view oscilloscope, spectrum analyzer, and protocol decode simultaneously without switching screens. It also provides more detail when examining deep memory captures.

How does the MSO7000X compare to the other X-series?

The MSO7000X is the premium tier with 10 GSa/s, 1 Gpts memory, a 15.6-inch display, and optional jitter/eye analysis. The MSO2000X and MSO3000X offer 5 GSa/s at lower price points with 100 Mpts and 500 Mpts memory respectively.

Part of the MSO7000X oscilloscope series. For more economical options, see the MSO3000X (500 Mpts) and MSO2000X (100 Mpts).

Warranty

This instrument is backed by UNI-T's 3+2 Year Warranty — 3 years of standard coverage, plus 2 additional years free when you register your product. That's 5 years of total protection at no extra cost.

The warranty covers manufacturing defects and component failures under normal use conditions. UNI-T instruments are built for professional daily use, and our warranty reflects that commitment to long-term reliability.
