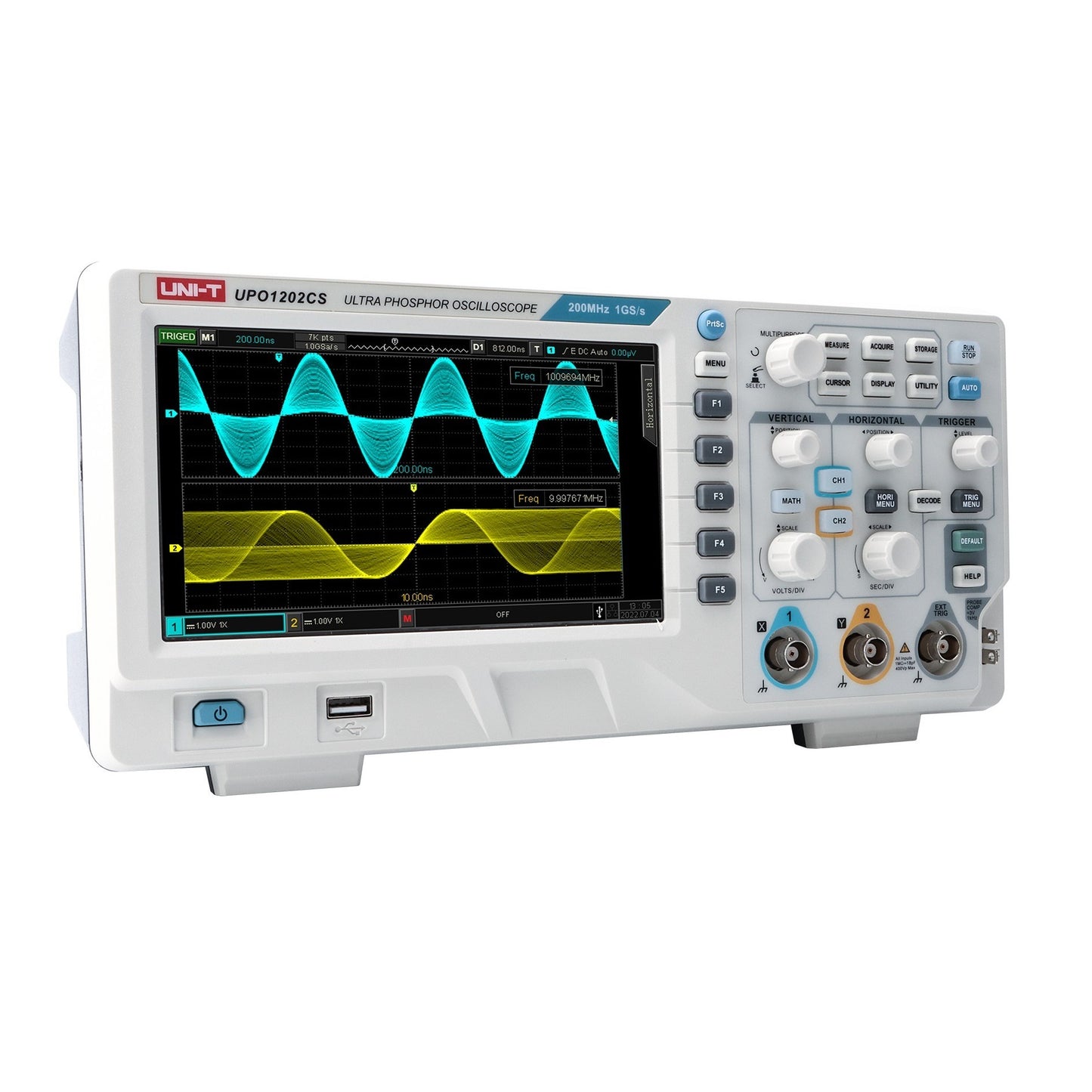

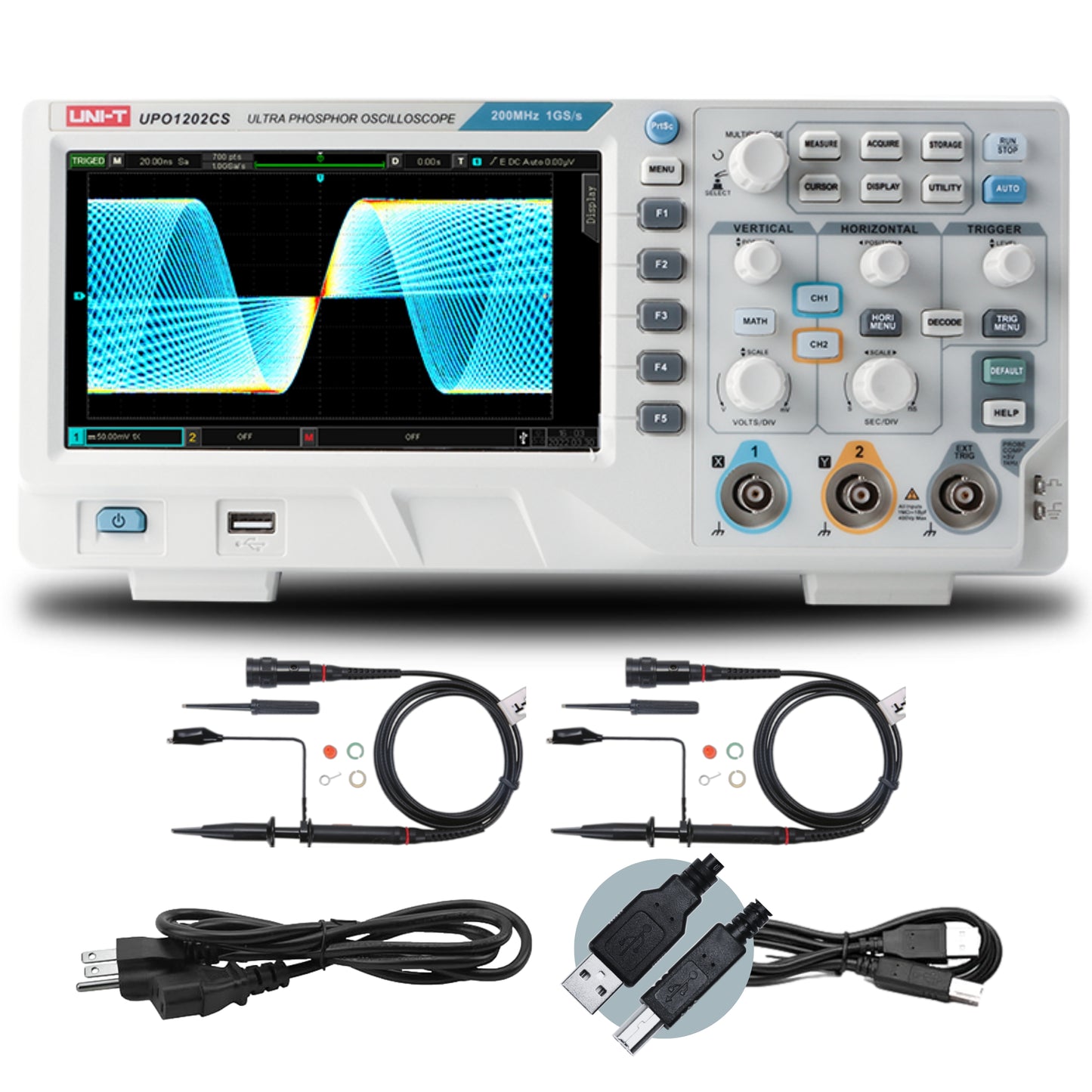

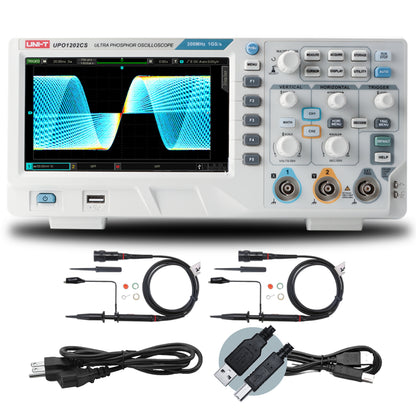

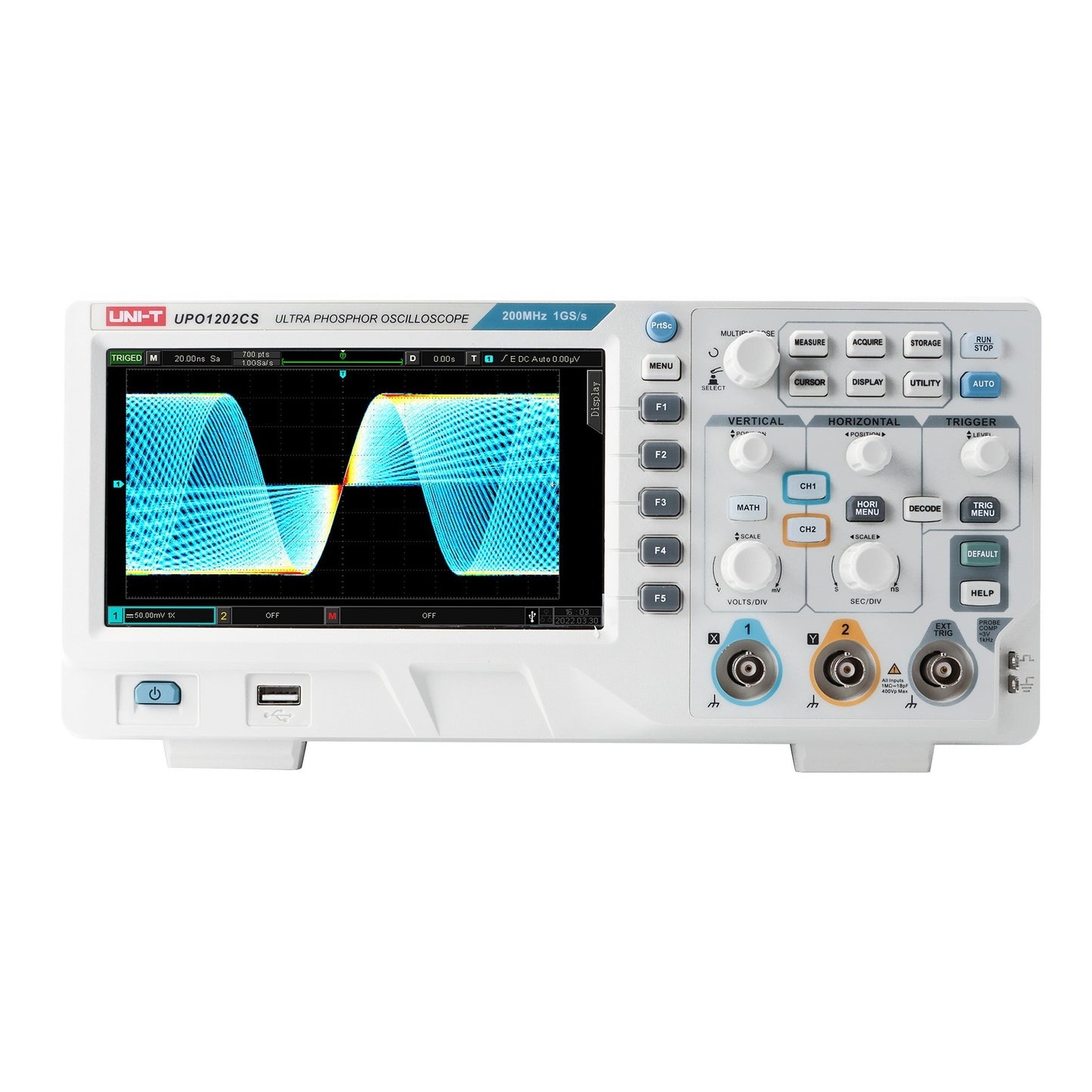

UPO1202CS | 200 MHz 2Ch Digital Storage Oscilloscope

UPO1202CS | 200 MHz 2Ch Digital Storage Oscilloscope

$339.00
$339.00 $339.00
Sale Sold out
Shipping calculated at checkout.

15 in stock

200 MHz 2-channel mixed signal oscilloscope with 1 GSa/s sample rate, 56 Mpts memory depth. Versatile nine-in-one platform for engineering, production, and field applications.

View full details

UPO1202CS | 200 MHz 2Ch Digital Storage Oscilloscope

Overview

The UPO1202CS is a 200 MHz 2-channel digital storage oscilloscope with 1.0 GSa/s sample rate, 56 Mpts memory depth, and a 500,000 wfms/s waveform capture rate. It features UNI-T's Ultra Phosphor 2.0 display technology for intensity-graded waveform visualization on a 7-inch capacitive touchscreen.

The oscilloscope provides 36 automated measurements with statistics, advanced triggering (edge, pulse width, slope, video, and pattern), FFT spectrum analysis, and web-based remote control via LAN. An independent DVM module provides a dedicated digital voltmeter readout alongside the oscilloscope display. Serial bus protocol decoding is available as optional software.

UPO1000 waveform capture
High-speed waveform capture with Ultra Phosphor 2.0
× UPO1000 waveform capture High-speed waveform capture with Ultra Phosphor 2.0

Key Features

  • 200 MHz Bandwidth, 2 Channels — Two-channel capture at up to 200 MHz.
  • 1.0 GSa/s Sample Rate — Captures fast edges and high-frequency content with accurate timing.
  • 56 Mpts Memory Depth — Deep memory for capturing long signal records without reducing sample rate.
  • 500,000 wfms/s Capture Rate — Ultra Phosphor 2.0 display technology reveals rare signal anomalies.
  • 36 Automated Measurements — Time, voltage, frequency, and statistical measurements.
  • FFT Spectrum Analysis — Frequency domain analysis for harmonics, EMI, and spectral characterization.
  • Independent DVM Module — Dedicated digital voltmeter readout alongside oscilloscope display.
  • Web Remote Control — Browser-based access from any device on the LAN.
  • 7-inch Capacitive Touchscreen — Pinch, zoom, and drag for efficient waveform navigation.

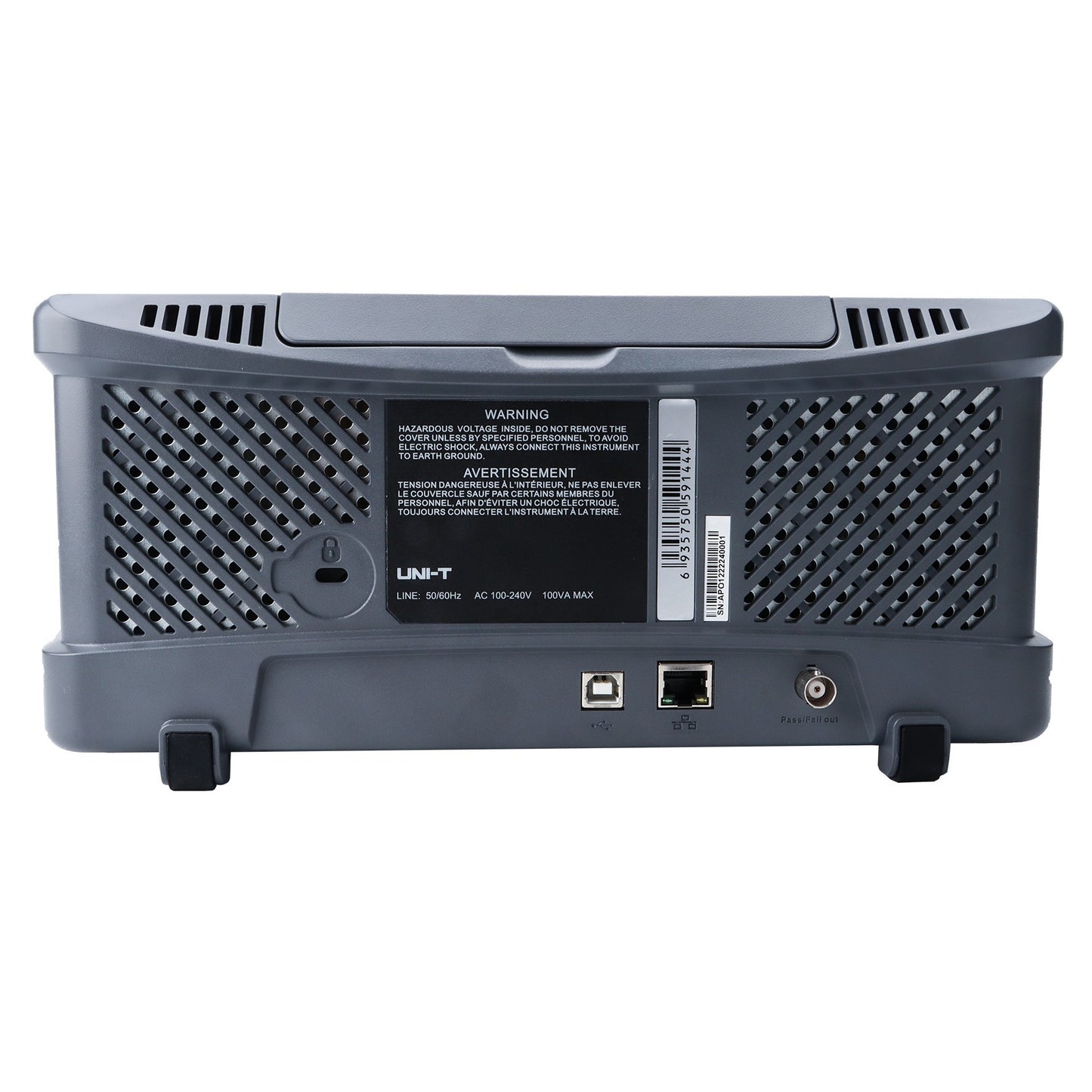

  • Connectivity — USB, LAN, VGA, EXT trigger, AUX output.

FFT Spectrum Analysis

The built-in FFT converts time-domain waveforms to the frequency domain, making it straightforward to identify harmonics, switching noise, clock spurs, and other spectral components. Useful for EMI troubleshooting, power supply characterization, and verifying signal purity.

UPO1000 FFT spectrum analysis
FFT analysis for frequency domain signal characterization
× UPO1000 FFT spectrum analysis FFT analysis for frequency domain signal characterization
UPO1000 web-based remote control
Web-based remote control from any browser on the LAN

Web-Based Remote Control

Connect the oscilloscope to your LAN and access the full interface from any web browser — no software installation required. View waveforms, adjust settings, capture screenshots, and transfer data remotely. Useful for rack-mounted test setups or shared lab instruments.

× UPO1000 web-based remote control Web-based remote control from any browser on the LAN

Optional Serial Bus Decoding

Protocol decoding for RS-232, UART, I²C, SPI, CAN, CAN-FD, LIN, and FlexRay is available as optional software licenses. Decoded bus traffic displays directly on the waveform trace, correlating protocol events with analog signal behavior for embedded systems debugging.

UPO1000 serial bus decoding
Optional serial bus decoding with waveform-correlated display
× UPO1000 serial bus decoding Optional serial bus decoding with waveform-correlated display

Professional Applications

  • Electronics Education — Intuitive touchscreen interface and automated measurements for teaching labs. Advanced features support upper-level coursework.
  • Embedded Systems Development — Debug firmware and hardware interactions with deep memory capture and optional serial bus decoding.
  • Power Supply Testing — Capture switching waveforms, measure ripple, and use FFT to characterize noise and harmonics.
  • Field Service — Portable enough for on-site troubleshooting with web remote control for team collaboration.

Frequently Asked Questions

Are serial bus protocol decodes included?

No. Protocol decoding is available as optional software licenses. See the UPO1000 series page for available options.

What is Ultra Phosphor 2.0?

Ultra Phosphor 2.0 is UNI-T's intensity-graded display technology. It shows waveform frequency of occurrence using color intensity — signals that appear more often are brighter, making it easier to distinguish normal signal behavior from rare anomalies.

Does the UPO1000 series support mixed-signal (digital channels)?

No. The UPO1000 series is analog-only. For mixed-signal capability with 16 digital channels, see the MSO/UPO2000 series.

Part of the UPO1000 oscilloscope series. All models share the same Ultra Phosphor 2.0 display engine and 56 Mpts memory depth. See the series comparison table to compare bandwidth, channel count, and sample rate options.

Warranty

This instrument is backed by UNI-T's 3+2 Year Warranty — 3 years of standard coverage, plus 2 additional years free when you register your product. That's 5 years of total protection at no extra cost.

The warranty covers manufacturing defects and component failures under normal use conditions. UNI-T instruments are built for professional daily use, and our warranty reflects that commitment to long-term reliability.
