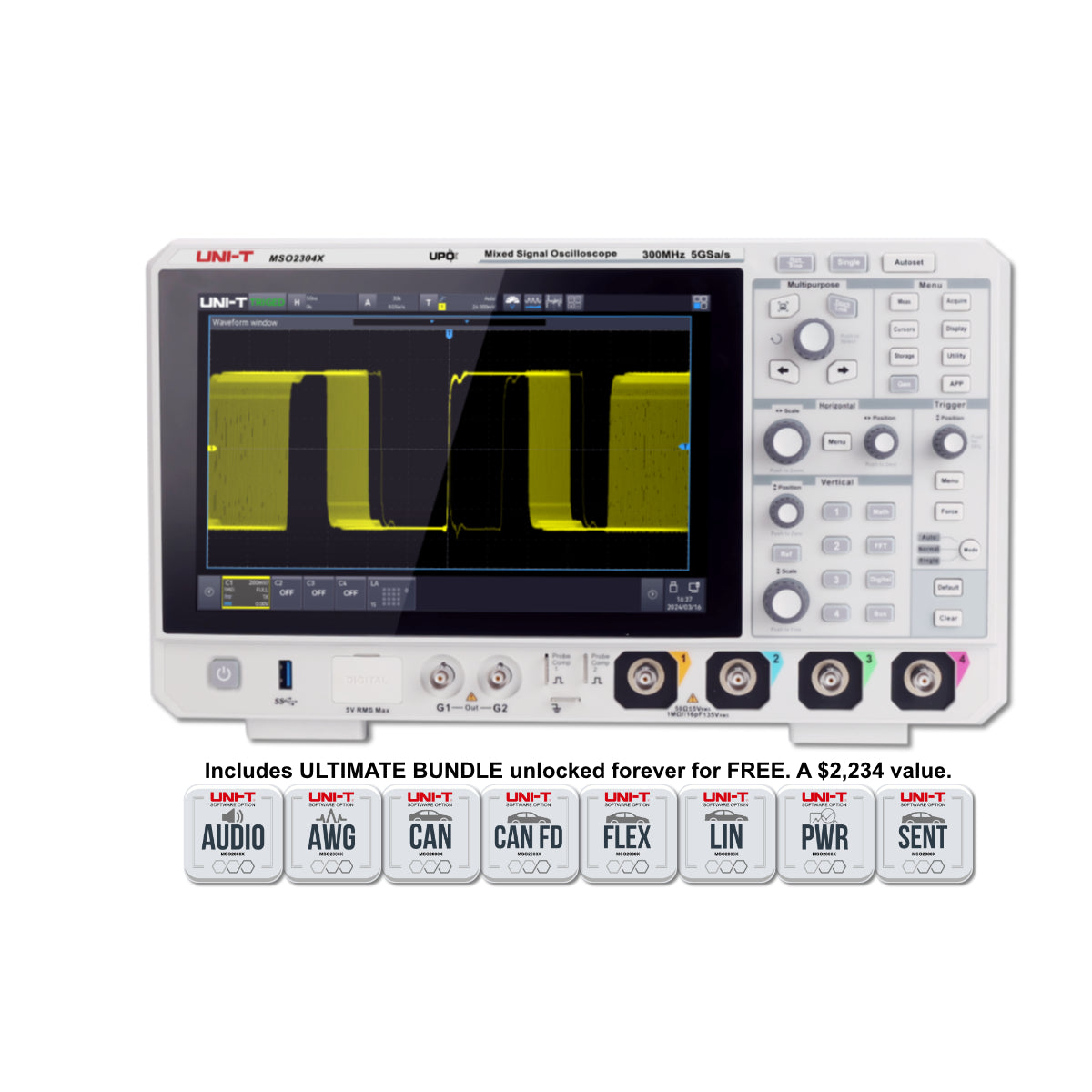

MSO2304X 300MHz 4Ch Mixed Signal Oscilloscope

MSO2304X 300MHz 4Ch Mixed Signal Oscilloscope
MSO2304X 300MHz 4Ch Mixed Signal Oscilloscope
Want to be alerted when the MSO2304X is available? Get on the waitlist with the link below. We'll let you know when it becomes available.
Thank you for your inquiry

Notify me when available

Name should not be empty
Your email address is not valid.
Your phone number is not valid.
Message content should not be empty.

Description

When you need to decode digital bus signals and analyze analog waveforms, the Uni-T MSO2304X is a great choice!

Top Specifications

300 MHz, 4+16 CH, 12-bit vertical resolution, MSO-ready, 5 GSa/s, Memory Depth: 100 Mpts, 500,000wfms/s, 10.1-in touch screen
Register for up to 15% EDU Discount
Want to be alerted when the MSO2304X is available? Get on the waitlist with the link below. We'll let you know when it becomes available.
Thank you for your inquiry

Notify me when available

Name should not be empty
Your email address is not valid.
Your phone number is not valid.
Message content should not be empty.

▪ Bandwidth: 300MHz (also available: MSO2204: 200MHz, and MSO2104: 100MHz)
▪ Vertical Resolution: 12-bit, 16-bit ERES
▪ 4 Analog Ch/16 Digital Ch, Logic Analyzer SW included (probes optional)
▪ Max Sample Rate: 5GSa/s per channel
▪ Memory Depth: 100Mpts per channel
▪ Max Capture Rate: 500,000 wfm/s per channel
▪ Arb Waveform Generator: Dual Channel 50MHz option
▪ 10.1-Inch UltraPhosphor3 Touchscreen Display
▪ 5-Year Warranty

Power Analyzer: (option) power quality, harmonics, switching loss, ripple wave, loop analysis, safety operation area
Spectrum Analyzer: up to 1GHz. Up to 4Mpts enhanced FFT, functions such as frequency setting, waterfall plot, detection setting, and marker are included
Bode Plot Analyzer: Option (also requires AWG option)
Bus Decode: Included: RS232/422/485/UART, I2C, SPI
Option: CAN, CAN-FD, FlexRay, LIN, SENT, MIL-STD-1553, ARINC429, Manchester, I2S/LJ/RJ/TDM (audio)
DVM/Frequency Counter: 7-bit
Measures up 54 measurement parameters
Mask limit testing
Web server (SCPI control, remote access wired and Wi-Fi)
