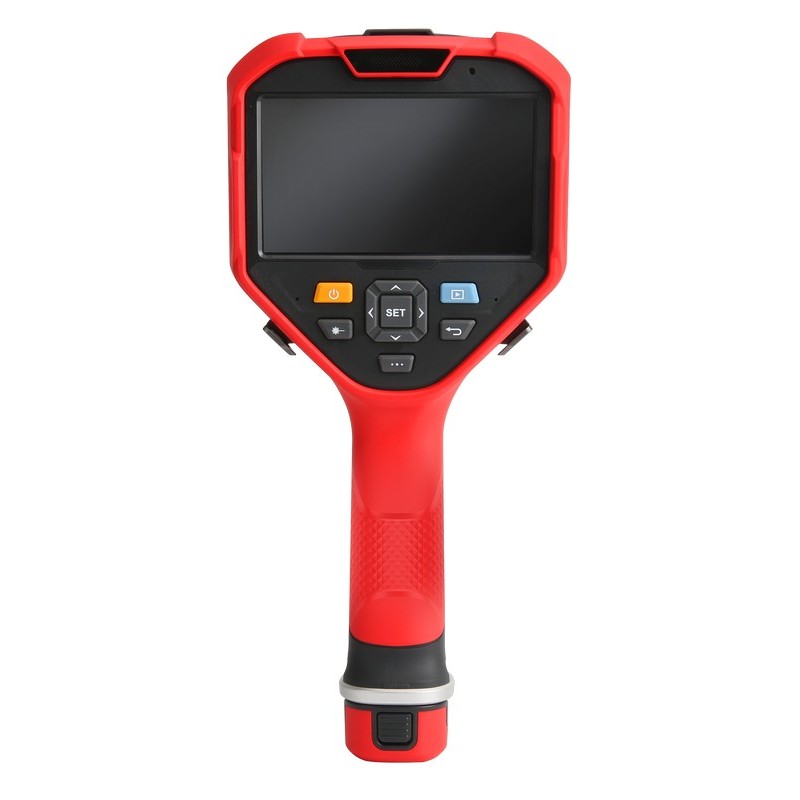

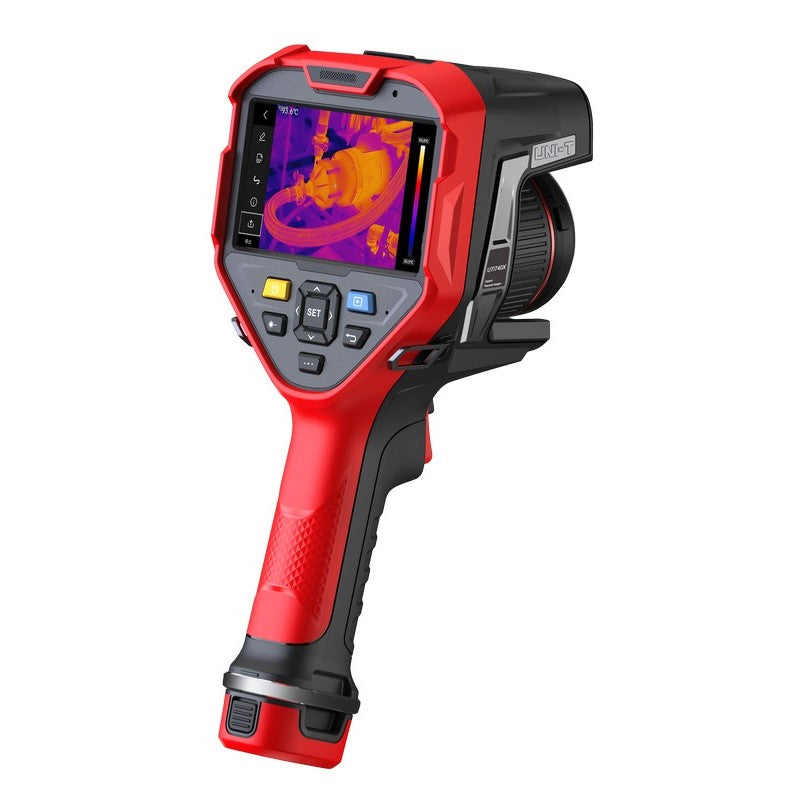

UTi740X 400 Inspector Series Thermal Imager

UNI-T UTi740X Expert Thermal Imaging Camera

Smart Interchangeable Lens Thermal Imaging with Automatic Calibration

The UNI-T UTi740X is an advanced expert-level thermal imaging camera featuring a smart 5-lens interchangeable system with automatic lens recognition and calibration, delivering exceptional versatility for diverse inspection scenarios. With its high-resolution 400×300 infrared detector, super resolution up to 800×600 pixels, and expansive 5-inch IPS touchscreen display, this feature-rich thermal camera provides outstanding image clarity and measurement precision. Engineered for professional thermographers, building inspectors, electrical maintenance specialists, HVAC technicians, and industrial maintenance teams, the UTi740X combines five interchangeable lenses—standard (UT-Z048), wide-angle (UT-Z049), telephoto (UT-Z050), ultra telephoto (UT-Z051), and macro (UT-Z053)—with intelligent AI-powered features, comprehensive connectivity, and a wide -20°C to 1200°C (-4°F to 2192°F) temperature measurement range to provide complete thermal inspection capabilities for virtually any application.

Key Features

• Smart 5-Lens Interchangeable System: Five precision lenses with automatic recognition and calibration covering every inspection scenario from macro to ultra telephoto
• 400×300 IR Detector with Super Resolution: High-resolution thermal imaging enhanced to 800×600 pixels for exceptional detail
• Large 5-inch IPS Touchscreen: Intuitive 1280×720 display for easy operation and detailed viewing in any lighting condition
• Thermal Sensitivity <35mK (NETD): Detects minute temperature differences for precise diagnostics
• Extended Temperature Range: Measures from -20°C to 1200°C (-4°F to 2192°F) across all standard lenses
• Advanced Autofocus System: Multiple focus modes including touch AF, continuous AF, contrast AF, laser-assisted AF, and manual focus with <2s focusing time
• AI-Powered Intelligence: Smart meter reading and AI voice commands for hands-free operation
• Comprehensive Connectivity: Bluetooth, Wi-Fi live streaming, HDMI display extension, and laser rangefinder (0.1-50m)
• Professional Image Modes: Thermal, visual, fusion, T-Mix, PIP, and dual-channel imaging with customizable color palettes
• 13MP Digital Camera: High-resolution visible light imaging for detailed reference photos and enhanced fusion modes
• Free Professional Software: Lifetime access to PC and mobile analysis software with no subscription fees
• Rugged Construction: IP54 rated with 2-meter (6.6 ft) drop protection for demanding field conditions
• Extended Operating Time: Two 5000mAh rechargeable detachable battery packs providing ≥5 hours of continuous operation each

Smart Interchangeable Lens System with Automatic Calibration

The UTi740X's smart interchangeable lens system eliminates the complexity traditionally associated with multi-lens thermal cameras. Each lens contains a built-in storage IC that records lens-specific temperature calibration data. When a lens is installed, the camera automatically recognizes it and reads the calibration data, completing the lens-adaptive calibration process without any manual intervention. This Pre-Cal Technology means there is no need to send the camera back to the factory for recalibration when changing lenses—simply swap the lens and start imaging with full measurement accuracy maintained automatically.

The five available lenses cover every professional inspection scenario. The 9.6mm standard lens (UT-Z048, included) with 27.7°×20.6° field of view and F1.0 aperture provides the ideal balance for general-purpose inspections. The 6mm wide-angle lens (UT-Z049) expands the field of view to 46°×34° for building envelope surveys and large equipment inspections. The 18mm telephoto lens (UT-Z050) narrows the field to 14.6°×10.9° for focused inspection of distant or elevated targets. The 36mm ultra telephoto lens (UT-Z051) provides an exceptionally tight 7.2°×5.5° field of view for long-range power line surveys and distant infrastructure inspections from safe ground positions. The 18mm macro lens (UT-Z053) enables ultra-close inspection for detailed electronic component analysis and precision diagnostics of small targets. For applications requiring extreme high-temperature measurement capability beyond 1200°C (2192°F), the UTi740XH model includes factory-calibrated high-temperature lens support measuring up to 2200°C (3992°F) for furnace inspections, metal processing, and specialized industrial processes.

Professional-Grade Imaging Performance

The UTi740X delivers exceptional thermal imaging performance through its high-resolution 400×300 infrared detector combined with advanced super resolution processing that enhances image quality to 800×600 pixels. With 12μm pixel size and 30Hz frame rate, it captures smooth, detailed thermal video for dynamic temperature monitoring and real-time analysis. The outstanding thermal sensitivity of less than 35mK (NETD) enables detection of subtle temperature variations critical for identifying developing issues before they become failures, making it invaluable for predictive maintenance programs and quality assurance applications.

The extensive spectral range of 7.5-14μm optimizes detection across diverse materials and surface conditions, while the comprehensive temperature measurement range from -20°C to 1200°C (-4°F to 2192°F) supports applications from HVAC systems to industrial processes. With measurement accuracy of ±1.0°C or ±1.0% for 0°C to 120°C (32°F to 248°F), and ±1.5°C or ±1.5% for higher temperature ranges (whichever is greater, at 25°C/77°F ambient), the UTi740X provides reliable measurements across its entire operating envelope. The sophisticated on-screen analyzer supports up to 16 measurement points, lines, rectangles, and circles with T-select capability, enabling comprehensive thermal mapping and detailed temperature profiling of complex systems.

Advanced AI-Powered Smart Features

The UTi740X integrates cutting-edge artificial intelligence to enhance inspection efficiency and usability. The smart meter reading function automatically recognizes and records readings from analog gauges and digital displays, streamlining documentation of utility meters, pressure gauges, and instrument panels during inspections. This AI capability eliminates transcription errors and accelerates survey completion in facilities with numerous measurement points.

Voice command functionality enables hands-free camera operation, allowing technicians to capture images, adjust settings, and control functions while maintaining secure positioning on ladders or in confined spaces. Combined with the intuitive touchscreen interface, level and span adjustment, and comprehensive annotation tools including text and voice input, the UTi740X provides a complete documentation solution for professional thermal inspections. The integrated 13MP digital camera captures high-resolution visual reference images, while the advanced T-Mix image fusion algorithm seamlessly blends thermal and visual data for enhanced context and improved thermal anomaly identification. T-Sharp image enhancement and T-Contrast technologies further improve image quality for clearer, more detailed thermal presentations.

Professional Applications

Building Inspection and Energy Auditing

Building inspectors and energy auditors leverage the UTi740X's versatile lens system for comprehensive building envelope analysis:

• Thermal bridging detection in walls, roofs, and foundations using wide-angle lens
• Air infiltration identification around windows, doors, and penetrations
• Insulation deficiency mapping across large building facades
• Moisture intrusion detection behind walls and ceilings
• HVAC system performance verification and duct leakage identification
• Detailed window seal and weatherstripping inspection using macro lens capabilities

Electrical System Maintenance

Electrical maintenance technicians depend on the UTi740X's precision for critical power system diagnostics:

• Switchgear and distribution panel thermal surveys using standard lens
• Transformer loading analysis and cooling system verification
• Circuit breaker contact resistance identification through thermal signatures
• Motor control center inspection for connection and termination issues
• Overhead power line surveys using ultra telephoto lens from safe distances
• Detailed connector and terminal inspection with macro lens capabilities

Industrial Process Monitoring

Process engineers and maintenance specialists utilize the UTi740X for critical industrial applications:

• Heat exchanger performance analysis and fouling detection
• Steam system trap testing and condensate management
• Process equipment temperature profiling for optimization
• Bearing temperature monitoring across rotating equipment
• Pipeline insulation effectiveness verification
• Boiler system diagnostics and efficiency optimization

HVAC and Refrigeration

HVAC technicians rely on the UTi740X's comprehensive capabilities for system diagnostics:

• Refrigeration system component temperature verification
• Compressor electrical connection inspection
• Evaporator and condenser coil performance analysis
• Ductwork insulation integrity assessment
• Air handler motor and bearing condition monitoring
• Control system electrical termination inspection

Mechanical Systems and Manufacturing

Manufacturing engineers and mechanical maintenance teams utilize the UTi740X for:

• Production equipment thermal profiling for quality control
• Motor and gearbox temperature monitoring for predictive maintenance
• Hydraulic system component inspection and leak detection
• Conveyor system bearing analysis across extended production lines
• Welding process temperature verification and quality assurance
• Press and forming equipment thermal characterization

Research and Development

Research scientists and development engineers leverage the UTi740X for advanced thermal analysis:

• Electronic component thermal design validation using macro lens
• Heat sink performance optimization and thermal interface evaluation
• PCB hotspot identification and thermal management verification
• Battery thermal behavior characterization during charge/discharge cycles
• Materials science thermal property research
• Product thermal testing and validation documentation

Technical Specifications

Package Contents

• UNI-T UTi740X Thermal Imaging Camera
• Standard Lens (UT-Z048)
• 2× Rechargeable Li-ion Battery Packs (UT-M25)
• Power Adapter with Adapter Plug (CN/EU/AU/UK/US)
• 2× Lens Caps
• Wrist Strap
• HDMI Cable
• Type-C to C Cable
• Type-C to A Cable
• 64GB Micro SD Card
• Cleaning Cloth
• Quick Start Guide
• Rugged Carrying Case (Tool Box)

Compatible Accessories (Sold Separately)

• UT-Z049: Wide-Angle Lens for UNI-T UTi740X Thermal Imager
• UT-Z050: Telephoto Lens for UNI-T UTi740X Thermal Imager
• UT-Z051: Ultra Telephoto Lens for UNI-T UTi740X Thermal Imager
• UT-Z053: Macro Lens for UNI-T UTi740X Thermal Imager

Product Comparison

Frequently Asked Questions

How does the smart lens system with automatic calibration work?

The UTi740X uses UNI-T's Pre-Cal Technology to make lens changes effortless and accurate. Each interchangeable lens contains a built-in storage IC chip that stores lens-specific temperature calibration data. When you attach a lens to the camera body, the UTi740X automatically recognizes the lens and reads the stored calibration data, completing the entire calibration process without any manual steps. This eliminates the traditional requirement of sending the camera back to the factory for recalibration after lens changes, saving significant time and cost while ensuring measurement accuracy is maintained every time you swap lenses. Simply align the dots on the lens and camera body, push the lens into position, and rotate clockwise until it locks—the camera handles everything else automatically.

What are the differences between the UTi740X and UTi740XH?

The UTi740X and UTi740XH share the same camera body, features, and standard lens compatibility. The key difference is that the UTi740XH includes factory-calibrated support for the high-temperature lens (UT-Z052), which extends the measurement range to 2200°C (3992°F) for extreme industrial applications such as furnace inspections, metal processing, and glass manufacturing. If your work involves processes exceeding 1200°C (2192°F), the UTi740XH provides the additional high-temperature capability. Both models support all five standard lenses (standard, wide-angle, telephoto, ultra telephoto, and macro) with the same automatic calibration system.

What advantages does the 400×300 resolution with super resolution provide?

The UTi740X's 400×300 infrared detector delivers 120,000 individual temperature measurement points in each thermal image, providing excellent detail for identifying thermal anomalies and temperature variations across a wide range of inspection scenarios. The advanced super resolution processing enhances image quality to 800×600 pixels, effectively quadrupling the apparent resolution for finer detail and more accurate temperature measurements. Combined with the 12μm pixel size and less than 35mK thermal sensitivity, this imaging capability enables professional thermographers to detect developing issues at early stages, perform accurate diagnostics, and generate high-quality reports. For applications requiring even higher native resolution, the UTi760X offers 640×512 pixels with super resolution up to 1280×1024.

How do the AI-powered features improve inspection efficiency?

The UTi740X's integrated artificial intelligence transforms thermal inspection workflow through automated data collection and hands-free operation. The smart meter reading function automatically recognizes and records readings from analog gauges, digital displays, and utility meters during facility surveys, eliminating manual transcription errors and significantly accelerating inspection completion in buildings with numerous measurement points. The voice command functionality enables complete hands-free camera operation, allowing technicians to capture images, adjust settings, and control camera functions while maintaining secure positioning on ladders, working in confined spaces, or when wearing protective gloves in industrial environments. Combined with voice and text annotation capabilities, these AI features streamline documentation, reduce inspection time, and enhance safety by minimizing the need to physically manipulate the camera in challenging work positions.

Why is the free professional software important for thermal imaging work?

Unlike competitors who charge ongoing subscription fees for analysis software, UNI-T provides comprehensive PC and mobile analysis software completely free forever with the UTi740X. This represents significant long-term cost savings, as professional thermal imaging software subscriptions from other manufacturers can cost hundreds or even thousands of dollars annually. The free UNI-T software provides full radiometric analysis capabilities, advanced reporting tools, temperature trend analysis, and comprehensive data export functions without any recurring costs. This ensures professional thermographers have lifetime access to the analytical tools they need without budget constraints limiting their capabilities. The software supports detailed post-inspection analysis, professional report generation with thermal images and measurement data, and collaborative sharing of inspection results—all at no additional cost beyond the initial camera investment.

How does the comprehensive connectivity enhance professional thermal inspection workflows?

The UTi740X's integrated Bluetooth, Wi-Fi, and HDMI connectivity transforms it from a standalone measurement device into a complete connected inspection system. Wi-Fi live streaming enables real-time thermal image sharing with remote experts for collaborative diagnostics, allowing experienced thermographers to guide field technicians through complex inspections or provide immediate analysis during critical equipment evaluations. HDMI display extension projects thermal images onto large monitors or projectors during client presentations, training sessions, or team inspections where multiple personnel need simultaneous viewing. Bluetooth connectivity pairs with mobile devices for wireless image transfer and the comprehensive free PC+APP analysis software enables advanced post-inspection analysis, detailed temperature profiling, trend analysis, and professional report generation. The integrated laser rangefinder (0.1-50m) provides accurate distance measurement for precise thermal calculations and documentation.

What is the warranty period for the UNI-T UTi740X?

UNI-T provides a 1-year warranty on the UTi740X, covering manufacturing defects and component failures under normal use conditions. This standard warranty ensures your investment in professional thermal imaging equipment is protected, giving you confidence in your purchase decision.

Support and Warranty

UNI-T stands behind the UTi740X with comprehensive technical support and a 1-year warranty. Our dedicated support team is available to assist with application questions, thermal imaging techniques, and warranty service.

Expert Thermal Imaging with Smart Interchangeable Lens Versatility

The UNI-T UTi740X Expert Thermal Imaging Camera delivers outstanding inspection versatility through its smart 5-lens interchangeable system with automatic recognition and calibration, combined with high-resolution 400×300 imaging, advanced AI-powered features, and comprehensive connectivity options. With professional-grade measurement accuracy across an extended temperature range from -20°C to 1200°C (-4°F to 2192°F), intuitive 5-inch touchscreen operation, free professional analysis software for life, and rugged IP54 construction, it provides complete thermal inspection capabilities for building diagnostics, electrical maintenance, industrial process monitoring, HVAC systems, mechanical equipment analysis, and research applications where precision and multi-lens flexibility are essential.

Order Your UNI-T UTi740X Today and Experience Smart Multi-Lens Thermal Imaging Excellence
