UTi260B 256 Heavy Duty Series Thermal Imager

$319.20
$399.00

26 items in stock

Description

Professional series high-resolution thermal camera with a rugged IP65 rating for those harsh environments

Top Specifications

256×192, -4°F-1022°F, 56°×42°, 25Hz, 2.8in TFT LCD, Thermal Sensitivity (NETD): 60mK, Adjustable Emissivity, LED Flashlight, IP65, Focus-Free, Wi-Fi
Register today for a 10% EDU Discount

Guarantee safe & secure checkout

trust2

OVERVIEW

SPECIFICATIONS

DOCUMENTATION

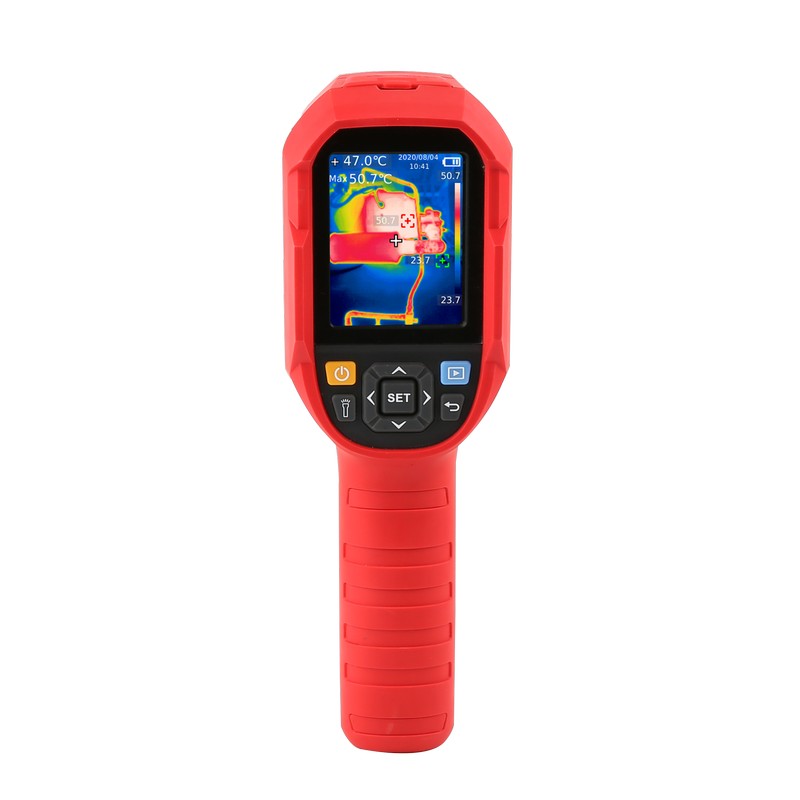

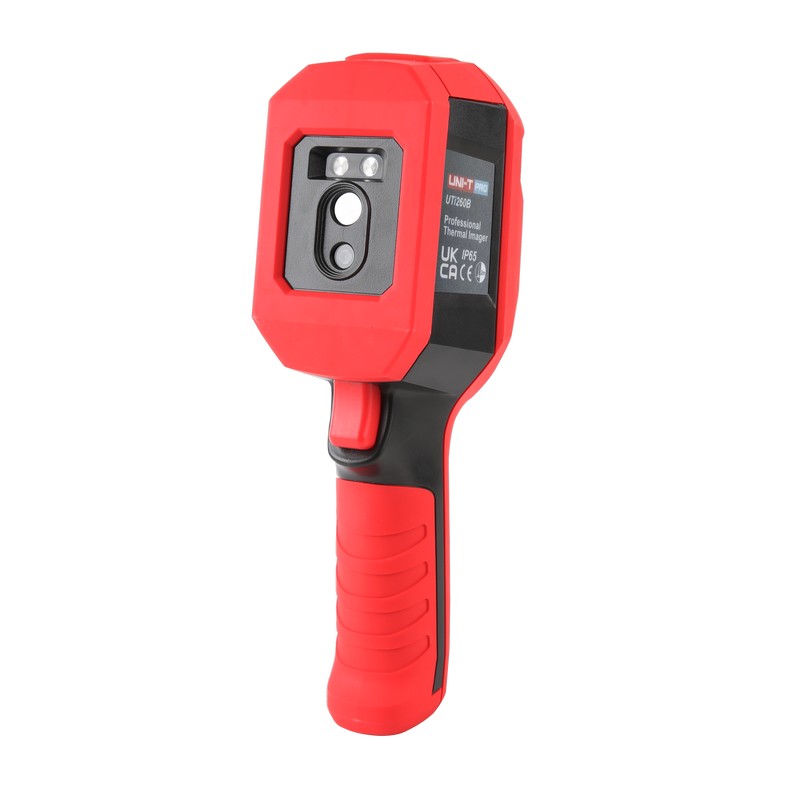

Heavy Duty Thermal Camera

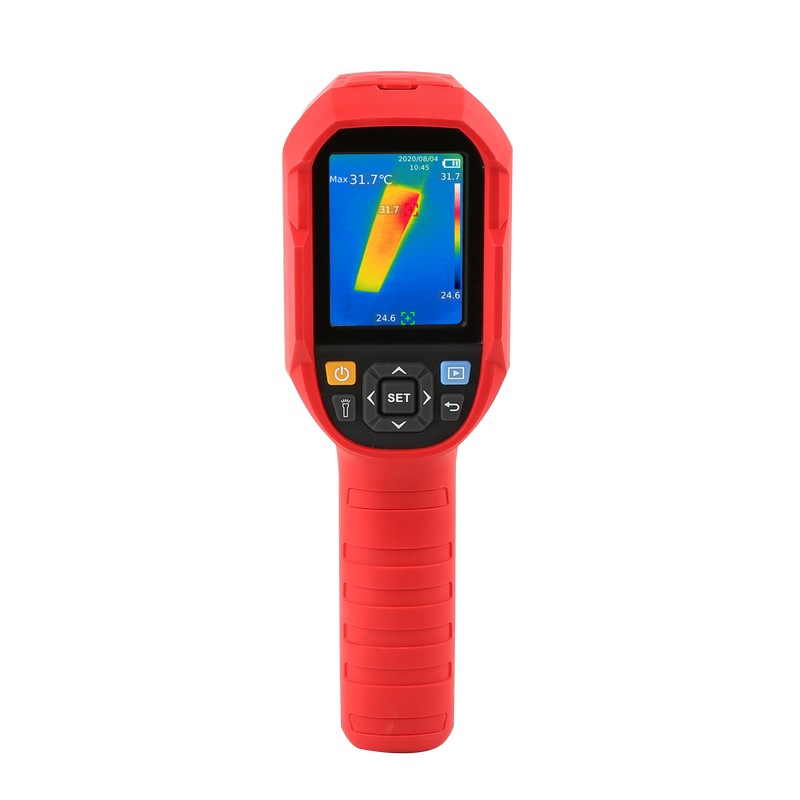

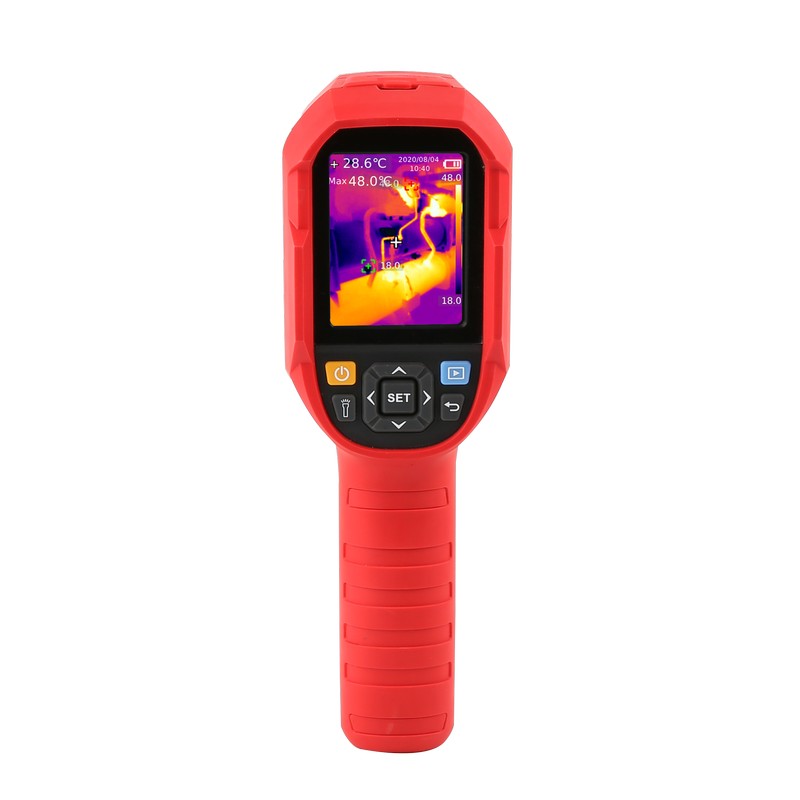

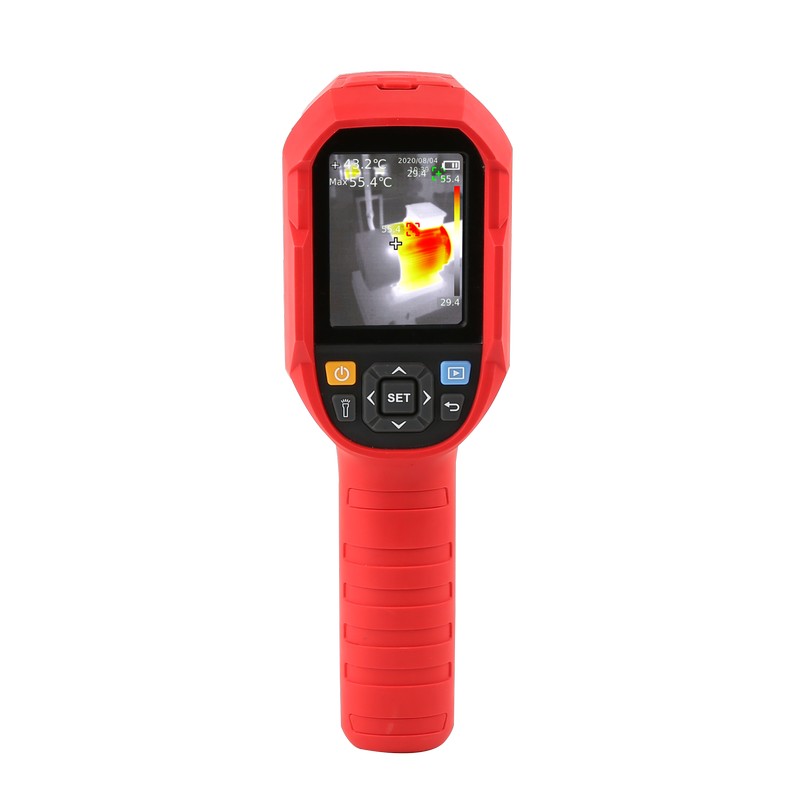

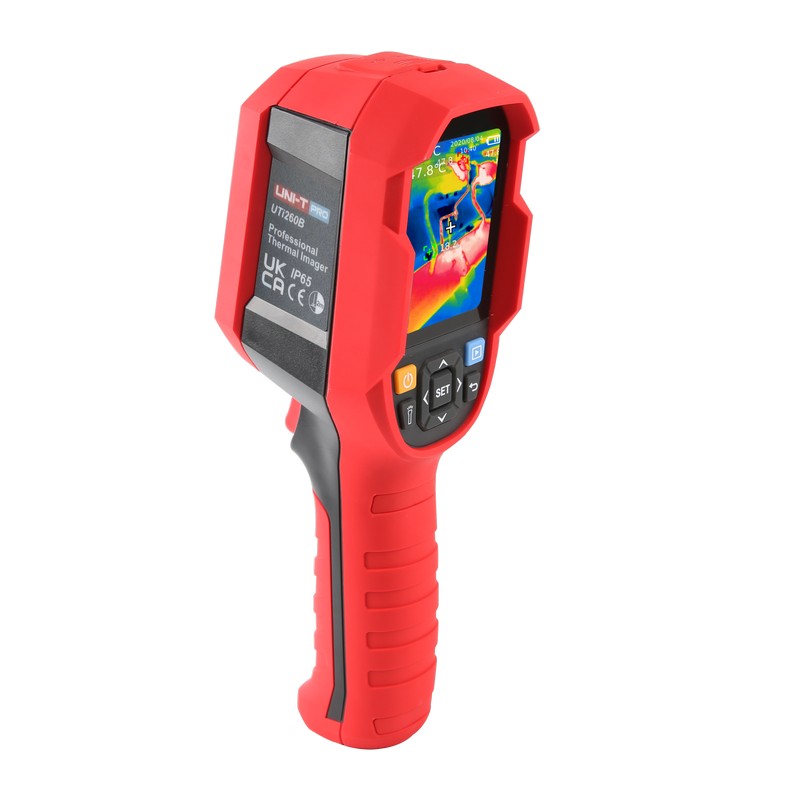

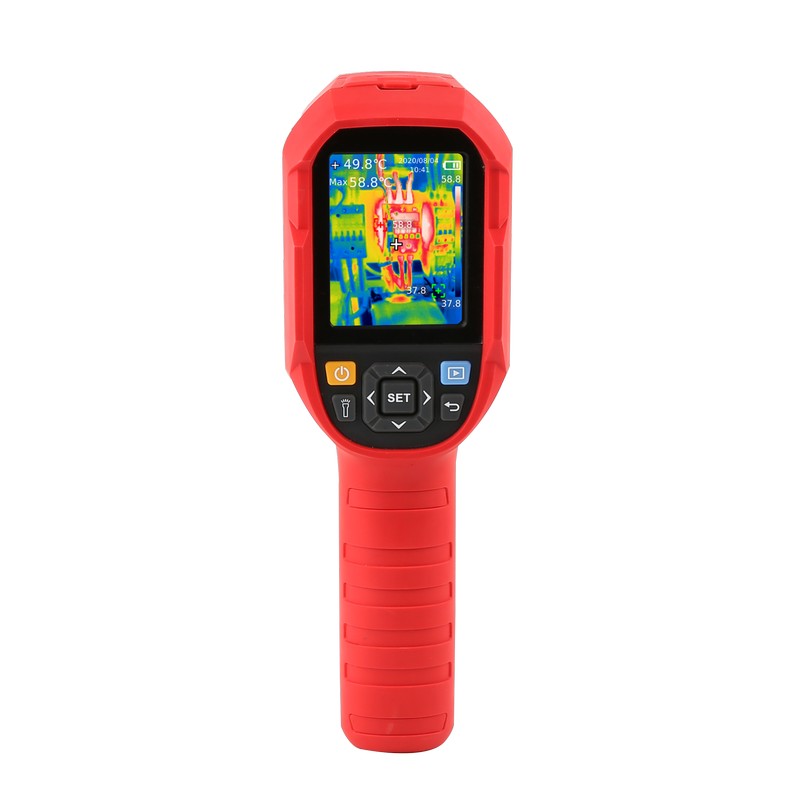

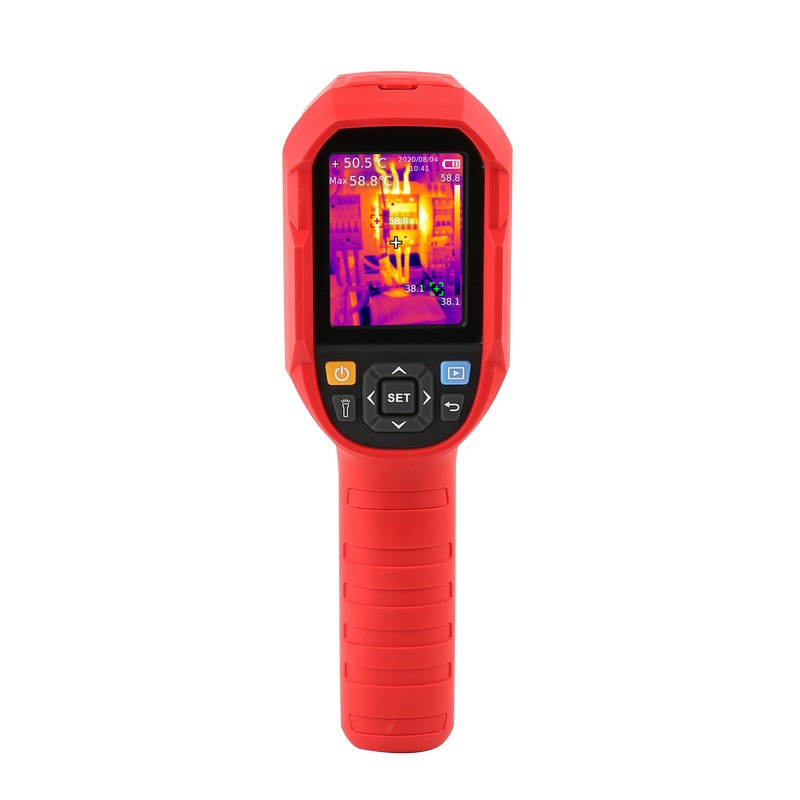

UTi260B is a featured product of UNI-T heavy duty series thermal cameras. It is cost effective and with a wide temperature range: -20℃–550℃. It has higher IR resolution: 256×192 pixels than other models, and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture in picture. It is also user friendly and rugged enough to pass IP65 and 2m drop test.

Features :

  • Durable and user-friendly
  • 2.8” TFT display screen (320×240 Pixels)
  • Frame Rate: 25Hz
  • IR resolution: 256×192
  • Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On screen analyzer: 3 Points
  • Image capture
  • Image modess: Thermal,Visual image,Fusion,PIP
  • Digital camera resolution: 640×480
  • Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)

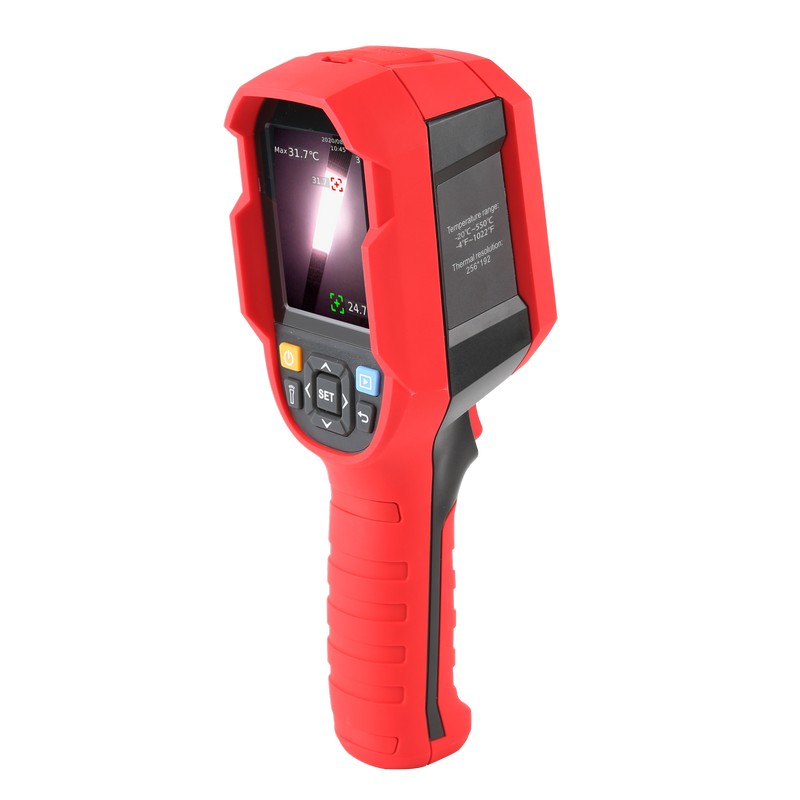

  • LED flashlight
  • PC software analysis and real-time image projection)
  • Rechargeable Li-ion battery

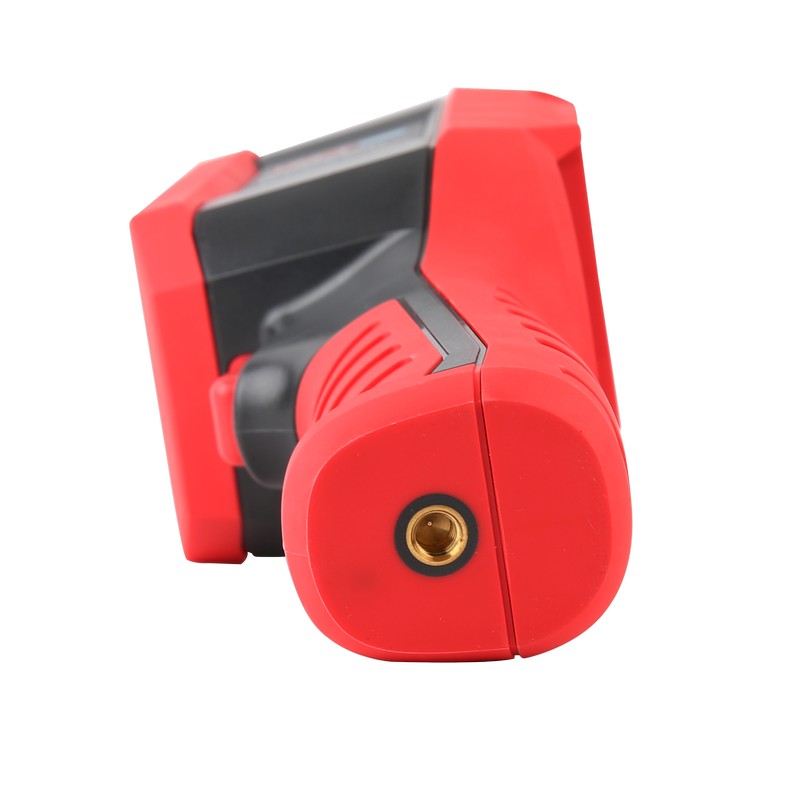

  • 1/4”Tripod Mounting Hole
  • IP65
  • 2m drop proof
FeatureSpecification
Model Number UTi260B
Resolution (px) 256px X 192px
FOV (Field of View) 56° x 42°
Max Temp (°F) 1022°F
Min Temp (°F) -4°F
Refresh 25Hz
NETD 60mK
Focus Focus Free
Warranty 1 year
Shipping Dimmensions (L x W x H) x x
Shipping Weight
DATA SHEET
USER MANUAL
PROGRAMMING MANUAL
Not Currently Available. Contact us with questions.
