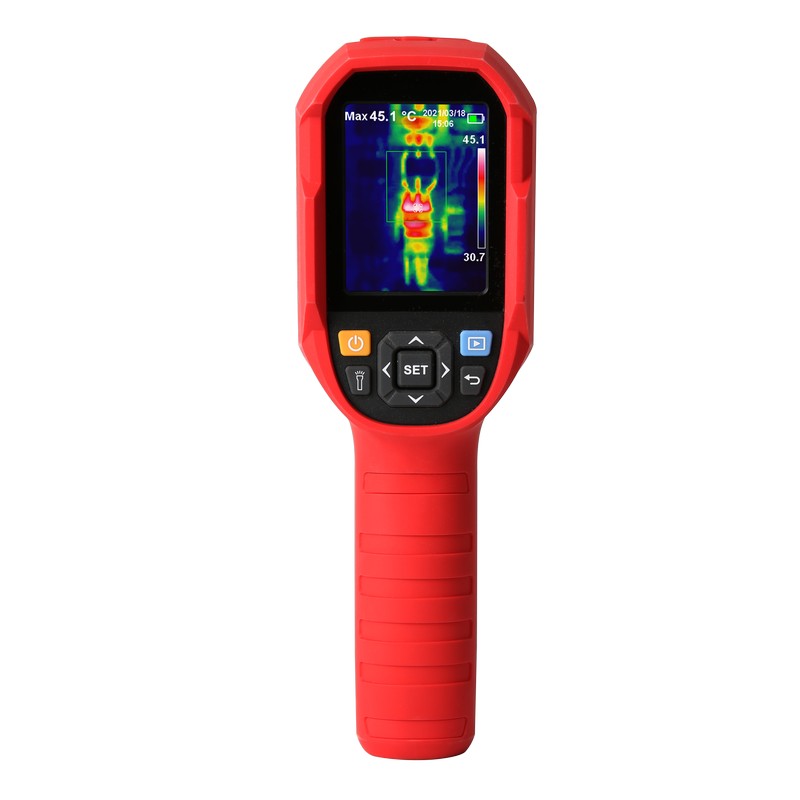

UTi120B 120 Heavy Duty Series Thermal Imager

$279.00
Save {price}%

26 items in stock

Description

A highly advanced thermal camera designed specifically for efficiently diagnosing and resolving issues in industrial applications.

Top Specifications

120x90, -4°F-752°F, 50°×38°, 25Hz, 2.8in TFT LCD, Thermal Sensitivity (NETD): 60mK, Adjustable Emissivity, LED Flashlight, IP65, Focus-Free, Wi-Fi
Register today for a 15% EDU Discount

Guarantee safe & secure checkout

trust2

OVERVIEW

SPECIFICATIONS

DOCUMENTATION

ACCESSORIES

UNI-T UTi120B Economical Thermal Imager | Heavy-Duty Industrial Diagnostics

The UNI-T UTi120B Economical Thermal Imager is a rugged, professional-grade thermal camera designed for comprehensive non-destructive testing across industrial, electrical, mechanical, and building diagnostic applications. Engineered with a UFPA detector and robust construction, this thermal imager delivers exceptional infrared resolution and versatility at an accessible price point for professionals who demand precision and reliability in challenging environments.

Professional Thermal Imaging Reimagined

Combining intuitive design with advanced thermal detection technology, the UTi120B transforms invisible temperature variations into clear, actionable insights. Its compact form factor and IP65 rating make it an indispensable tool for technicians, engineers, and inspectors who require immediate, accurate thermal analysis in the field.

Key Features

  • High-Performance UFPA Infrared Detector
  • 120x90 Pixel Infrared Resolution
  • 2.8" TFT LCD Display with 320x240 Pixel Clarity
  • Wide Temperature Measurement Range: -4°F to 752°F
  • Multiple Image Modes: Thermal, Visual Image, Fusion
  • IP65 Rated for Dust and Water Resistance
  • 2-Meter Drop-Proof Construction
  • Focus-Free Operation for Rapid Scanning
  • Rich Variety of Palette Modes
  • BMP Image Storage Format
  • Buzzer and Flashlight Alarm Functions
  • Real-Time Image Transmission Capabilities

Advanced Thermal Imaging Technology

The UTi120B leverages a sophisticated UFPA (Uncooled Focal Plane Array) detector that ensures excellent infrared resolution and a comprehensive range of palette modes. With a focus-free design, technicians can capture sharp thermal images instantly, eliminating the need for manual focusing and reducing inspection time.

Its exceptional thermal sensitivity allows detection of minute temperature variations, making it ideal for identifying potential issues before they escalate into critical failures. The 120x90 pixel resolution provides clear thermal visualization, enabling professionals to pinpoint temperature anomalies with confidence.

Professional Applications

Electrical Equipment Inspection

In electrical systems, the UTi120B excels at detecting potential failures before they occur. Its high sensitivity enables technicians to identify loose connections, overloaded circuits, and developing electrical issues that generate subtle heat signatures. By visualizing temperature variations in electrical panels, switchgear, and complex electrical infrastructure, professionals can implement preventative maintenance strategies that minimize downtime and prevent catastrophic failures.

Mechanical Maintenance

Mechanical systems benefit dramatically from the UTi120B's non-contact temperature monitoring. Bearings, motors, and complex machinery generate distinctive heat patterns that indicate wear, misalignment, or impending failure. The thermal imager provides a comprehensive view of equipment performance, allowing maintenance teams to schedule interventions precisely when needed, reducing unnecessary downtime and extending equipment lifecycle.

Building Diagnostics

Building inspectors and energy efficiency professionals rely on the UTi120B to non-invasively assess structural thermal performance. The camera reveals insulation gaps, moisture intrusion, and heat transfer anomalies that would remain invisible to the naked eye. By identifying these issues quickly and accurately, technicians can recommend targeted repairs that improve building energy efficiency and prevent potential structural damage.

HVAC System Analysis

Heating, ventilation, and air conditioning systems demand precise temperature monitoring. The UTi120B enables technicians to visualize airflow, detect blockages, identify refrigerant leaks, and assess heat exchanger performance with remarkable clarity. Its ability to capture thermal variations helps optimize system performance and diagnose complex HVAC challenges efficiently.

Technical Specifications

Parameter Specification
Infrared Resolution 120 x 90 pixels
Display 2.8" TFT LCD (320 × 240)
Thermal Sensitivity (NETD) <60mK
Temperature Range -4°F to 752°F
Field of View 50°x38°
Frame Rate 25Hz
Focus Focus Free
Image Modes Thermal, Visual Image, Fusion
Protection Rating IP65, 2-meter drop resistance
Battery Life Approximately 6 hours
Image Format BMP
Software Compatibility PC Software

Frequently Asked Questions

What makes the UTi120B unique in thermal imaging?

The UTi120B stands out through its rugged UFPA detector, IP65 rating, and focus-free design. It combines professional-grade thermal sensitivity with an incredibly user-friendly interface, making advanced thermal diagnostics accessible to technicians across various industries.

How accurate is the temperature measurement?

With a thermal sensitivity of <60mK and a temperature measurement range from -4°F to 752°F, the UTi120B provides highly precise thermal imaging. Its accuracy allows detection of minute temperature variations critical for comprehensive system diagnostics.

Can the UTi120B withstand harsh industrial environments?

Absolutely. The IP65 rating and 2-meter drop resistance ensure the UTi120B can operate reliably in challenging conditions. Its robust construction makes it ideal for industrial, construction, and field service applications where equipment durability is paramount.

Professional Insights

"The UTi120B has become an essential tool in our electrical maintenance workflow. Its ability to quickly identify potential issues in our industrial control systems has saved us countless hours of troubleshooting and prevented multiple potential equipment failures."

— Robert M., Industrial Maintenance Manager

"As an HVAC technician, I appreciate how lightweight and intuitive the UTi120B is. The focus-free operation means I can diagnose system issues faster, and the clear thermal imaging helps me explain problems to my clients more effectively."

— Elena K., HVAC Specialist

What's in the Box

  • UTi120B Thermal Imaging Camera
  • Protective Carrying Case
  • USB Charging Cable
  • Quick Start Guide
  • Calibration Certificate

Warranty and Support

The UNI-T UTi120B comes with a comprehensive 1-year warranty covering manufacturing defects and component failures under normal use conditions. Our dedicated technical support team stands ready to assist you with any questions or technical challenges.

UNI-T Thermal Camera Comparison

Feature UTi120B UTi712S UTi720A UTi260B
Resolution 120x90 120x90 256x192 256x192
Thermal Sensitivity (NETD) 60mK 60mK 50mK 60mK
Frame Rate 25Hz 25Hz 25Hz 25Hz
Field of View 50°x38° 50°x38° 56°x42° 56°x42°
Temperature Range -4°F to 752°F -4°F to 752°F -4°F to 752°F -4°F to 1022°F
Image Modes Thermal, Visual, Fusion Thermal Thermal, Visual, Fusion, PIP Thermal, Visual, Fusion, PIP
Image Format BMP BMP JPEG BMP
IP Rating IP65 IP54 IP65 IP65
Battery Life ~6 hours ~8 hours ~8 hours ~6 hours
FeatureSpecification
Model Number UTi120B
Resolution (px) 120px X 90px
FOV (Field of View) 50° x 38°
Max Temp (°F) 752°F
Min Temp (°F) -4°F
Refresh 25Hz
NETD 60mK
Focus Focus Free
Warranty 1 year
Shipping Dimmensions (L x W x H) x x
Shipping Weight
DATA SHEET
USER MANUAL
Not Currently Available. Contact us with questions.
PROGRAMMING MANUAL
Not Currently Available. Contact us with questions.
