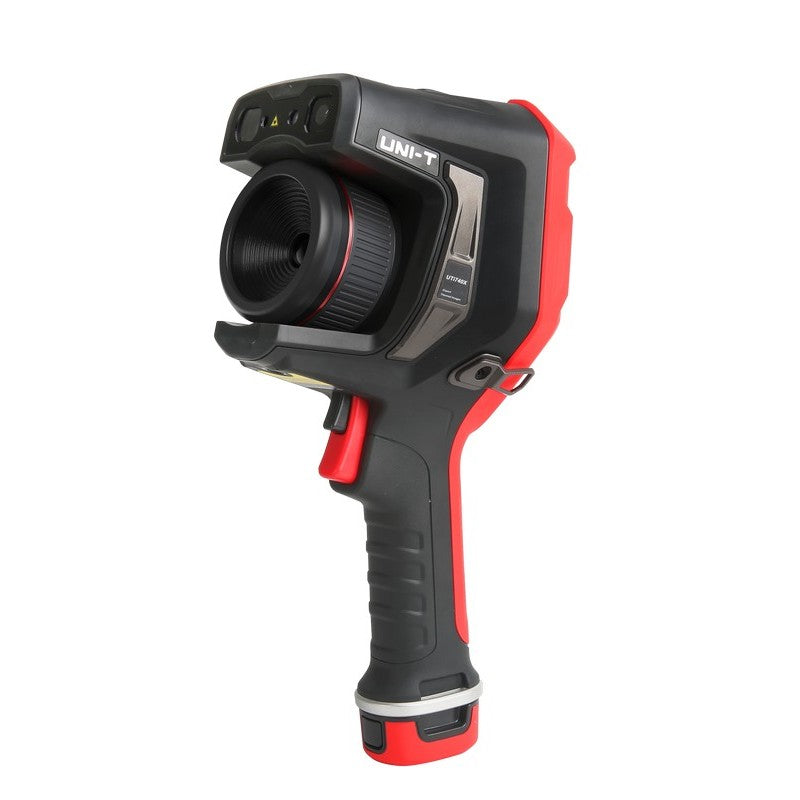

UTi740XH 400 Inspector Series High Temperature Thermal Imager

UNI-T UTi740XH High-Temperature Expert Thermal Imaging Camera

Factory-Calibrated High-Temperature Imaging with Smart Interchangeable Lens Versatility

The UNI-T UTi740XH is a specialized high-temperature thermal imaging camera engineered for extreme industrial process environments. Building on the proven UTi740X platform, the UTi740XH includes a factory-calibrated 18mm high-temperature lens (UT-Z052) as standard equipment, enabling accurate thermal measurement up to 2200°C (3992°F) for furnace inspections, metal processing, glass manufacturing, and other extreme-temperature industrial applications. With its high-resolution 400×300 infrared detector, super resolution up to 800×600 pixels, and comprehensive 6-lens smart interchangeable system (including all five standard lenses plus the specialized high-temperature lens with automatic recognition and calibration), this expert-level thermal camera delivers exceptional versatility for industrial thermographers, process engineers, and maintenance professionals working in steel mills, foundries, petrochemical facilities, power generation plants, and manufacturing operations where accurate high-temperature measurement is critical for process optimization, quality control, and equipment reliability.

Key Features

• Factory-Calibrated High-Temperature Lens: Included UT-Z052 lens measures up to 2200°C (3992°F) with ±1.5% accuracy for extreme industrial processes
• Complete 6-Lens Smart System: High-temperature lens plus all five standard lenses (standard, wide-angle, telephoto, ultra telephoto, macro) with automatic recognition and calibration
• 400×300 IR Detector with Super Resolution: High-resolution thermal imaging enhanced to 800×600 pixels for detailed process analysis
• Large 5-inch IPS Touchscreen: Intuitive 1280×720 display for detailed viewing in industrial environments
• Thermal Sensitivity <35mK (NETD): Detects minute temperature differences critical for process optimization
• Extended Measurement Range: From -20°C to 2200°C (-4°F to 3992°F) covering cryogenic to extreme high-temperature processes
• Advanced Autofocus System: Multiple focus modes including touch AF, continuous AF, contrast AF, laser-assisted AF, and manual focus
• AI-Powered Intelligence: Smart meter reading and AI voice commands for hands-free operation in industrial settings
• Comprehensive Connectivity: Bluetooth, Wi-Fi live streaming, HDMI display extension, and laser rangefinder for collaborative inspections
• 13MP Digital Camera: High-resolution visible light imaging for detailed reference photos and enhanced fusion modes
• Free Professional Software: Lifetime access to PC and mobile analysis software with no subscription fees—a significant competitive advantage
• Industrial Durability: IP54 rated with 2-meter (6.6 ft) drop protection for demanding industrial environments
• Extended Operating Time: Two 5000mAh rechargeable detachable battery packs providing ≥5 hours of continuous operation each

Factory-Calibrated High-Temperature Lens for Industrial Process Excellence

The UTi740XH's specialized high-temperature lens (UT-Z052) represents a critical capability for industrial thermographers working with extreme-temperature processes. Unlike standard thermal cameras limited to 1000°C-1200°C (1832°F-2192°F) maximum measurement, the UTi740XH extends thermal imaging capability to an extraordinary 2200°C (3992°F) through its factory-calibrated 18mm high-temperature lens. This calibration is performed at the UNI-T factory with additional high-temperature calibration points to ensure measurement accuracy of ±1.5% across the entire 1000°C to 2200°C (1832°F to 3992°F) range, providing reliable thermal data for critical process control and equipment monitoring applications.

The high-temperature lens features the same 18mm focal length as the standard telephoto lens, providing a 14.6°×10.9° field of view and 0.66mrad spatial resolution optimized for industrial process imaging at safe working distances. Like all lenses in the UTi740X system, the high-temperature lens uses UNI-T's Pre-Cal Technology with a built-in storage IC for automatic recognition and calibration—simply install the lens and the camera handles calibration automatically. Professional thermographers can swap between the high-temperature lens and any of the five standard lenses (standard UT-Z048, wide-angle UT-Z049, telephoto UT-Z050, ultra telephoto UT-Z051, and macro UT-Z053) as inspection requirements change, providing complete flexibility for comprehensive industrial facility surveys that include both extreme high-temperature processes and conventional equipment inspections.

Smart Interchangeable Lens System with Automatic Calibration

Beyond its high-temperature capability, the UTi740XH features the same smart interchangeable lens system as the UTi740X, with automatic lens recognition and calibration across all six lenses. Each lens contains a built-in storage IC that records lens-specific temperature calibration data. When any lens is installed, the camera automatically recognizes it and reads the stored calibration data, completing the entire calibration process without any manual intervention. This Pre-Cal Technology eliminates the traditional requirement of sending the camera back to the factory for recalibration after lens changes, saving significant time and cost while ensuring measurement accuracy is maintained every time you swap lenses.

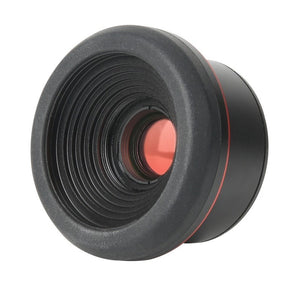

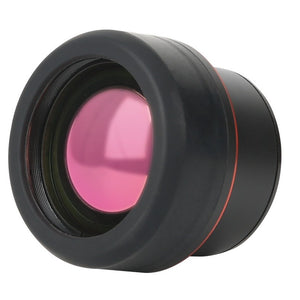

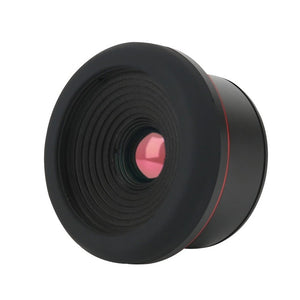

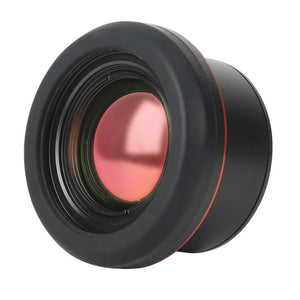

The complete six-lens system covers every industrial inspection scenario. The 9.6mm standard lens (UT-Z048) provides the ideal balance for general inspections with its 27.7°×20.6° field of view. The 6mm wide-angle lens (UT-Z049) expands coverage to 46°×34° for large equipment surveys. The 18mm telephoto lens (UT-Z050) offers focused 14.6°×10.9° imaging for mid-range targets. The 36mm ultra telephoto lens (UT-Z051) provides an exceptionally tight 7.2°×5.5° field of view for long-range surveys from safe distances. The 18mm macro lens (UT-Z053) enables detailed close-up inspection of small components. This comprehensive lens selection ensures the UTi740XH serves as a complete industrial thermal inspection solution for both extreme high-temperature processes and conventional equipment maintenance.

Professional Applications in North American Industry

Steel Mills and Metal Processing

Industrial thermographers in steel production and metal processing facilities leverage the UTi740XH for critical process monitoring:

• Electric arc furnace electrode and refractory monitoring during steel melting operations
• Ladle preheating verification and refractory condition assessment
• Continuous casting tundish temperature profiling for quality control
• Reheat furnace temperature uniformity verification and burner performance analysis
• Rolling mill temperature monitoring for metallurgical property control
• Induction heating system performance verification for forging operations
• Annealing furnace temperature distribution mapping
• Heat treatment process validation for critical aerospace and automotive components

Foundries and Casting Operations

Foundry engineers and quality managers depend on the UTi740XH for process optimization:

• Molten metal temperature verification before and during pouring operations
• Mold and die temperature monitoring for casting quality optimization
• Crucible and holding furnace condition monitoring
• Solidification front tracking during directional solidification processes
• Thermal profiling of investment casting shell molds
• Cupola furnace operation monitoring and optimization

Glass Manufacturing

Glass production facilities utilize the UTi740XH for precision process control:

• Furnace crown and sidewall temperature mapping for refractory monitoring
• Forehearth temperature profiling for glass conditioning optimization
• Gob temperature verification for forming process control
• Annealing lehr temperature uniformity verification across production width
• Regenerator performance monitoring and optimization
• Hot repair assessment and planning for furnace maintenance

Power Generation and Petrochemical

Power plant and petrochemical facility thermographers leverage the UTi740XH for:

• Boiler tube temperature monitoring and refractory assessment
• Superheater and reheater tube temperature profiling
• Flare system thermal monitoring and compliance documentation
• Catalytic cracker temperature profiling and process optimization
• Kiln and rotary dryer temperature monitoring
• Reformer tube temperature measurement for hydrogen production

Cement and Ceramics Production

Cement and ceramics manufacturers rely on the UTi740XH for process monitoring:

• Rotary kiln shell temperature monitoring for refractory condition assessment
• Clinker cooler performance analysis and optimization
• Preheater cyclone temperature monitoring
• Ceramic tunnel kiln temperature profiling for product quality
• Calciner operation monitoring and temperature verification
• Refractory hot-spot identification for maintenance planning

General Industrial Maintenance

With its complete standard lens kit, the UTi740XH also serves as a comprehensive general-purpose thermal camera for:

• Electrical system surveys using standard and wide-angle lenses
• Mechanical equipment predictive maintenance with appropriate lens selection
• Building envelope assessments during facility audits
• HVAC system diagnostics and performance verification
• Electronic component analysis using the macro lens
• Long-range overhead equipment surveys using the ultra telephoto lens

Frequently Asked Questions

Warranty

This product includes a standard 1-year warranty covering manufacturing defects and component failures under normal use conditions.

UNI-T stands behind every product we sell. If you experience any issues within the warranty period, our US-based support team is here to help with troubleshooting, repair, or replacement.
