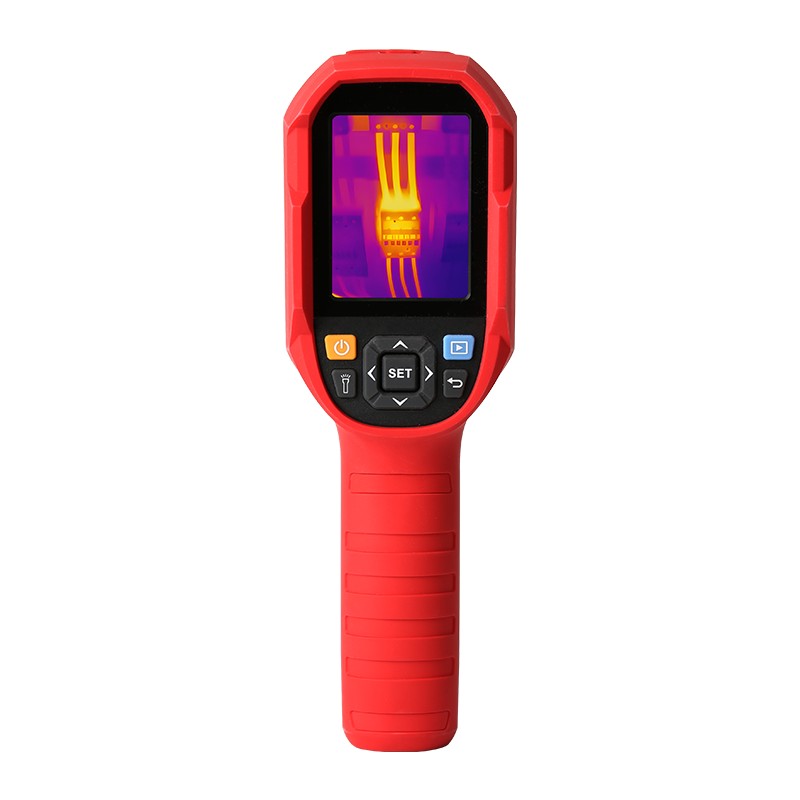

UTi716B Professional Thermal Imaging Camera with Fusion

UNI-T UTi716B Heavy-duty Thermal Camera

Professional Thermal Imaging with Enhanced Durability and Intelligent Features

The UNI-T UTi716B is a professional-grade thermal imaging camera featuring 160×120 IR resolution with Super Resolution technology that enhances image quality to 320×240 pixels. Engineered for demanding applications, its IP65 rating and verified 2-meter drop resistance provide exceptional durability in harsh environments. With advanced features including T-Mix 2.0 image fusion algorithm, Wi-Fi connectivity, and a measurement range of -20°C to 550°C, this rugged thermal camera delivers reliable performance for HVAC technicians, electrical maintenance professionals, building inspectors, and industrial maintenance personnel working in challenging conditions.

Key Features

• Super Resolution Technology: Enhances standard 160×120 IR resolution to 320×240 pixels for superior image quality and detail
• T-Mix 2.0 Image Fusion: Advanced algorithm combines visual and thermal images for enhanced problem identification
• IP65 Environmental Protection: Dust-tight and water-resistant design for harsh industrial environments
• 2-Meter Drop Protection: Exceptional durability for field conditions
• Wide Temperature Measurement Range: Measures from -20°C to 550°C with ±2°C or 2% accuracy
• Wi-Fi Connectivity: Transfer data wirelessly and enable live streaming to mobile devices
• Video Recording: Document thermal inspections with built-in video capabilities
• Multiple Image Modes: Thermal, Visual, T-Mix fusion, and Picture-in-Picture (PIP) for comprehensive analysis
• 5000mAh Rechargeable Battery: Provides 8+ hours of continuous operation
• 32GB Built-in Storage: Ample space for thousands of thermal images and videos

Advanced Thermal Imaging Capabilities

The UTi716B delivers professional thermal imaging performance with its 160×120 IR resolution that can be enhanced to 320×240 pixels using Super Resolution technology. This 4x increase in quality provides sharper thermal images with greater detail, allowing technicians to identify smaller thermal anomalies and make more accurate diagnoses. With a thermal sensitivity of ≤50mK, the camera can detect minute temperature differences critical for identifying developing issues before they become serious problems.

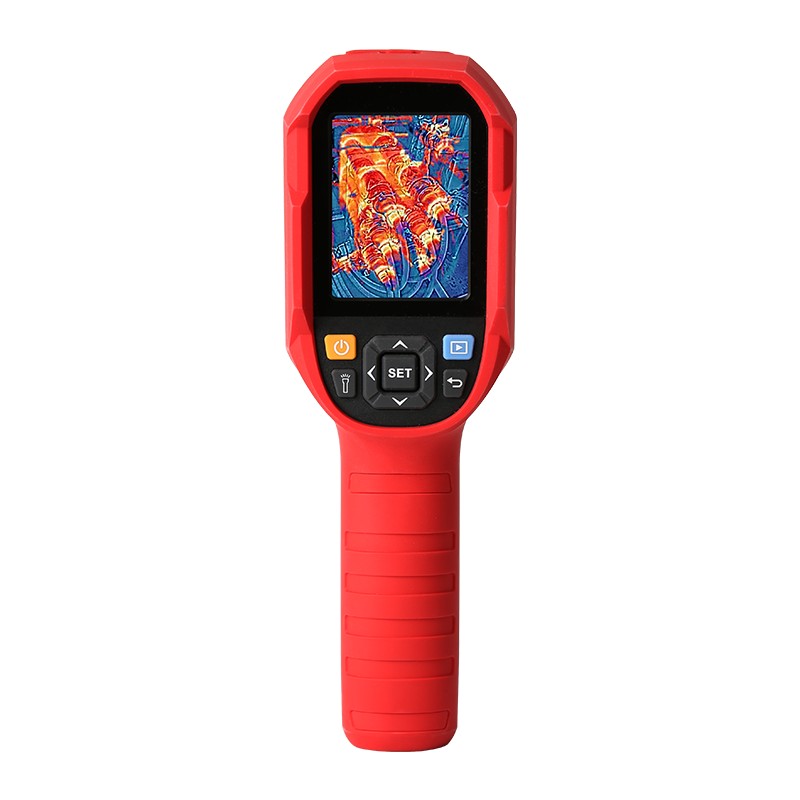

The innovative T-Mix 2.0 image fusion algorithm combines visual and thermal images to create enhanced composite views that highlight thermal patterns while maintaining visual references. This intelligent blending helps technicians quickly understand the context of thermal findings and improves documentation quality. Combined with the multiple imaging modes (Thermal, Visual, T-Mix fusion, and Picture-in-Picture), the UTi716B offers exceptional versatility for different inspection scenarios and reporting requirements.

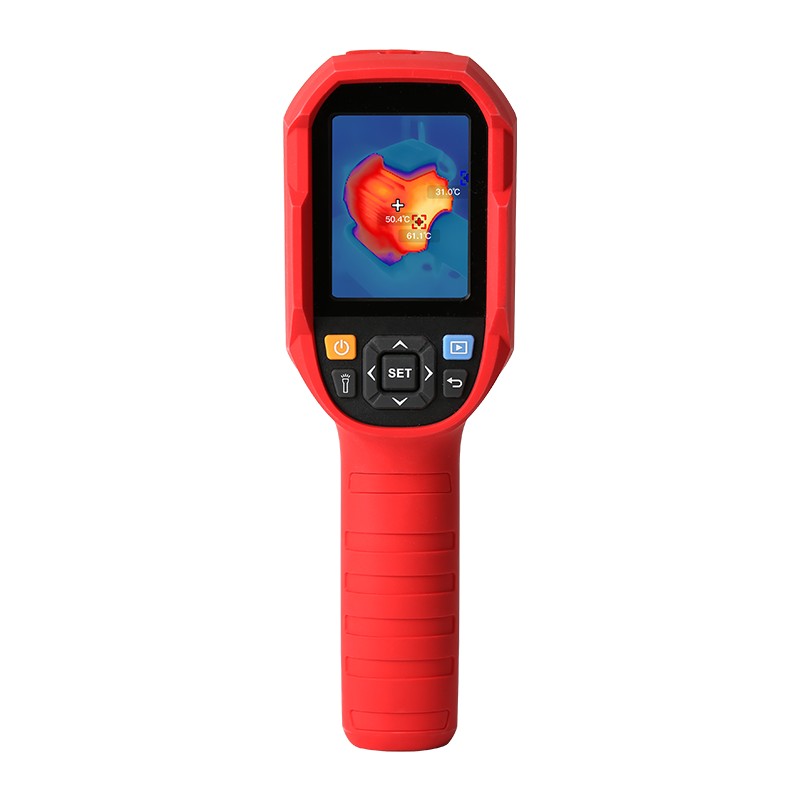

Comprehensive Measurement and Analysis Capabilities

The UTi716B provides powerful on-device analysis tools to deliver actionable insights during field inspections. Its advanced features include:

• Wide temperature range from -20°C to 550°C for diverse applications
• ±2°C or ±2% accuracy for reliable measurements
• 5 measurement points and 3 measurement rectangles for detailed thermal analysis
• High/low temperature alarms for automated anomaly detection
• High/low temperature tracking to identify critical hotspots and cold areas
• 7 color palettes for optimal visualization of different thermal scenarios
• Focus-free operation for quick and easy temperature measurements
• 40° × 30° field of view suitable for most inspection applications

These comprehensive measurement capabilities make the UTi716B an effective diagnostic tool for identifying overheating electrical connections, mechanical wear, building envelope issues, HVAC inefficiencies, and other thermal-related problems across multiple industries and applications.

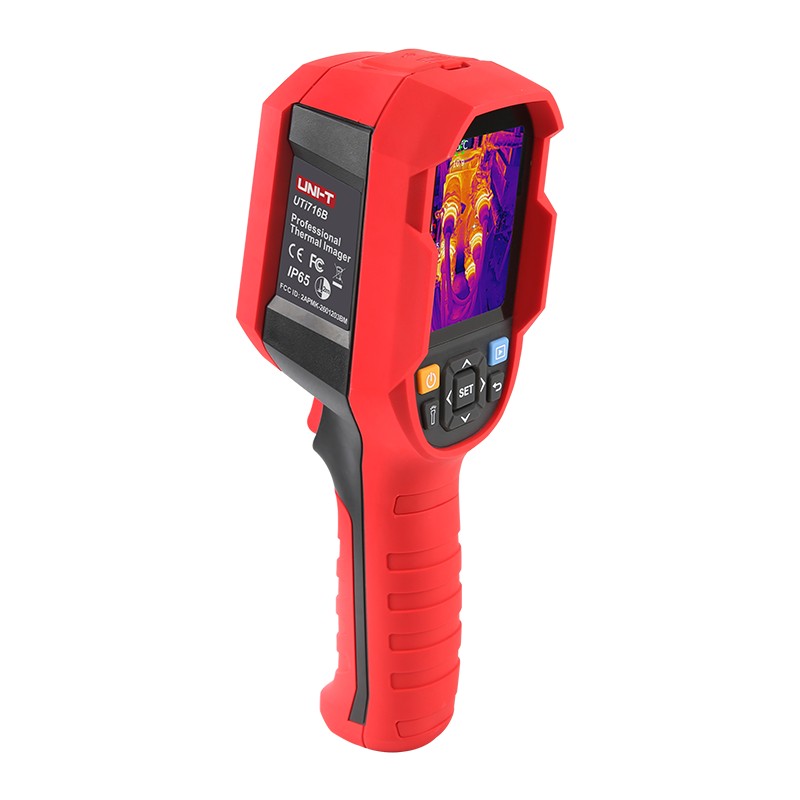

Durable Design for Industrial Environments

The UNI-T UTi716B is engineered for reliability in demanding work environments with features specifically designed for field use:

• IP65 rated for complete protection against dust and water jets from any direction
• Verified 2-meter drop resistance for exceptional mechanical shock protection
• Ergonomic, rugged housing for secure grip in all conditions

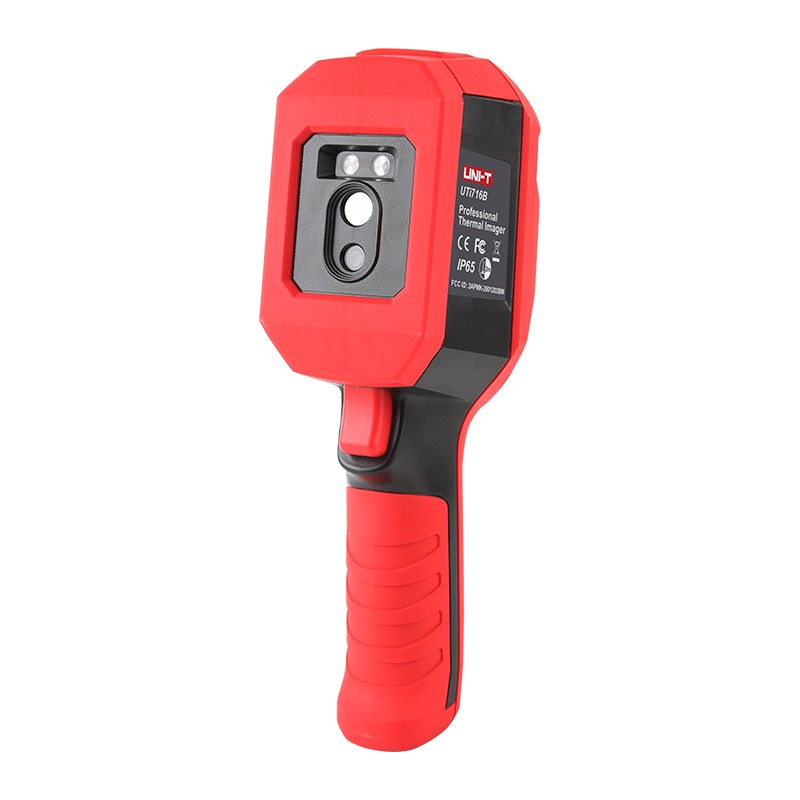

• Integrated LED lighting for illuminating dark inspection areas
• Large 2.8" TFT display (320×240) for clear viewing of thermal images
• Compact dimensions (236mm × 75.5mm × 86mm) for easy handling and transport
• 5000mAh rechargeable Li-ion battery for extended 8+ hour operation

These durability features ensure the camera performs reliably in challenging environments including industrial facilities, construction sites, outdoor inspections, and other locations where standard instruments might be damaged.

Smart Connectivity and Documentation

The integrated Wi-Fi connectivity pairs with UNI-T's mobile application, allowing technicians to:

• Transfer thermal images and videos wirelessly to mobile devices
• Stream live thermal imagery to smartphones or tablets
• Create comprehensive inspection reports in the field
• Share findings immediately with team members or clients
• Store and organize thermal imaging data
• Access thermal images remotely for collaborative analysis

The UTi716B also features built-in video recording capabilities that allow users to document dynamic thermal situations. The 32GB built-in storage provides ample space for thousands of thermal images and videos, while the Type-C USB connection enables fast data transfer to computers for analysis using the included PC software.

Professional Applications

Electrical Maintenance

Electrical professionals rely on the UTi716B's precision and durability for:

• Identifying overheating electrical connections and components
• Inspecting distribution panels and circuit breakers
• Locating overloaded circuits and imbalanced loads
• Detecting failing transformers and electrical equipment
• Preventive maintenance of critical electrical infrastructure

HVAC Systems

HVAC technicians utilize the UTi716B's thermal imaging capabilities for:

• Evaluating heating and cooling system performance
• Detecting refrigerant leaks and airflow issues
• Identifying ductwork leaks and insulation failures
• Diagnosing compressor and motor problems
• Verifying proper operation of underfloor heating systems

Building Inspection

Building professionals depend on the UTi716B for:

• Detecting moisture intrusion and water damage
• Identifying missing or damaged insulation
• Locating air leaks and thermal bridges
• Evaluating radiant floor heating systems
• Assessing window and door efficiency

Mechanical Systems

Maintenance technicians use the UTi716B to diagnose mechanical issues through:

• Identifying bearing failures and mechanical wear
• Detecting misalignments in rotating equipment
• Monitoring motor and drive system temperatures
• Evaluating heat exchangers and cooling systems
• Preventive maintenance of industrial machinery

Technical Specifications

Package Contents

• UNI-T UTi716B Heavy-duty Thermal Camera
• Type-C USB Cable
• 5000mAh Li-ion Battery (pre-installed)
• Quick Start Guide
• Download Information for Operation Guide

Product Comparison

Frequently Asked Questions

How does Super Resolution enhance thermal image quality?

Super Resolution is an advanced technology that enhances the standard 160×120 IR resolution to 320×240 pixels, effectively quadrupling the pixel count. This enhancement works through sophisticated algorithms that analyze multiple frames and integrate additional data points, resulting in sharper, more detailed thermal images. The improved resolution allows technicians to identify smaller thermal anomalies and make more precise diagnoses, particularly when inspecting complex systems or when thermal issues might be subtle or developing. This capability effectively provides higher-end thermal imaging quality in a more accessible device.

What is T-Mix 2.0 image fusion and how does it improve inspections?

T-Mix 2.0 is UNI-T's advanced image fusion algorithm that intelligently blends visual and thermal images to create enhanced composite views. Unlike simple overlay methods, T-Mix 2.0 selectively combines the most relevant aspects of each image type, highlighting thermal patterns while maintaining visual reference points. This fusion makes thermal anomalies easier to identify and understand in context, improving inspection efficiency and documentation quality. For maintenance professionals, this means faster problem identification, more accurate diagnoses, and clearer reporting that can be easily understood by clients or team members who may not be thermal imaging specialists.

Why is the IP65 rating important for a thermal camera?

The IP65 rating indicates that the UTi716B is completely protected against dust ingress (the "6") and protected against water jets from any direction (the "5"). This level of environmental protection is crucial for thermal cameras used in industrial settings, construction sites, outdoor inspections, and other harsh environments where exposure to dust, dirt, and moisture is common. The protective rating ensures that the camera will continue to function reliably even when used in challenging conditions, protecting your investment and ensuring that critical inspections can be completed regardless of environmental factors.

How does Wi-Fi connectivity enhance the capabilities of the UTi716B?

The UTi716B's Wi-Fi connectivity transforms it from a standalone inspection tool into a connected diagnostic system. This wireless capability enables real-time streaming of thermal imagery to smartphones or tablets, allowing technicians to view and control the camera remotely, which is particularly valuable when inspecting hard-to-reach areas. The Wi-Fi connection also facilitates immediate data transfer to mobile devices for quick analysis, report generation, and sharing of findings with team members or clients while still in the field. Additionally, the connectivity supports seamless integration with UNI-T's mobile application, which provides advanced analysis tools, reporting templates, and data organization features that enhance workflow efficiency and documentation quality.

What advantages does the built-in video recording provide?

The built-in video recording capability allows technicians to document dynamic thermal situations where static images alone might not tell the complete story. This is particularly valuable when monitoring equipment during startup or shutdown sequences, observing thermal patterns that change over time, or documenting intermittent issues. Video recordings provide more comprehensive evidence for maintenance records, customer reports, and training purposes. The UTi716B stores these videos in standard MP4 format on its 32GB internal memory, making them easily accessible and compatible with common video playback software, while the Type-C USB connection enables fast transfer to computers for further analysis or archiving.

What is the warranty period for the UNI-T UTi716B?

UNI-T provides a 1-year warranty on the UTi716B, covering manufacturing defects and component failures under normal use conditions. This standard warranty ensures your investment in professional thermal imaging equipment is protected, giving you confidence in your purchase decision.

Support and Warranty

UNI-T stands behind the UTi716B with comprehensive technical support and a 1-year warranty. Our dedicated support team is available to assist with application questions, measurement techniques, and warranty service.

Professional Thermal Imaging for Maintenance and Inspection Professionals

The UNI-T UTi716B Heavy-duty Thermal Camera delivers professional-grade thermal imaging capabilities in a rugged, field-ready package. With its enhanced resolution, advanced image fusion, comprehensive measurement tools, and durable construction, it provides reliable performance for maintenance technicians, building inspectors, HVAC specialists, and industrial professionals who need accurate thermal diagnostics in demanding environments.
