UTi760H 640 Professional enhanced thermal imager

UNI-T UTi760H Professional Thermal Imaging Camera

High-Resolution 640×480 Thermal Imaging for Industrial and Commercial Professionals

The UNI-T UTi760H is a high-resolution professional thermal imaging camera delivering exceptional 640×480 infrared imaging with super resolution up to 1280×960 pixels, providing outstanding thermal detail for demanding inspection environments. With its sensitive <35mK detector, wide -20°C to 650°C (-4°F to 1202°F) temperature measurement range, and advanced T-Mix image fusion algorithm, the UTi760H gives building inspectors, electrical maintenance technicians, HVAC professionals, and industrial maintenance teams the imaging performance they need to quickly identify thermal anomalies, diagnose equipment issues, and document findings with confidence. The compact, rugged design with IP54 protection, 2-meter drop resistance, and approximately 4 hours of battery life per charge makes it an ideal everyday tool for professionals who need reliable high-resolution thermal imaging in the field.

Key Features

• High-Resolution 640×480 IR Detector: Over 307,000 measurement points per image for exceptional thermal detail
• Super Resolution Technology: Enhanced image quality up to 1280×960 pixels for superior clarity
• Thermal Sensitivity <35mK (NETD): Detects subtle temperature differences critical for early problem detection
• Wide Temperature Range: Measures from -20°C to 650°C (-4°F to 1202°F) for diverse industrial and commercial applications
• 4.3-inch LCD Touchscreen: 800×480 resolution display for clear viewing and intuitive operation
• 18mm Fixed Lens with Manual Focus: 24°(H) × 19.3°(V) field of view with F1.0 aperture for bright, sharp images
• T-Mix Image Fusion: Advanced algorithm blends visible light details into thermal images without sacrificing thermal transparency
• Multiple Image Modes: Thermal, visual image, T-Mix fusion, and picture-in-picture (PIP)
• Comprehensive Analysis Tools: Up to 16 measurement points, lines, rectangles, and circles with isotherm display
• 5MP Digital Camera: Visible light imaging for reference photos and enhanced fusion modes
• Wi-Fi Live Streaming: Real-time thermal image sharing for remote collaboration and team inspections
• Text and Voice Annotation: Document findings directly on thermal images for efficient reporting
• Free Professional Software: Lifetime access to PC and mobile analysis software with no subscription fees
• Rugged Construction: IP54 rated with 2-meter (6.6 ft) drop protection for demanding field conditions

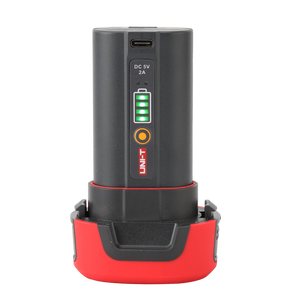

• Extended Operating Time: Two 5200mAh detachable Li-ion battery packs (UT-M17) providing approximately 4 hours each

High-Resolution Thermal Imaging Performance

The UTi760H's 640×480 infrared detector delivers over 307,000 individual temperature measurement points in every thermal image, providing the resolution needed to identify small thermal anomalies that lower-resolution cameras would miss entirely. This high pixel count is particularly valuable when inspecting complex electrical panels with closely-spaced components, evaluating building envelopes where small thermal bridges require precise identification, or analyzing industrial equipment where subtle temperature variations signal developing problems. The advanced super resolution processing further enhances image quality to 1280×960 pixels, effectively quadrupling the apparent resolution for even finer detail.

With 12μm pixel size and up to 30Hz frame rate, the UTi760H captures smooth, detailed thermal images suitable for both static inspections and dynamic monitoring. The outstanding thermal sensitivity of less than 35mK enables detection of temperature differences as small as 0.035°C, making it exceptionally effective for identifying early-stage faults, insulation deficiencies, and moisture intrusion before they become costly problems. The 18mm lens with F1.0 aperture provides a well-balanced 24°×19.3° field of view that works effectively for most common inspection distances, while manual focus control ensures optimal image sharpness for any target distance.

Advanced T-Mix Image Fusion Technology

The UTi760H features UNI-T's advanced T-Mix image fusion algorithm, which integrates visible light details such as text, outlines, and structural features captured by the 5MP digital camera directly into the thermal image without weakening the thermal image transparency or quality. This technology makes it significantly easier to distinguish between similar-looking targets in thermal view and provides essential visual context for accurate identification of thermal anomalies. Combined with the standard thermal, visual image, and picture-in-picture display modes, the T-Mix fusion capability ensures professional thermographers can present clear, contextual thermal findings to clients and colleagues.

The comprehensive on-screen analysis tools include up to 16 each of measurement points, lines, rectangles, and circles, providing detailed temperature profiling across complex targets. Isotherm display with auto, manual, above, below, and section modes highlights specific temperature ranges for rapid anomaly identification. High/low temperature tracking and alarm functions with LCD animation and buzzer alerts ensure critical temperature thresholds are never missed during extended inspection surveys. Text and voice annotation capabilities allow technicians to document findings, observations, and recommendations directly on captured images, streamlining the reporting workflow.

Professional Applications

Building Inspection and Energy Auditing

Building inspectors and energy auditors leverage the UTi760H's high-resolution imaging for comprehensive building analysis:

• Thermal bridging detection in walls, roofs, and foundations
• Air infiltration identification around windows, doors, and penetrations
• Insulation deficiency mapping across building facades
• Moisture intrusion detection behind walls and ceilings
• HVAC system performance verification and duct leakage identification
• Radiant heating system uniformity assessment

Electrical System Maintenance

Electrical maintenance technicians depend on the UTi760H for critical power system diagnostics:

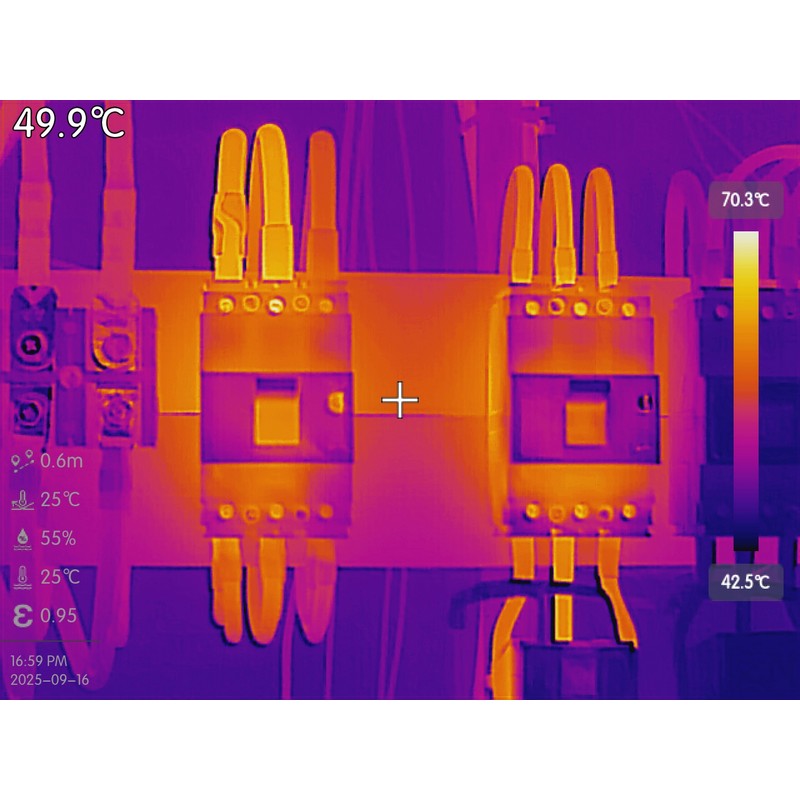

• Switchgear and distribution panel thermal surveys
• Transformer loading analysis and cooling system verification
• Circuit breaker contact resistance identification through thermal signatures
• Motor control center inspection for connection and termination issues
• Bus bar and cable termination temperature monitoring
• Fuse and disconnect switch thermal assessment

Industrial Process Monitoring

Process engineers and maintenance specialists utilize the UTi760H for industrial applications:

• Heat exchanger performance analysis and fouling detection
• Steam system trap testing and condensate management
• Process equipment temperature profiling for optimization
• Bearing temperature monitoring across rotating equipment
• Pipeline insulation effectiveness verification
• Boiler system diagnostics and efficiency optimization

HVAC and Refrigeration

HVAC technicians rely on the UTi760H for system diagnostics and troubleshooting:

• Refrigeration system component temperature verification
• Compressor and motor thermal assessment
• Evaporator and condenser coil performance analysis
• Ductwork insulation integrity assessment
• Air handler and fan motor condition monitoring
• Control system electrical termination inspection

Mechanical Systems and Manufacturing

Manufacturing engineers and mechanical maintenance teams utilize the UTi760H for:

• Production equipment thermal profiling for quality control
• Motor and gearbox temperature monitoring for predictive maintenance
• Hydraulic system component inspection and leak detection
• Conveyor system bearing analysis
• Welding process temperature verification
• Press and forming equipment thermal assessment

Frequently Asked Questions

Warranty

This product includes a standard 1-year warranty covering manufacturing defects and component failures under normal use conditions.

UNI-T stands behind every product we sell. If you experience any issues within the warranty period, our US-based support team is here to help with troubleshooting, repair, or replacement.
