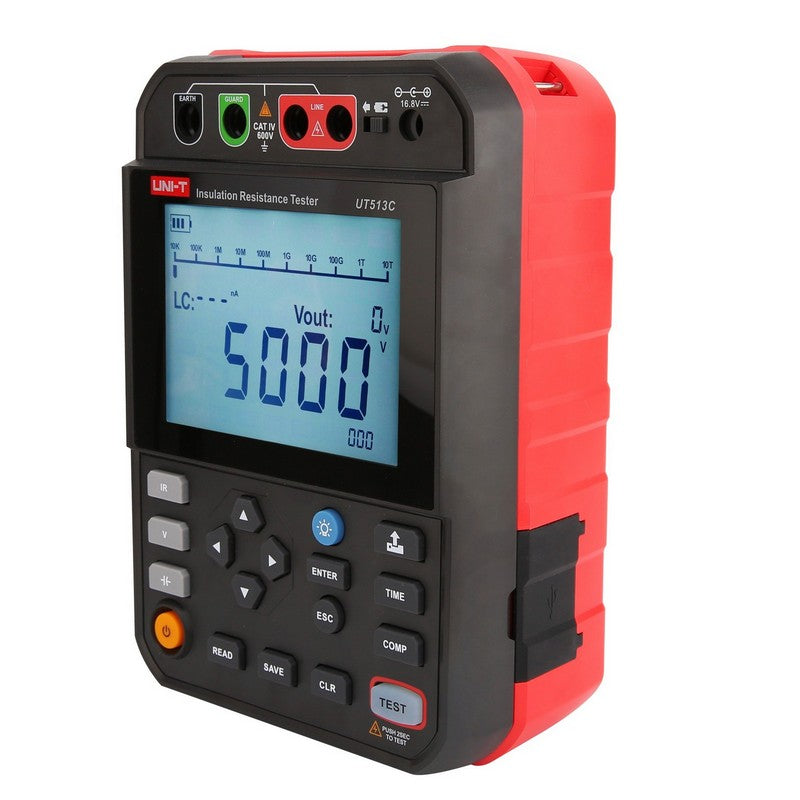

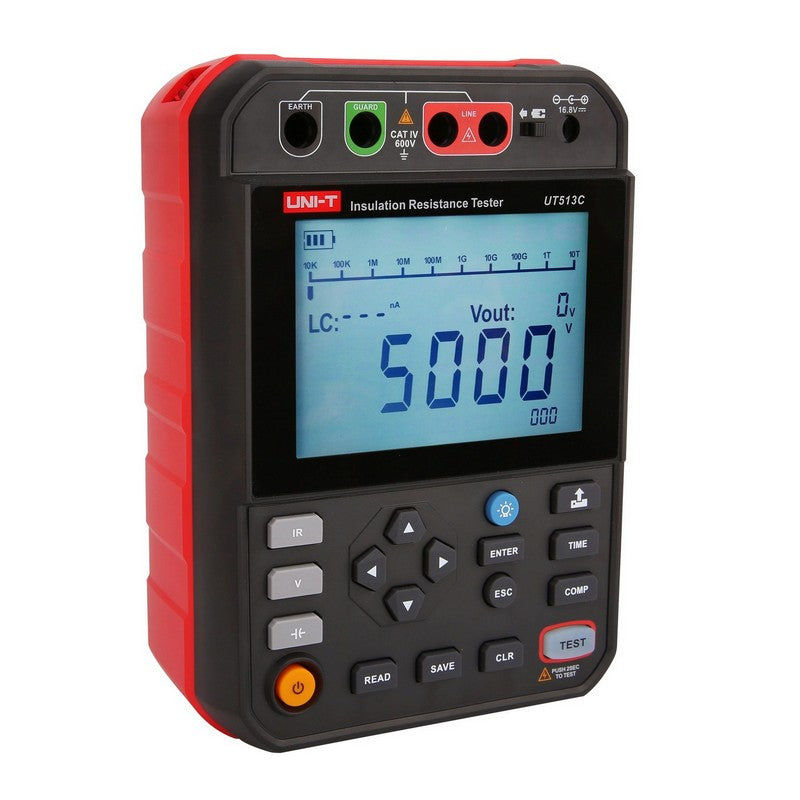

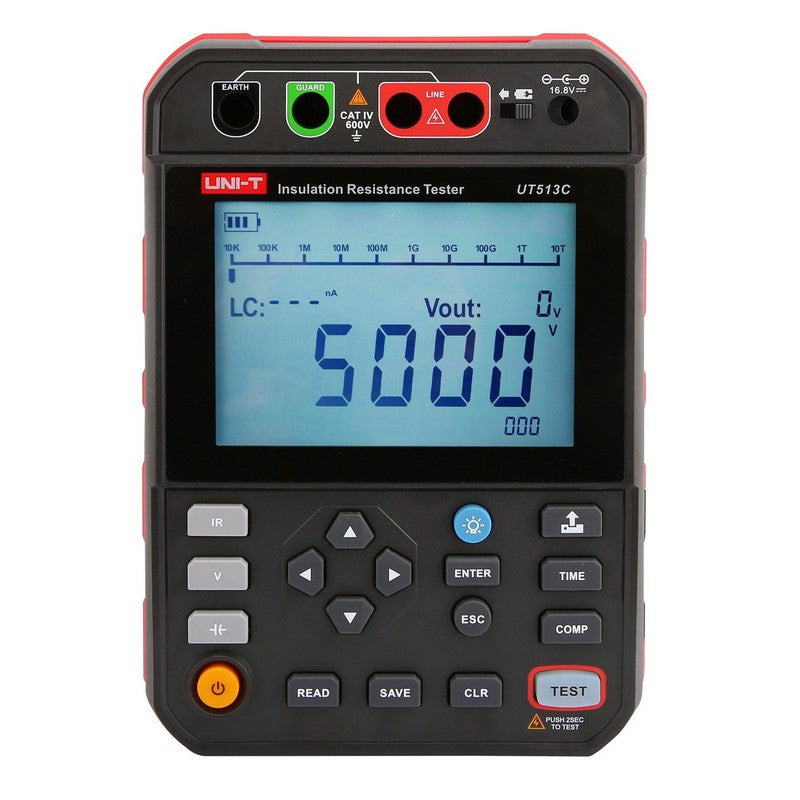

UNI-T UT513C 5kV Digital Insulation Resistance Tester with Bluetooth Connectivity

Overview

The UNI-T UT513C represents the pinnacle of portable insulation testing technology, combining professional-grade measurement capabilities with smart connectivity features for the modern electrical professional. This advanced 5kV digital insulation resistance tester offers an exceptional measurement range up to 5TΩ, making it ideal for testing the most demanding high-resistance insulation systems found in critical infrastructure and specialized industrial applications.

Featuring a high-resolution dot matrix display, Bluetooth mobile app connectivity, and comprehensive measurement functions, the UT513C delivers laboratory-grade precision with unmatched field versatility. Powered by a high-capacity lithium battery and protected by a CAT IV 600V safety rating, this premium instrument provides reliable performance in the most challenging industrial environments.

Whether you're an electrical engineer managing critical power infrastructure, a maintenance professional implementing comprehensive predictive maintenance programs, or a specialized contractor requiring the highest level of insulation assessment capabilities, the UNI-T UT513C offers the precision, features, and connectivity needed to elevate your testing protocols and decision-making processes.

Key Features

• Ultra-high voltage insulation testing up to 5kV with precision control
• Industry-leading measurement range up to 5TΩ
• Selectable test voltages: 250V, 500V, 1000V, 2500V, and 5000V
• Bluetooth connectivity with dedicated mobile application for remote control and analysis

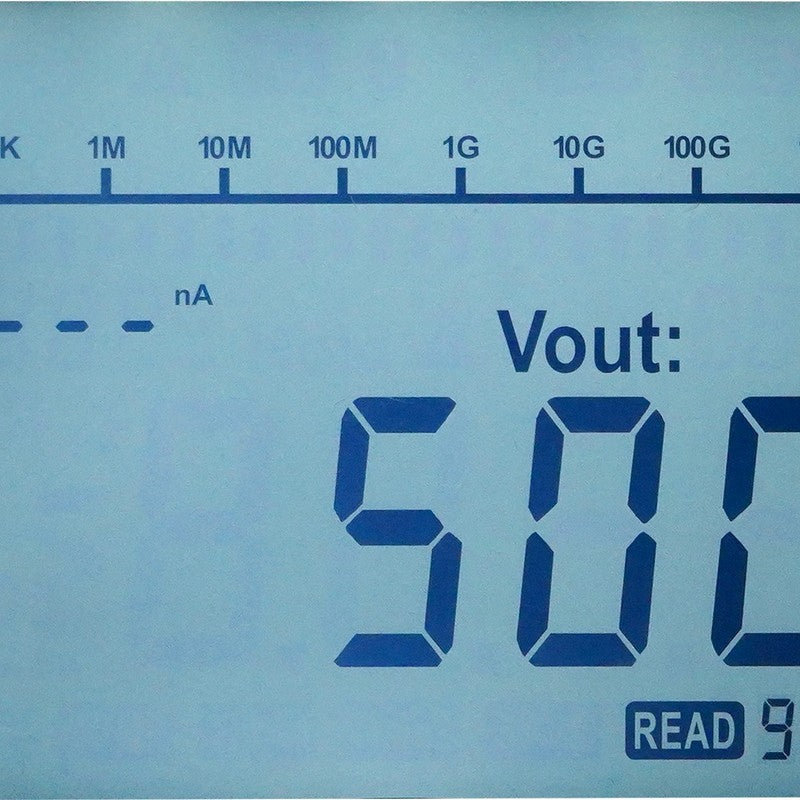

• High-resolution dot matrix display for enhanced data visualization
• PI (Polarization Index) and DAR (Dielectric Absorption Ratio) testing capabilities
• Automatic leakage current display during measurements
• Integrated capacitance testing up to 15.00uF
• Stepping voltage function for comprehensive insulation profiling
• Comparison function for automated pass/fail assessment
• Timer measurement for standardized testing protocols
• Extensive data storage for 999 measurement sets

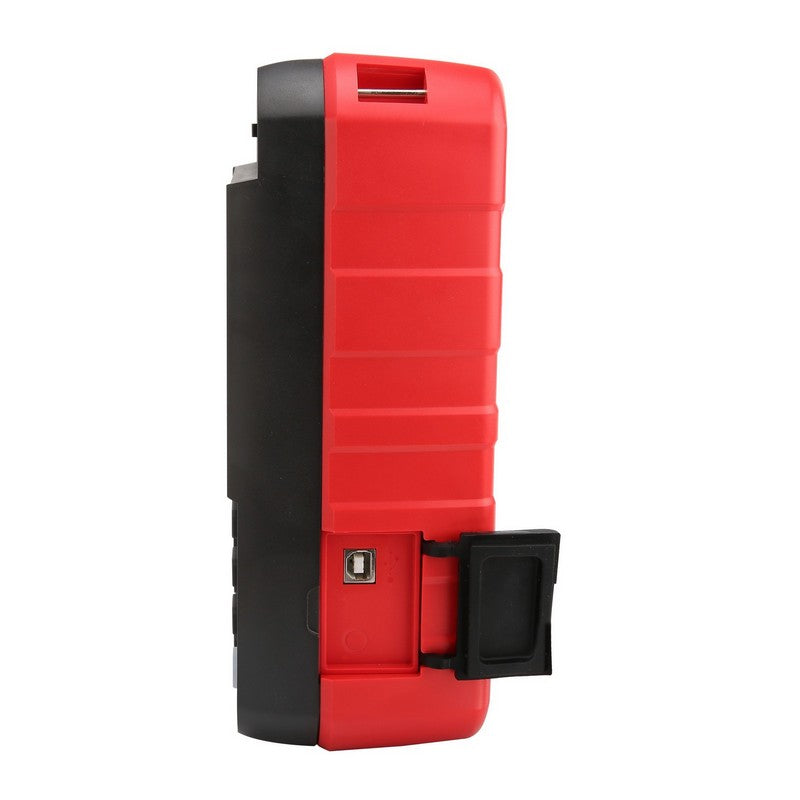

• USB interface for PC data transfer and analysis
• High voltage output alarm with visual indicator

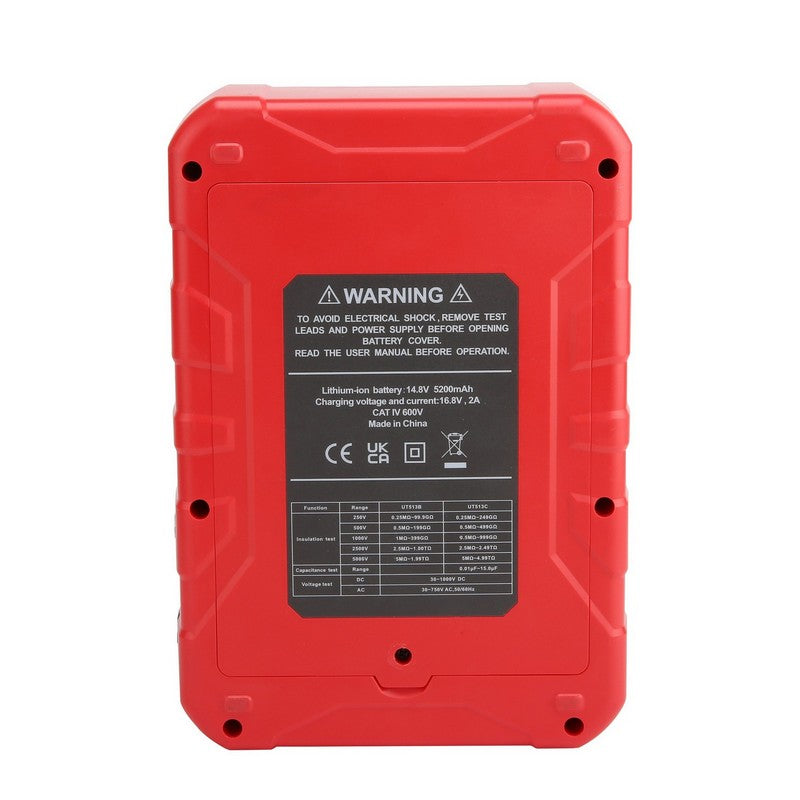

• 14.8V 5200mAh rechargeable lithium battery
• CAT IV 600V safety rating for maximum protection

UNI-T UT513C Details

Unmatched Measurement Capabilities

The UT513C sets a new standard in portable insulation testing with its extraordinary 5TΩ measurement range, allowing for accurate assessment of the highest-grade insulation systems used in aerospace, medical, specialized manufacturing, and critical power applications. The precision 5kV output with 10% stepping function provides detailed stress testing of insulation materials, while the integrated capacitance measurement capability up to 15.00uF enables comprehensive analysis of cable characteristics and insulation properties. This combination of features delivers a complete diagnostic picture that goes far beyond basic resistance readings.

Smart Connectivity for Modern Workflows

Revolutionary in its class, the UT513C's Bluetooth connectivity transforms how insulation testing data is captured, analyzed, and integrated into maintenance systems. The dedicated mobile application allows remote control of test functions from a safe distance, real-time monitoring of measurements, and instant data capture with GPS location tagging. Test results can be organized by equipment ID, location, or maintenance route, then seamlessly exported to maintenance management systems or included in professional reports. This connectivity streamlines documentation processes and enhances data integrity, especially valuable for regulated industries requiring comprehensive maintenance records.

Advanced Analytics and Diagnostics

Beyond collecting measurements, the UT513C provides sophisticated analytical capabilities that transform raw data into actionable insights. The instrument performs automated PI and DAR calculations that reveal insulation deterioration trends, moisture penetration, and contamination issues that might be missed by point-in-time resistance readings. The comparison function allows setting custom threshold values for different equipment classes, enabling consistent evaluation standards across maintenance teams and testing personnel. These advanced diagnostics help maintenance professionals transition from reactive to predictive maintenance approaches, identifying potential failures before they impact operations.

Industrial-Grade Reliability and Safety

Engineered for the most demanding field applications, the UT513C features robust construction with environmental sealing that protects internal electronics from dust and moisture. The high-capacity 14.8V 5200mAh lithium battery provides extended operation for comprehensive testing sessions, while the instrument's thermal design ensures stable measurements even in extreme temperature conditions. Safety remains paramount with the CAT IV 600V rating, automatic discharge function, and high-voltage warning systems that protect both the operator and equipment under test in high-energy industrial environments.

Professional Applications

Power Generation and Transmission

Power engineers depend on the UT513C for critical insulation assessment of transformers, generators, switchgear, and high-voltage underground cables. The exceptional 5TΩ range accommodates modern high-performance insulation materials, while the Bluetooth connectivity enables safe remote testing in high-energy environments. The comprehensive data management capabilities facilitate regulatory documentation and asset health tracking, critical for maintaining grid reliability.

Industrial Automation and Manufacturing

Maintenance engineers in automated manufacturing facilities implement the UT513C in advanced predictive maintenance programs for motors, drives, and control systems. The instrument's precise measurements and trend analysis capabilities identify gradual insulation deterioration before it impacts production, while the Bluetooth connectivity integrates seamlessly with computerized maintenance management systems. This integration enables data-driven maintenance scheduling that maximizes production uptime and extends equipment life.

Renewable Energy Infrastructure

Solar and wind power technicians utilize the UT513C for commissioning and maintenance of renewable energy systems. The instrument's capacitance measurement capabilities are particularly valuable for assessing solar array cabling, while the high-voltage testing verifies inverter and transformer insulation integrity. The rugged construction and extended battery life make it ideal for remote installations where reliability and single-visit resolution are essential.

Critical Facilities and Data Centers

Data center infrastructure specialists rely on the UT513C for verification of mission-critical power systems where even momentary failures can have significant consequences. The instrument's comparison function enables rapid assessment against stringent specifications, while the comprehensive data logging creates the documentation trail necessary for certification procedures. The non-destructive nature of the tests allows for regular verification without impacting operations, essential for maintaining the "always on" requirements of modern computing facilities.

Technical Specifications

Bluetooth Mobile Application Features

Real-Time Monitoring

• View live measurements on your mobile device from a safe distance
• Monitor test progress with real-time graphing of measurement values
• Receive alerts and notifications for test completion or abnormal conditions

Test Control and Configuration

• Launch tests remotely after connecting leads
• Configure test parameters including voltage, duration, and comparison thresholds
• Create and select custom test profiles for different equipment types

Data Management and Reporting

• Organize measurements by equipment ID, location, or date
• Add notes, photos, and asset information to test records
• Export data in multiple formats including CSV and PDF
• Generate professional reports with company branding

Equipment Database

• Build and maintain an equipment database with insulation test history
• Track insulation performance trends over time
• Set scheduled test reminders for preventive maintenance programs
• Create QR codes for equipment to streamline future testing

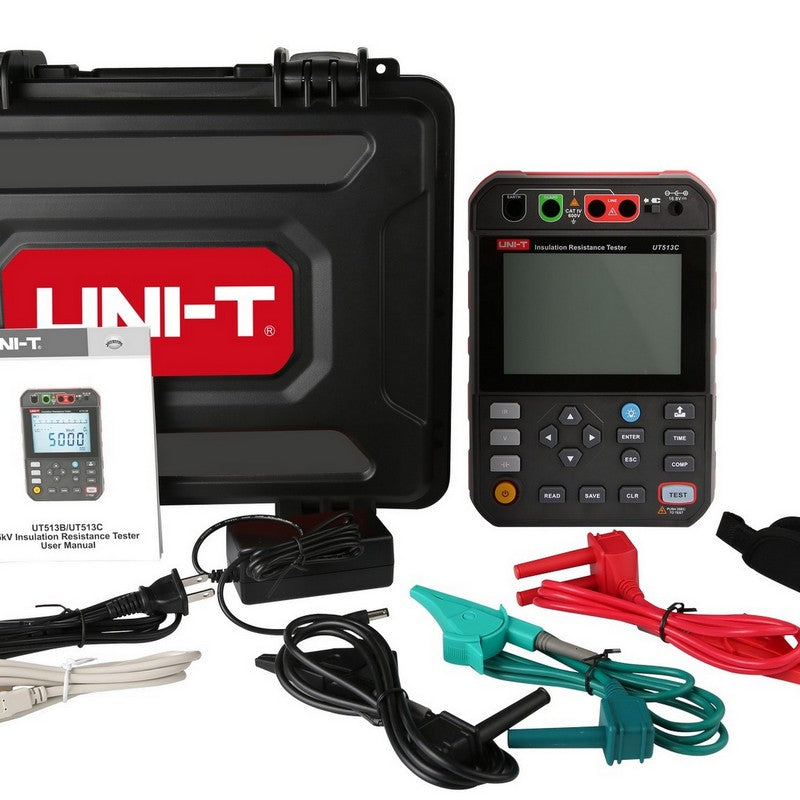

Package Contents

• UNI-T UT513C Insulation Resistance Tester
• Test leads (red, black, green: 1 for each)
• USB cable
• 14.8V 5200mAh lithium battery pack
• Lithium battery charger
• Carrying strap
• English user manual
• Hard carrying case
• Test certificate

UNI-T Insulation Tester Comparison Table

FAQ

How does the Bluetooth functionality enhance insulation testing workflows?

The Bluetooth connectivity transforms traditional insulation testing into a more efficient, safer, and data-rich process. Technicians can control the instrument from a safe distance when testing high-voltage equipment, reducing exposure to potential hazards. The mobile app streamlines documentation by automatically capturing test parameters, results, timestamps, and location data. This integration eliminates manual recording errors and creates comprehensive digital records that can be immediately shared with team members or clients, significantly reducing reporting time and improving data integrity.

What makes the UT513C suitable for testing critical infrastructure?

The UT513C is designed specifically for critical infrastructure applications with its extended measurement range up to a remarkable 5TΩ, which can accurately assess the highest-grade insulation systems used in power transmission, data centers, and specialized industrial applications. The instrument's precision and stability ensure reliable measurements in environments where decision-making based on accurate data is essential. Additionally, the comprehensive data management capabilities provide the documentation trail necessary for regulatory compliance and asset management programs that are typical requirements in critical infrastructure maintenance.

How does the capacitance measurement feature benefit cable testing?

The integrated capacitance measurement capability up to 15.00uF provides valuable diagnostic information when testing cables. Capacitance readings can help determine cable length, identify open or shorted conductors, and detect changes in cable characteristics that might indicate degradation. When combined with insulation resistance measurements, capacitance testing provides a more complete assessment of cable condition, particularly useful for underground or submarine cables where visual inspection is impossible. This dual measurement capability makes the UT513C particularly valuable for utility companies and telecommunications providers.

Can the UT513C be integrated into computerized maintenance management systems (CMMS)?

Yes, the UT513C is designed for seamless integration with modern maintenance management systems. Test data can be exported from the mobile app or PC interface in standard formats (CSV, Excel, PDF) that can be imported into most CMMS platforms. For organizations with custom systems, the structured data format facilitates developing automated import processes. This integration capability transforms the UT513C from a simple measurement tool into a critical data source for comprehensive asset management programs and predictive maintenance initiatives.

How does the UT513C compare to other premium insulation testers in terms of value?

While positioned at a premium price point within the UNI-T lineup, the UT513C offers exceptional value compared to competitors with similar capabilities. Premium brand alternatives with comparable specifications often cost 50-100% more, yet the UT513C delivers equivalent or superior measurement performance, connectivity features, and safety ratings. The combination of 5TΩ measurement range, capacitance testing, Bluetooth connectivity, and CAT IV safety rating represents a feature set typically found only in the highest-tier professional instruments, making the UT513C an outstanding value proposition for organizations that require professional-grade capabilities without premium brand pricing.

Customer Testimonials

"The Bluetooth capability of the UT513C has revolutionized how we document our substation maintenance. We can now control the tester from a safe distance, and test records automatically integrate with our asset management system. This has eliminated transcription errors and reduced our documentation time by over 70%." - Maria S., Utility Maintenance Manager

"As a commissioning engineer for data centers, I need absolute confidence in my measurements and comprehensive documentation for certification. The UT513C's 5TΩ range handles the highest-grade insulation systems we install, and the reporting features deliver professional documentation that satisfies even our most demanding clients." - David K., Commissioning Engineer

"We maintain wind turbines across remote locations, and the UT513C's extended battery life and mobile app connectivity have been game-changers for our maintenance program. We can complete comprehensive testing during a single site visit and immediately share results with our engineering team back at headquarters for analysis." - Anwar J., Renewable Energy Technician

Warranty and Support

UNI-T provides a comprehensive 12-month warranty on the UT513C insulation resistance tester, covering manufacturing defects and component failures under normal use conditions. Our dedicated technical support team offers expert guidance on applications, measurement techniques, and integration with maintenance systems to help you maximize the value of your investment. For organizations implementing enterprise-wide testing programs, UNI-T also offers custom training and implementation support services.

Transform Your Electrical Testing Capabilities

The UNI-T UT513C represents a new generation of insulation testing technology that combines unmatched measurement capabilities with smart connectivity features designed for the modern maintenance professional. Its exceptional specifications, intuitive operation, and seamless integration with digital workflows make it the ideal choice for organizations implementing best-in-class maintenance programs for critical electrical assets.

Whether you're managing power infrastructure, maintaining industrial automation systems, or certifying mission-critical installations, the UT513C delivers the accuracy, features, and reliability you need to make confident decisions about your most valuable electrical assets.

Order your UNI-T UT513C today and experience the future of insulation testing technology.
