UT513B

5kV High-Voltage Insulation Resistance Tester

$699.99
Sale Contact Us For Lead Time

12 in stock

REQUEST A QUOTE

2000GΩ insulation resistance tester with test voltages up to 5kV and PI/DAR/SV analysis. Built for utility and industrial electricians testing MV cables, large transformers, and generators.

View full details

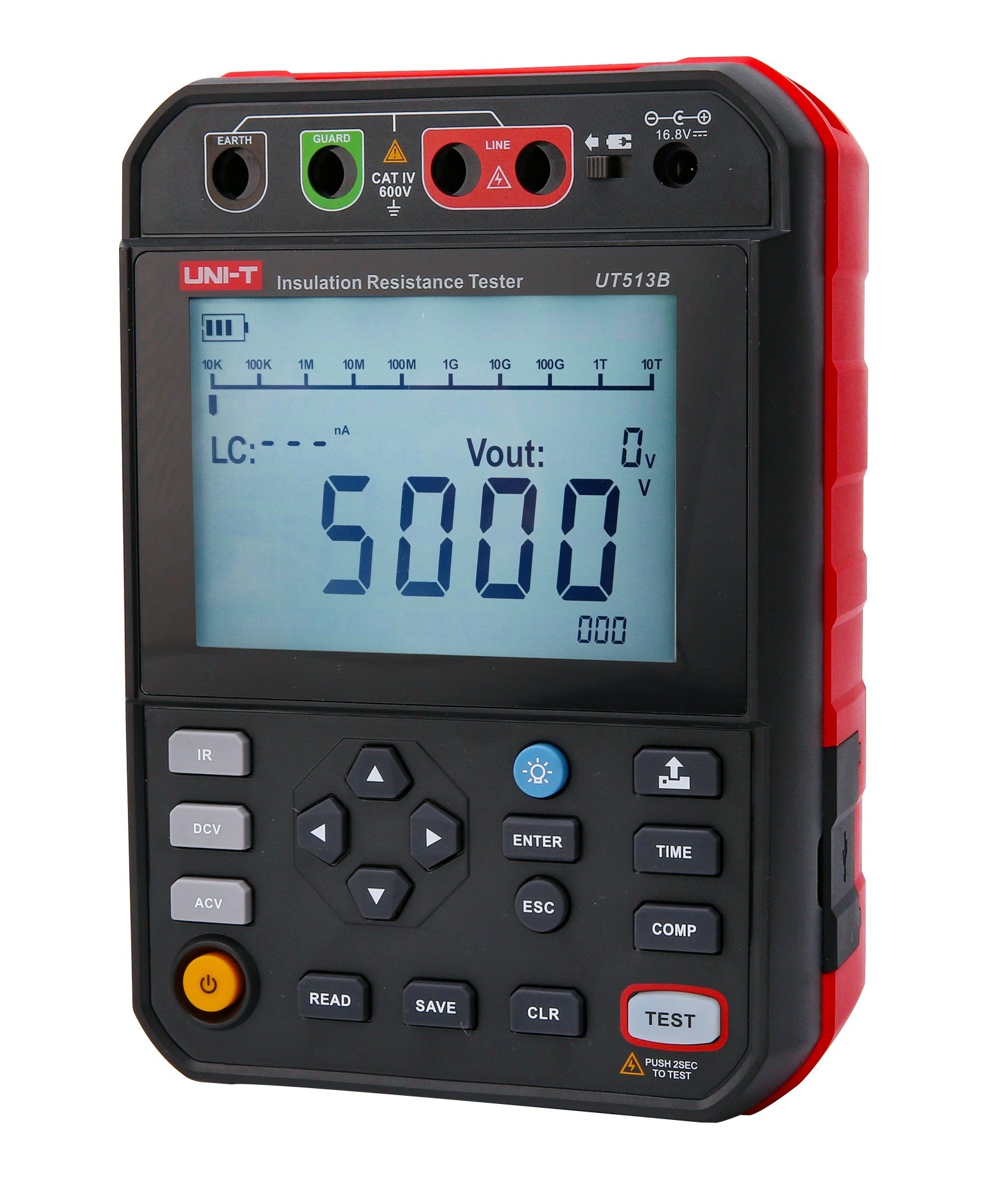

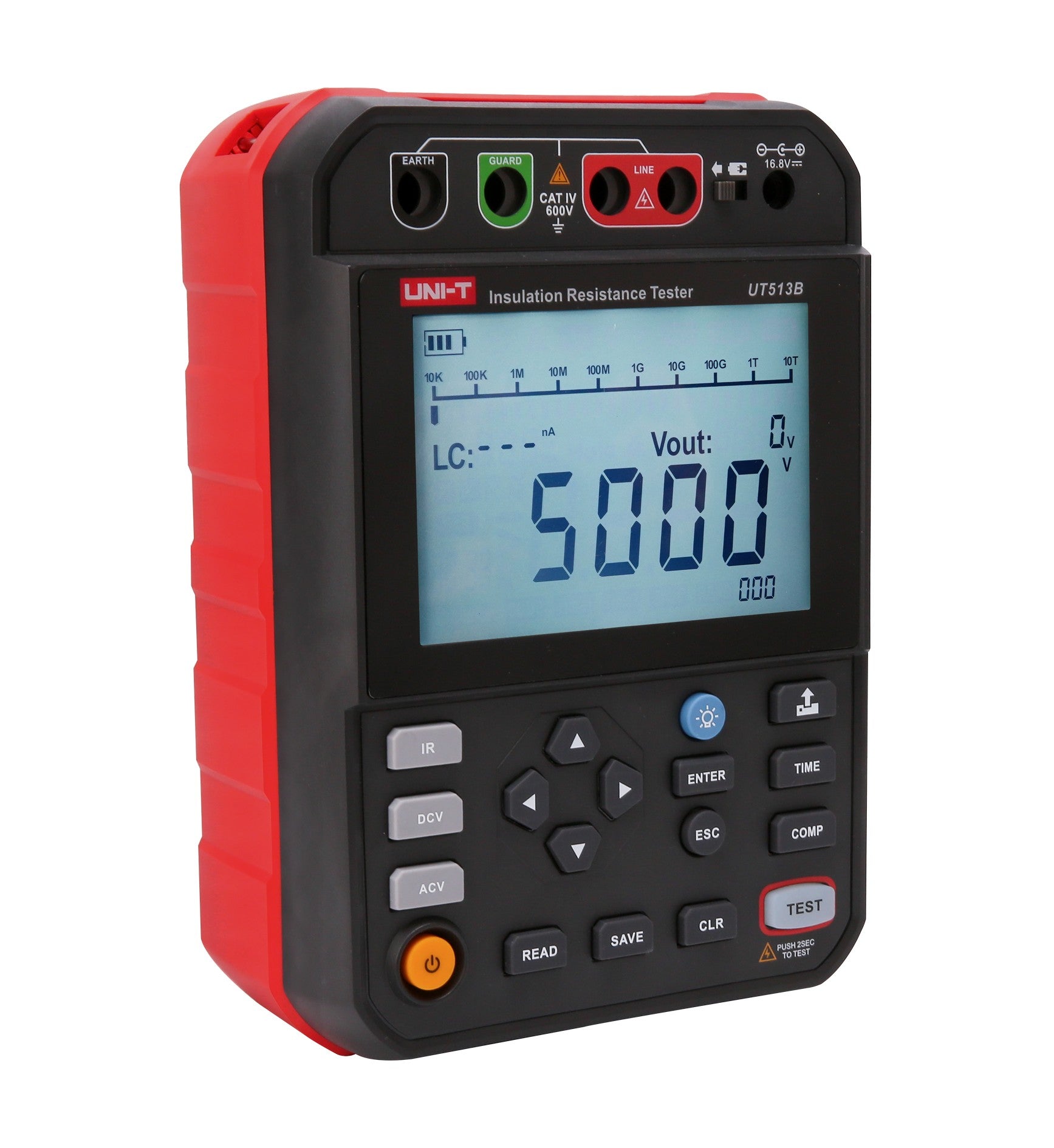

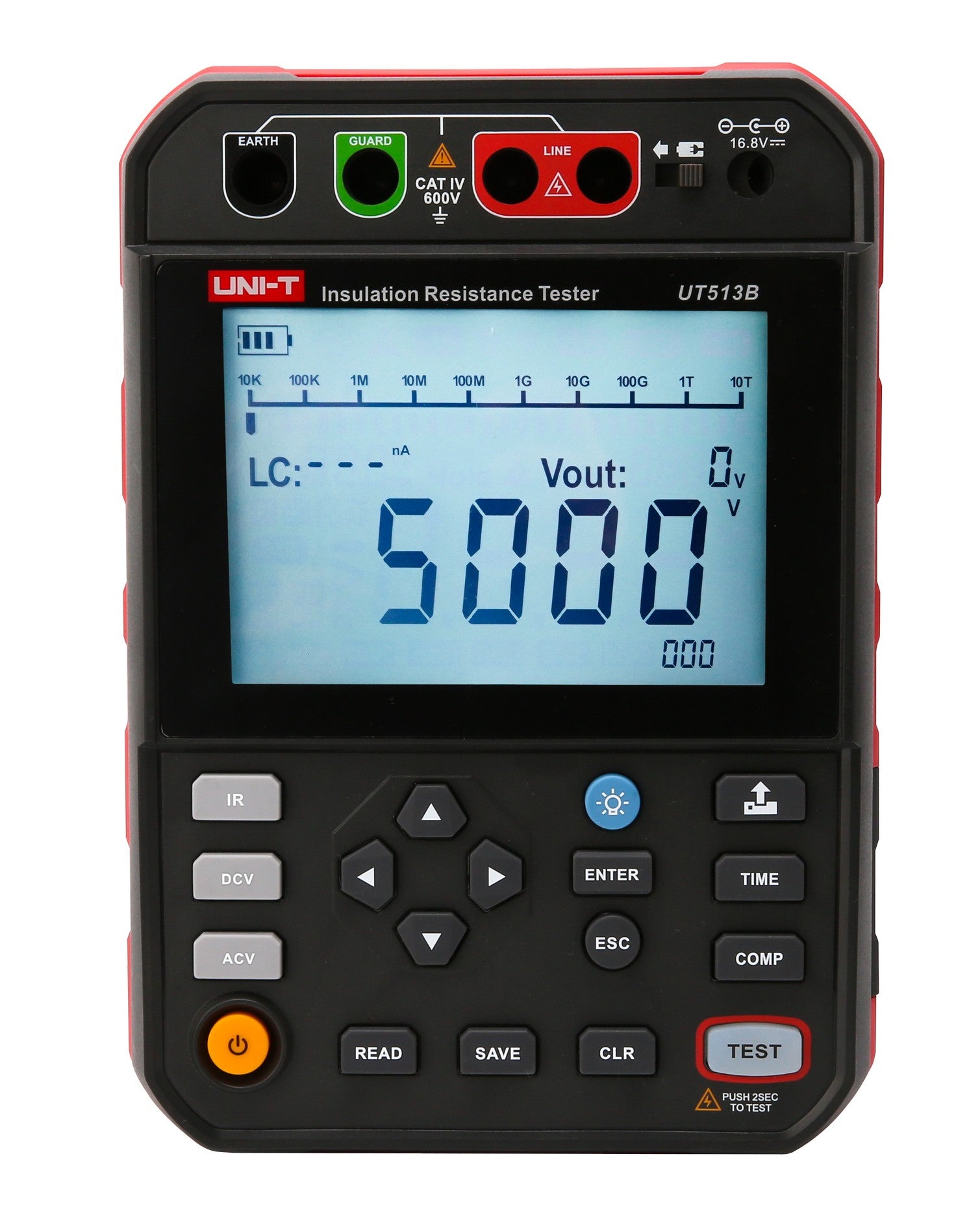

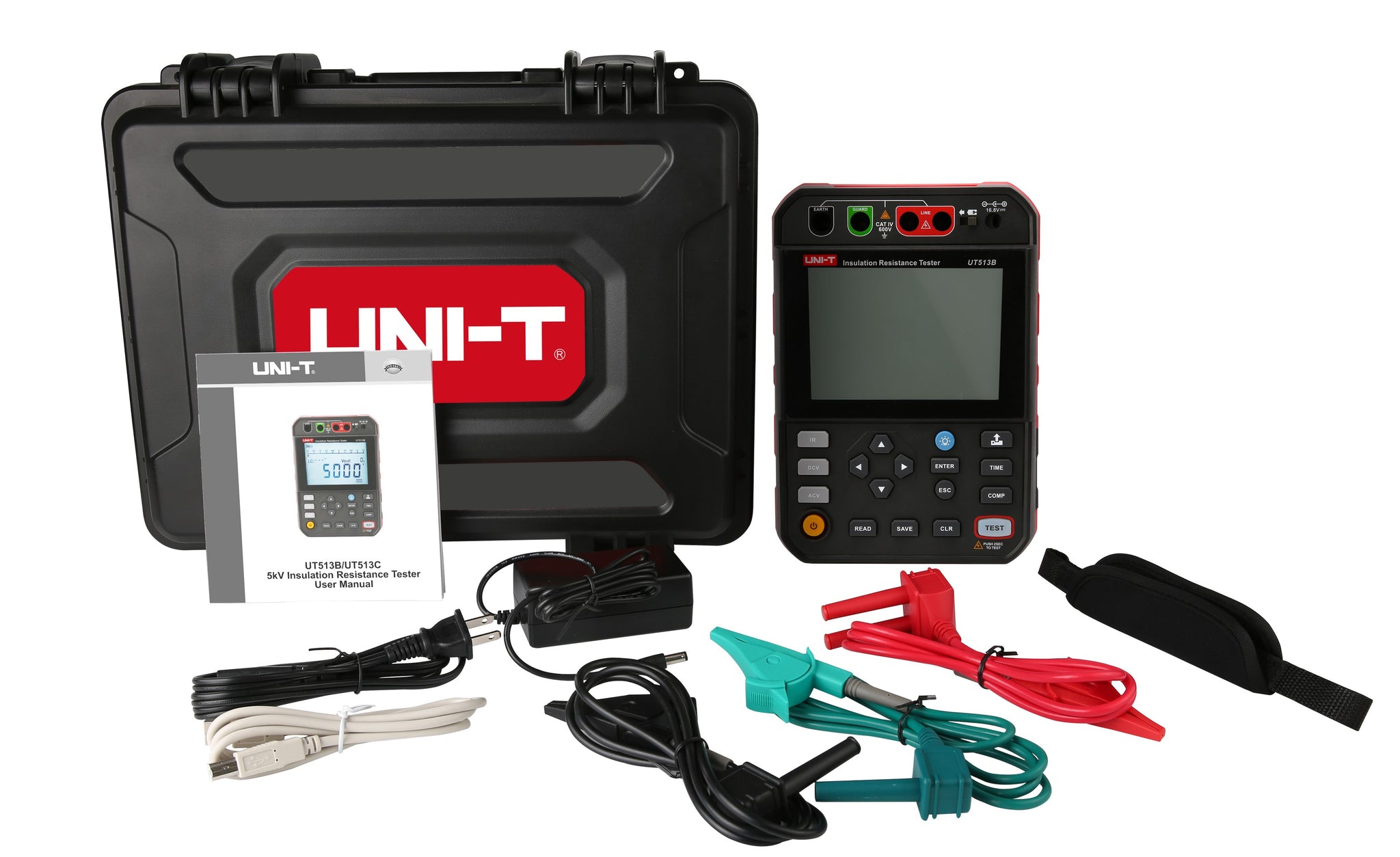

UNI-T UT513B 5kV Insulation Resistance Tester

Overview

Rated CAT IV 600 V, the UT513B applies selectable test voltages from 250 V to 5 kV and reads insulation resistance up to 2 TΩ — the headroom you need for medium-voltage motors, transformers, switchgear, and long cable runs. It runs the timed diagnostics that tell you whether insulation is actually healthy or just passing a spot check: Polarization Index, Dielectric Absorption Ratio, and a 10%-of-range stepped-voltage profile that surfaces weaknesses a single fixed-voltage reading misses.

Leakage current shows live during the test, the circuit auto-discharges when you're done, and a high-voltage alarm flags an energized lead. The instrument stores 999 result sets and exports over USB for compliance records, and a 14.8 V 5200 mAh rechargeable pack carries a full day of field testing. It's backed by UNI-T's nearly 40 years of test-meter manufacturing.

Key Features

  • Five selectable test voltages: 250 V, 500 V, 1000 V, 2500 V, 5000 V
  • Insulation resistance up to 2 TΩ, accuracy ±(5%+5)
  • PI (Polarization Index) and DAR timed diagnostics with 0 s–99 m 59 s timer
  • 10%-of-range stepped-voltage profiling for insulation stress testing

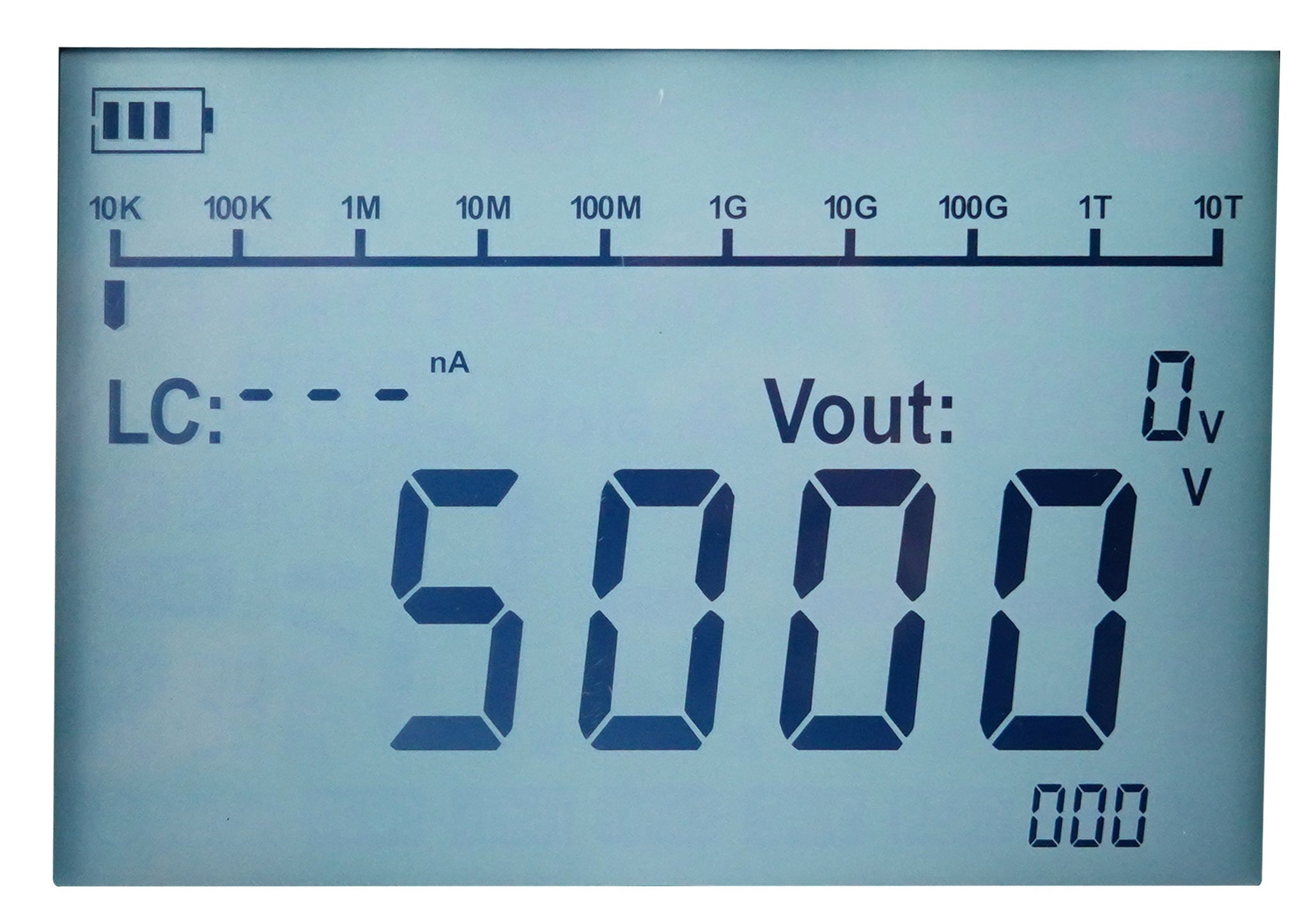

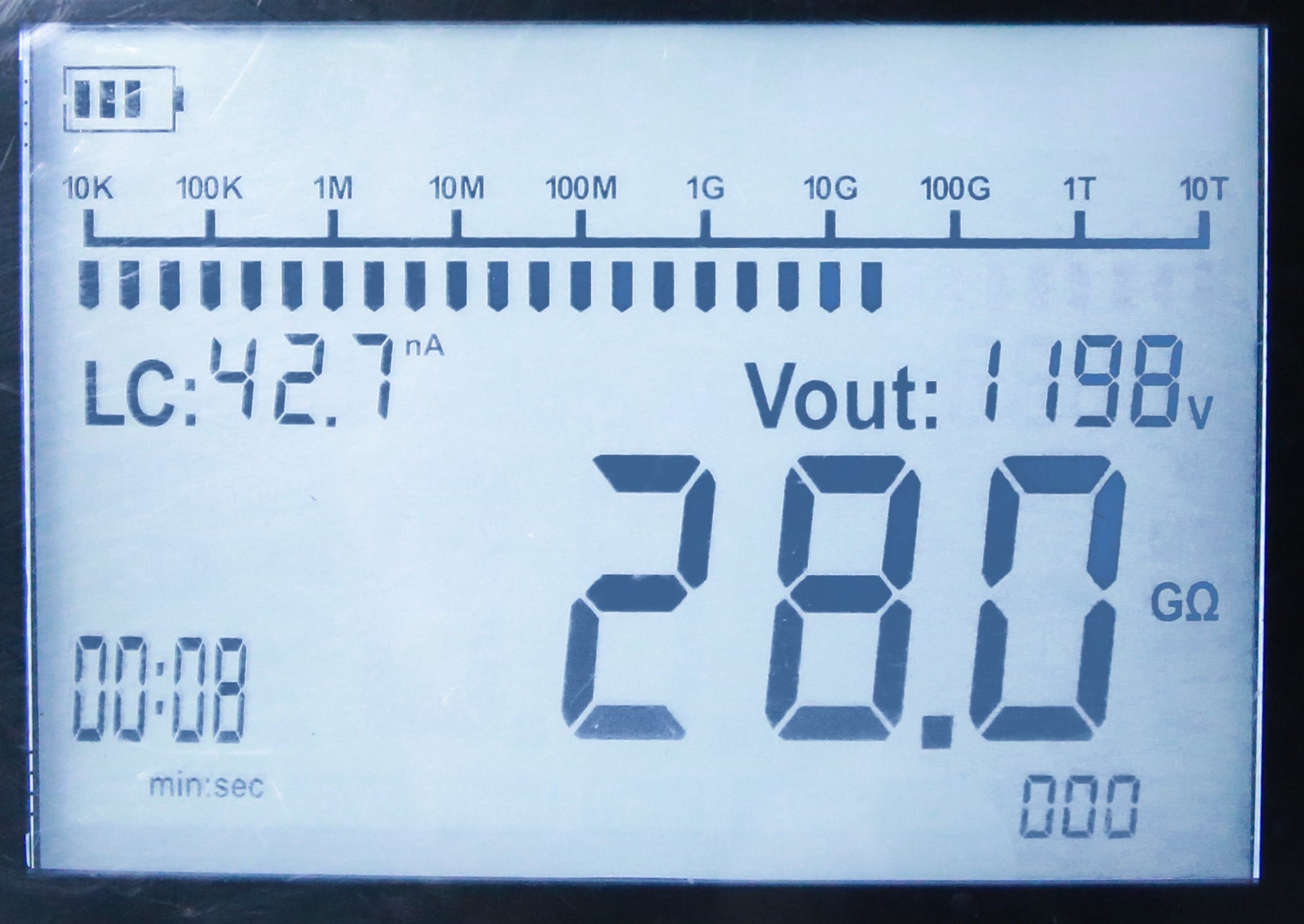

  • Live leakage-current display and automatic discharge after test
  • High-voltage output alarm
  • Comparison function for pass/fail against a set threshold
  • 999-set storage with USB transfer to PC
  • CAT IV 600 V; 14.8 V 5200 mAh rechargeable Li-ion

UT513B Details

Multi-Voltage Insulation Testing

Five fixed test voltages from 250 V to 5 kV let you match the test to the asset — low voltages for control and electronics wiring, 2.5 kV and 5 kV for motor windings, transformers, and medium-voltage cable. Resistance reads up to 2 TΩ, so modern high-resistance insulation stays on-scale.

PI & DAR Diagnostics

The UT513B times the resistance curve to calculate Polarization Index and Dielectric Absorption Ratio. Both separate genuinely dry, sound insulation from windings that read acceptable cold but are holding moisture or contamination — the difference between a motor you return to service and one you flag.

Stepped-Voltage Profiling

Beyond a fixed-voltage reading, the UT513B steps the test voltage in 10% increments across the selected range. Watching how resistance responds as stress rises exposes marginal insulation that a single endpoint reading reports as a pass.

Auto-Discharge & High-Voltage Alarm

Capacitive test objects store charge. The UT513B discharges the circuit automatically when a test ends, and a high-voltage alarm warns whenever a lead is live — the safety basics you want on a 5 kV instrument.

Data Logging & Transfer

Store up to 999 result sets on the instrument and move them to a PC over USB for reports and asset records. The comparison function sets a pass/fail threshold so repeat tests stay consistent across equipment and across technicians.

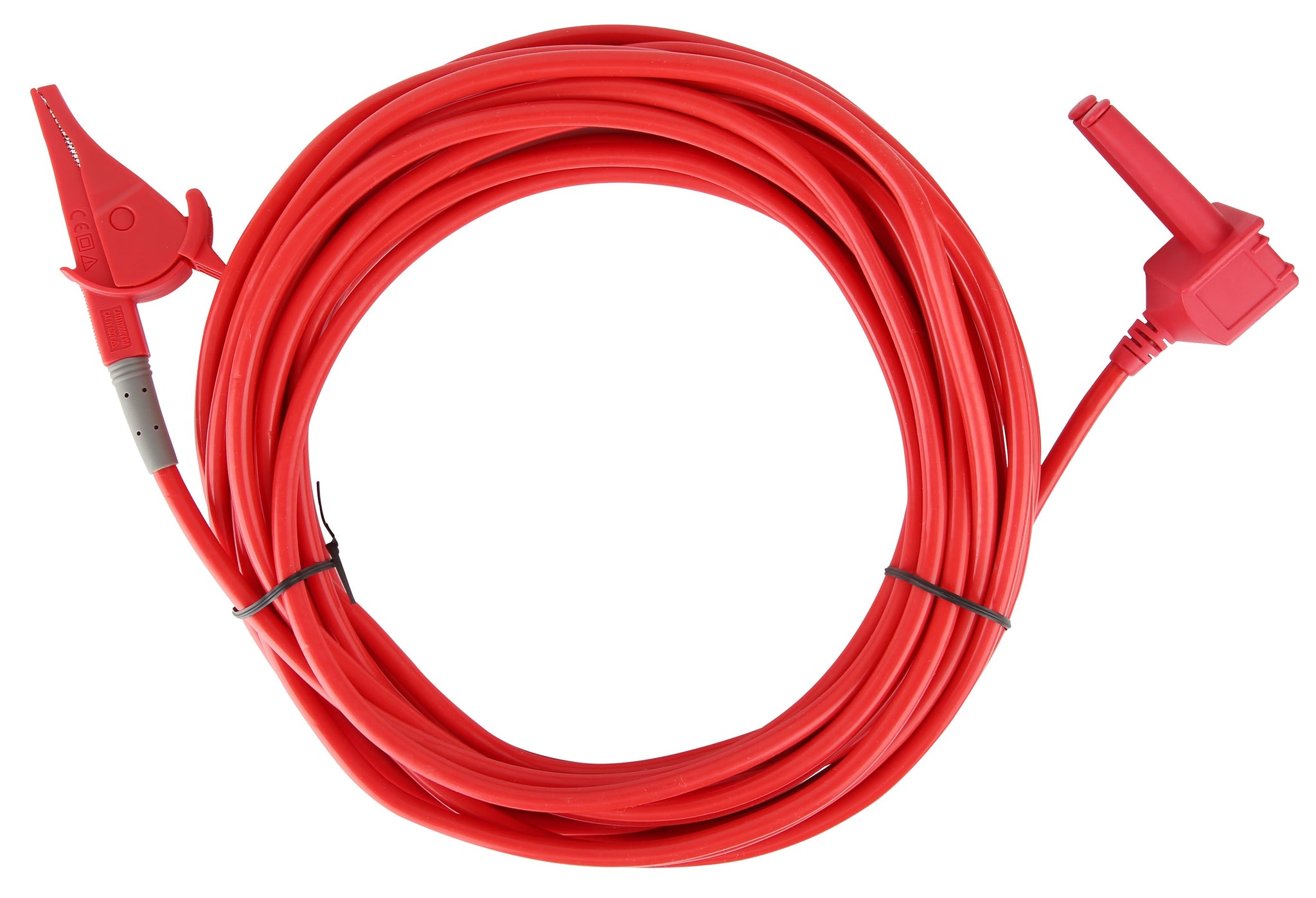

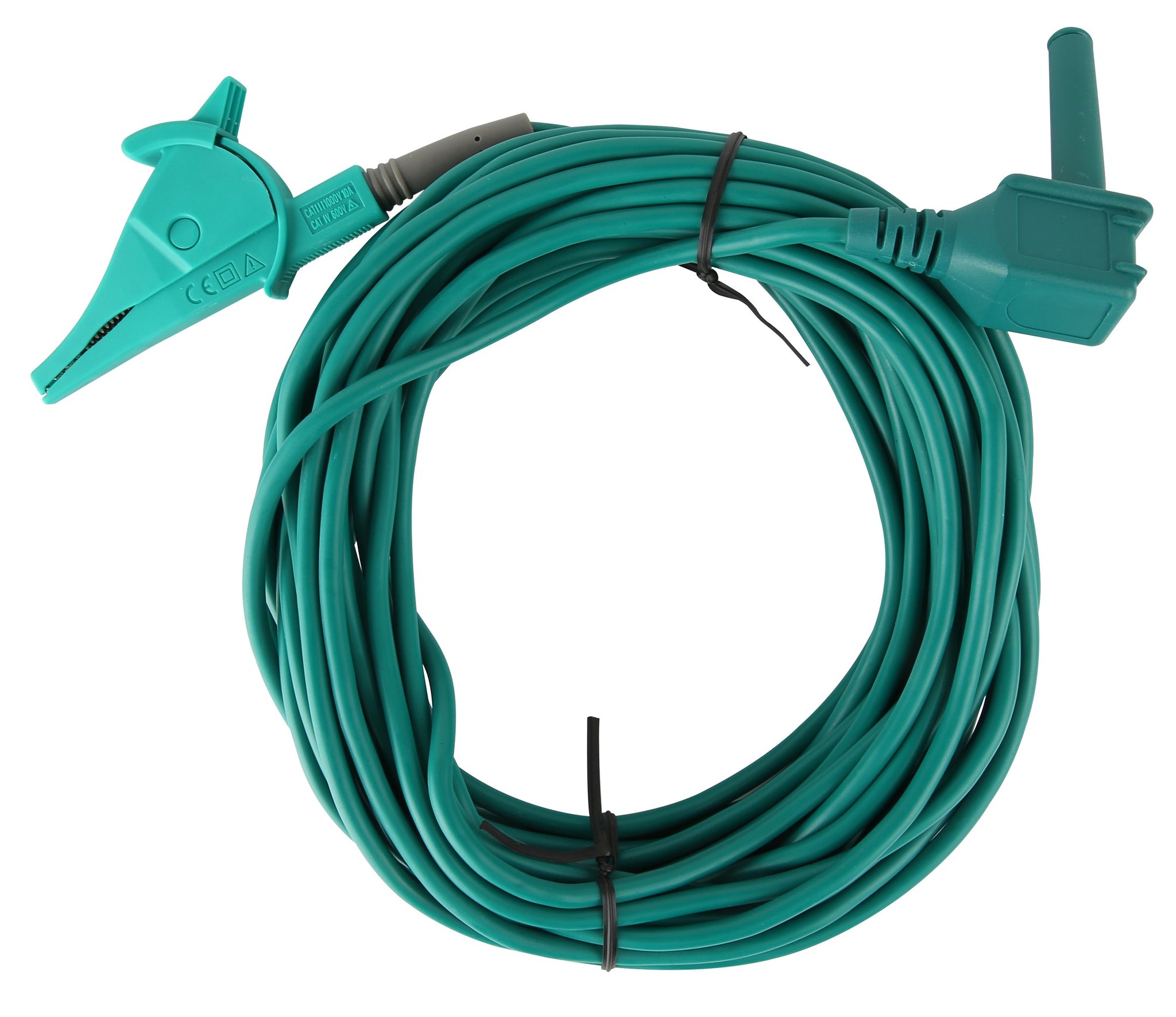

Field Build

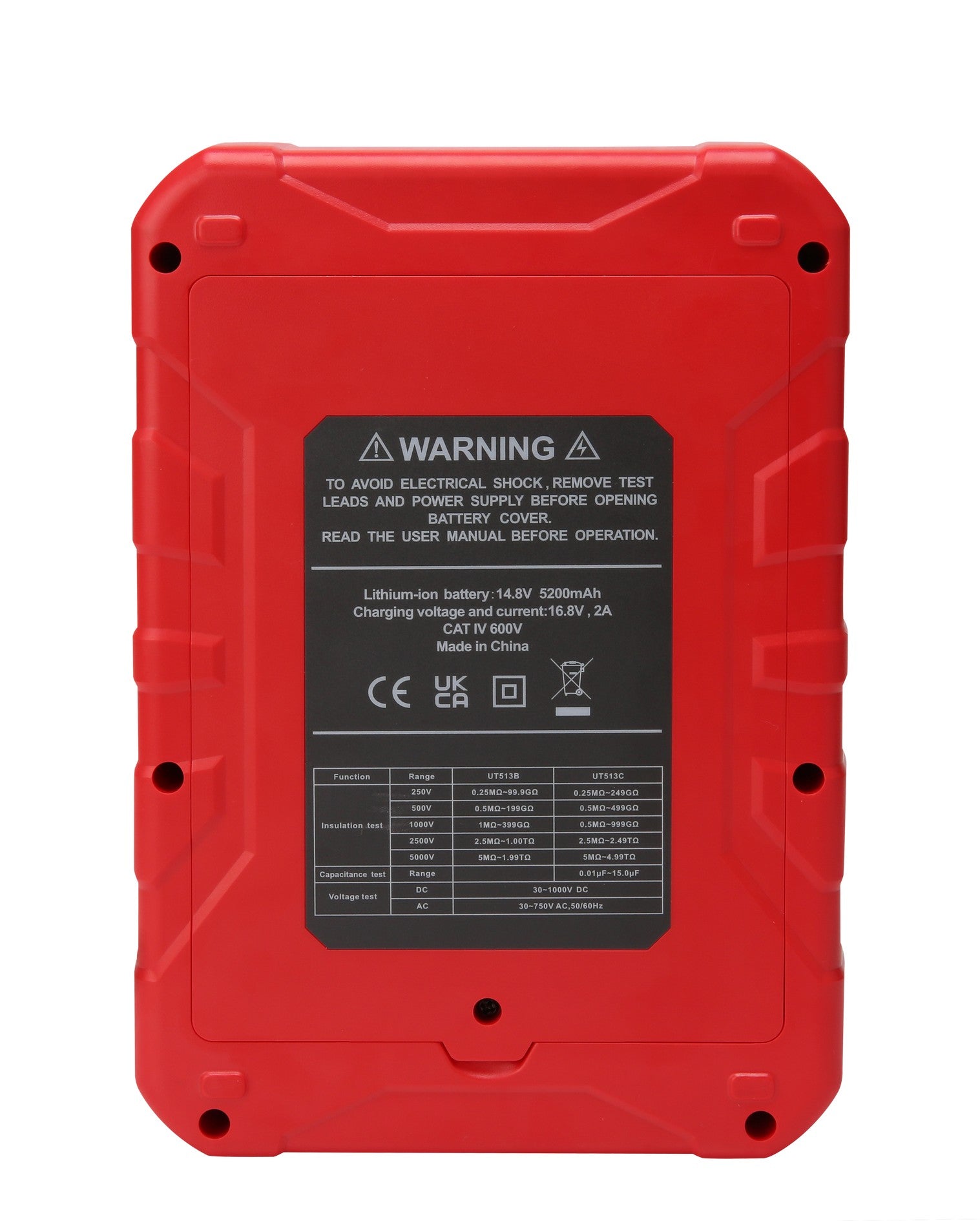

A 14.8 V 5200 mAh rechargeable lithium pack runs a full testing day, and the CAT IV 600 V rating covers work on industrial distribution and outdoor utility equipment.

Compare the UT513 Series

UT512E UT513A UT513B UT513C
Max test voltage 2500 V 5 kV 5 kV 5 kV
Max insulation resistance 2.5 TΩ 1 TΩ 2 TΩ 5 TΩ
Voltage stepping (10% of range) Yes — Yes Yes
PI / DAR diagnostics PI PI PI / DAR PI / DAR
Capacitance measurement 2 µF — — 0.01–15 µF
Data storage 999 sets 18 sets 999 sets 999 sets
Bluetooth app — — — Yes
Safety rating CAT IV 600 V CAT III 600 V CAT IV 600 V CAT IV 600 V

Applications

Rotating-machinery winding insulation on motors and generators; transformer and switchgear maintenance; cable and feeder testing on medium-voltage runs; and panel and equipment commissioning where insulation has to be verified before energizing.

Frequently Asked Questions

What test voltages does the UT513B provide?

Five selectable steps: 250 V, 500 V, 1000 V, 2500 V, and 5000 V.

What do PI and DAR tell me?

Both are timed ratios that reveal moisture and contamination in insulation that a single resistance reading can miss.

How is the UT513B different from the UT513A and UT513C?

The UT513A is the basic 1 TΩ / CAT III model; the UT513B reads to 2 TΩ with stepped-voltage profiling at CAT IV; the UT513C extends to 5 TΩ and adds capacitance measurement and a Bluetooth app.

Warranty

This product includes a standard 1-year warranty covering manufacturing defects and component failures under normal use conditions.

UNI-T stands behind every product we sell. If you experience any issues within the warranty period, our US-based support team is here to help with troubleshooting, repair, or replacement.
