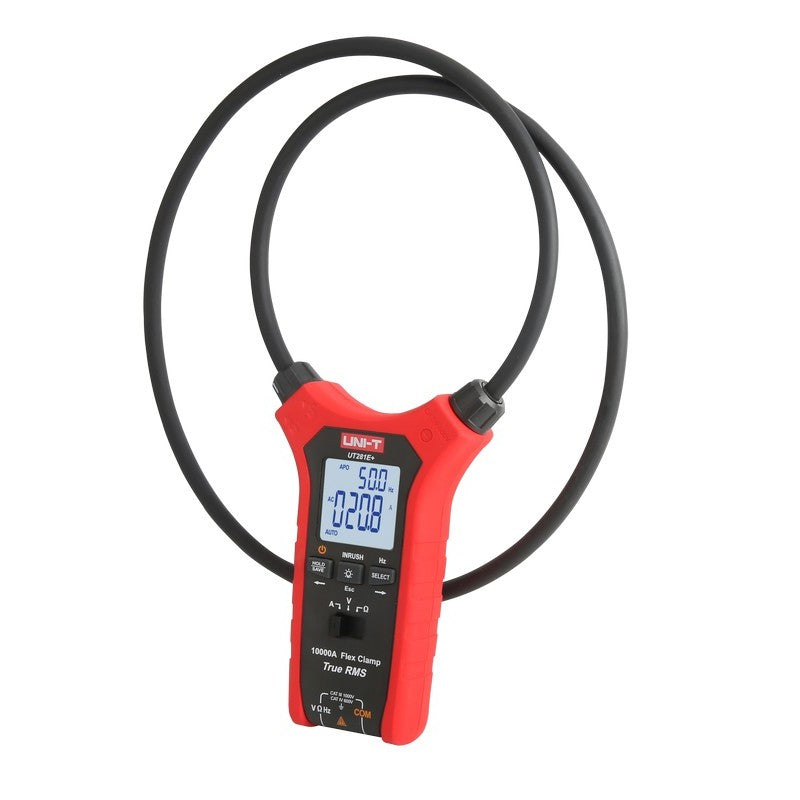

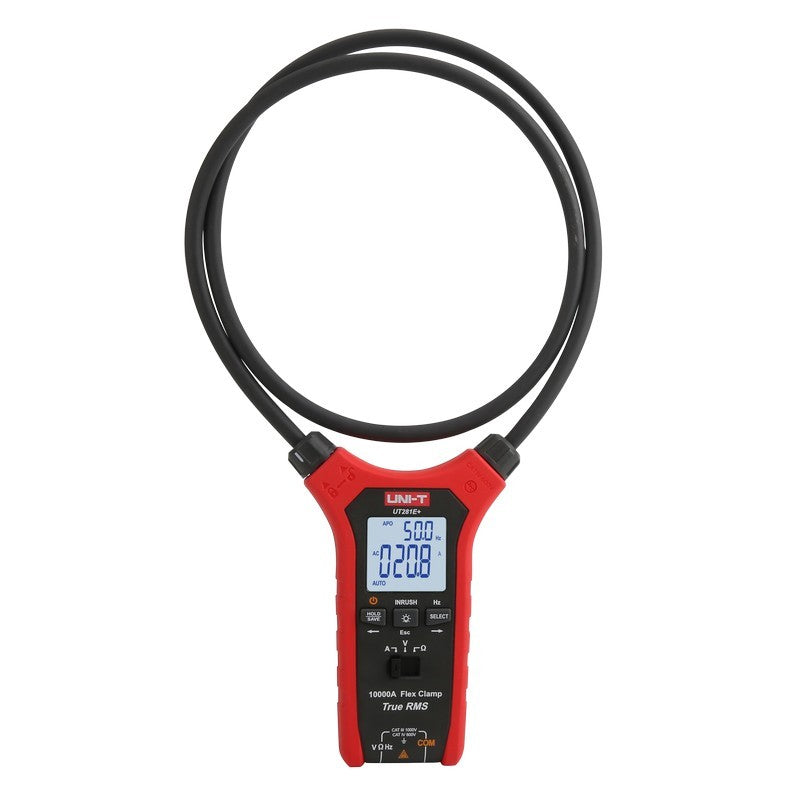

UT281E+

10,000A Flexible AC Current Meter

$199.00
Sale Contact Us For Lead Time
REQUEST A QUOTE

9.99kA flexible AC clamp meter, CAT III 1000V / CAT IV 600V. Reliable current measurement for electrical professionals.

View full details

UNI-T UT281E+ Flexible AC Current Clamp Meter

Overview

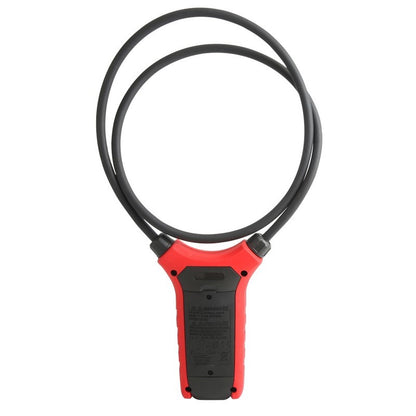

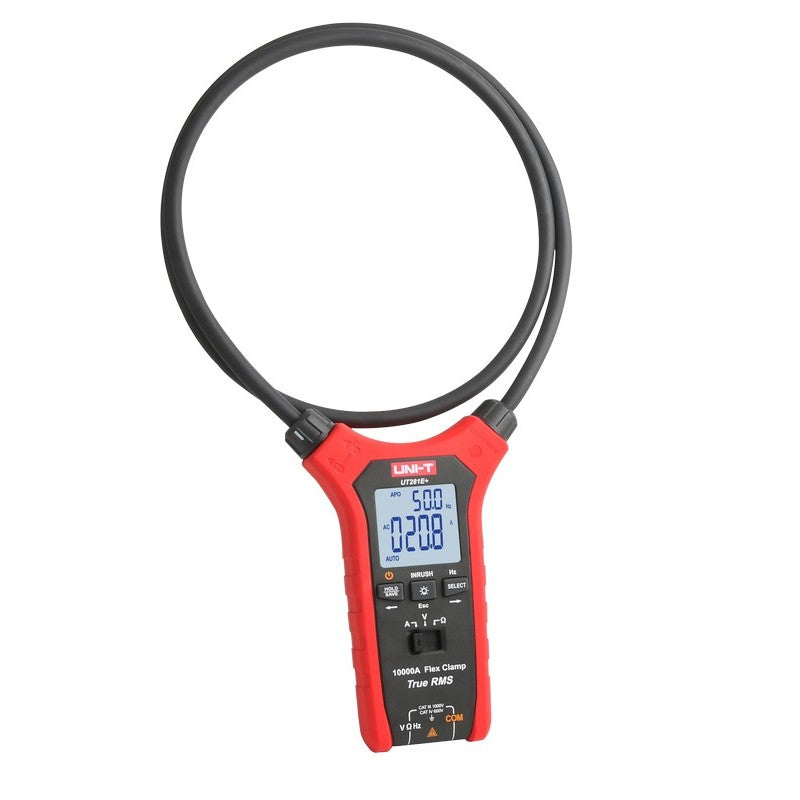

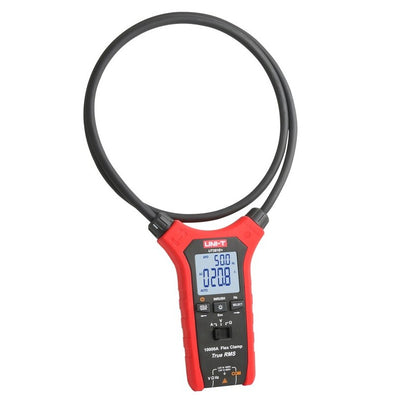

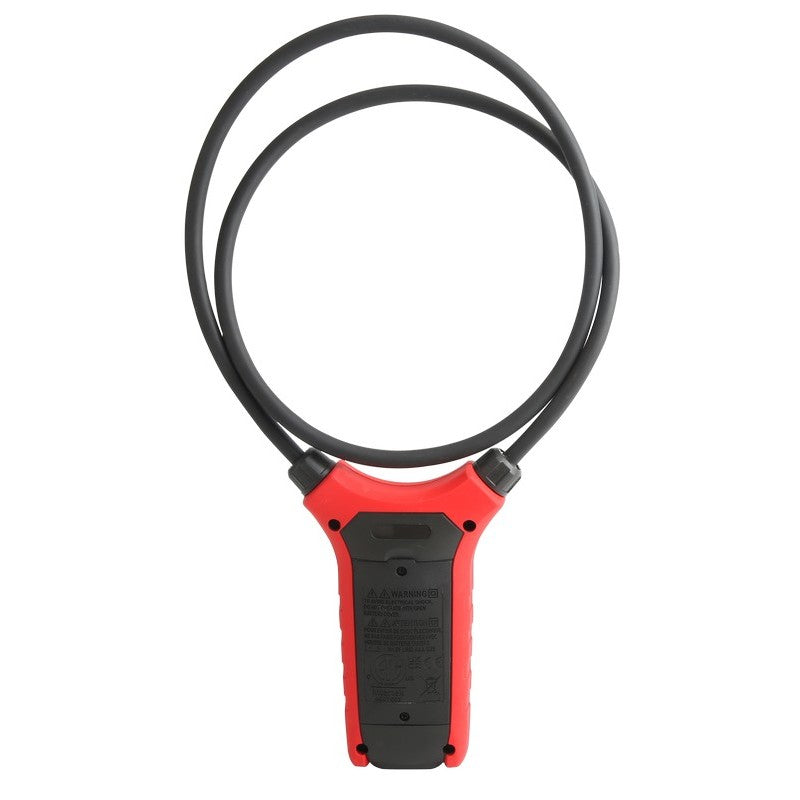

The UT281E+ uses a flexible coil instead of a rigid jaw, so it wraps around large or awkward conductors — busbars, cable bundles, tight gear — to measure AC current up to 9.99 kA. It's rated CAT III 1000 V / CAT IV 600 V and True-RMS, with inrush-current capture for motor and transformer start-up.

A dual display shows two values at once, voltage and resistance round out the electrical set, and 999 result sets store on-board. The 1000 mm flexible coil and AA-battery power keep it practical for utility and industrial feeder work. It's backed by UNI-T's nearly 40 years of test-meter manufacturing.

Key Features

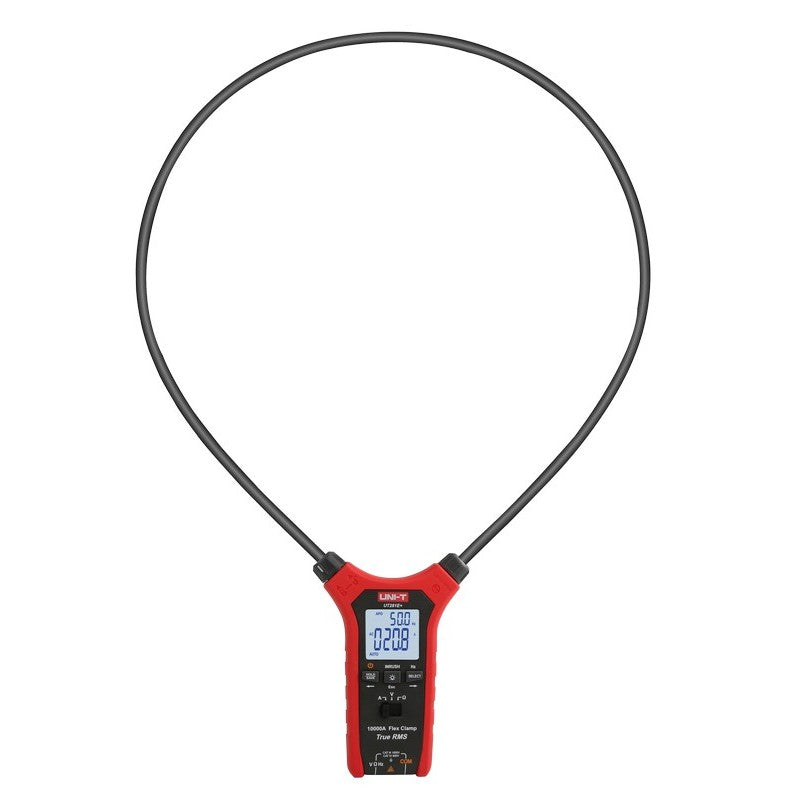

  • Flexible 1000 mm coil for large and awkward conductors
  • AC current up to 9.99 kA (10 Hz–1000 Hz)
  • True-RMS measurement
  • Inrush-current capture for motor and transformer start-up
  • AC/DC voltage to 1000 V; resistance to 60 MΩ; continuity
  • Dual display; 999-set data storage
  • CAT III 1000 V / CAT IV 600 V; AA battery power

UT281E+ Details

Flexible-Coil Current Measurement

A flexible coil wraps around conductors a rigid clamp can't reach — large busbars, cable bundles, and crowded switchgear — and measures AC current up to 9.99 kA, opening up high-current work in tight or oversized installations.

Inrush Capture & True-RMS

Inrush-current capture records the surge when motors and transformers start, and True-RMS sensing keeps AC accurate on distorted waveforms across the 10 Hz–1000 Hz measurement band.

Working Set & Storage

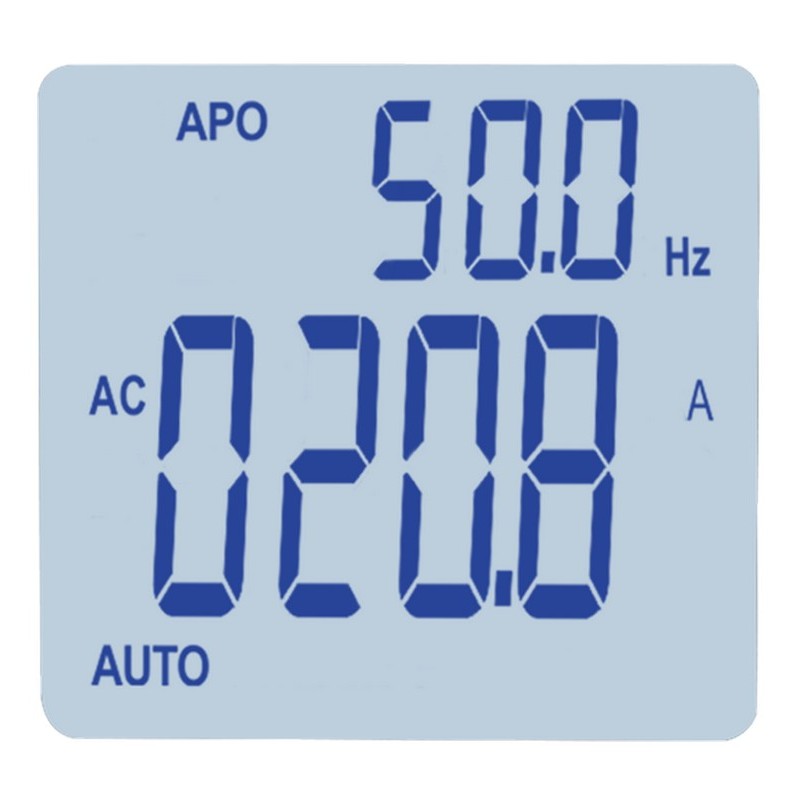

A dual display shows two readings at once, AC/DC voltage to 1000 V and resistance round out the electrical measurements, and 999 result sets store on-board for later review.

Compare the UT281 Series

UT281E+ UT281F
Max AC current 9.99 kA 10 kA
Inrush current Yes —
Power measurement — Active / apparent / reactive, PF, phase
Connectivity — Bluetooth 5.0
Data storage 999 sets 1050 sets
Jaw opening 1000 mm 1100 mm

Applications

High-current feeder and busbar measurement; motor and transformer start-up (inrush) testing; utility and industrial maintenance on large or awkward conductors; and switchgear work where a flexible coil reaches what a clamp cannot.

Frequently Asked Questions

Why a flexible coil instead of a clamp jaw?

A flexible coil wraps around large busbars, cable bundles, and conductors in tight gear that a rigid jaw can't fit around.

How much current can it measure?

AC current up to 9.99 kA.

How does it compare to the UT281F?

The UT281E+ measures current with inrush capture; the UT281F adds active/apparent/reactive power, power factor, and Bluetooth.

Warranty

This product includes a standard 1-year warranty covering manufacturing defects and component failures under normal use conditions.

UNI-T stands behind every product we sell. If you experience any issues within the warranty period, our US-based support team is here to help with troubleshooting, repair, or replacement.
