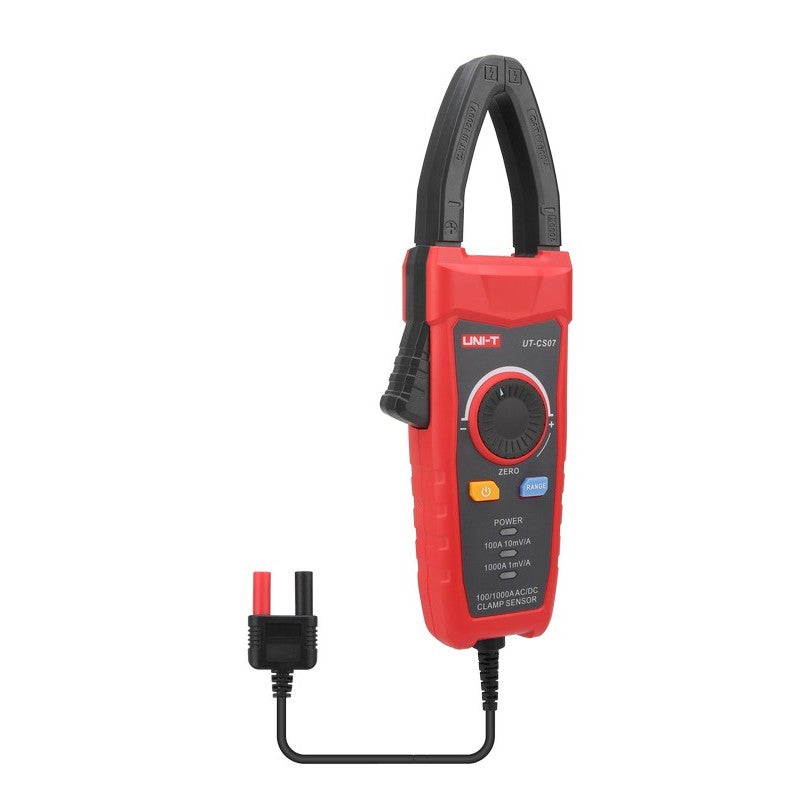

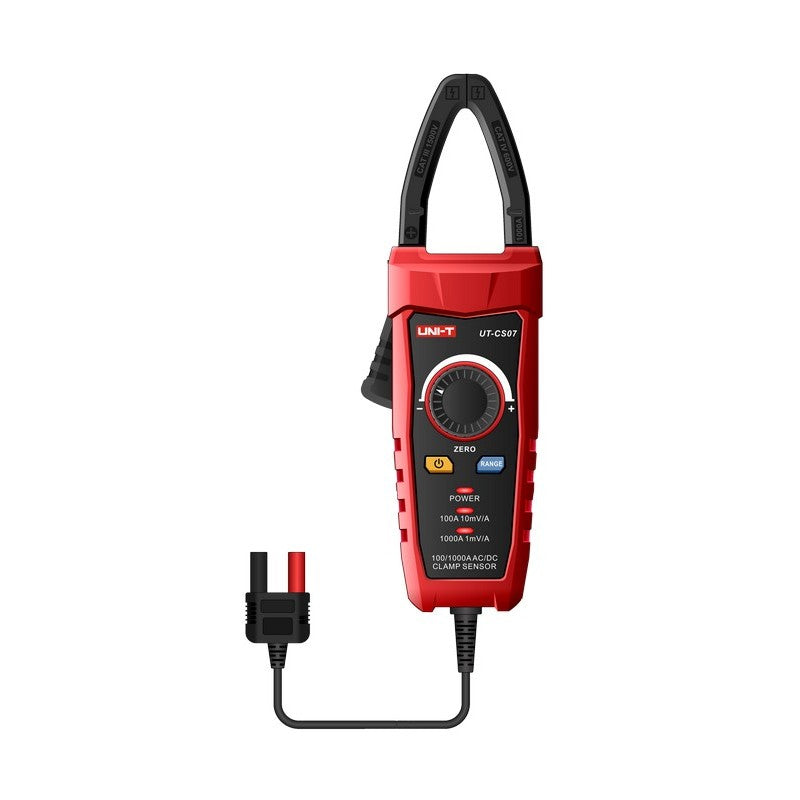

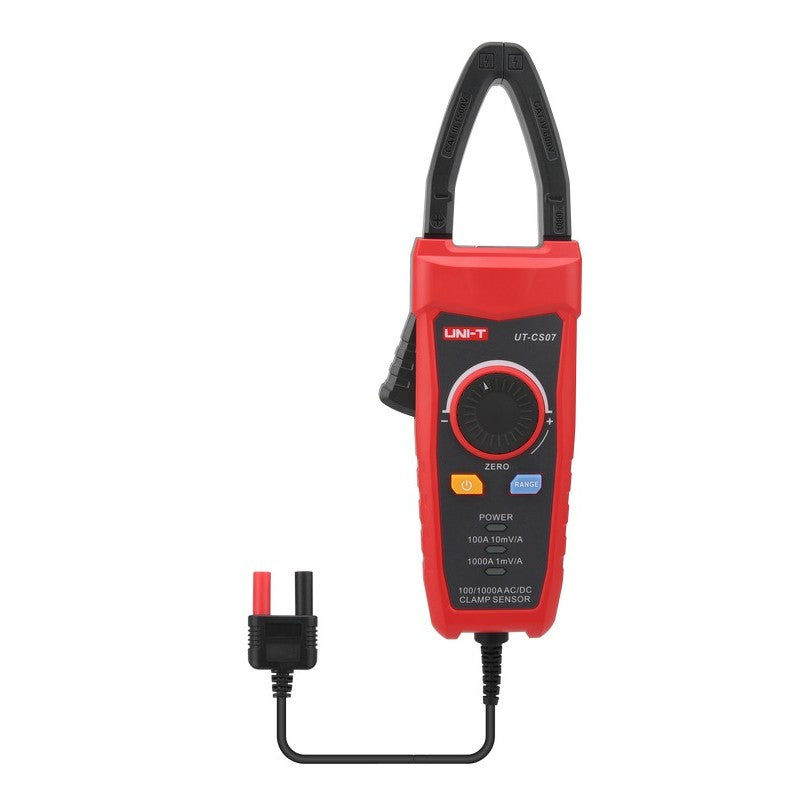

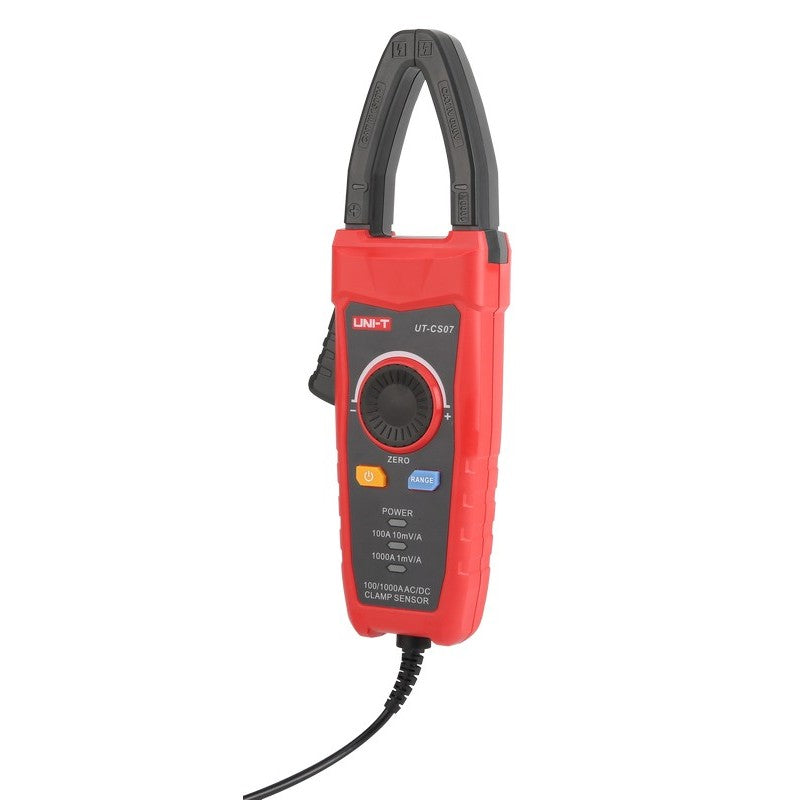

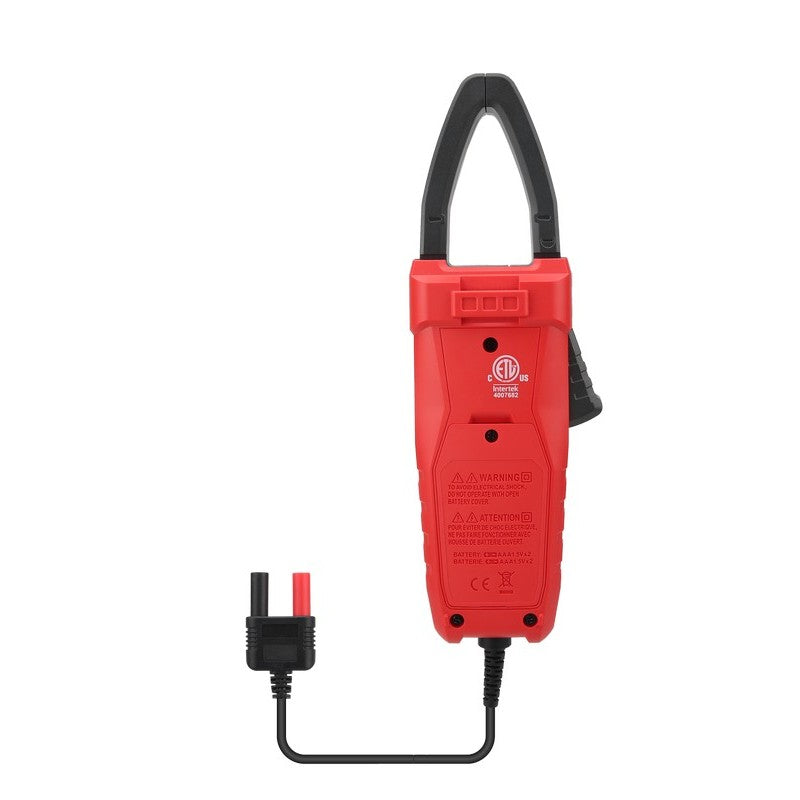

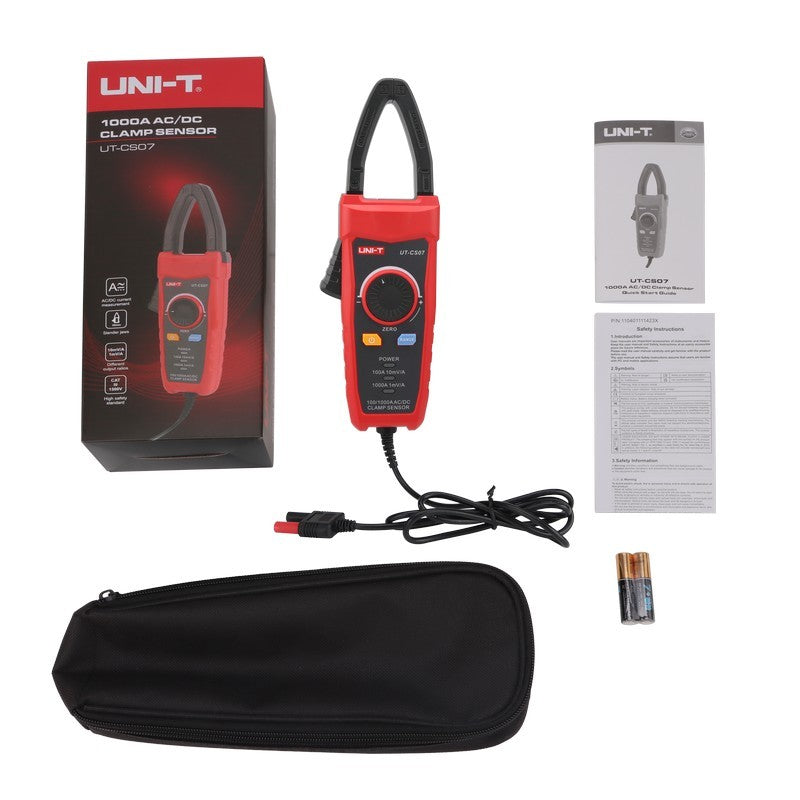

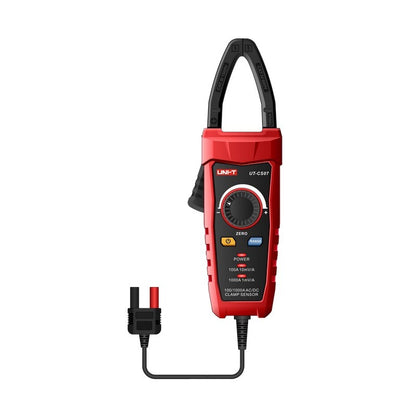

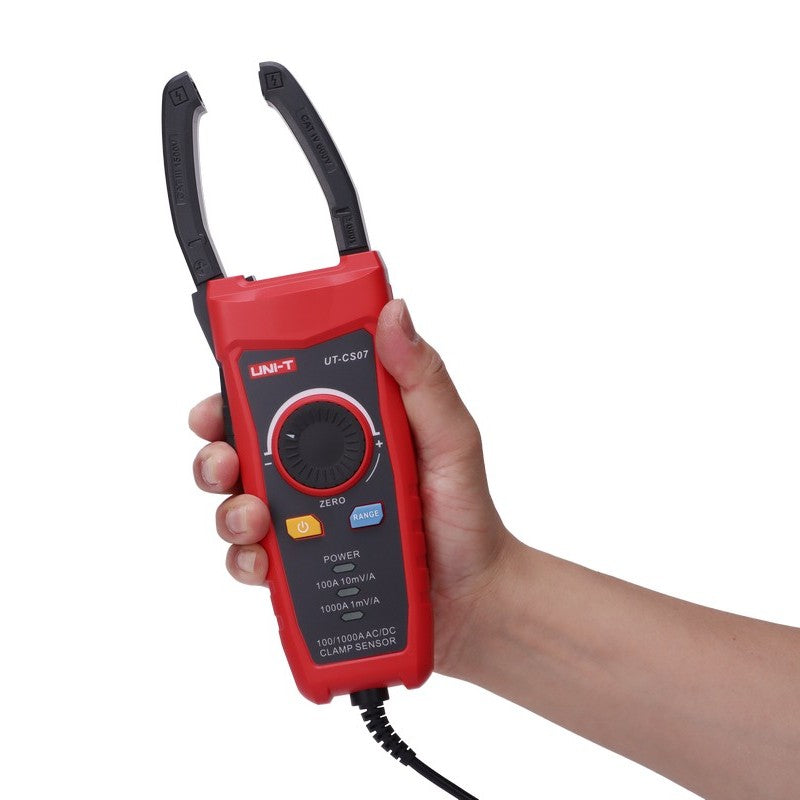

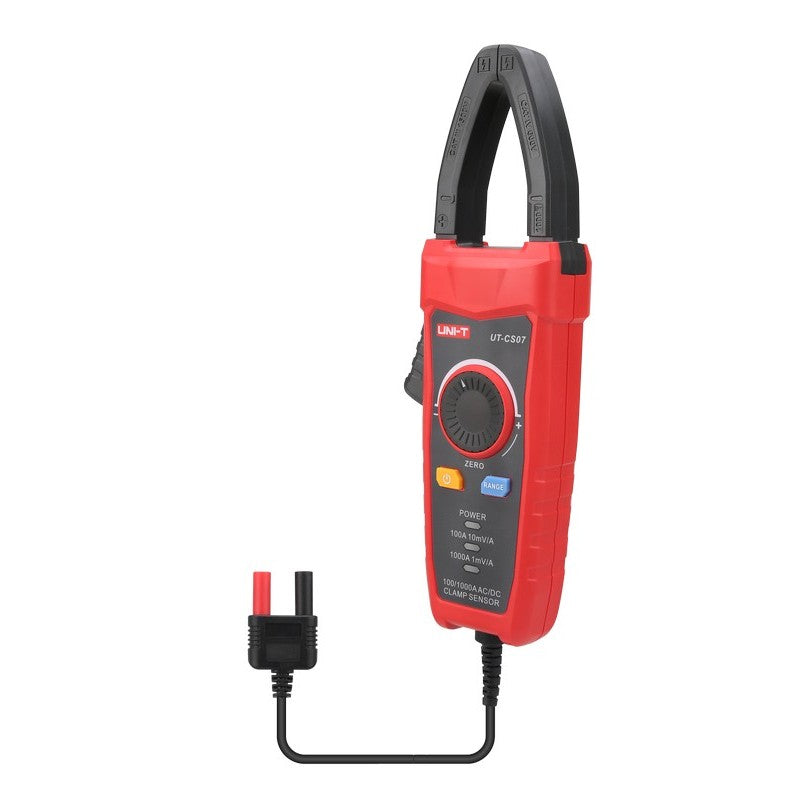

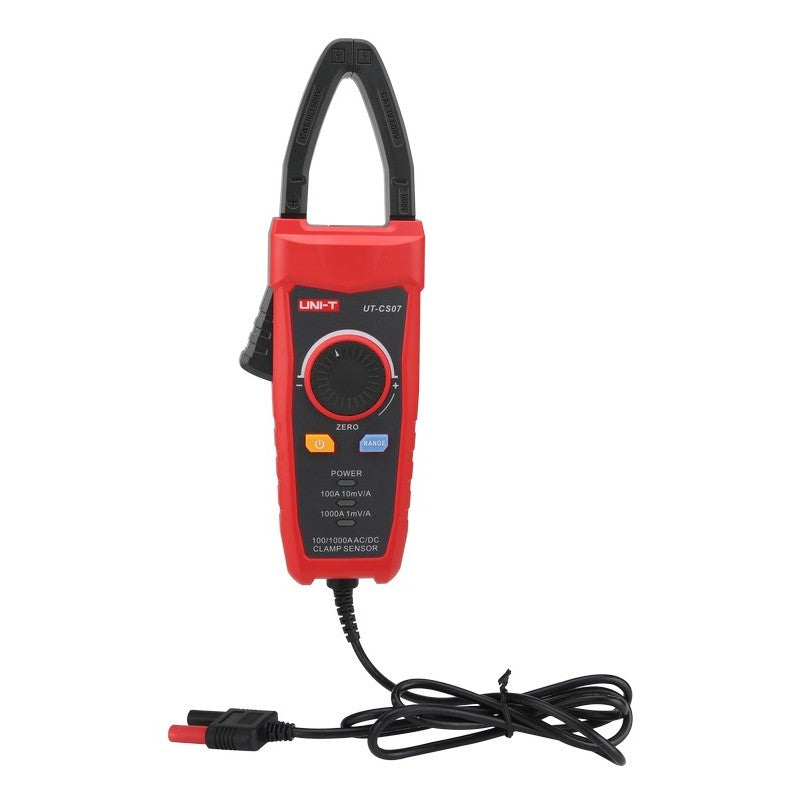

UT-CS07 1000A AC/DC Current Probe for DMMs
Overview
UT-CS07 1000A AC/DC Current Probe for DMMs. 1000A AC/DC current measurement, 50 Hz–400 Hz; CAT III 1500V/CAT IV 600V. For use with UNI-T multimeters and clamp meters.
Key Features

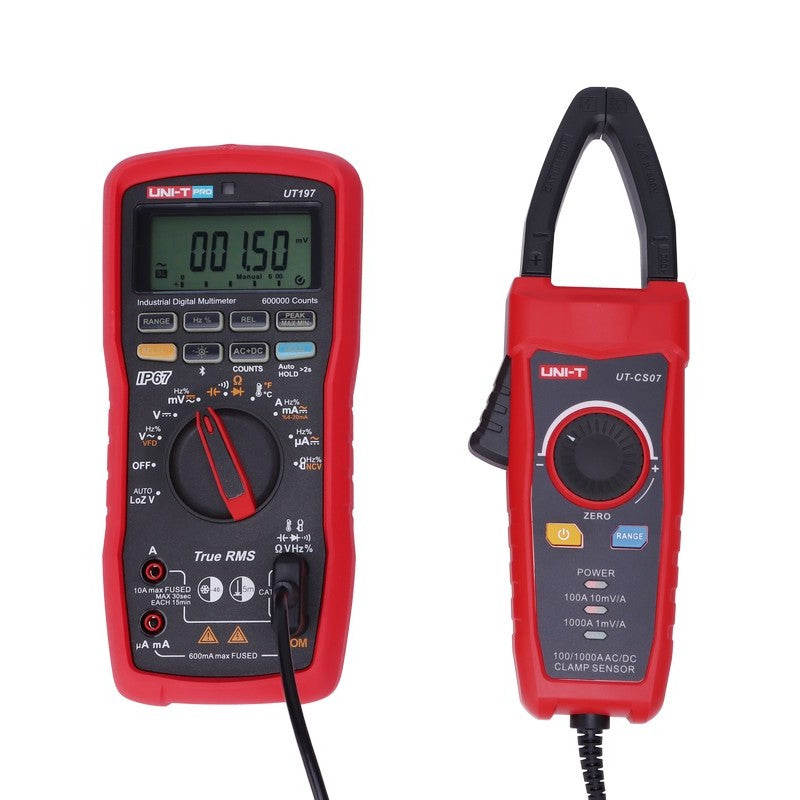

- Compatible with UNI-T multimeters and clamp meters — For use with UNI-T multimeters and clamp meters.
- Specifications — UNI-T UT-CS07 1000A AC/DC Current Clamp Sensor Professional Current Measurement Expansion for UNI-T Multimeters The UNI-T UT-CS07 is a high-reliability AC/DC current clamp sensor designed to expand the measurement capabilities of compatible digital multimeters.

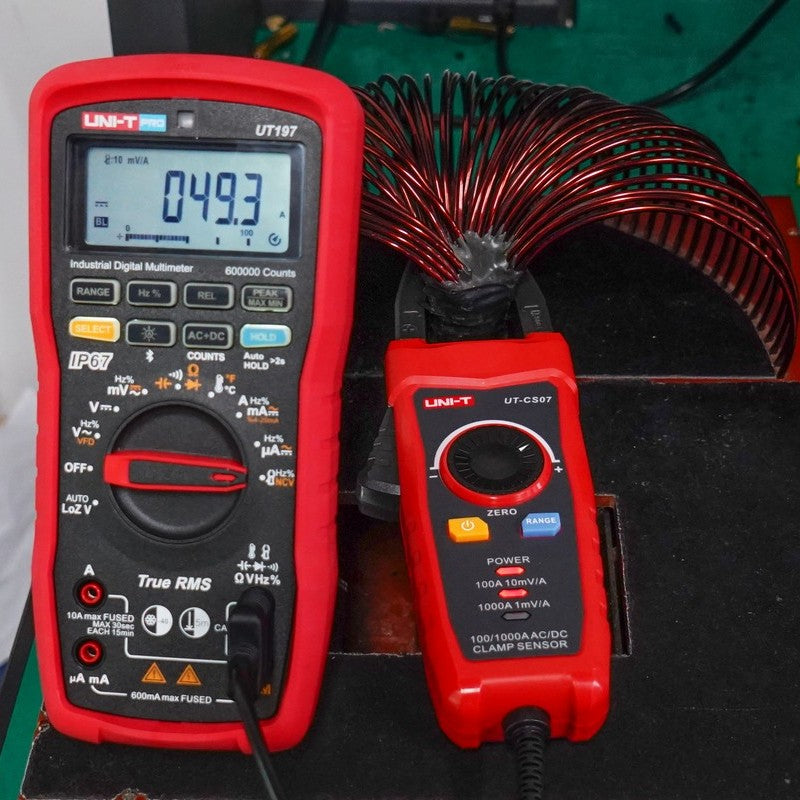

- Non-Invasive Current Measurement — Clamp-on design extends multimeter current measurement range without breaking the circuit.
Warranty
This product includes a standard 1-year warranty covering manufacturing defects and component failures under normal use conditions.
UNI-T stands behind every product we sell. If you experience any issues within the warranty period, our US-based support team is here to help with troubleshooting, repair, or replacement.
| Max Current | 1000A |
|---|---|
| Output Sensitivity | 1mV/A / 10mV/A |
| Instrument Type | Current Sensor |
Features
- Zero Function
- Low Battery Indication
Full specifications (14)
| Details | |
|---|---|
| Dc Accuracy | ±(1.5%+0.5A) at 100A; ±(2.0%+0.5A) at 1000A |
| AC Accuracy | ±(1.5%+0.5A) 45-200Hz at 100A; ±(2.0%+0.5A) 200-400Hz at 100A; ±(2.0%+0.5A) 45-200Hz at 1000A; ±(2.5%+0.5A) 200-400Hz at 1000A |
| Frequency Range | 50Hz - 400Hz |
| Max Conductor Size | 35mm / 65×8mm busbar |
| Cable Length | 1.1m |

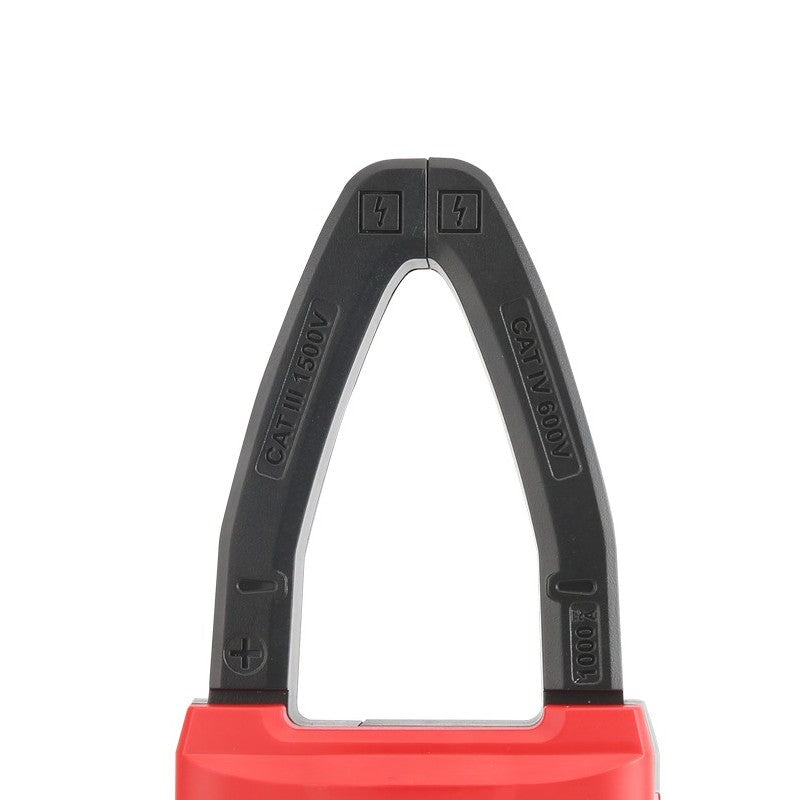

| CAT Rating | CAT III 1500V / CAT IV 600V |
| Input Protection | 1000A |
| Storage Temperature | -10°C - 50°C (<80%RH) |
| General Information | |
| Battery | 2×AA |
| Drop Rating | 1m |
| Operating Temperature | 0°C - 40°C (<75%RH) |
| Dimensions (W×H×D) | 276 × 86 × 50 mm |
| Warranty | 1 year |
| Certifications | CE, cETLus |
