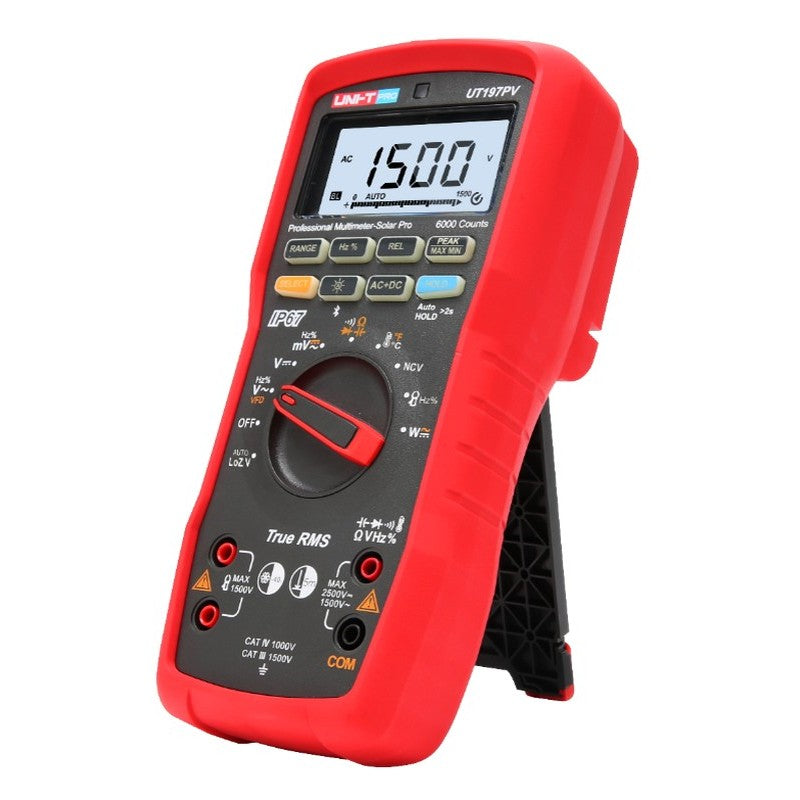

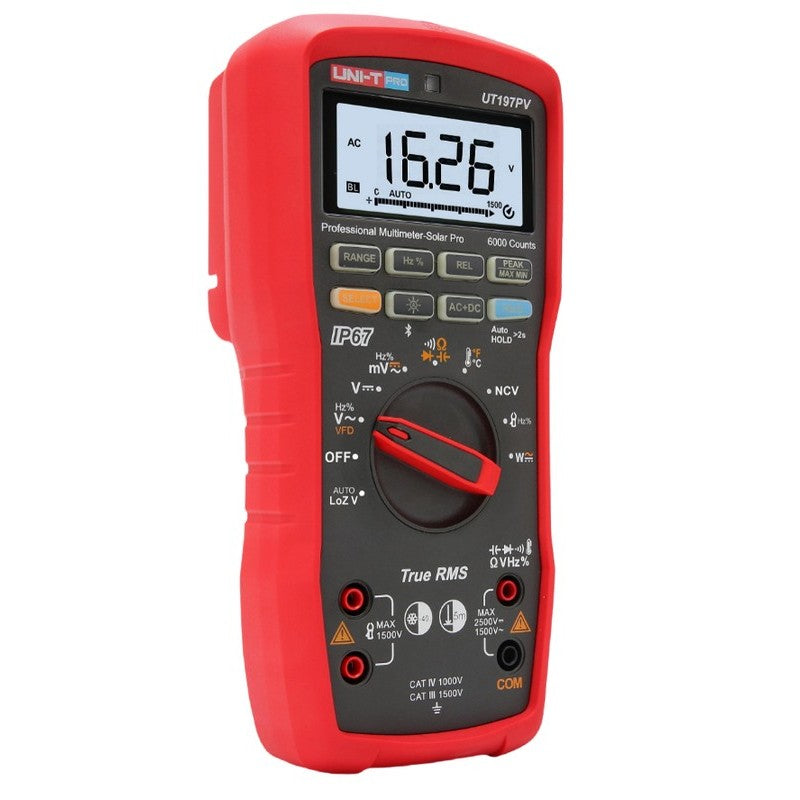

UT197PV

Solar Pro Industrial TRMS Digital Multimeter with Bluetooth

$440.00
Sale Contact Us For Lead Time

42 in stock

REQUEST A QUOTE

6000 count True RMS digital multimeter, CAT III 1500V/CAT IV 1000V. Reliable measurement tool for electrical professionals and technicians.

View full details

UNI-T UT197PV Solar PV True-RMS Multimeter

Overview

The UT197PV is the solar build of UNI-T's rugged True-RMS multimeter: rated CAT IV 1000 V / CAT III 1500 V, sealed to IP67, and rated for a 5 m drop, with voltage ranges raised to 2500 V DC and 1500 V AC for photovoltaic strings and combiners. It also measures power directly — active, apparent, and reactive, with power factor — so you can read load behaviour, not just volts and amps.

True-RMS sensing, a low-impedance mode, VFC/VFD mode, loop read, and a Bluetooth app cover the rest of the field set, with AC/DC current to 1000 A and combined AC+DC measurement. It's backed by UNI-T's nearly 40 years of test-meter manufacturing.

Key Features

  • Voltage ranges to 2500 V DC / 1500 V AC for PV systems
  • CAT IV 1000 V / CAT III 1500 V safety rating
  • Power measurement: active, apparent, reactive, and power factor
  • True-RMS; combined AC+DC; AC/DC current to 1000 A
  • IP67 sealing and 5 m drop protection
  • Low-impedance (LoZ) mode; VFC/VFD mode; loop read
  • Non-contact voltage (NCV) detection
  • Bluetooth app; relative, max/min, and peak-hold modes

UT197PV Details

PV Voltage Headroom

Raised ranges of 2500 V DC and 1500 V AC keep photovoltaic string and combiner measurements on-scale and within the meter's CAT IV 1000 V / CAT III 1500 V rating, where a standard 1000 V meter falls short.

Direct Power Measurement

Beyond volts and amps, the UT197PV reads active, apparent, and reactive power with power factor — useful for understanding inverter and load behaviour on a PV or industrial circuit without a separate power meter.

Built to Take Abuse

IP67 sealing and a 5 m drop rating handle rooftops and harsh outdoor sites, and True-RMS sensing keeps AC accurate on the distorted waveforms around inverters.

Field Tools & Connectivity

A low-impedance mode rejects ghost voltages, a VFC/VFD mode and loop read cover drive and process work, and a Bluetooth app captures readings to a phone.

Compare the UT197 Series

UT197 UT197PV
Max DC voltage 1000 V 2500 V
Max AC voltage 1000 V 1500 V
Power measurement — Active / apparent / reactive, PF
Safety rating CAT IV 1000 V CAT IV 1000 V / CAT III 1500 V
Focus General industrial Solar / PV

Applications

Solar PV installation, commissioning, and maintenance; string, combiner, and inverter measurement; power and power-factor checks on PV and industrial loads; and rugged outdoor electrical work.

Frequently Asked Questions

What makes the UT197PV a solar meter?

Raised voltage ranges (2500 V DC / 1500 V AC) for PV strings, plus built-in power measurement and CAT III 1500 V safety.

Does it measure power?

Yes — active, apparent, and reactive power with power factor.

How rugged is it?

CAT IV 1000 V / CAT III 1500 V, IP67-sealed, and rated for a 5 m drop.
