Design. Sourcing the bench supply for a SiC half-bridge characterization or EV charger DC-link emulator is the first commit. 600 W and 150 V at 1 mV / 0.1 mA resolution covers the operating envelope where wide-bandgap power electronics actually live, with the four-wire sense and slope-controlled startup that DUT-protective work requires from the first turn-on. Affordability meets precision: the UDP6953B replaces a far more expensive programmable supply for the same V/I/W envelope and resolution.

Debug. At validation, the 4½-digit DVM and 512-group list mode replace a second DMM and an external sequencer. Capture power-up profiles, automate efficiency sweeps, and record DUT-side voltage drift while sourcing — without leaving the supply's front panel or rebuilding the test harness.

Deploy. Production go/no-go testing runs over LAN with SCPI, Multi-SCPI, or Modbus RTU. The web server gives a shared bench remote access without a host-software install. RS-485 multi-machine networking scales the station as the throughput requirement does. From first prototype to production verification — design, debug, deploy.

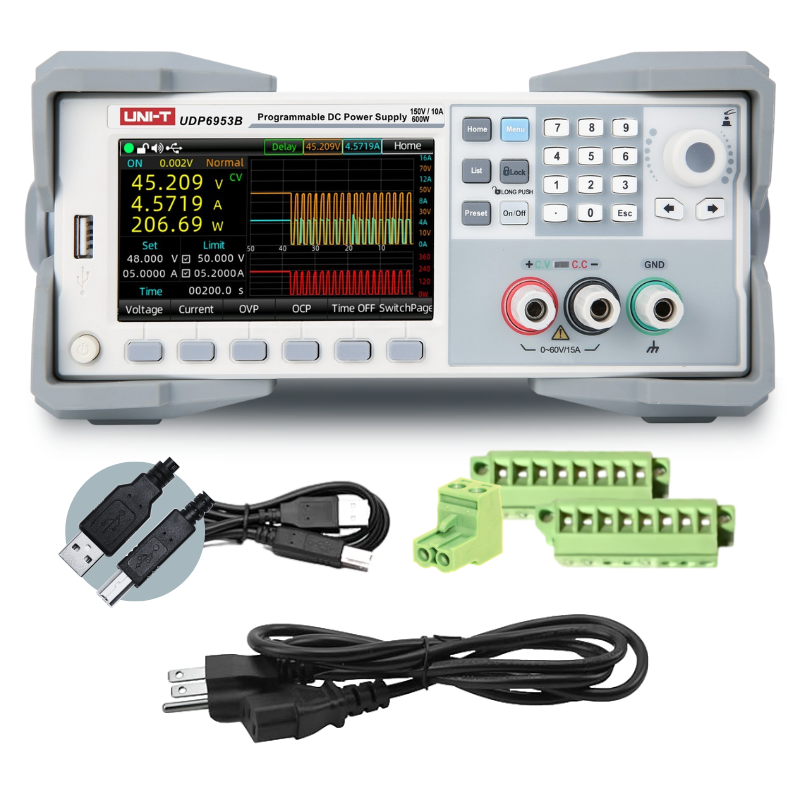

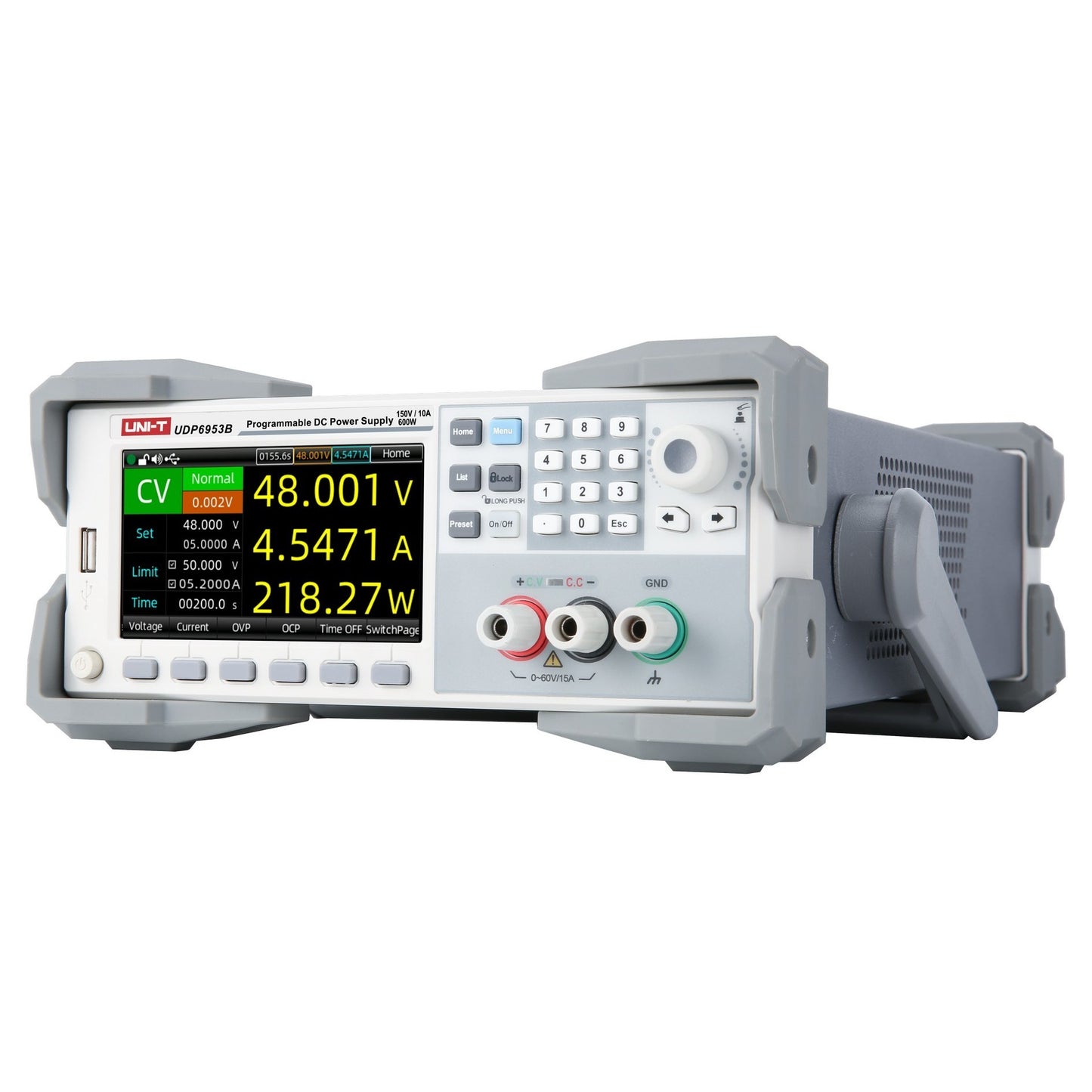

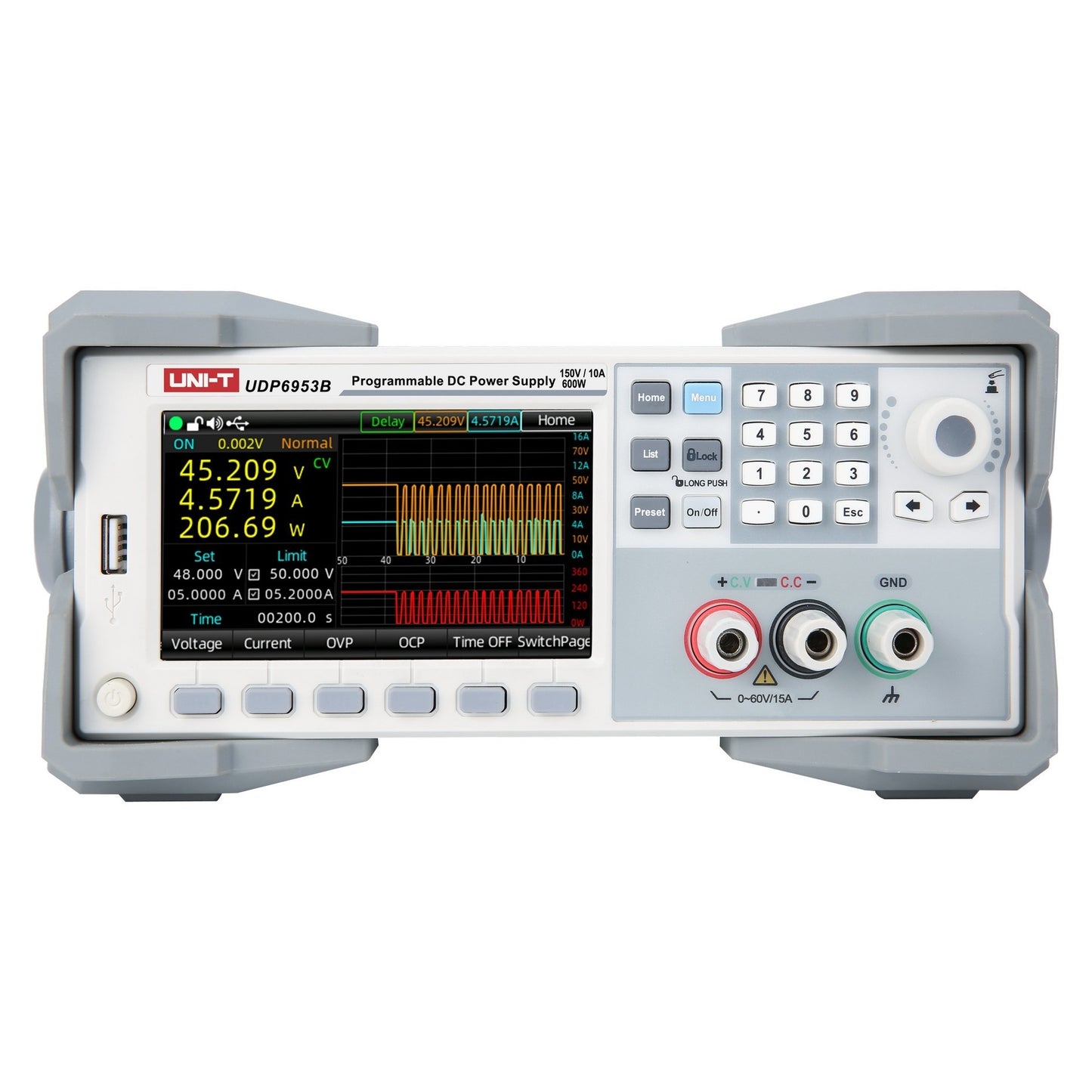

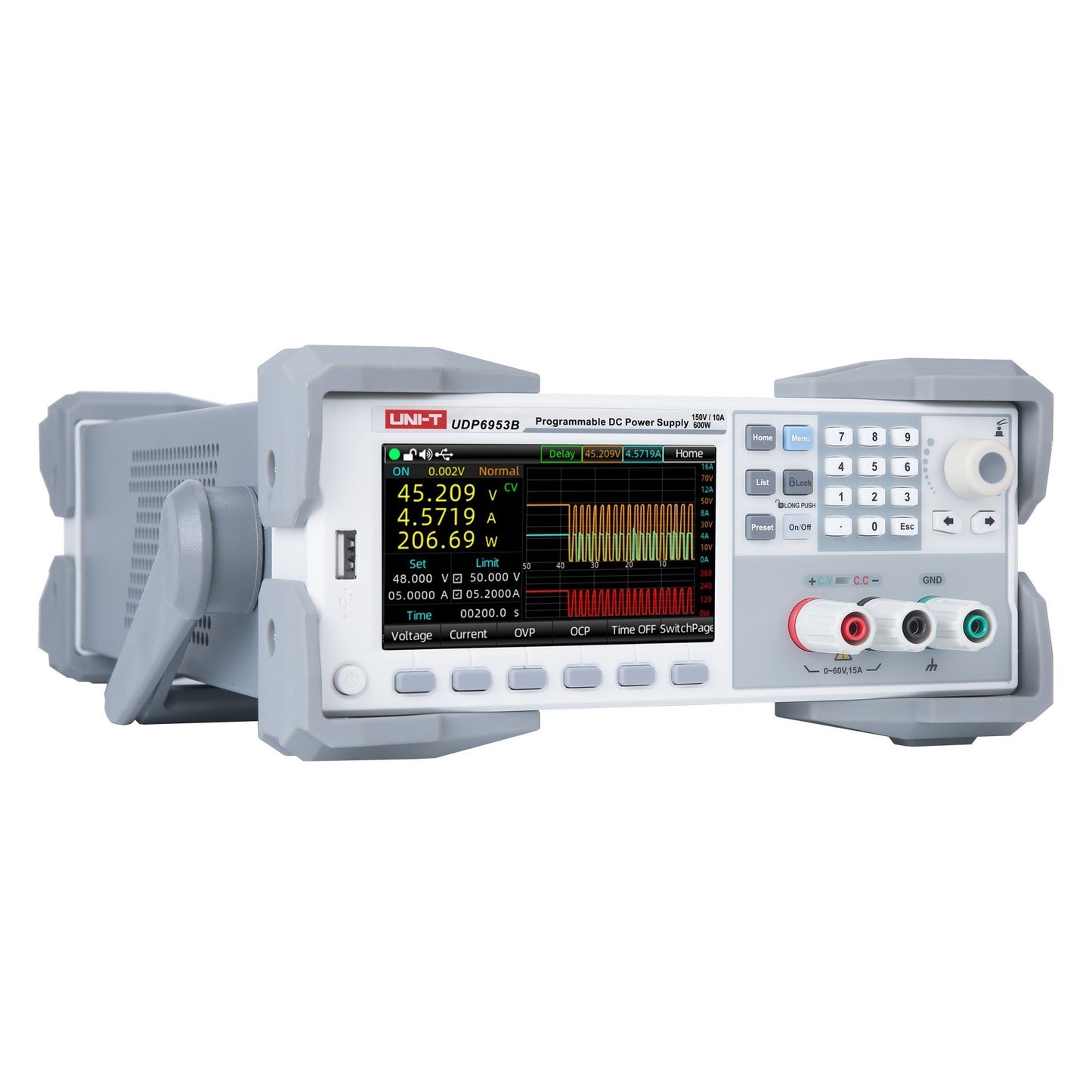

A 4.3-inch true color LCD shows set voltage and current alongside actual output values, with output power computed and displayed in real time. The numeric keypad sets values directly without menu diving; the rotary encoder fine-tunes when a small adjustment is faster than typing. Soft-keys map to the function actually in use — list mode, slope, OVP/OCP, or DVM — instead of burying them in nested menus. Output enable is a dedicated hardware button, always visible, never one click away from a keystroke mistake.

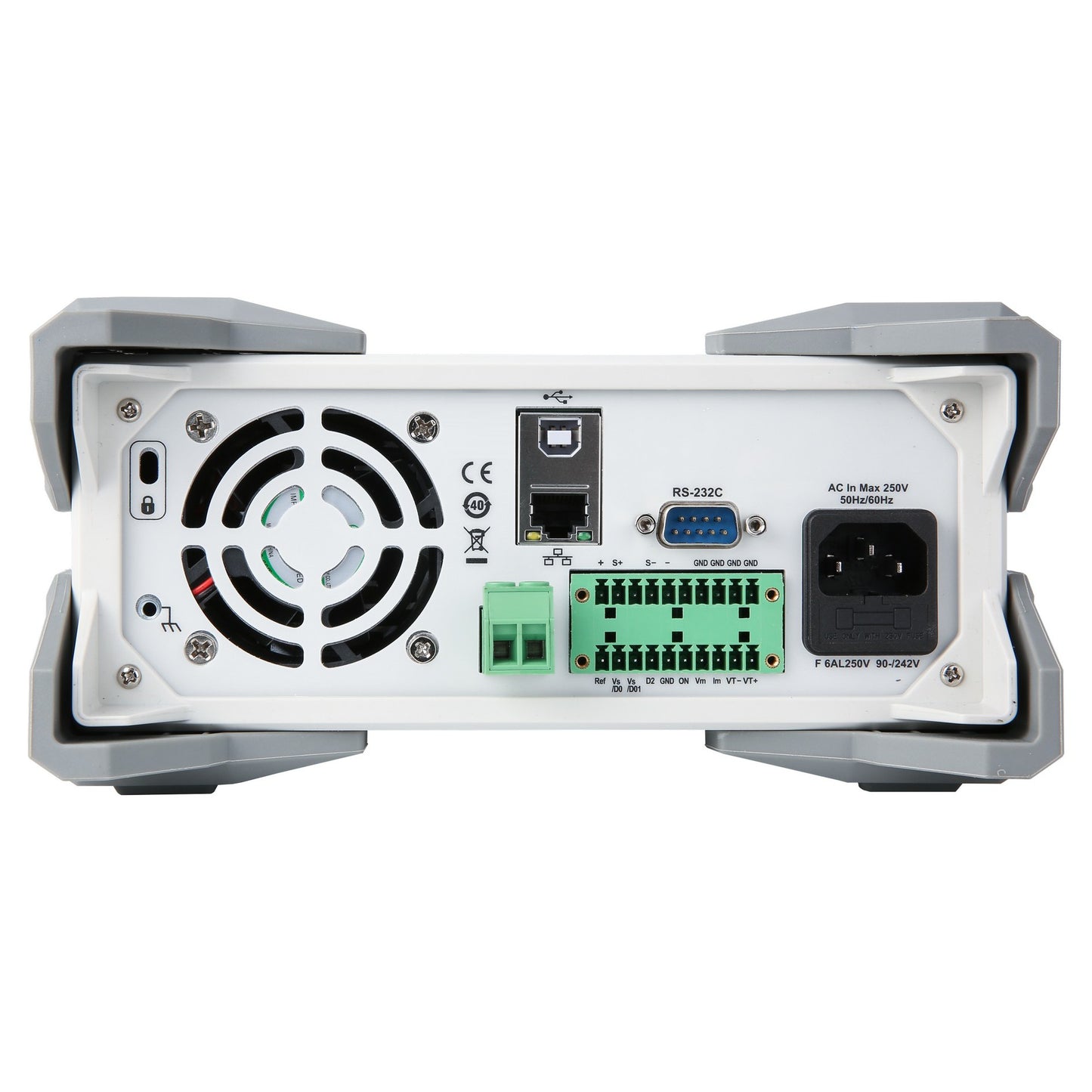

Long test leads drop voltage. At higher currents, the drop is no longer a rounding error — a 10 A draw across a meter of 16 AWG returns roughly 50 mV less to the load than the supply set. The UDP6900 series corrects for this with four-wire remote sense: connect the output's + and − terminals to the load through the current-carrying leads, then run a separate pair from S+ and S− directly to the device under test. The supply servo's regulation point shifts from its own terminals to the load's terminals — and the 1 V SENSE compensation headroom keeps the rail accurate where it actually matters.

Independent over-voltage and over-current thresholds, both set from the front panel. When either limit trips, the supply latches output off and posts the trigger on the LCD — the kind of unambiguous fault state that matters when a DUT failure during overnight characterization could otherwise damage hardware or lose a test run. Thresholds persist across power cycles and survive front-panel lock for unattended operation.

List mode programs up to 512 voltage/current/time groups, executed in sequence — essential at 600 W and 150 V for SiC half-bridge characterization (where DUT-stress profiles walk through bus-voltage steps at controlled timing), for EV charger DC-link emulation across charge-cycle profiles, and for high-power dielectric withstand sequencing. The delay function programs output on/off sequencing for high-power cycling tests. Files save to Flash or USB in .lst.csv and .dly.csv formats — Excel-editable.

At 600 W into a 150 V rail, an uncontrolled rise into a capacitive load is the kind of event that ends test runs — and possibly DUTs. Three configurable slope modes prevent it. Normal mode steps directly to the set value when speed matters. Voltage Slope (VSR) ramps voltage at a configurable rate per second, controlling inrush into bulk caps and EV-class DC-link emulators. Current Slope (ISR) does the same for current — essential when characterizing SiC half-bridges where dV/dt at startup determines whether the gate driver rings or sits clean. Soft-start at a known rate, every time.

Across the full 600 W envelope, the UDP6953B reconfigures from 150 V at 4 A — for high-voltage stress testing of SiC gate drivers and PV inverter input stages — down to 10 A at 60 V for low-voltage SiC half-bridge characterization, all from one instrument. Auto-range output is controlled by the rated power envelope, not by hardware range switching, which means a single supply replaces what most labs run as two: a high-voltage low-current rail and a lower-voltage higher-current rail.

A built-in 4½-digit voltmeter measures DC voltage on a separate rear-panel pair, displayed alongside the supply's own readbacks on the LCD. For a two-rail bench scenario — measuring the load's regulated DC at the same time the supply is sourcing it — the DVM eliminates a second instrument. Range is 0.001–65.000 V on the 60 V models, up to 160 V on the UDP6933B and UDP6953B.

The main menu structure is shallow by design. Five top-level sections — Monitor, System Settings, User Group, Output Settings, Language — each one or two presses from the front panel. Monitor displays live V/I/P/DVM with per-channel alarms when set conditions deviate. Output Settings configure operating mode, power-up output, and slope. System Settings hold backlight, sound, RS-232/network, and a factory-default restore. The menu hierarchy never exceeds two levels — depth defeats front-panel work, and the UDP6900 doesn't ask the operator to memorize trees.

The UDP6900 series ships with free PC control software — UNI-T's UDP9000 host application, common across the programmable PSU line. Set voltage and current remotely, log readbacks to disk, sequence list and delay programs, and automate complete characterization runs without writing a SCPI parser. For scripted environments, the supply speaks SCPI, Multi-SCPI, and Modbus RTU natively over USB-Device, RS-232, RS-485, or LAN — pick the bus that fits the test station.

RS-485 networking links multiple UDP6900 supplies to a single host. Master/slave configurations enable series-stack for higher voltage or parallel-stack for higher current — useful for multi-rail bench setups or when a single test station needs more total power than one chassis provides. One SCPI session, many supplies, synchronized output.
