MSO3054HD | 500 MHz 4Ch 12-Bit Mixed Signal Oscilloscope

Name: MSO3054HD | 500 MHz 4Ch 12-Bit Mixed Signal Oscilloscope
Brand: UNI-T
SKU: 181100300072X
Price: 3899.0 USD
Availability: InStock

$3,899.00

Sale Sold out

Shipping calculated at checkout.

41 in stock

Quantity

12-bit 500 MHz 4-channel mixed signal oscilloscope with 2.5 GSa/s sample rate, 500 Mpts memory depth. Nine-in-one benchtop platform for embedded developers.

View full details

MSO3054HD | 500 MHz 4Ch 12-Bit Mixed Signal Oscilloscope

Overview

The MSO3054HD is a 500 MHz 4-channel 12-bit bench oscilloscope with a 10.1-inch capacitive touchscreen. It samples at 2.5 GSa/s with 500 Mpts memory depth and captures waveforms at up to 1,500,000 wfms/s using Ultra Phosphor 3.0 display technology. The 12-bit ADC provides 16× greater vertical resolution than conventional 8-bit oscilloscopes — a significant advantage for resolving small signals, measuring power supply ripple, and characterizing precision analog circuits.

RS-232, UART, I²C, SPI, RS-422, RS-485 decoding is included standard. Additional protocols (CAN, CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester) are available as optional licenses.

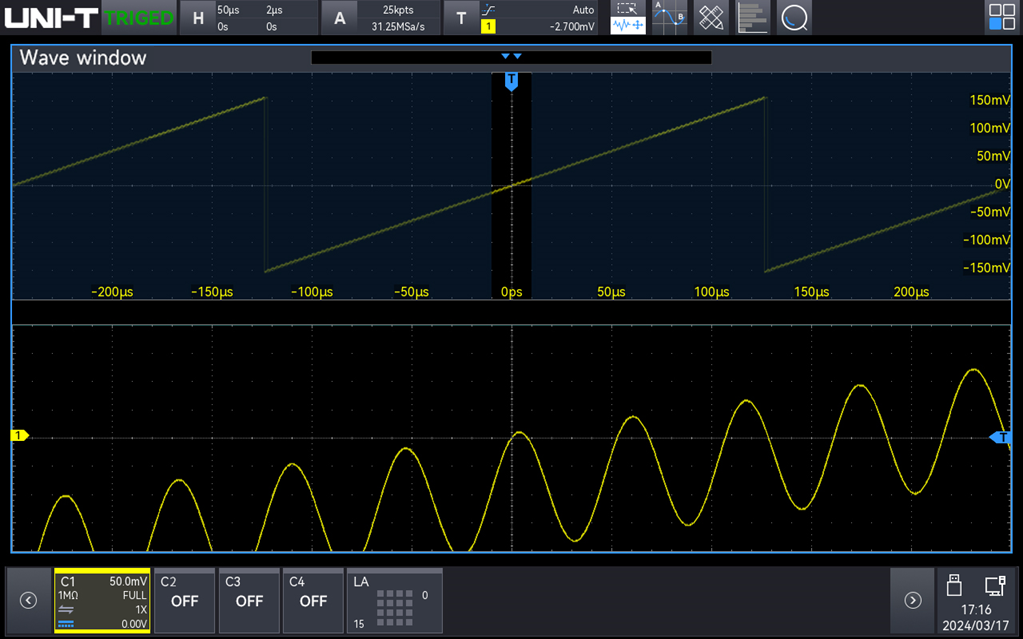

MSO3000HD 12-bit enhanced resolution — 12-bit ADC with ERES mode for up to 16-bit effective resolution

Key Features

500 MHz Bandwidth, 4 Channels — 4-channel capture with 2.5 GSa/s sample rate and 12-bit vertical resolution.
500 Mpts Memory Depth — Deep memory for extended signal capture without reducing sample rate.
1,500,000 wfms/s Capture Rate — Ultra Phosphor 3.0 intensity-graded display reveals rare anomalies.
12-Bit ADC Resolution — 16× greater vertical detail than 8-bit instruments for precision analog measurement.
Included Protocol Decoding — RS-232, UART, I²C, SPI, RS-422, RS-485 included standard.
Optional Protocols — CAN, CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester.
Optional AWG — Add a 25 MHz arbitrary waveform generator for stimulus-response testing and Bode plot analysis.
Optional Logic Analyzer — Add 16 digital channels with the UT-M15 logic probe pod.
54 Automated Measurements — Comprehensive waveform characterization with statistics.
10.1-inch Capacitive Touchscreen — Multi-gesture navigation for efficient operation.

Ultra Phosphor 3.0 High-Speed Capture

The 1,500,000 wfms/s capture rate combined with Ultra Phosphor 3.0 intensity grading reveals rare signal anomalies that slower scopes miss. The 12-bit ADC provides 16× greater vertical detail than 8-bit instruments, making it possible to see small signals riding on large ones — critical for power supply ripple analysis, sensor signal conditioning, and precision analog design.

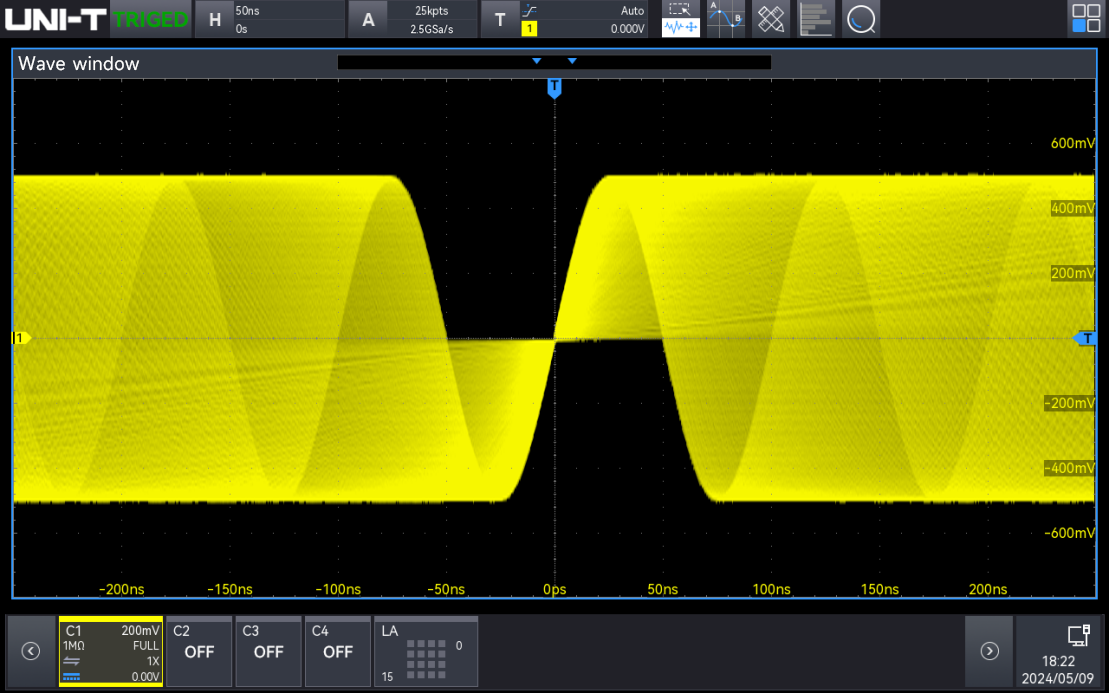

Ultra Phosphor 3.0 display — Ultra Phosphor 3.0 with 1,500,000 wfms/s capture

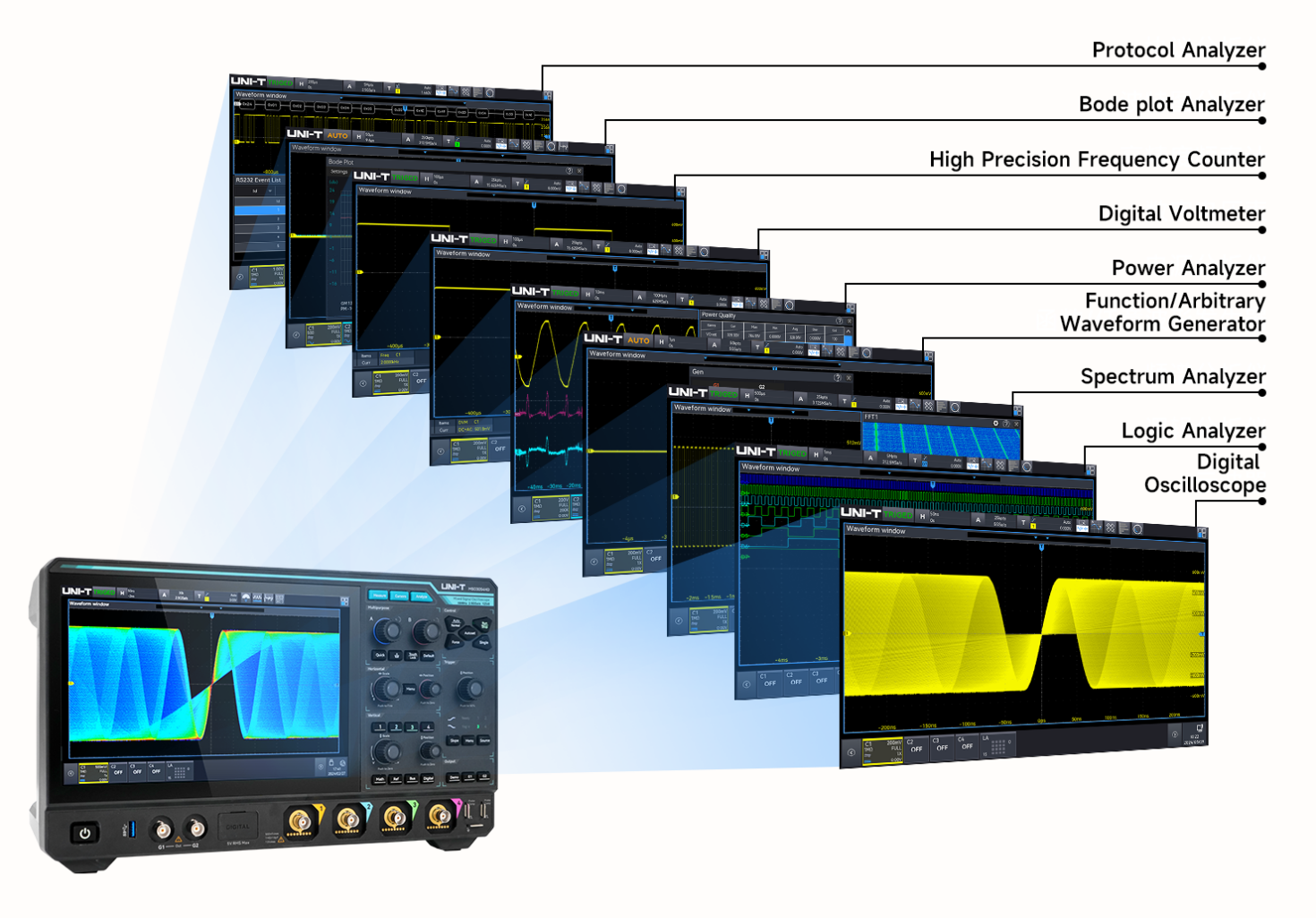

MSO3000HD nine-in-one platform — Nine integrated instruments in one platform

Nine-in-One Instrument Integration

The MSO3000HD integrates oscilloscope, spectrum analyzer, protocol analyzer, arbitrary waveform generator, digital voltmeter, frequency counter, Bode plot analyzer, power analyzer, and pattern generator into a single instrument. This consolidation reduces bench footprint, cabling complexity, and equipment cost while maintaining measurement correlation between functions.

Protocol Analysis and Decoding

Embedded serial protocols (RS-232, UART, I²C, SPI, RS-422, RS-485) are included standard. Automotive and aerospace protocols (CAN, CAN-FD, FlexRay, SENT, MIL-STD-1553, ARINC 429, Manchester) are available as optional licenses. Decoded frames display directly on the waveform with field-level annotation.

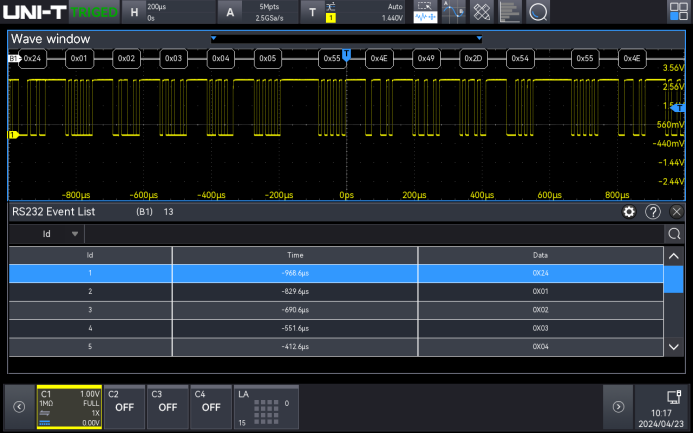

MSO3000HD protocol decoding — Serial bus decode with waveform-correlated display

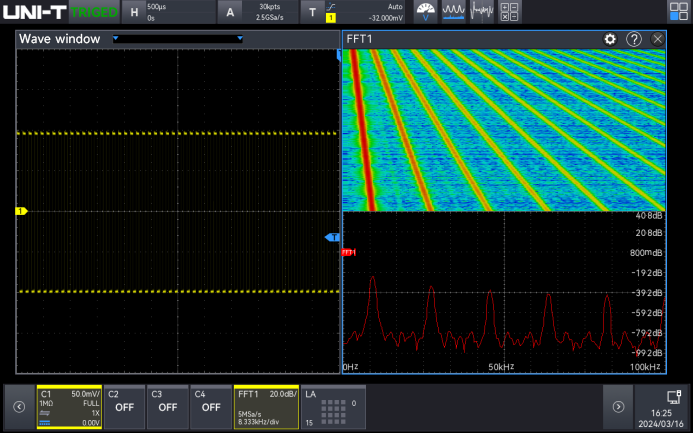

MSO3000HD spectrum analyzer — Built-in spectrum analyzer with peak table

Built-In Spectrum Analyzer

Switch to frequency domain analysis at the push of a button. The spectrum analyzer provides FFT-based spectral measurement with peak detection, markers, and channel power calculations for EMI troubleshooting, harmonic analysis, and signal purity verification.

Professional Applications

Embedded Systems Development — 12-bit resolution and included protocol decoding for debugging mixed-signal circuits with simultaneous analog and digital analysis.
Power Electronics — Characterize switching waveforms with high vertical resolution. Built-in or optional power analysis for efficiency, SOA, and harmonics measurement.
Multi-Channel Signal Analysis — Four channels for simultaneous capture of input, output, reference, and feedback signals in complex circuits.
Education and Research — 12-bit resolution and comprehensive protocol support provide a professional-grade learning platform.

Frequently Asked Questions

What protocols are included?

RS-232, UART, I²C, SPI, RS-422, RS-485 are included at no additional cost. CAN, CAN-FD, FlexRay, SENT, Audio, MIL-STD-1553, ARINC 429, Manchester are available as optional licenses.

What is the advantage of 12-bit resolution?

A 12-bit ADC provides 4,096 vertical levels compared to 256 for 8-bit scopes — 16× greater detail. This reveals small signals riding on large ones, reduces quantization noise, and improves measurement accuracy on low-amplitude signals like power supply ripple, sensor outputs, and precision analog circuits.

Can I add digital channels?

Yes. The UT-M15 logic probe pod adds 16 digital channels for mixed-signal debugging with time-correlated analog and digital views.

Can I add an AWG?

The AWG is available as an optional software license. Once activated, it provides dual-channel 25 MHz output.

Part of the MSO3000HD oscilloscope series. See the series page to compare bandwidth and channel options across the lineup.

Warranty

This instrument is backed by UNI-T's 3+2 Year Warranty — 3 years of standard coverage, plus 2 additional years free when you register your product. That's 5 years of total protection at no extra cost.

The warranty covers manufacturing defects and component failures under normal use conditions. UNI-T instruments are built for professional daily use, and our warranty reflects that commitment to long-term reliability.
