Buyer's Guide: Choosing the Right Portable LCR Meter

Understanding LCR Meter Fundamentals

An LCR meter measures inductance (L), capacitance (C), and resistance (R) - the three fundamental passive electrical components. For engineers, technicians, and quality control professionals working outside the lab environment, a handheld LCR meter provides the mobility and speed required for component testing, incoming inspection, and troubleshooting across diverse industrial applications.

Key Selection Criteria for Field-Grade LCR Meters

1. Test Frequency Range

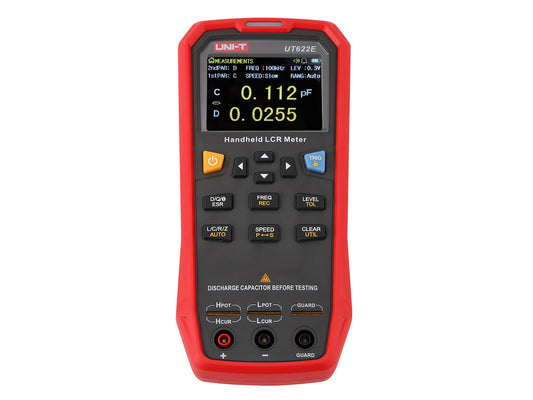

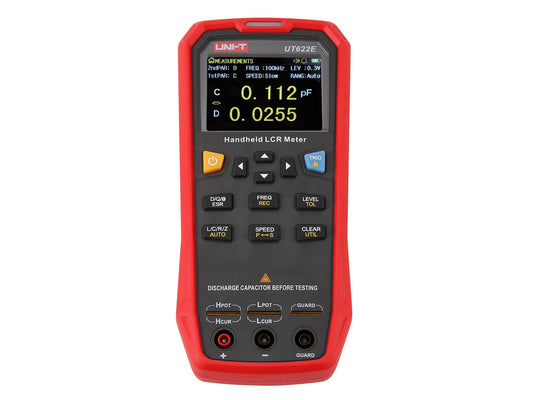

The UT622 series offers strategic frequency options:

UT622A: Four frequencies (100Hz, 120Hz, 1kHz, 10kHz) - ideal for general component testing
UT622C: Five frequencies (adds 100kHz) - suitable for high-frequency capacitor evaluation
UT622E: Five frequencies plus DCR testing - essential for inductor and transformer quality control

Most capacitance measurement applications require 1kHz or 120Hz testing, while inductance testing benefits from 100Hz to 10kHz ranges. The 100kHz option enables accurate ESR (Equivalent Series Resistance) measurement critical for aluminum electrolytic capacitor screening.

2. Measurement Parameters

All UT622 models measure primary parameters (L, C, R, Z) and secondary parameters (D, Q, θ, ESR). The UT622E adds DCR (DC Resistance) measurement with a dedicated high-speed test mode - invaluable for power inductor manufacturing and motor winding inspection where DC resistance directly impacts efficiency and performance.

3. Accuracy and Resolution

With 0.1% basic accuracy and 0.0001 resolution, the UT622 series delivers measurement precision previously available only in benchtop instruments. This accuracy level ensures reliable component sorting, production quality control, and incoming inspection across tolerance ranges from 1% to 20%.

4. Test Speed and Throughput

UT622A/C: Fast mode at 20 times/second
UT622E: Ultra-fast mode at 20 times/second for standard testing, optimized speed for DCR measurements

High-speed portable LCR testing enables efficient production line component screening, reducing test time by 40-60% compared to slower meters while maintaining measurement reliability.

5. Power and Portability

The integrated 1800mAh lithium polymer battery provides 8 hours continuous operation - sufficient for full-shift field testing without recharging. The 2.8-inch high-brightness TFT LCD remains readable in bright production environments and outdoor maintenance locations.

Real-World Industrial Applications

Electronics Manufacturing and Quality Control

Component verification represents the highest-volume application for portable LCR meters:

Incoming inspection: Verify capacitor, inductor, and resistor values against supplier specifications before production
Production line testing: 100% screening of critical components in high-reliability applications (automotive, medical, aerospace)
Rework and repair: Quick component testing during PCB troubleshooting and repair operations

The UT622's Auto LCR function automatically selects optimal measurement parameters, eliminating operator training time and reducing measurement errors in fast-paced production environments.

Power Electronics and Inductor Testing

The UT622E's dedicated DCR testing capability addresses specific requirements in:

Transformer manufacturing: Winding resistance verification ensures proper copper gauge and turn count
Power inductor quality control: DCR measurement validates saturation current ratings
Motor manufacturing: Stator and rotor winding testing for production quality control
Choke and filter production: Series resistance verification for power supply components

DCR measurement at production speeds (0.01mΩ to 20,000MΩ range) enables 100% testing of power components without slowing manufacturing throughput.

Capacitor Manufacturing and Testing

Capacitance measurement with ESR evaluation provides comprehensive capacitor characterization:

Aluminum electrolytic capacitor screening: ESR testing at 100kHz (UT622C/E) identifies defective or degraded units
Film capacitor production: Series/parallel measurement modes verify capacitance and dissipation factor
MLCC (Multi-Layer Ceramic Capacitor) testing: High-frequency measurement evaluates parasitic parameters
Supercapacitor manufacturing: DCR measurement (UT622E) characterizes internal resistance

The tolerance range function (1%-20%) with LED alarm enables rapid go/no-go sorting, reducing operator decision time and improving consistency.

Electrical Maintenance and Troubleshooting

Field service technicians utilize portable LCR meters for:

Motor maintenance: Winding resistance and inductance testing identifies insulation breakdown, shorted turns, and connection problems
Power supply repair: Capacitor ESR testing locates failed or weak components in switching power supplies
Cable and wire testing: Capacitance measurement verifies cable integrity and identifies moisture damage
Relay and contactor inspection: Coil resistance and inductance measurement validates specifications

The UT622's data hold and recording mode enables hands-free operation during difficult access testing, with Mini-USB interface for downloading measurements to PC for documentation and trend analysis.

Automotive Electronics

Modern vehicle electronics demand precise component testing:

Ignition coil testing: Primary and secondary winding resistance and inductance
Sensor validation: Inductive and capacitive sensor parameter verification
ECU repair: Component-level troubleshooting of control module circuit boards
Battery management system: Sense resistor and filter capacitor testing

The UT622's constant 100Ω output impedance prevents damage to sensitive automotive components while maintaining measurement accuracy.

Aerospace and Defense Applications

High-reliability component screening requires:

MIL-STD component verification: Tight-tolerance testing to military specifications
Space-grade component qualification: Extended parameter testing including ESR and dissipation factor
Repair depot testing: Component verification during avionics repair and overhaul

The UT622's measurement repeatability and accuracy support compliance with aerospace quality standards and traceability requirements.

Research and Development

Engineers and researchers use handheld LCR meters for:

Prototype component characterization: Quick measurement of passive components during circuit development
Material research: Capacitance and dielectric testing of new materials
Sensor development: Impedance characterization of capacitive and inductive sensors
Academic laboratories: Portable measurement capability for student projects and teaching labs

The SCPI command set enables integration with automated test systems and data acquisition platforms for R&D applications.

Understanding Test Frequencies and Applications

100Hz/120Hz: Standard measurement frequency for large inductors (power transformers, filter chokes), aluminum electrolytic capacitors, and general resistance testing. The 120Hz option accommodates power-line frequency applications.

1kHz: Universal measurement frequency specified in most component datasheets. Ideal for general capacitance and inductance testing, providing best correlation with manufacturer specifications.

10kHz: Higher frequency measurement for smaller inductors, ceramic capacitors, and film capacitors. Reveals frequency-dependent parasitic effects not visible at lower frequencies.

100kHz: Critical for ESR measurement of aluminum electrolytic capacitors and high-frequency ceramic capacitors (MLCC). Enables detection of aging and failure modes in switching power supply capacitors.

Measurement Parameters Explained

Primary Parameters:

L (Inductance): Measured in henries (H), ranging from 0.00μH to 99.999H
C (Capacitance): Measured in farads (F), ranging from 0.00pF to 99.999mF
R (Resistance): Measured in ohms (Ω), ranging from 0.000Ω to 99.999MΩ
Z (Impedance): Total opposition to AC current flow, combining resistance and reactance
DCR (DC Resistance): UT622E only, measured in ohms from 0.01mΩ to 20,000MΩ

Secondary Parameters:

D (Dissipation Factor): Energy loss in capacitors and inductors
Q (Quality Factor): Inverse of dissipation factor, indicates component efficiency
θ (Phase Angle): Phase relationship between voltage and current
ESR (Equivalent Series Resistance): AC resistance affecting capacitor performance

Comparison: UT622A vs UT622C vs UT622E

Feature	UT622A	UT622C	UT622E
Best For	General component testing	Capacitor-focused applications	Inductor/transformer manufacturing
Test Frequencies	4 (100Hz-10kHz)	5 (adds 100kHz)	5 (adds 100kHz)
DCR Testing	No	No	Yes (dedicated fast mode)
ESR at 100kHz	No	Yes	Yes
Typical Applications	Incoming inspection, general maintenance	Capacitor QC, power supply repair	Power electronics, motor testing
Price Point	Entry	Mid-range	Professional

Practical Advantages of the UT622 Series

1. Three-Terminal and Five-Terminal Test Fixtures

The UT622 series accommodates both test jack and test socket configurations:

Three-terminal test jacks: Quick component probing for general testing and troubleshooting
Five-terminal test sockets: Kelvin (4-wire) measurement eliminates lead resistance for high-accuracy testing of low-resistance components

The five-terminal Kelvin connection proves essential for accurate DCR measurement of low-resistance inductors and transformers.

2. Auto LCR Mode

Automatically identifies component type (L, C, or R) and selects optimal test parameters, reducing operator training requirements and eliminating manual range selection errors. Particularly valuable for production operators testing mixed component types.

3. Series/Parallel Equivalent Mode

Measures components in both series and parallel equivalent circuit models, providing complete characterization. Critical for capacitor testing where ESR appears in series, and inductor testing where core losses appear in parallel.

4. Open/Short Circuit Correction

Compensates for test lead and fixture parasitics, ensuring accurate measurement of small-value components. Essential for:

Low-value inductors (<1μH)
Small capacitors (<10pF)
Low-resistance measurements (<1Ω)

5. LED Tolerance Alarm

Visual pass/fail indication (green/red LED) based on configurable tolerance limits (1%-20%) enables rapid component sorting without reading numerical display - improving throughput in production testing.

Integration and Documentation

Mini-USB Interface with SCPI Commands

The standard Mini-USB interface supports:

Data download: Export measurement data to PC for record-keeping and analysis
Remote control: Automated testing via SCPI (Standard Commands for Programmable Instruments)
Battery charging: Convenient 5V/1A charging through USB connection

SCPI compatibility enables integration with LabVIEW, Python, and other test automation platforms for production test systems and R&D applications.

Maintenance and Reliability

Long-Term Measurement Stability

The UT622 maintains 0.1× specified accuracy across operating temperatures from 0°C to 40°C (32°F to 104°F), with temperature coefficient compensation ensuring consistent results across environmental conditions encountered in factory and field environments.

Fuse Protection

Built-in 0.1A/250V fuse protection safeguards the instrument against component shorts and overvoltage conditions, preventing damage during production testing of unknown or potentially defective components.

Rugged Field-Ready Design

The UT622's 93mm × 192mm × 44mm form factor and 420g weight balance portability with durability. The high-brightness display ensures readability in bright production environments and outdoor maintenance locations.

Making the Right Choice

Choose UT622A if you need:

General-purpose component testing
Budget-conscious incoming inspection
Basic production quality control
Maintenance and repair applications

Choose UT622C if you need:

Capacitor-focused testing with ESR capability
Power supply repair and troubleshooting
100kHz high-frequency measurement
Aluminum electrolytic capacitor screening

Choose UT622E if you need:

Dedicated DCR measurement for inductors/transformers
Power electronics component testing
Motor winding inspection
Complete inductor characterization (L + DCR)
Maximum measurement speed and throughput

Conclusion

The UT622 series handheld LCR meters deliver professional-grade measurement capability in portable, field-ready instruments. Whether performing incoming inspection, production quality control, or field service troubleshooting, these meters provide the accuracy, speed, and reliability required for demanding industrial applications. The model differentiation - from general-purpose (UT622A) through capacitor-specialized (UT622C) to inductor-optimized (UT622E) - ensures you invest in precisely the capabilities your application requires, without paying for unnecessary features or compromising on essential functionality.

For engineers and technicians requiring accurate, fast, and portable inductance, capacitance, and resistance measurement, the UT622 series represents UNI-T's solution to bridging the gap between basic handheld meters and expensive benchtop instruments - bringing laboratory precision to production floors, service vehicles, and field locations worldwide.
