UTi740H 384 Pro H-Series Thermal Imager

$2,099.00

26 items in stock

Description

Heavy Duty thermal camera for commercial and industrial use

Top Specifications

384×288, -22°F- 1202°F, 28°×21°, 25Hz, 4.3in IPS display, Thermal Sensitivity (NETD): 60mK, Adjustable Emissivity, IP54, Manual focus, Wi-Fi
Register for 15% EDU Discount

Guarantee safe & secure checkout

trust2

OVERVIEW

SPECIFICATIONS

DOCUMENTATION

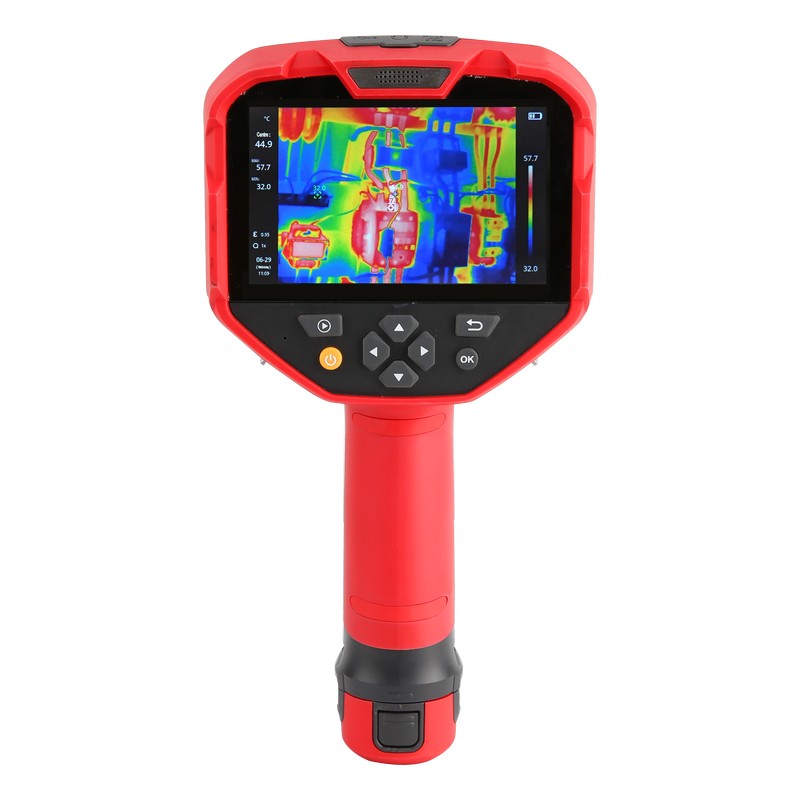

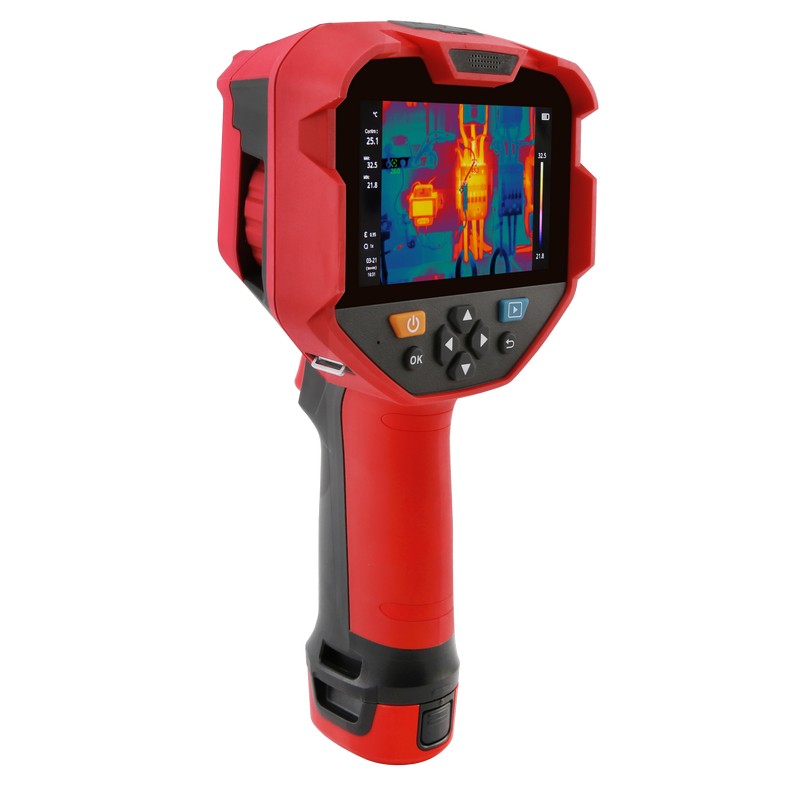

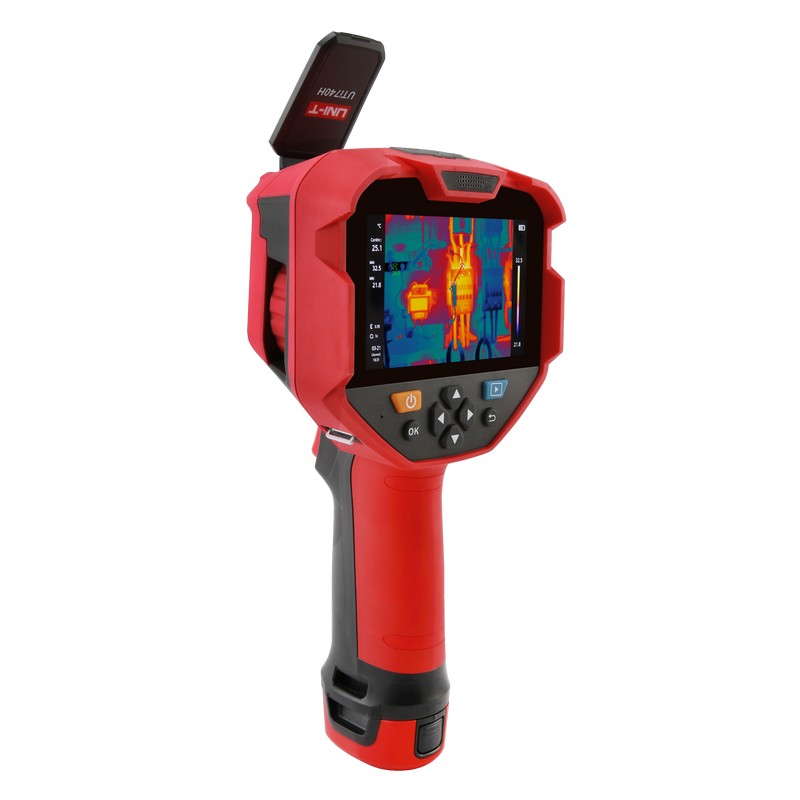

Professional Enhanced Thermal Camera

UTi740H is a professional enhanced thermal camera that specially designed for industrial use with wide temperature range:-30℃~650℃. Its large 4.3 ” IPS display screen can clearly display 384×288 IR resolution and 5MP digital camera.The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image. UTi740H thermal camera is also with other features :such as WiFi capability ,Isotherm, on screen analyzer,etc. It is a perfect troubleshooting tools for many industrial applications.

Features :

  • 4.3″ IPS display (800×480)
  • IR resolution:384×288
  • Temperature measurement range: -30℃ to 650℃
  • On screen analyzer :5 Points/1 Line/5 Rectangles/5 Circles
  • Digital camera resolution: 5MP
  • Focus: Manual focus
  • Digital zoom: 2x, 4x
  • Image modes: Thermal,Visual image,Fusion,PIP
  • Color palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
  • Isotherm:2(Auto/Manual)
  • Wi-Fi connection through Mobile App
  • PC software: analysis and real-time image projection
  • 5200mAh replaceable battery pack (Type-C rechargeable)
  • IP54
  • 2m drop proof

Applications of UTi740H

PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.

FeatureSpecification
Model Number UTi740H
Resolution (px) 384px X 288px
FOV (Field of View) 28° x 21°
Max Temp (°F) 1202°F
Min Temp (°F) -22°F
Refresh 25Hz
NETD 60mK
Focus Manual Focus
Warranty 1 year
Shipping Dimmensions (L x W x H) x x
Shipping Weight
