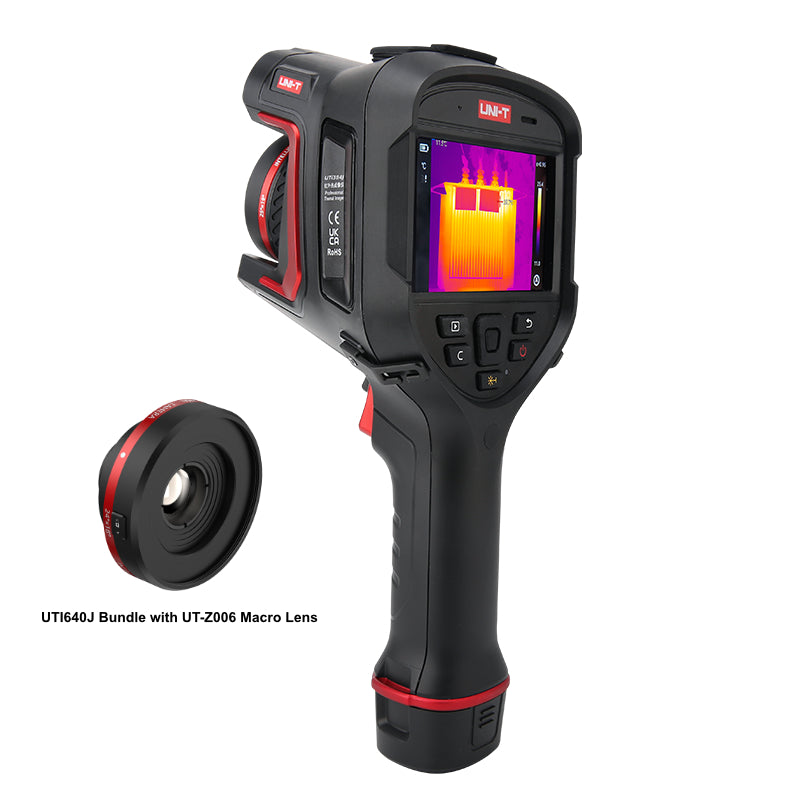

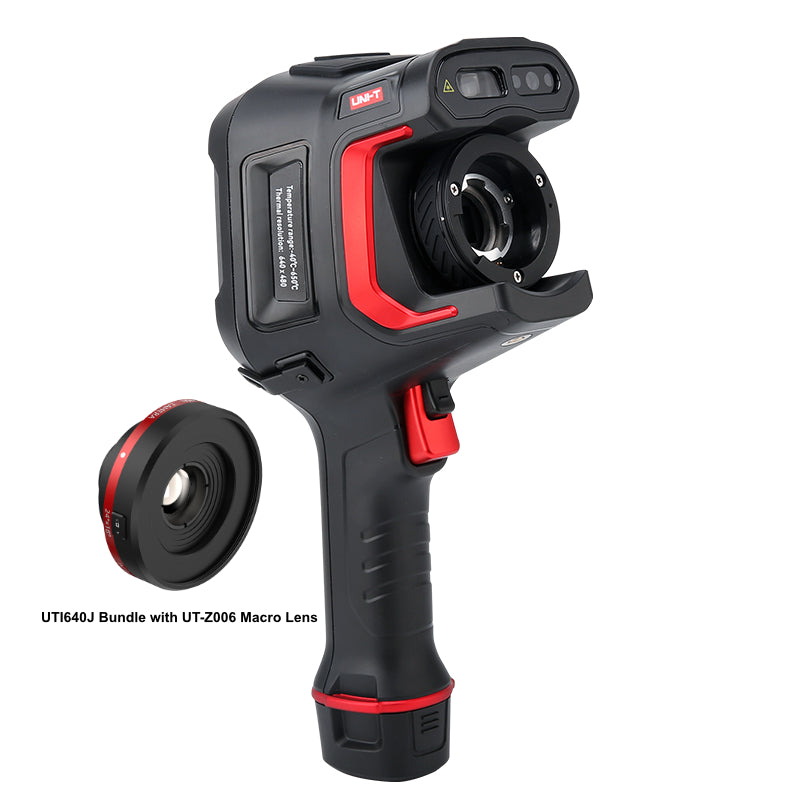

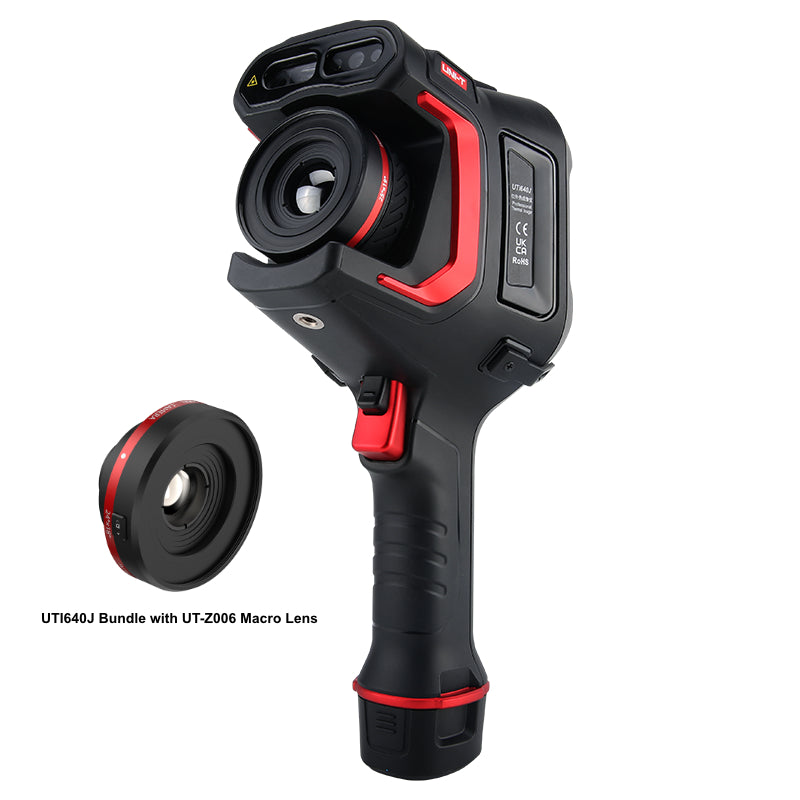

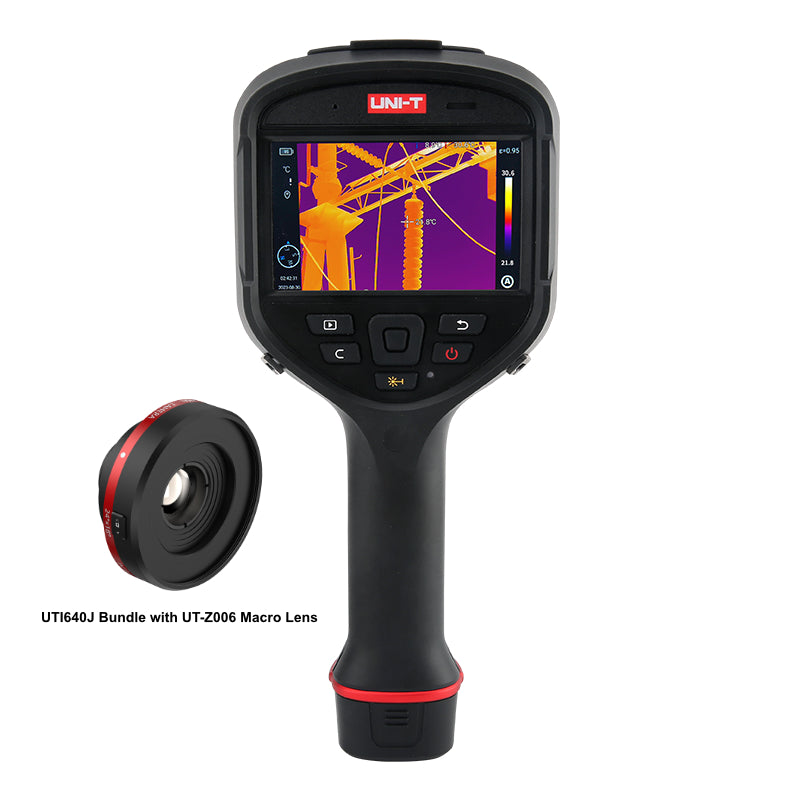

UTi640J+UT-Z006 Thermal Camera with Macro Lens Bundle

$10,799.00
Save {price}% Contact Us for Lead Time

26 items in stock

Description

Top Specifications

Register today for a 15% EDU Discount

Guarantee safe & secure checkout

trust2

OVERVIEW

SPECIFICATIONS

DOCUMENTATION

ACCESSORIES

UNI-T UTi640J+UT-Z006 Macro Thermal Imaging Bundle | Precision Inspection Solution

The UNI-T UTi640J+UT-Z006 Bundle is a specialized thermal imaging solution designed for professionals requiring exceptionally detailed thermal and visual inspection. Combining the high-performance UTi640J thermal camera with the UT-Z006 macro lens, this package provides unparalleled close-up thermal analysis for precision-critical applications like PCB inspection, electronic component diagnostics, and micro-scale thermal mapping.

Professional-Grade Precision Thermal Imaging

Engineered for technical professionals who demand the highest level of thermal detail, this bundle brings together advanced thermal imaging technology with specialized macro lens capabilities. The combination enables unprecedented insights into thermal behaviors of intricate electronic systems, circuit boards, and microscale mechanical components.

Key Features

  • UTi640J Core Specifications:
    • 640×480 Pixel Infrared Detector
    • Super Resolution (1280×960 Pixels)
    • 13MP High-Definition Digital Camera
    • Multiple Focusing Modes
  • UT-Z006 Macro Lens Highlights:
    • Specialized Close-Up Thermal Imaging
    • Optimized for Microscale Thermal Analysis
    • Precise Focusing for Detailed Inspections
    • Enhanced Thermal Detail Capture
  • Advanced Imaging Features:
    • 20x Digital Magnification
    • Level & Span Mode
    • Image Outline
    • Panoramic Stitching
  • Comprehensive Annotation Capabilities

UT-Z006 Macro Lens: Precision Engineering

Technical Specifications

Parameter Specification
Lens Model UT-Z006
Focal Length 16.2mm
Designed For Ultra-Close Thermal Imaging
Compatibility UTi640J Thermal Camera

The UT-Z006 macro lens is a specialized optical solution engineered for professionals requiring extreme thermal detail. Unlike standard lenses, this macro lens allows for incredibly close focusing distances, enabling thermal imaging of components and surfaces with unprecedented precision.

Key Macro Lens Advantages

  • Minimal working distance for ultra-close inspections
  • Enhanced thermal detail preservation
  • Optimized for microscale thermal variations
  • Precise thermal mapping of small components

Specialized Application Scenarios

Printed Circuit Board (PCB) Diagnostics

The UTi640J+UT-Z006 bundle provides unprecedented thermal insights into PCB performance. Technicians can detect subtle temperature variations in individual components, identify potential thermal stress points, and diagnose potential failures before they occur. The macro lens allows for thermal imaging of specific integrated circuits, transistors, and connection points with extraordinary detail.

Electronic Component Inspection

Research and development teams can leverage this bundle to perform comprehensive thermal characterization of electronic components. The high-resolution thermal imaging combined with macro lens capabilities enables visualization of thermal behaviors in microprocessors, voltage regulators, and other dense electronic assemblies.

Precision Manufacturing Quality Control

Manufacturing engineers can use the bundle to perform detailed thermal inspections of small, intricate components. The macro lens allows for thermal mapping of solder joints, identifying potential thermal inconsistencies, and ensuring manufacturing quality at a microscopic level.

Research and Scientific Analysis

Scientific researchers can utilize this thermal imaging solution for detailed thermal studies of small samples, microelectronics, and precision mechanical components. The ability to capture both thermal and visual data with exceptional detail opens new possibilities for thermal behavior research.

Comprehensive Technical Specifications

Parameter Specification
Infrared Resolution 640 × 480 pixels
Super Resolution 1280 × 960 pixels
Digital Camera Resolution 13MP
Thermal Sensitivity (NETD) ≤40mK
Temperature Measurement Range -40°C to 150°C (-40°F to 302°F)
0°C to 650°C (32°F to 1202°F)
Digital Zoom 1.1x to 20x
Operating Time ≥4 hours (with Wi-Fi off)

Professional Insights

"The UTi640J+UT-Z006 bundle has revolutionized our PCB failure analysis. We can now detect thermal anomalies in individual components that were completely invisible with our previous equipment."

— Dr. Elena Rodriguez, Electronic Systems Research Lead

"As a quality control engineer in semiconductor manufacturing, this thermal imaging solution provides us with unprecedented insights into our production processes. The macro lens capability is a game-changer for detecting potential thermal stress points."

— Michael Chen, Senior Quality Control Engineer

What's in the Bundle

  • UTi640J Thermal Imaging Camera
  • UT-Z006 Macro Lens
  • Standard Lens
  • Detachable Battery Pack
  • Power Adapter
  • Type-C USB Cable
  • Protective Carrying Case
  • Quick Start Guide
  • Calibration Certificate

Warranty and Support

The UNI-T UTi640J+UT-Z006 Bundle comes with a comprehensive 1-year warranty covering manufacturing defects. Our technical support team specializes in providing expert guidance for precision thermal imaging applications.

FeatureSpecification
Model Number UTi640j+UT-Z006
Resolution (px) 640px X 480px
FOV (Field of View) 25° x 19°
Max Temp (°F) 1202°F
Min Temp (°F) -40°F
Refresh 30Hz
NETD 40mK
Focus Manual/Auto
Warranty
Shipping Dimmensions (L x W x H) x x
Shipping Weight
