UTE310G 600V High-Performance Digital Power Meter w/GPIB

UNI-T UTE310G AC/DC Power Meter with GPIB

As energy-efficiency standards evolve, engineers face growing pressure to enhance the performance of both consumer and industrial equipment. From household appliances to large-scale industrial systems, optimizing energy-saving features is crucial in staying competitive. The UNI-T UTE310G AC/DC Power Meter is the ultimate tool for precise energy measurement and analysis, designed to meet the rigorous demands of professional engineers. With its high accuracy, extensive measurement range, and versatile features, the UTE310G ensures engineers can confidently assess and improve energy efficiency across various applications.

UNI-T UTE310G Overview

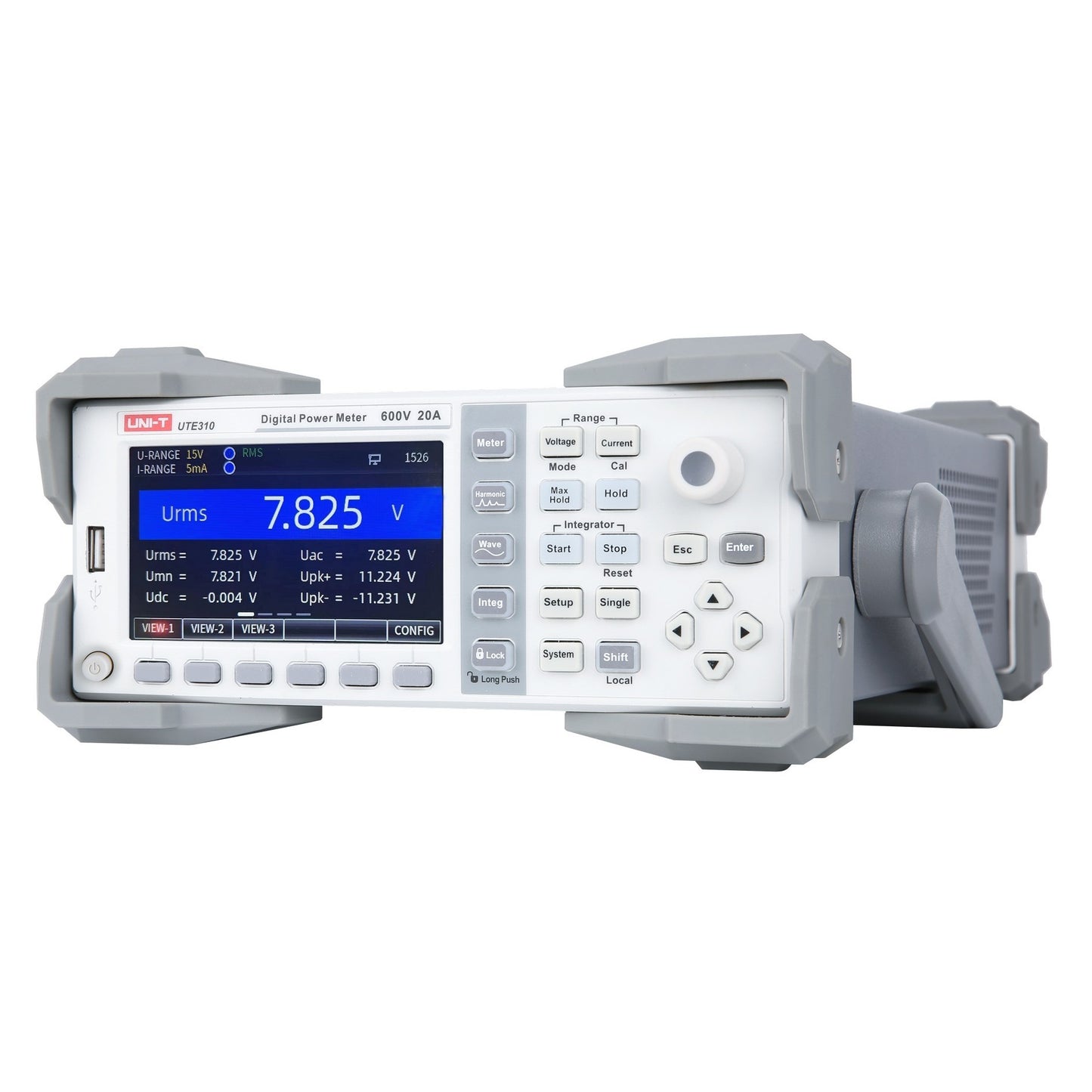

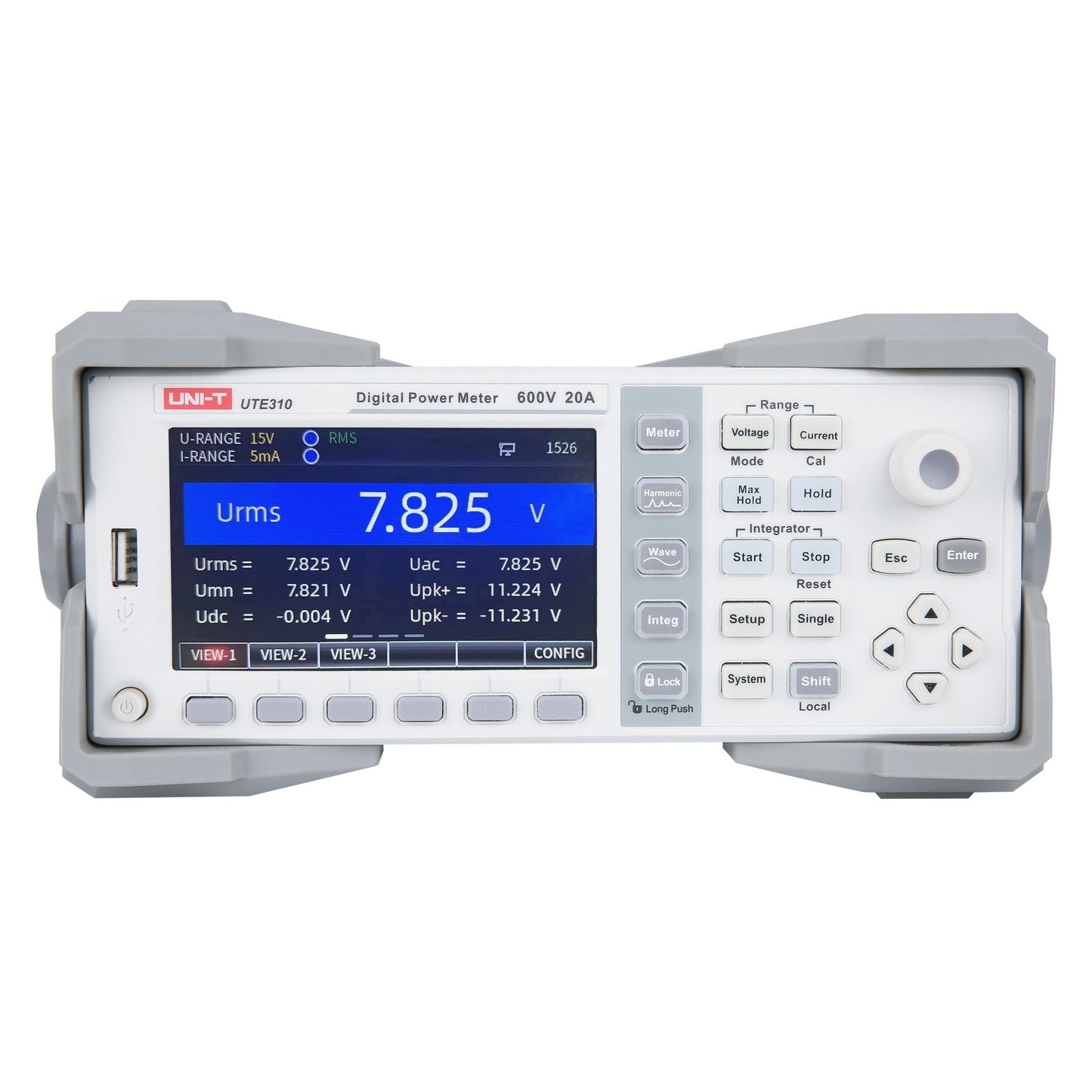

The UNI-T UTE310G is a high-accuracy digital power meter offering top-tier performance for measuring voltage, current, and power. With a 4.3-inch full-color display and advanced waveform visualization, this tool provides a streamlined user experience. The wide measurement range (25µA–20A / 75mV–600V) and broad 300kHz bandwidth make the UTE310G perfect for R&D, testing, and production environments.

This power meter excels in assessing DC and single-phase AC systems, household appliances like air conditioners, office equipment, energy-saving devices such as LED lights, and industrial machinery like frequency converters and large air conditioners.

UNI-T UTE310G Benefits for Engineers

4.3-inch LCD Display

A vivid 4.3-inch full-color TFT LCD allows you to view three display interfaces simultaneously, providing more parameter information in a single glance. This large, crisp display reduces the need for multiple tools and enhances overall efficiency during testing and analysis.

× UTE310G Screen

Sample Rate of 1MSa/s (1MHz)

With a high sampling rate of 1MSa/s, the UTE310 captures even the most transient signals with exceptional accuracy. This precision is invaluable for engineers working on fast-changing or dynamic electrical systems where reliable measurements are critical to performance analysis.

× UTE310G Sample Rate

300kHz Bandwidth

The UTE310G boasts a 300kHz bandwidth, allowing you to capture higher-frequency signals. This ensures your measurements are comprehensive and able to handle a wide range of signals for diverse applications, from high-performance R&D environments to complex industrial testing.

× UTE310G Bandwidth

× UTE310G Bandwidth Example

50th Harmonic Measurement

Engineers can analyze up to the 50th harmonic, fully supporting IEC61000-4-7 standards. This is especially useful when analyzing equipment that produces harmonic distortion, such as motors or power converters. The built-in harmonic analysis provides crucial insights into system performance and efficiency.

× UTE310G Harmonic View

× UTE310G Harmonic List

Real-Time Waveform Display

The UTE310G offers real-time waveform visualization of voltage and current, helping engineers quickly identify abnormalities. With automatic peak-to-peak value measurement, engineers can better understand dynamic behaviors and ensure systems meet desired specifications.

× UTE310G Waveform Mode

External Input

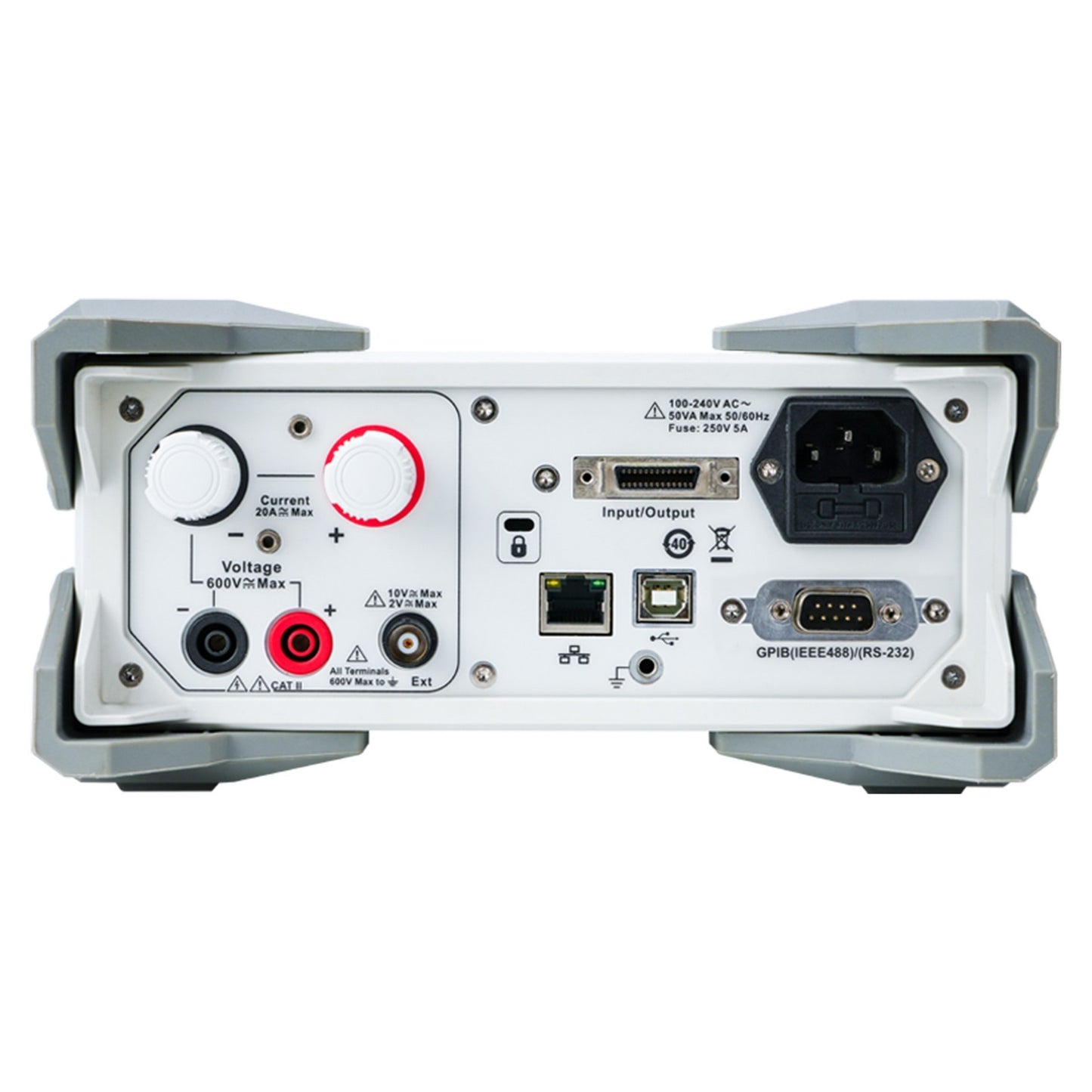

For applications requiring higher voltages or currents, external sensors can be connected to the UTE310G, significantly extending its measurement range. This feature makes the UTE310G adaptable to a broader spectrum of engineering tasks, from high-power industrial systems to delicate electronics testing..

× UTE310G External Input

Integral Function

The power meter’s integral function supports both average active power and current integration, which can be utilized for long-term power consumption testing. This is crucial for R&D engineers focused on optimizing energy-saving technologies and improving overall device efficiency.

× UTE310G Integral Display

× UTE310G Integral Display

Average Function

When measuring fluctuating signals, activating the average function stabilizes readings even at higher refresh rates. This feature minimizes noise and provides more consistent measurements, offering engineers clear, reliable data to work with.

× UTE310G Averaging Mode

Jump Configuration

Speed up the measurement process by skipping irrelevant ranges based on past experience. Jump configuration enhances the automatic range feature by reducing unnecessary measurements, allowing for quicker analysis and faster results.

× UTE310G Configuration Settings

D/A Output for Real-Time Control

The UTE310’s D/A output enables real-time communication with control systems. By sending measured values directly to a test platform, engineers can make real-time adjustments, monitor performance, and automate controls for superior system management.

Applications

The UNI-T UTE310G is tailored for engineers working across multiple fields -

• Home Appliances: Precise power measurements for high-power appliances such as air conditioners and induction stoves.
• Office Equipment: Accurate assessment of power consumption for devices like printers and monitors.
• Energy-Saving Technologies: Analyze the performance of LEDs, power supplies, and batteries.
• Industrial Equipment: Assess energy efficiency in large-scale systems, including frequency converters and industrial air conditioners.

With its versatile capabilities, high precision, and wide range of applications, the UNI-T UTE310G is an indispensable tool for electrical engineers striving to meet modern energy-efficiency standards and improve the performance of critical equipment.
