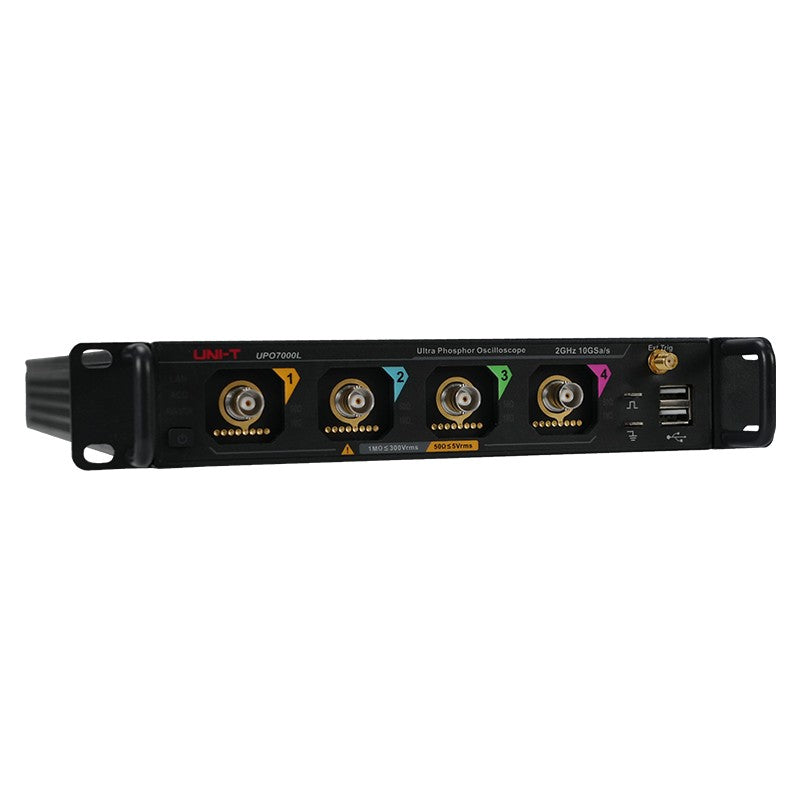

UPO7204L 2GHz 4Ch Rackmountable Digitial Oscilloscope

An affordable, rack-mounted 2GHz 4ch advanced measurement oscilloscope. Connect up to 128 units for up to 512 channels of high-speed data acquisition

2GHz Bandwidth	4Ch Channels
10GSa/s Sample Rate	1Gpts Max. Memory Depth
2,000,000wfms/s Waveform Capture Rate	Not Available Digital Channels

$13,999.00

Save {price}%

26 items in stock

Find a Distributor

Guarantee safe & secure checkout

UNI-T UPO7204L | 2 GHz Rack-Mounted High-Speed Oscilloscope

Overview

The UNI-T UPO7204L delivers cutting-edge signal fidelity in a space-saving 1U rack form. With 2 GHz analog bandwidth, 10 GSa/s real-time sampling, and up to 1 Gpts memory depth, it’s built for high-speed serial validation, aerospace test, and system-level integration. Its advanced UltraAcq® technology provides up to 2 million wfms/s capture rate — ideal for catching elusive events in dense, fast signals.

Fully controllable over Ethernet or browser, the UPO7204L supports waveform math, 11 protocol types, optional jitter and power analysis, and MATLAB scripting. Whether in R&D, ATE, or remote test labs, this instrument brings full benchtop capability to a compact rack footprint.

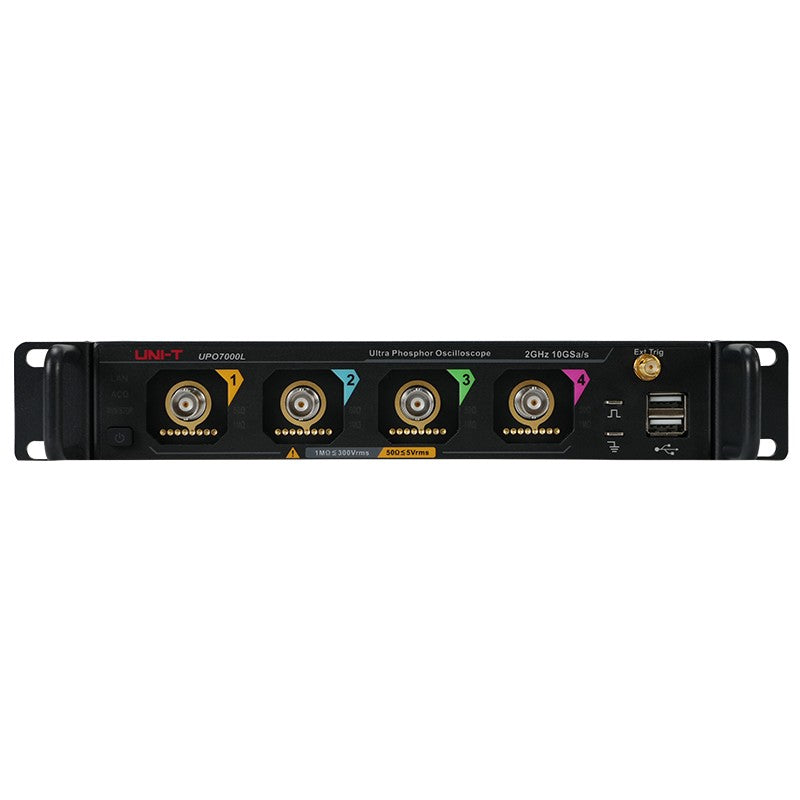

UNI-T UPO7000L rack-mount oscilloscope — Compact 1U rack-mount form factor ideal for system integration and remote operation

Key Features

2 GHz Analog Bandwidth – High-speed visibility for DDR, PCIe, USB, and RF systems
10 GSa/s Sampling Rate – Fast enough to capture <200 ps events and 175 ps edges
1 Gpts Max Memory – Deep storage enables full serial session replay and segmented acquisition
UltraAcq® Technology – Up to 2,000,000 wfms/s waveform capture rate
11 Protocol Decode Types – Includes ARINC429, MIL-STD-1553, CAN FD, SENT, I2S, and more
Advanced Eye & Jitter Tools – Includes TIE, bathtub curves, spectrograms, and template mask testing (optional)
Optional Power Suite – Ripple, SOA, harmonics, and switching loss (UPO7000L-PWR)
Embedded MATLAB – Process and display waveform calculations directly
60 MHz Function Generator – Full-range waveform and modulation output (optional)
Embedded WebServer & SCPI – Remote browser control and automation ready

UNI-T UPO7204L Details

Maximum Signal Bandwidth in 1U

With 2 GHz of analog bandwidth and a rise time of 175 ps, the UPO7204L is ready for today’s fastest embedded and serial designs. Its low jitter architecture and powerful clock recovery modes support DDR validation, high-speed link debugging, and accurate edge characterization.

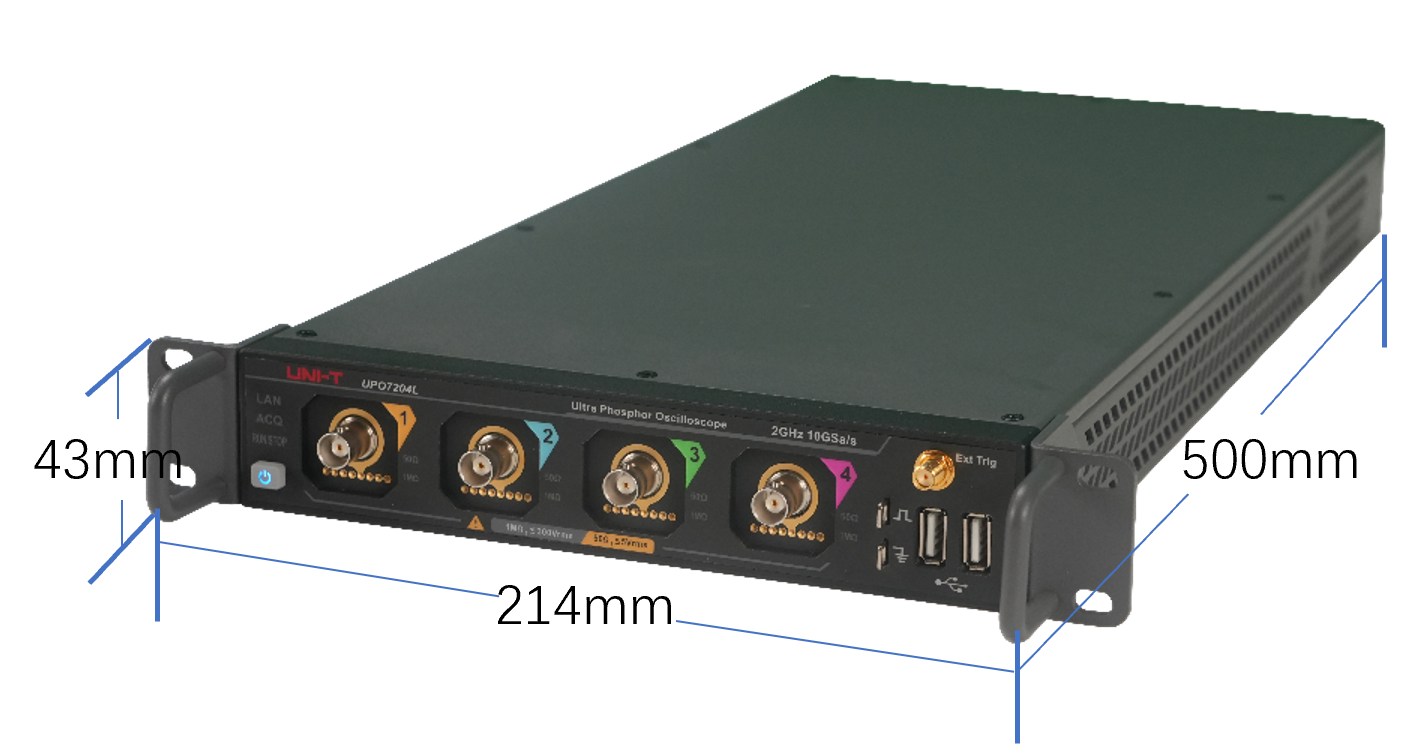

UPO7204L compact dimensions — Half-width 1U footprint allows stacking or rack integration

UltraAcq® and Ultra Phosphor 3.0

Capture transient anomalies with up to 2 million wfms/s in sequence mode. Whether debugging infrequent spikes, power rail ripple, or crosstalk events, the UPO7204L’s waveform engine delivers color-graded intensity rendering and sub-microsecond dead time performance.

UltraAcq waveform capture — UltraAcq® engine and 3.0 phosphor display ensure high-speed signal clarity

Advanced Protocol Decoding and Navigation

Protocol support spans embedded, automotive, aerospace, and audio standards. Decode and trigger on up to 11 formats. Use the event list, search, envelope mode, and data-based triggering to pinpoint packet-level errors and bus violations in complex systems.

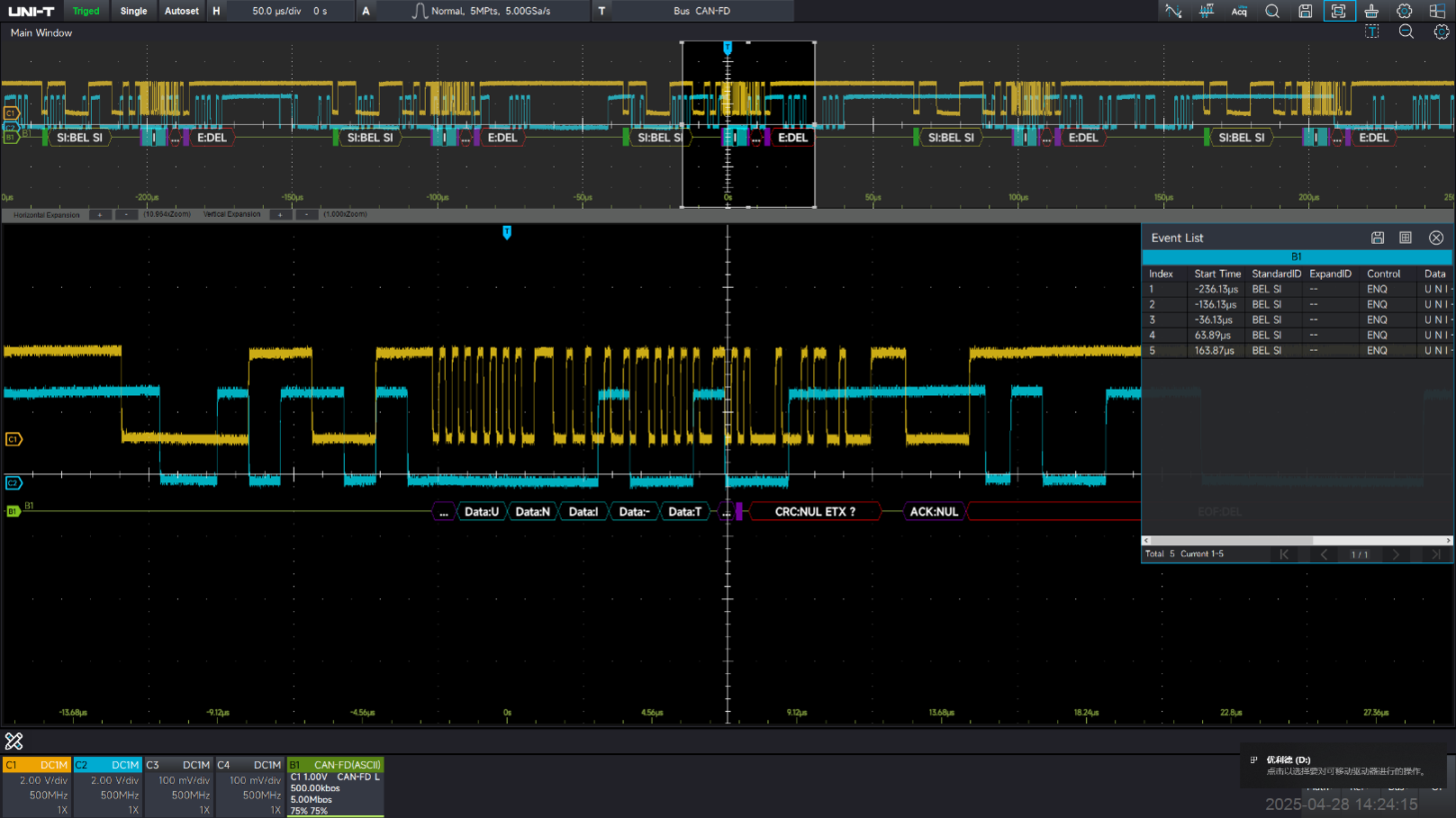

Protocol decoding and analysis — Support for RS232/UART, CAN FD, SENT, ARINC429, MIL-STD-1553, and more

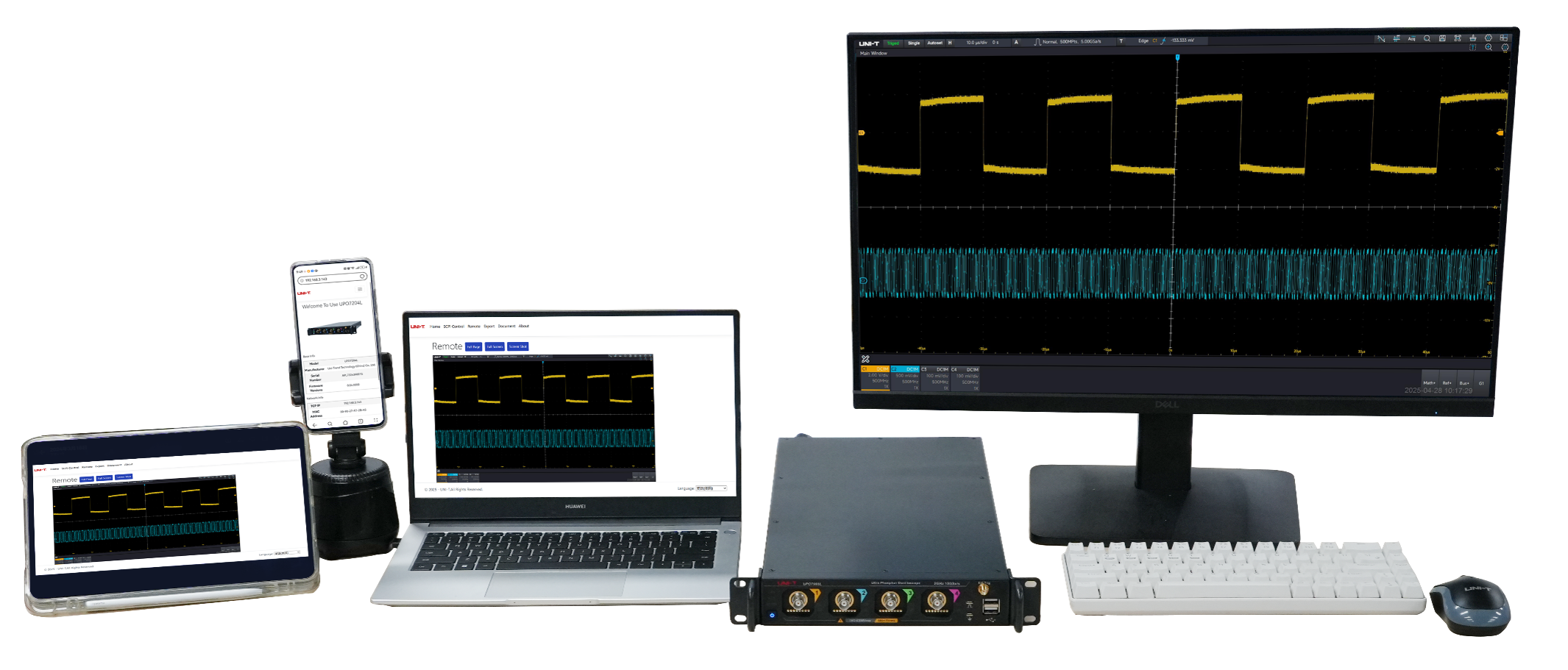

Embedded Remote Access and Test Automation

The UPO7204L integrates seamlessly into ATE environments or remote labs. Access it from any browser, control it using SCPI over dual LAN, or run MATLAB scripts for automated analysis. All scope functions — including screen capture, data export, and triggering — are available remotely.

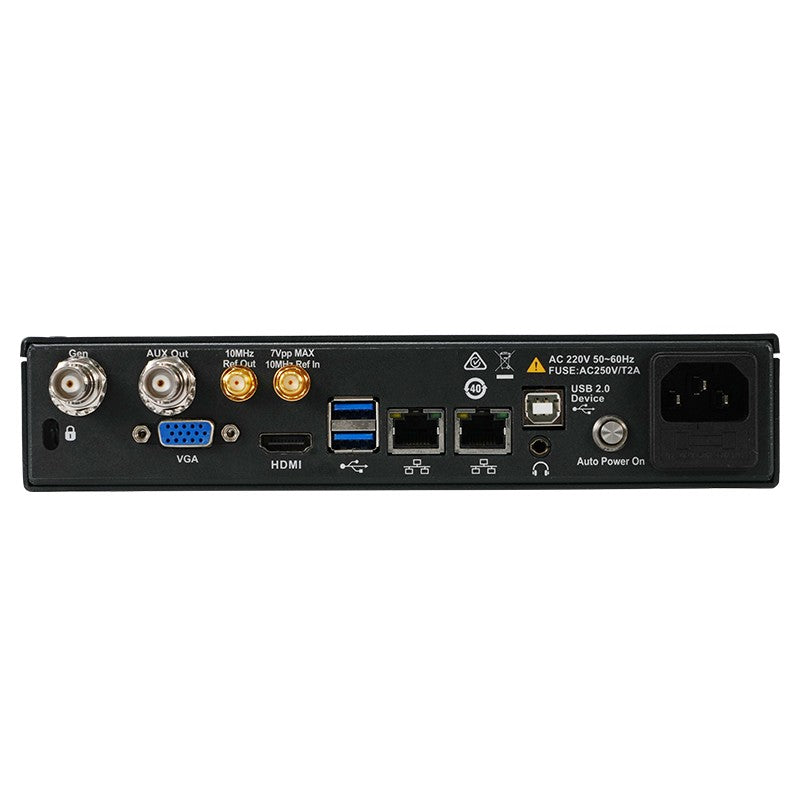

Scope interfaces and control ports — Multiple I/O ports including dual LAN, USB 3.0/2.0, HDMI, AUX, and ref in/out

Professional Applications

Serial Link Validation – 2 GHz bandwidth, high-speed triggering, and jitter tools for USB, PCIe, and MIPI buses
Aerospace/Defense Signal Capture – Decode ARINC429 and MIL-STD-1553, validate timing with low jitter
Power System Test – Power analysis option includes SOA, harmonics, ripple, and switching losses

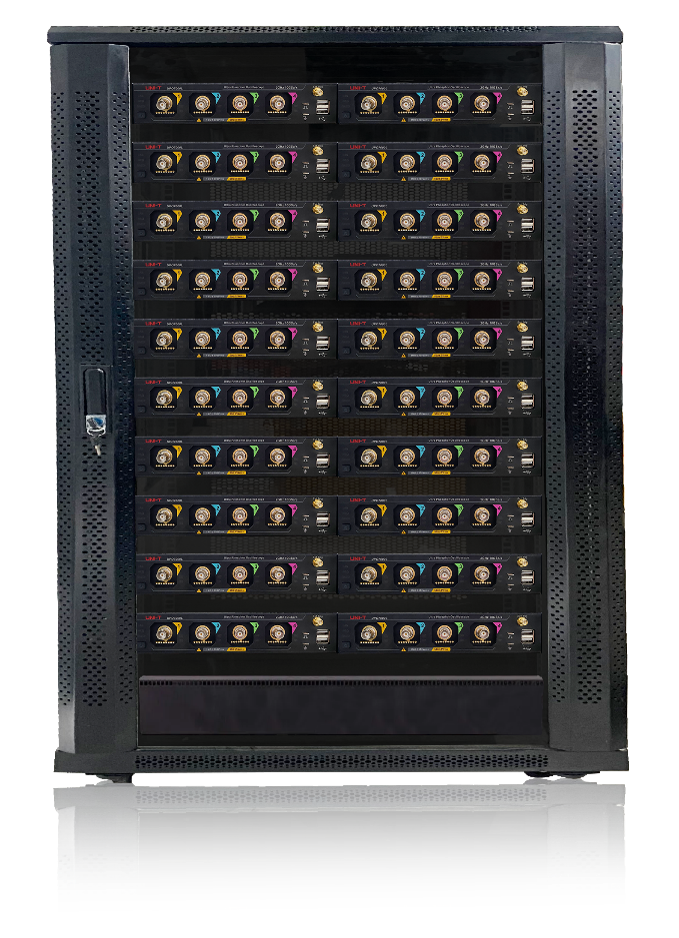

System-Level Integration – Multi-unit synchronization and rack-friendly design for scalable data acquisition

Technical Specifications

Bandwidth	2 GHz @ 50 Ω
Channels	4 analog + EXT trigger
Sampling Rate	10 GSa/s (single), 5 GSa/s (dual), 2.5 GSa/s (all)
Memory Depth	1Gpts (1 ch), 500Mpts (2 ch), 250Mpts (4 ch)
Capture Rate	≥600,000 wfms/s (UltraAcq®), 2M wfms/s (sequence mode)
Rise Time	≤175 ps
Vertical Resolution	8-bit native, HD 12-bit enhanced
Function Generator	60 MHz AWG, 625 MSa/s, 16-bit resolution (optional)
Display	External HDMI output with touch support
Interfaces	USB 2.0/3.0, LAN x2, HDMI, AUX Out, 10MHz Ref I/O
Size	214 mm W × 43 mm H × 478 mm D
Weight	Approx. 3.8 kg

Optional Software & Accessories

UPO7000L-PWR – Unlocks full power analysis functions
UPO7000L-JIT – Enables jitter and eye-diagram testing
UPO7000L-AWG – 1-channel 60 MHz waveform generator
UPO7000L-BND – Full analysis bundle (PWR, JIT, PROTO, etc.)
UPO7000L-BW-10T20 – Bandwidth upgrade for UPO7104L only
Current/Differential Probes – Supports UT-P41, UT-P43, UT-P4150, UT-P36 and others

Package Contents

UNI-T UPO7204L Digital Phosphor Oscilloscope
4× Passive Probes (500 MHz)
USB and power cables
1U Rack-mount kit
Calibration certificate
Quick start guide

Frequently Asked Questions

How many UNI-T UPO7000L oscilloscopes can be synchronized in a single rack system?

You can synchronize up to 128 units using built-in sync and clock I/O. For larger setups, UNI-T supports up to 512 channels with a synchronization distribution system.

What synchronization features does the UPO7204L include for multi-machine setups?

It includes a dedicated clock sync port, trigger I/O, and 10 MHz reference in/out. SCPI control and trigger propagation enable seamless time alignment across units, ideal for ATE or RF capture arrays.

Does the UPO7204L include a built-in display?

No, it is headless by design. You can connect an external HDMI touchscreen, or access and operate the scope entirely via browser, SCPI, or PC software.

Is a rack-mount kit included with the UPO7204L?

Yes. Every UPO7000L series oscilloscope includes a standard rack-mount bracket set in the box for 1U mounting.

What are the main differences between the UPO7104L and UPO7204L?

The primary difference is analog bandwidth: 1 GHz for UPO7104L and 2 GHz for UPO7204L. All other core features, including sampling rate, memory, and options, are identical.

Can I automate testing with the UPO7204L?

Yes. The scope supports full SCPI command control, MATLAB scripting, and WebServer access for remote automation or data acquisition in test systems.

Warranty & Support

All UNI-T UPO7000L Series oscilloscopes include a 3-year warranty covering parts and labor under normal use. Standard accessories (including probes and cables) are covered by a 1-year warranty. Register your UPO7000L for a free, 2-year warranty extension.

Ready to modernize your test system?

Choose the UPO7204L for 2 GHz performance in a rack-optimized package. Contact us for a demo or reach out to your favorite Distributor or Rep to learn more today.

Feature	Specification
Model Number	UPO7204L
Scope Type	DSO
Bandwidth	2GHz
Channels	4Ch
Scope Sample Rate	10GSa/s
Memory Depth	1Gpts
Refresh Rate	2,000,000wfms/s
Vertical Scale @1MΩ	500μV/div to 10V/div
# Automatic Measurements	48
Included Bus Protocols	RS232 UART I2C SPI CAN LIN
Optional Bus Protocols	CAN-FD FlexRay SENT Audio MIL-STD-1553B ARNIC429
Logic Pod Included	Not Available
Signal Generator Function	Optional
Frequency Meter	8-bit
Touchscreen	No
Warranty	3 years
Certifications	CE/cETLus
Documents	English download guide, multi-language safety manual, calibration report (COC)
Included Accessories	Oscilloscope probe (UT-P07A)*4
Standard Accessories	Power Cord, BNC-BNC cable (x2), USB2.0 cable
