UPO7104L 1GHz 4Ch Rackmountable Digitial Oscilloscope

An affordable, rack-mounted 1GHz 4ch advanced measurement oscilloscope. Connect up to 128 units for up to 512 channels of high-speed data acquisition

1GHz Bandwidth	4Ch Channels
10GSa/s Sample Rate	1Gpts Max. Memory Depth
2,000,000wfms/s Waveform Capture Rate	Not Available Digital Channels

$9,999.00

Save {price}% Contact Us for Lead Time

26 items in stock

Find a Distributor

Guarantee safe & secure checkout

UNI-T UPO7104L | 1 GHz Rack-Mounted High-Speed Oscilloscope

Overview

The UNI-T UPO7104L is a powerful 1 GHz digital phosphor oscilloscope housed in a 1U rack-mounted form factor. Designed for dense test setups, automated systems, and high-speed signal capture, it delivers exceptional performance with a 10 GSa/s sampling rate and up to 1 Gpts of memory depth. Whether you’re building a multi-channel ATE rack or need reliable waveform visibility in a remote lab, the UPO7104L delivers uncompromising resolution, speed, and connectivity in a compact, lightweight unit.

Engineered for system integration and continuous acquisition, the UPO7104L offers a full suite of analysis tools — including power analysis, protocol decoding, and optional jitter/eye-diagram functions — all accessible remotely via dual Gigabit Ethernet and embedded WebServer support.

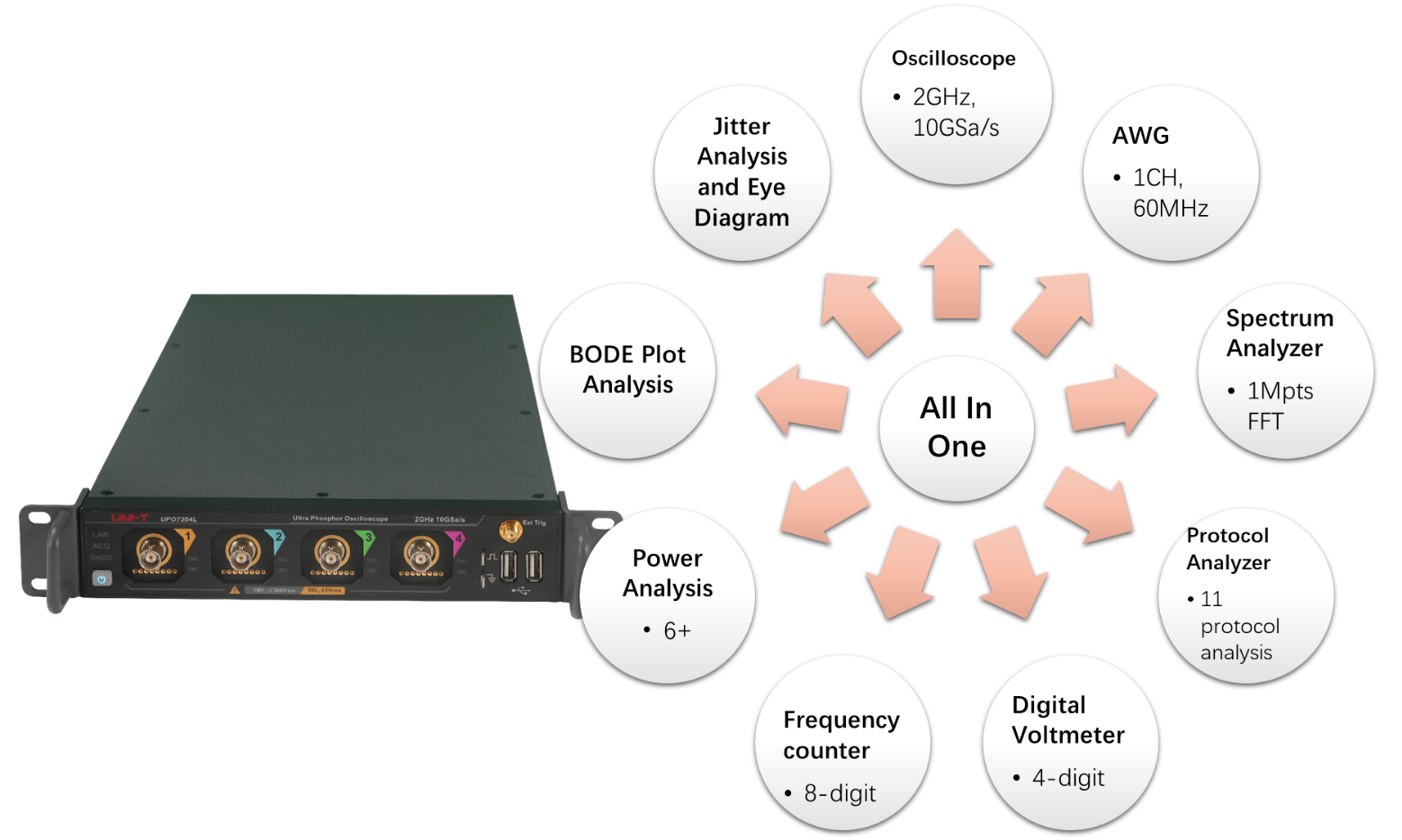

UNI-T UPO7000L rack-mount oscilloscope — Compact 1U rack-mount form factor ideal for system integration and remote operation

Key Features

1 GHz Bandwidth with 4 Channels – Capture high-speed signals across multiple channels simultaneously
10 GSa/s Sampling Rate – Resolve fast signal edges and high-frequency transitions with precision
Up to 1Gpts Memory Depth – Long-duration captures with segmented acquisition for event-rich streams
UltraAcq® Technology – Up to 2,000,000 wfms/s waveform capture rate in sequence mode
Protocol Analysis – Standard and optional support for RS232/UART, CAN-FD, ARINC 429, MIL-STD-1553, and more
Optional Power & Jitter Analysis – Unlock deeper visibility into power systems and high-speed serial links
Built-in 60 MHz AWG – Single-channel arbitrary waveform output with advanced modulation
Embedded WebServer & SCPI – Full remote control via browser or test automation frameworks

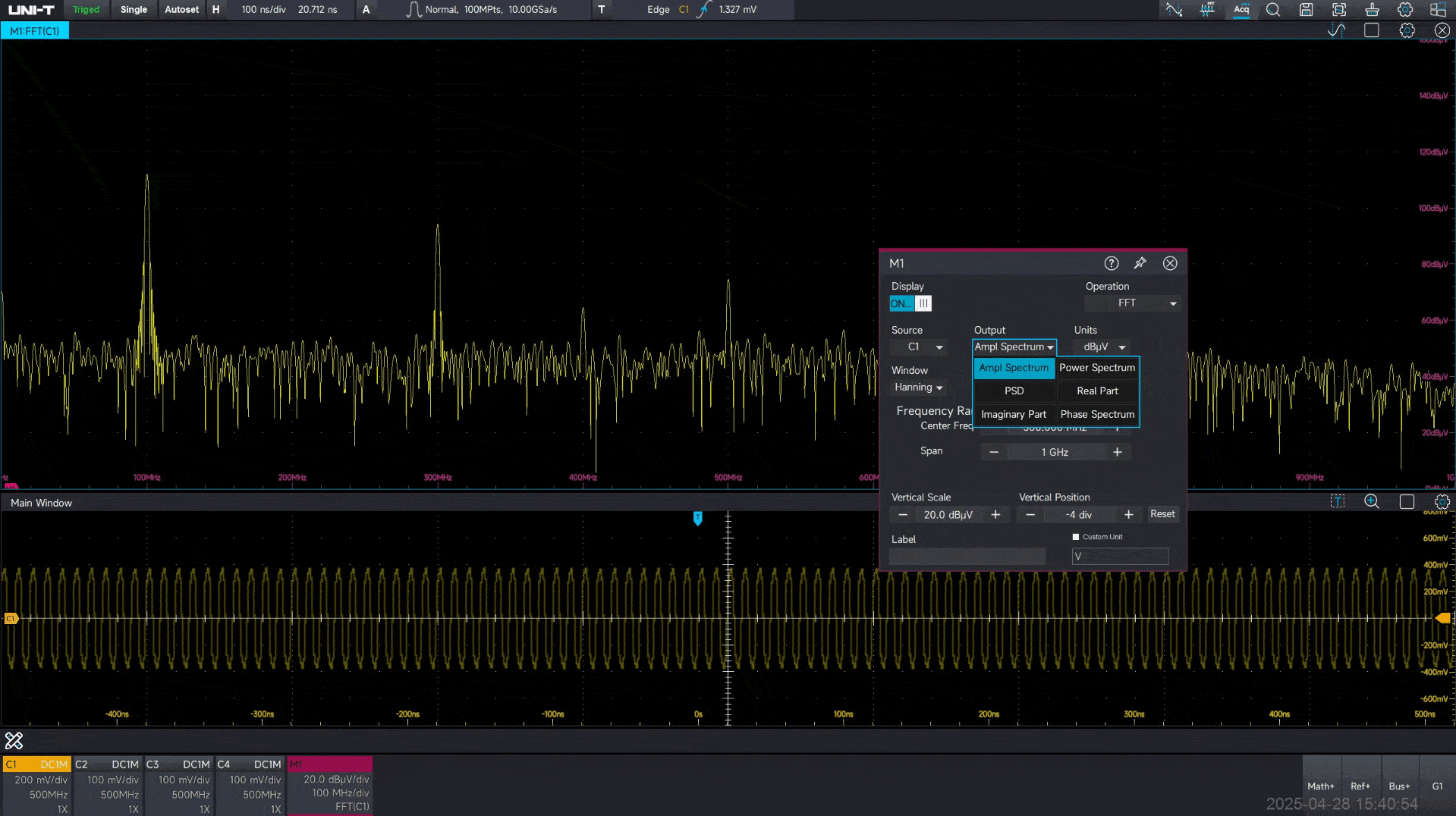

Matlab Programming Support – Create, render, and run code natively on the scope
High-Speed Connectivity – Dual Gigabit LAN, USB 3.0/2.0, HDMI, AUX, and ref clock I/O

UNI-T UPO7104L Details

Compact Integration for ATE & Lab Systems

With a slim 1U height and half-rack width, the UPO7104L is purpose-built for high-density installations. A rack-mount kit and rear-panel AC input make it drop-in ready for ATE systems, automated test benches, or stacked configurations up to 128 synchronized units. External touch displays can be connected via HDMI for control and waveform viewing.

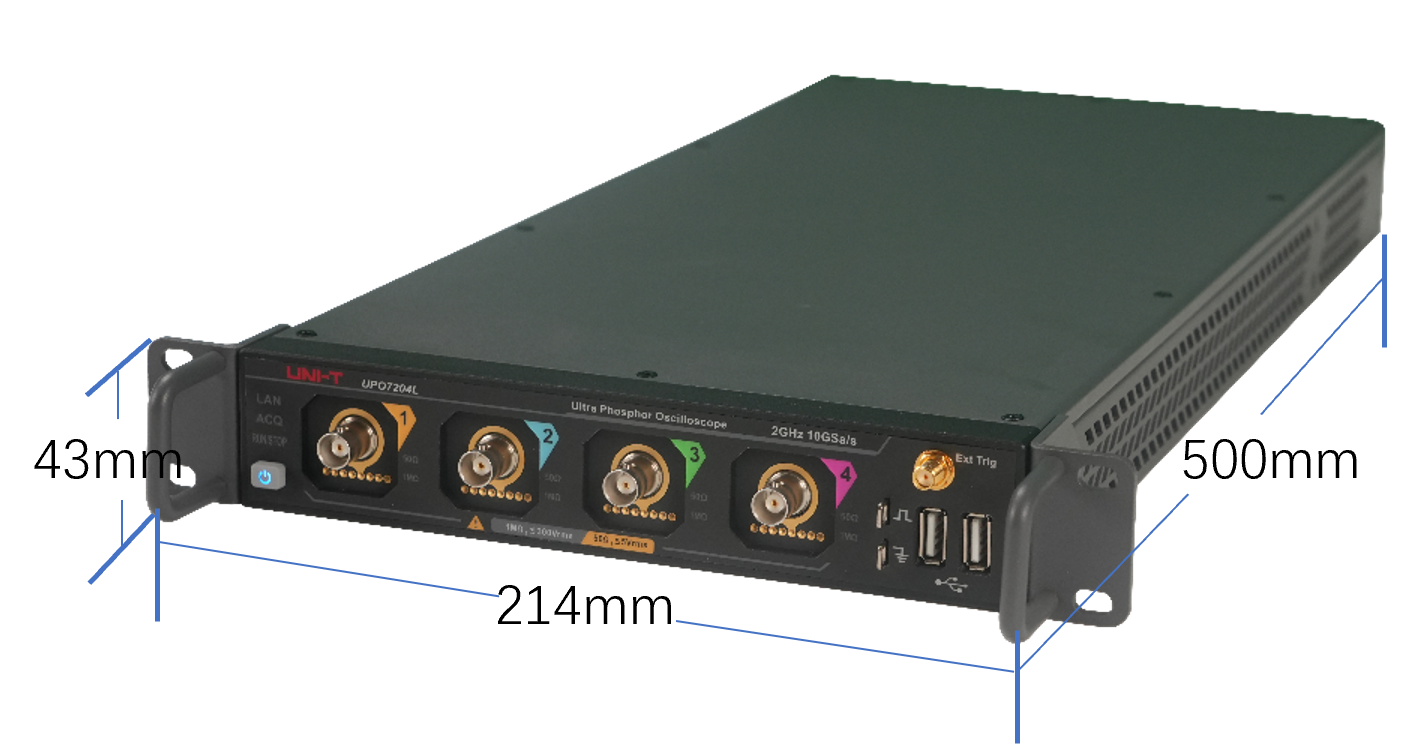

UPO7104L compact dimensions — 1U x 214 mm width x 478 mm depth — fits perfectly in crowded systems

UltraAcq® Signal Capture Architecture

The UPO7104L's proprietary UltraAcq® engine delivers up to 2 million waveforms per second in sequence mode and enables ultra-short dead times (<1 μs). Capture elusive glitches and timing anomalies with extreme visibility, enhanced by a color-graded Ultra Phosphor 3.0 display rendering system for real-time insight.

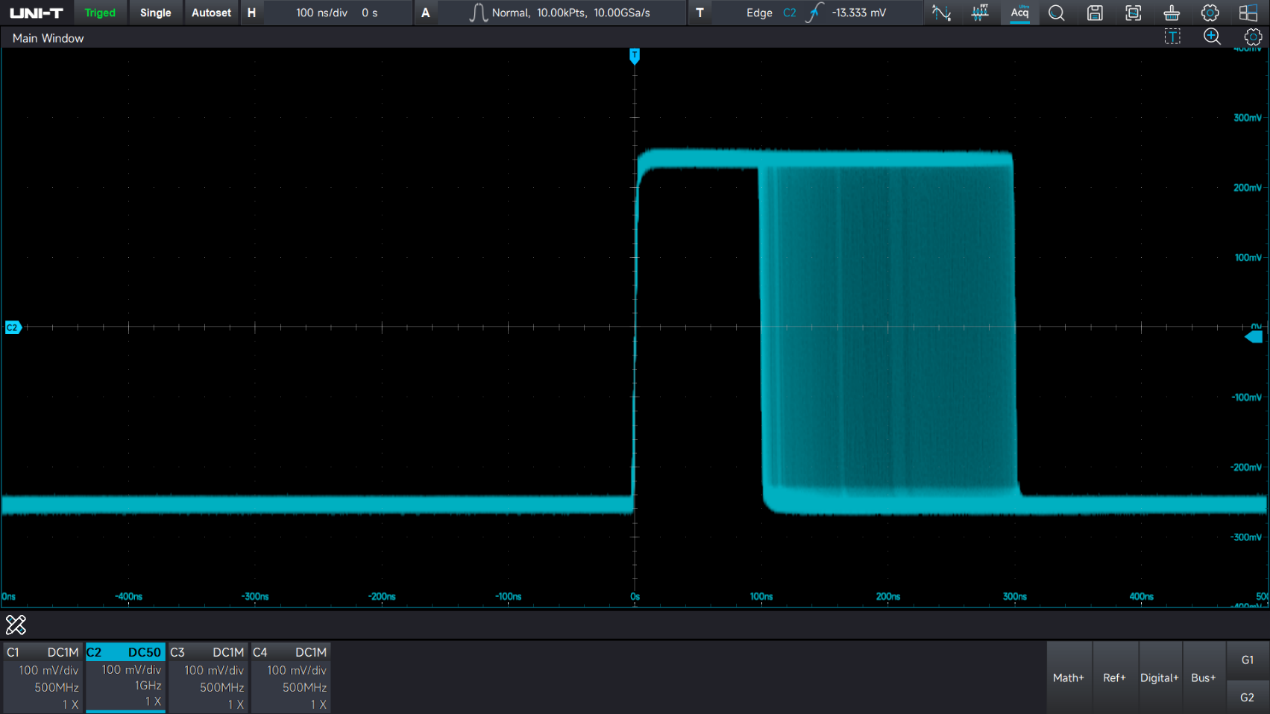

UltraAcq waveform capture — UltraAcq® and 3.0 phosphor rendering enable up to 2 million wfms/s

Comprehensive Serial Protocol Support

The UPO7104L supports a wide range of protocols critical to embedded, automotive, aerospace, and industrial applications. Decode and trigger on UART, CAN, I²C, SPI, LIN, ARINC 429, MIL-STD-1553, SENT, and more with optional licenses. Bus event tables, search navigation, and envelope triggering are included to accelerate debug.

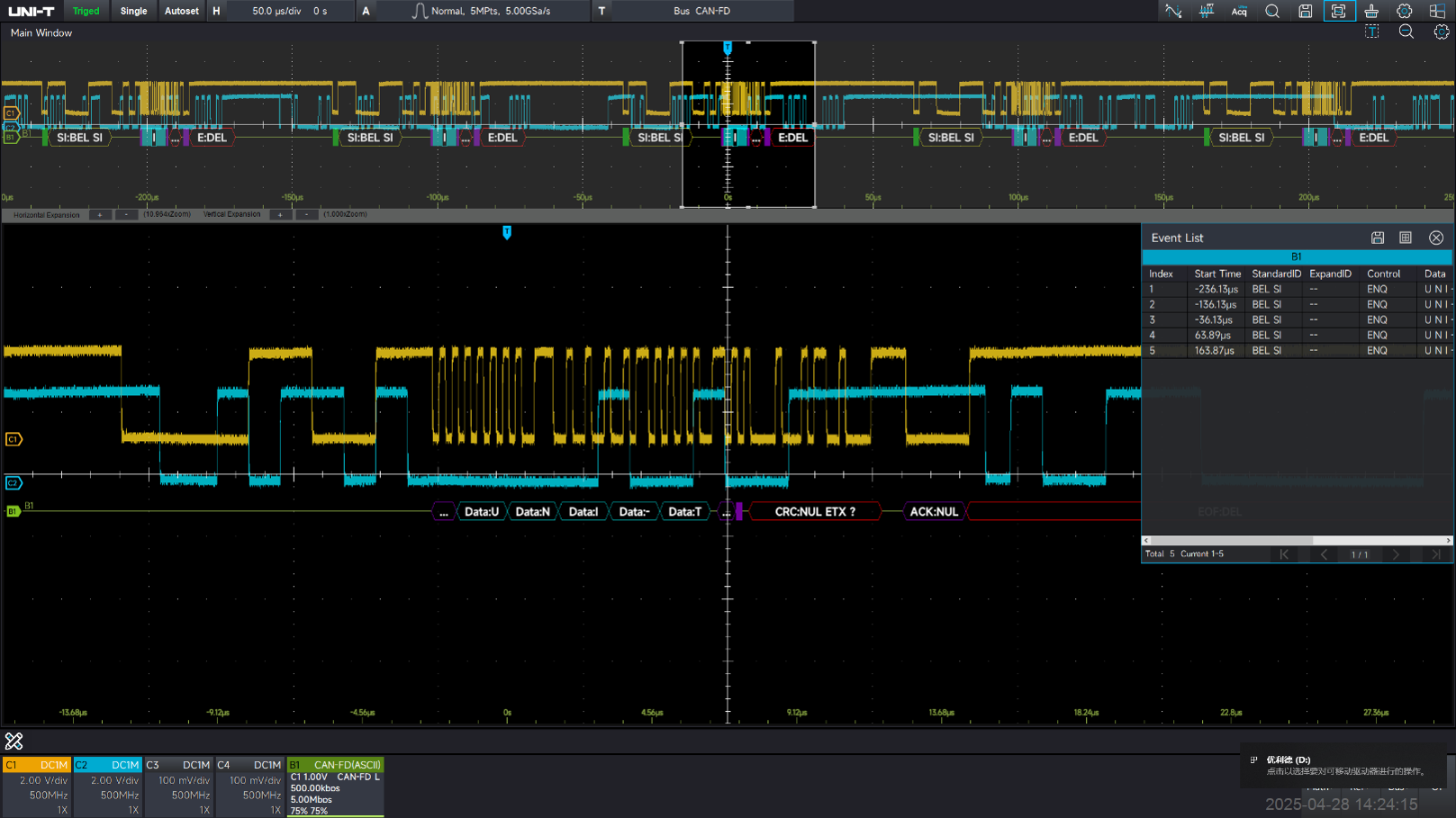

Protocol analysis and decoding — 11 supported protocols including ARINC 429, CAN-FD, SENT, AudioBus, and others

Remote Access & Embedded Control

Connect to the UPO7104L from anywhere using its embedded WebServer and SCPI command interface. Control the instrument via browser or script, export waveforms and screenshots, and integrate with automated test setups using its dual LAN ports and USB interfaces. The unit also supports embedded MATLAB code execution and waveform rendering.

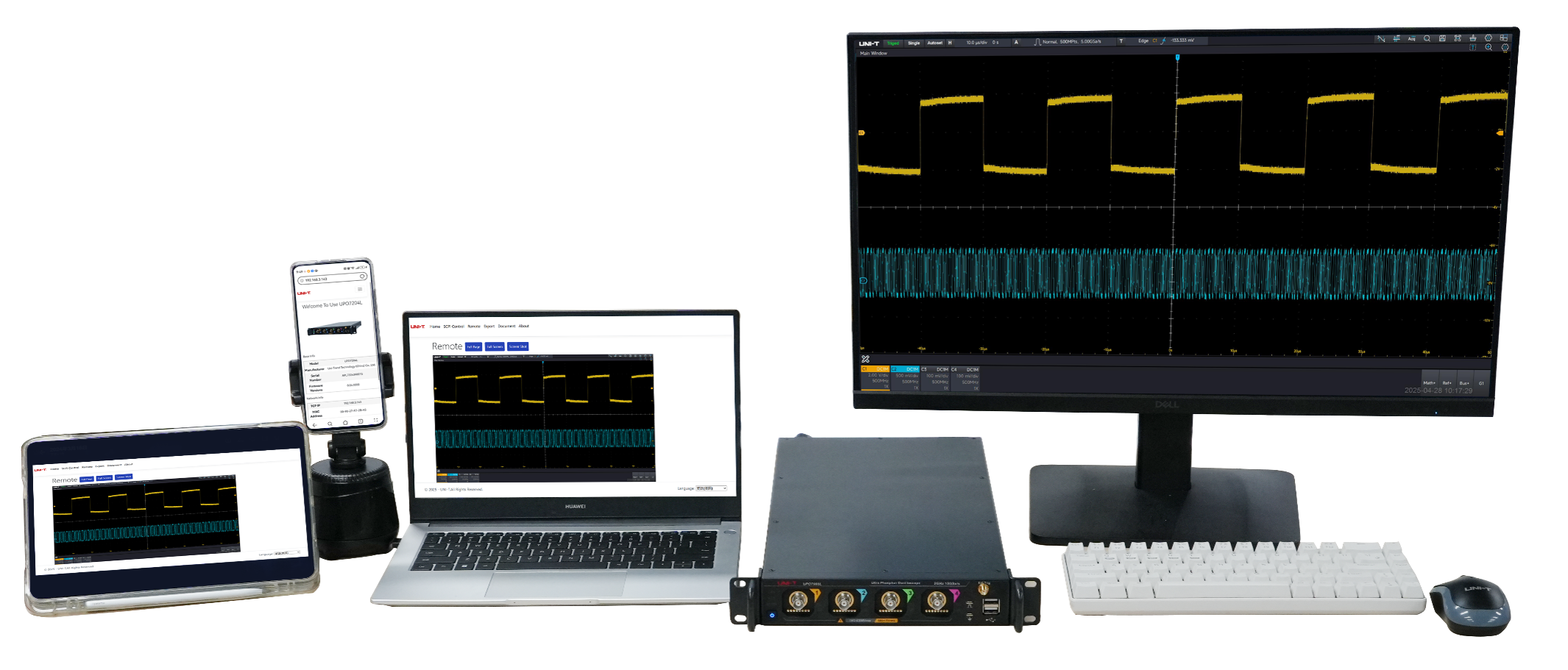

UPO7000L interfaces and remote access — USB 3.0, HDMI, AUX, dual LAN ports, 10MHz ref in/out, and WebServer control

Optional Power & Jitter Analysis

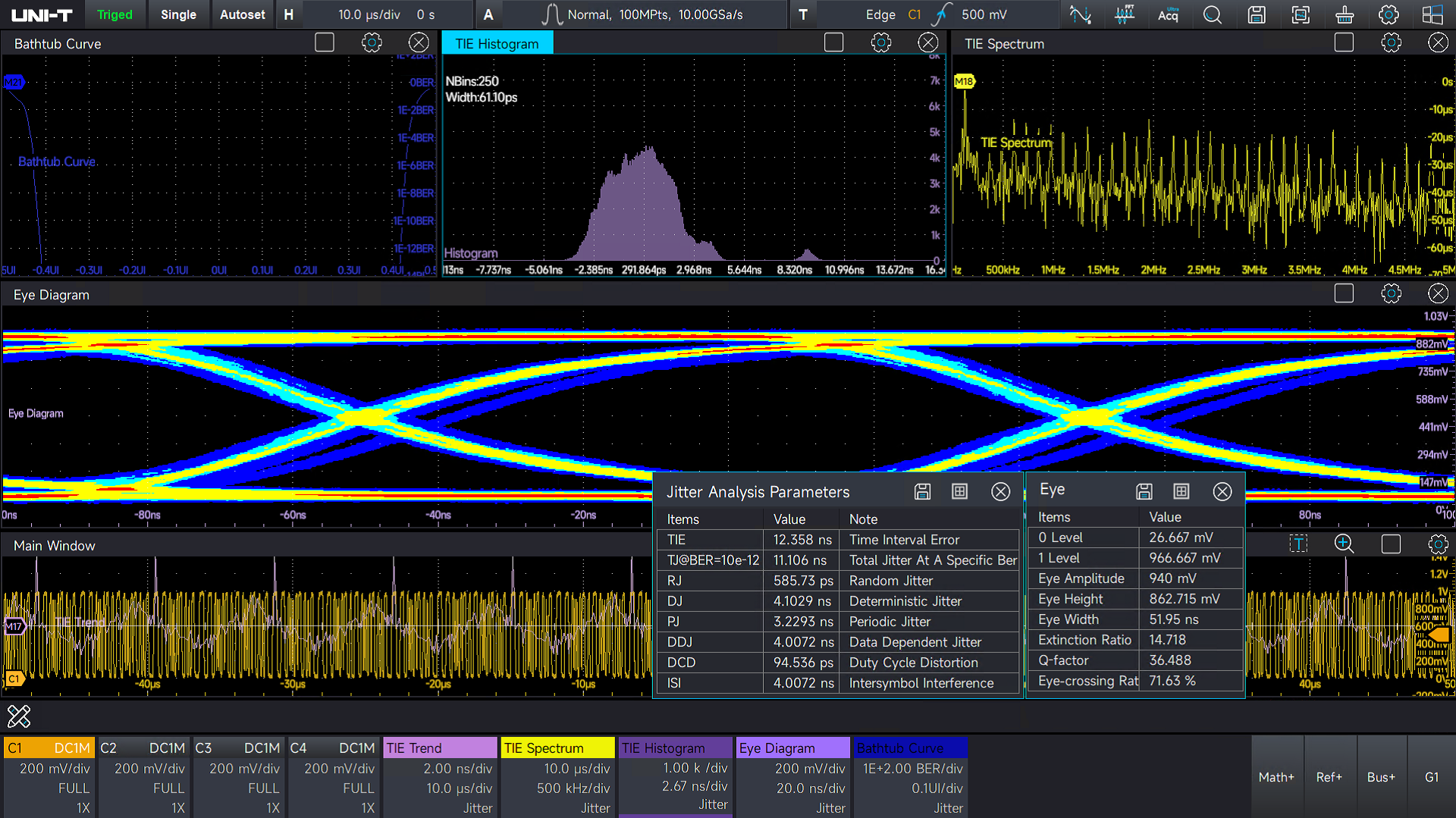

Unlock advanced features such as switching loss, ripple, SOA, and loop analysis with the UPO7000L-PWR option. Add the UPO7000L-JIT license for full jitter and eye-diagram tools, including TIE, RJ, DJ, and BER plots. These tools turn the UPO7104L into a complete signal and power integrity analyzer.

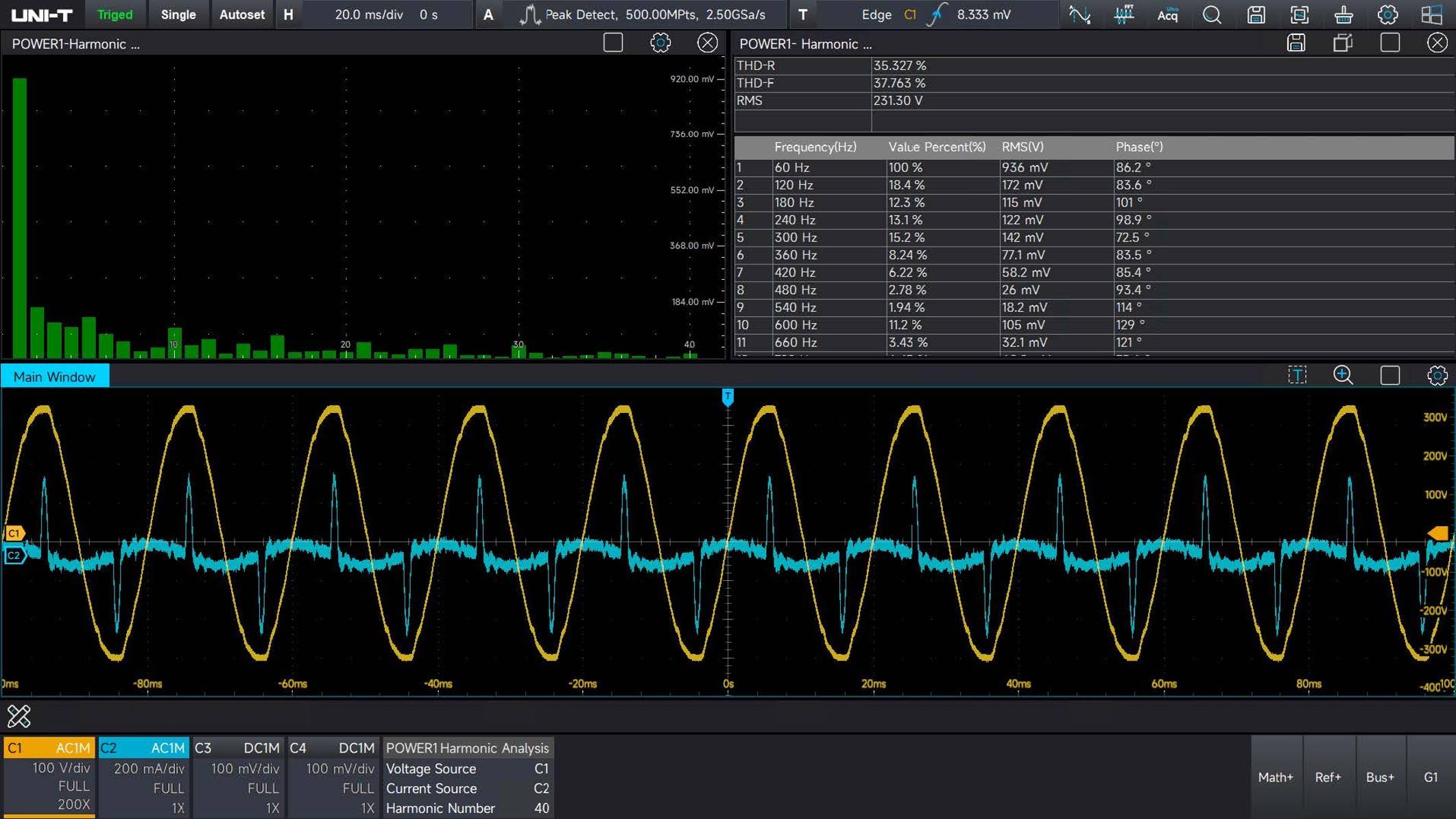

Power and jitter analysis — Advanced options include full power analysis and jitter/eye diagram suite

Professional Applications

ATE and Automated Bench Systems – Space-saving integration with powerful SCPI remote control and synchronized multi-unit capability
High-Speed Digital & Serial Debug – 10GSa/s sampling and protocol decoding for validating buses and link timing
Power Supply & Converter Validation – Optional UPO7000L-PWR enables switching loss, SOA, and harmonic analysis
Jitter & Eye Diagram Analysis – For serial link validation and clock analysis in embedded and communication systems

Technical Specifications

Bandwidth	1 GHz @ 50 Ω
Channels	4 analog + EXT trigger
Sampling Rate	10 GSa/s (single), 5 GSa/s (dual), 2.5 GSa/s (all)
Memory Depth	1Gpts (1 ch), 500Mpts (2 ch), 250Mpts (4 ch)
Capture Rate	≥600,000 wfms/s (UltraAcq®), 2M wfms/s (sequence mode)
Vertical Resolution	8-bit native, HD 12-bit enhanced
Function Generator	60 MHz AWG, 625 MSa/s, 16-bit resolution (optional)
Display	External via HDMI (touch supported)
Interfaces	USB Host/Device, LAN x2, HDMI, AUX Out, 10MHz Ref In/Out
Size	214 mm W × 43 mm H × 478 mm D
Weight	Approx. 3.8 kg

Optional Software & Accessories

UPO7000L-PWR – Unlocks power analysis capabilities
UPO7000L-JIT – Adds jitter and eye-diagram functionality
UPO7000L-AWG – Enables 1CH arbitrary waveform generator
UPO7000L-BW-10T20 – Bandwidth upgrade from 1 GHz to 2 GHz
Current & Differential Probes – Compatible with UT-P41, UT-P43, UT-P4150, UT-P35, and others

Package Contents

UNI-T UPO7104L Digital Phosphor Oscilloscope
4× Passive Probes (500 MHz)
Power cord
USB cable
Rack-mounting brackets
Calibration certificate
Quick start guide

Frequently Asked Questions

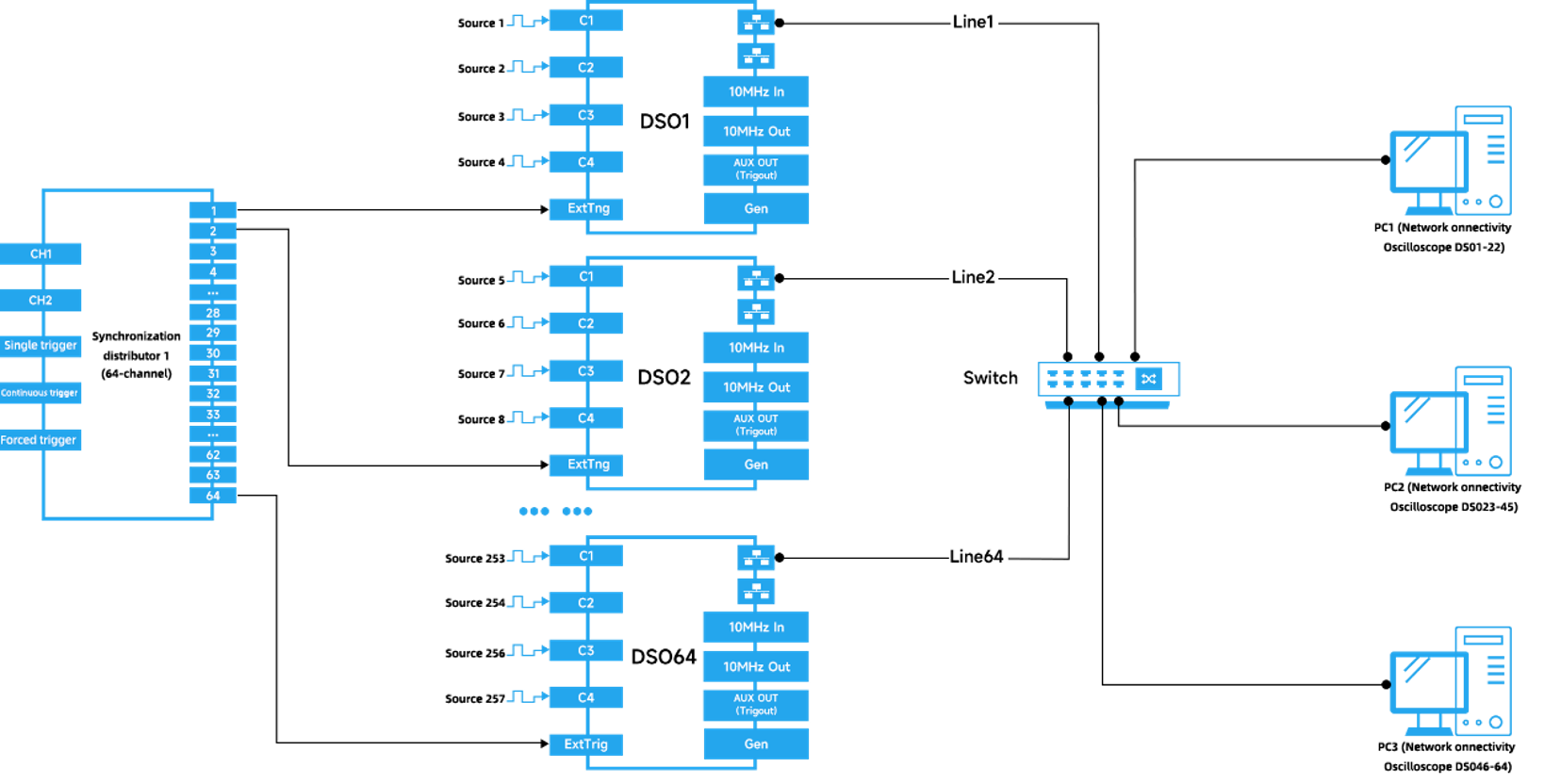

How many UNI-T UPO7000L oscilloscopes can be synchronized in a single rack system?

Up to 128 UPO7000L units can be synchronized using the built-in trigger synchronization input/output ports and 10 MHz reference clock lines. This enables distributed multi-channel data acquisition with less than 200 ps RMS trigger jitter between units.

What synchronization features does the UPO7104L include for multi-machine setups?

The UPO7104L includes dedicated clock sync ports, an auxiliary trigger I/O, and a 10 MHz reference input/output for precise time alignment. Synchronization can be managed via SCPI over dual Gigabit Ethernet connections or hardware-level coordination through trigger chaining and clock distribution.

Can the UPO7104L be operated without a built-in display?

Yes. The UPO7104L is designed for headless operation and does not include an integrated screen. It can be controlled via an external HDMI display with touch support or remotely over a browser using its embedded WebServer. Full SCPI remote automation is also supported.

Is rack mounting hardware included with the UPO7104L?

Yes. The UPO7104L ships with a 1U rack-mount kit suitable for standard 19-inch racks. Its compact half-width footprint allows dual-side-by-side mounting in a 1U space for dense system integration.

What makes the UPO7000L series different from traditional benchtop oscilloscopes?

The UPO7000L series is engineered for embedded system integration, offering the same measurement performance as benchtop scopes but in a slim 1U format. It’s ideal for remote labs, production lines, and automated test systems where display, UI, and form factor flexibility are essential.

Can I access the UPO7104L over a web browser without installing software?

Yes. The built-in WebServer allows users to monitor, control, and download data from the scope using any modern browser. No software installation is required, and both PC and mobile access are supported.

Warranty & Support

All UNI-T UPO7000L Series oscilloscopes include a 3-year warranty covering parts and labor under normal use. Standard accessories (including probes and cables) are covered by a 1-year warranty. Register your UPO7000L for a free, 2-year warranty extension.

Ready to rack-up a new oscilloscope?

Experience the UNI-T UPO7104L — the ultimate rack-mount oscilloscope for automated, remote, and precision signal analysis. Reach out to us to learn more or schedule a demo. If you have a favorite Distributor or Rep, contact them today to learn more.

Feature	Specification
Model Number	UPO7104L
Scope Type	DSO
Bandwidth	1GHz
Channels	4Ch
Scope Sample Rate	10GSa/s
Memory Depth	1Gpts
Refresh Rate	2,000,000wfms/s
Vertical Scale @1MΩ	500μV/div to 10V/div
# Automatic Measurements	48
Included Bus Protocols	RS232 UART I2C SPI CAN LIN
Optional Bus Protocols	CAN-FD FlexRay SENT Audio MIL-STD-1553B ARNIC429
Logic Pod Included	Not Available
Signal Generator Function	Optional
Frequency Meter	8-bit
Touchscreen	No
Warranty	3 years
Certifications	CE/cETLus
Documents	English download guide, multi-language safety manual, calibration report (COC)
Included Accessories	Oscilloscope probe (UT-P07A)*4
Standard Accessories	Power Cord, BNC-BNC cable (x2), USB2.0 cable
