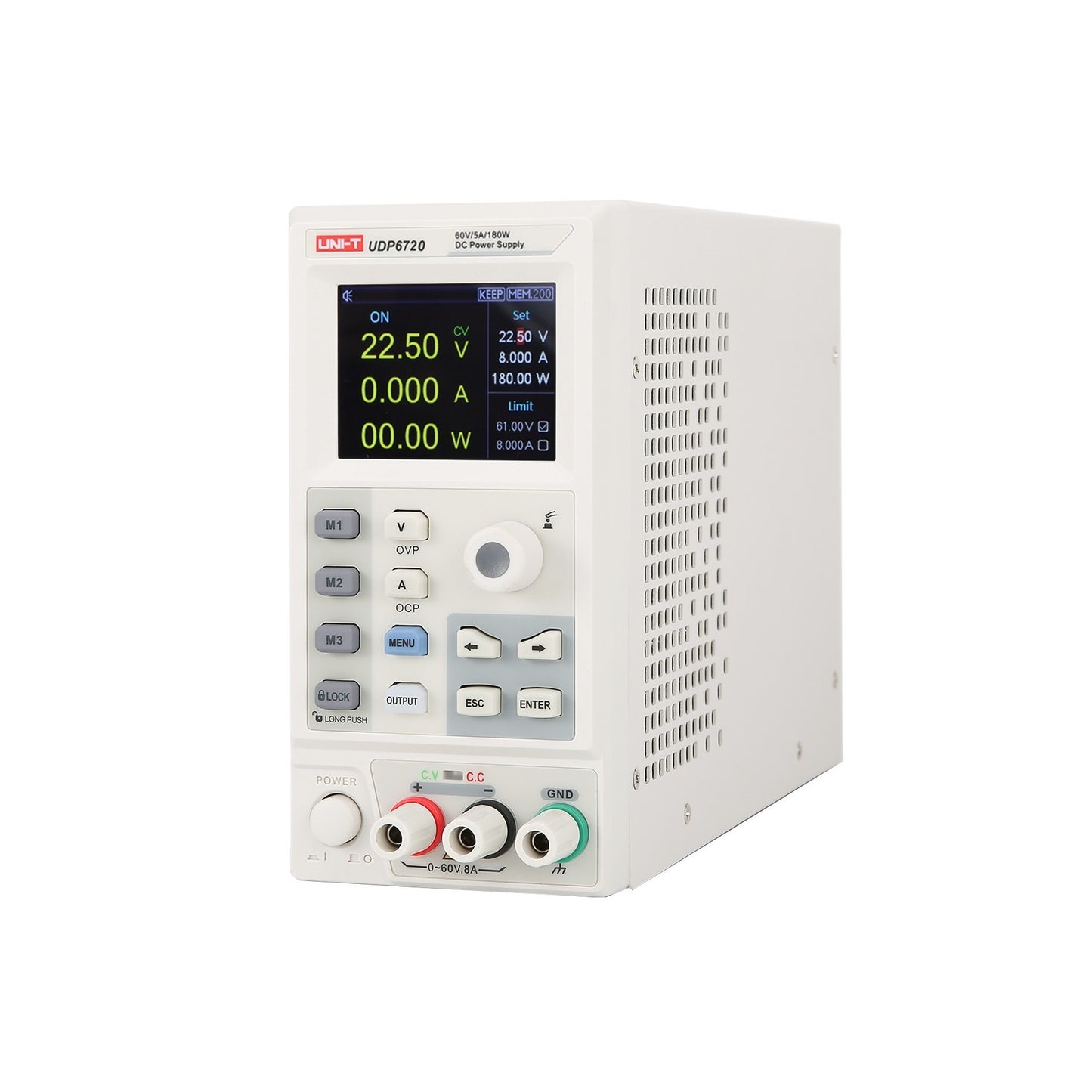

UNI-T UDP6720 DC Switching Power Supply
Overview
The UNI-T UDP6720 is a 100W single-output DC switching power supply delivering 0–60V at 0–5A. The UDP6700 series provides essential programmable power supply functionality—constant voltage/constant current output, OVP/OCP protection, list mode, memory storage, and remote compensation—at an accessible price point for bench development, education, and production test applications.
The front panel features a 3.5-inch LCD with numeric keypad for direct value entry. RS232 and USB interfaces support SCPI commands for automated test integration. The compact 2U half-rack form factor fits standard equipment racks.

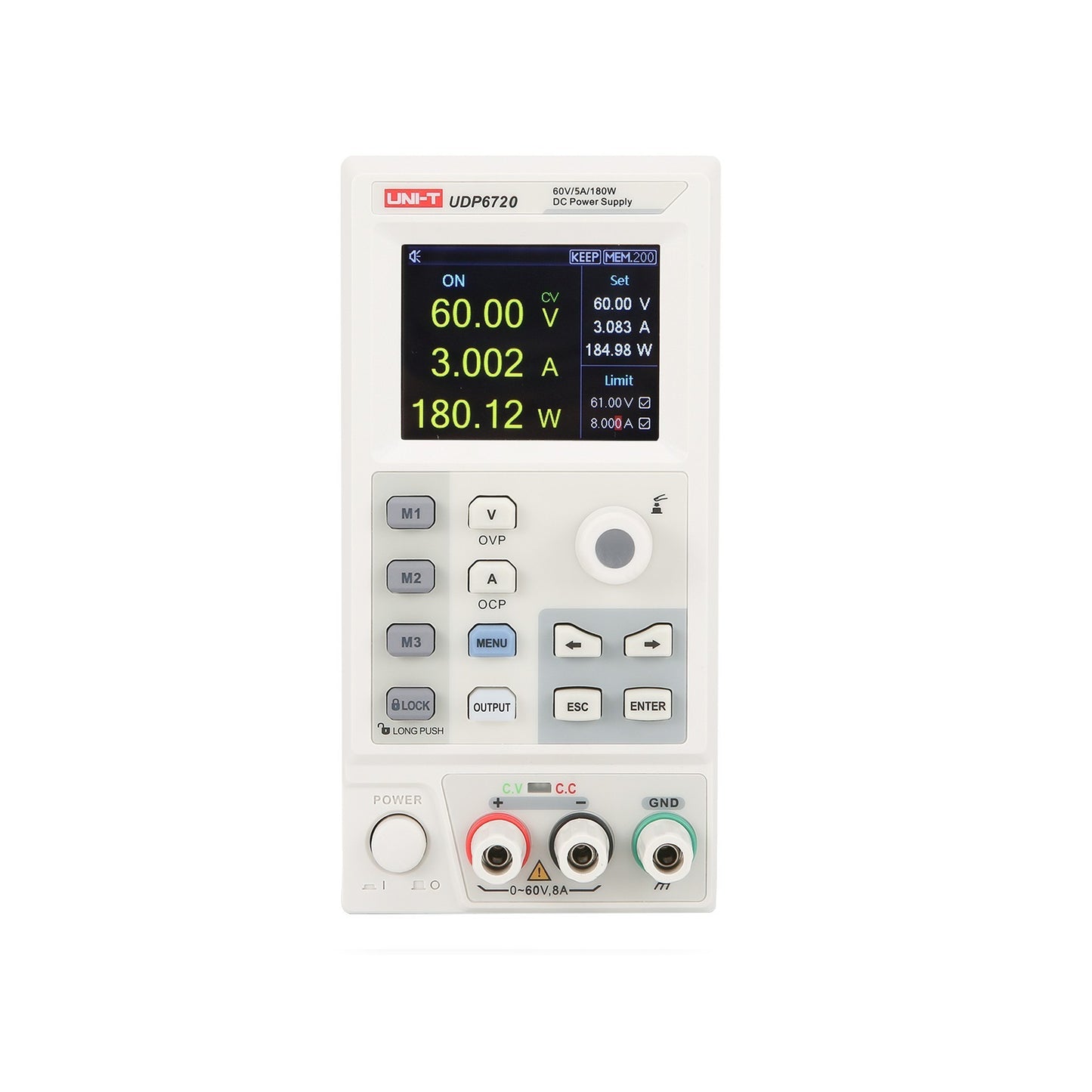

UDP6720 3.5-inch LCD with real-time voltage and current display
Key Features
- 100W Output (0–60V, 0–5A) — CV/CC operation with crossover indication.
- OVP/OCP Protection — Configurable over-voltage and over-current thresholds protect devices under test.
- List Mode — Program voltage/current sequences with timing for automated test profiles.
- Remote Compensation — Sense terminals compensate for voltage drop in test leads.
- 10 Memory Locations — Store and recall frequently used voltage/current settings.
- RS232 & USB Interfaces — SCPI programmability for automated test system integration.
Wide Range Output
The UDP6700 series is a high-efficiency DC power supply with an impressive output power ratio of 3.0. Its flexible output range covers maximum voltage, current, and power, allowing one unit to replace several smaller power supplies, reducing overall equipment costs.
UDP6720 Derate Curve
Remote Compensation

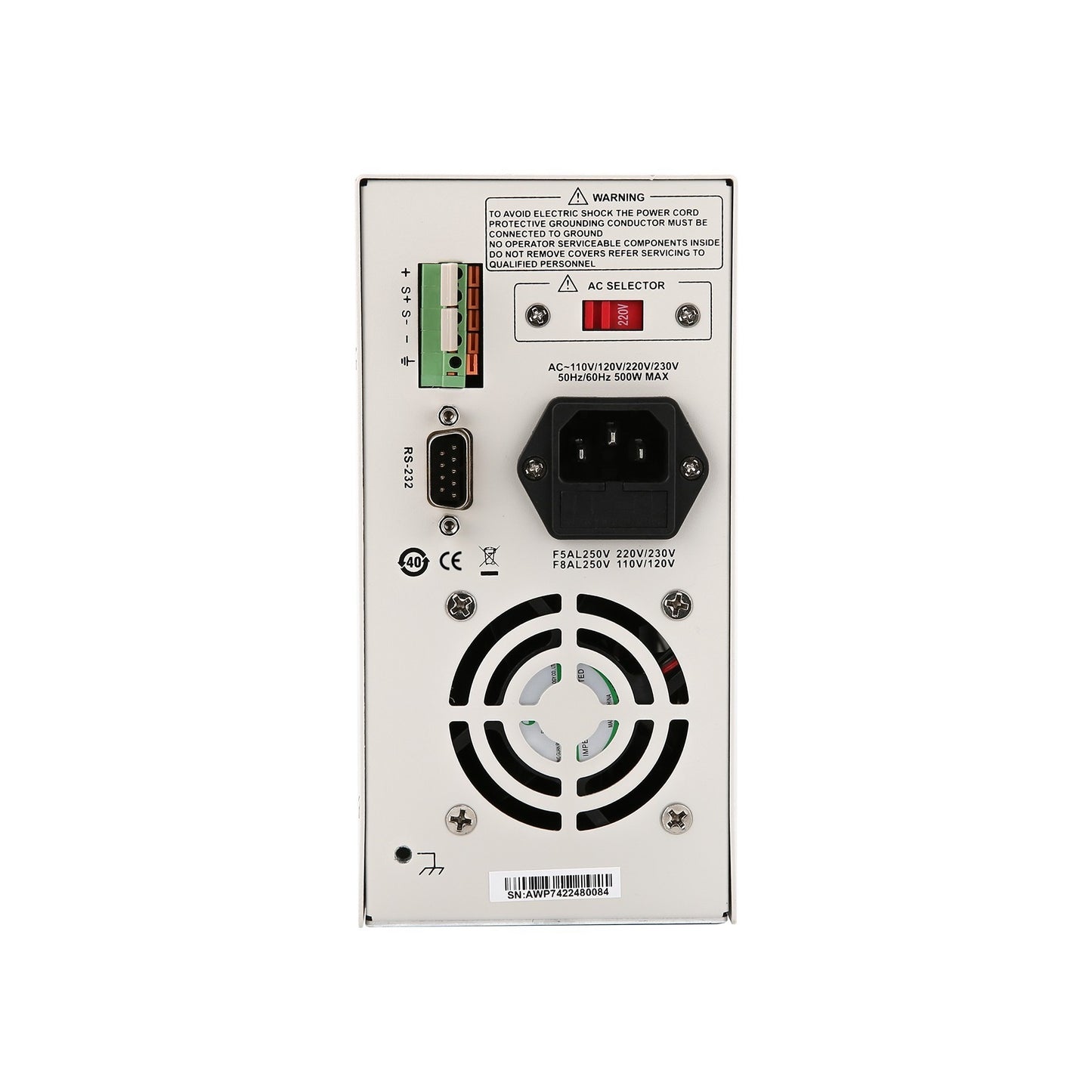

The UDP6700 series features remote compensation terminals (S+ and S-) for connecting directly to the load, ensuring accurate voltage measurements at the load end. This minimizes the impact of voltage drops over long-distance wires, providing reliable and precise testing results.
UDP6700 Remote Compensation
Full-Color LCD Display
Equipped with a 2.8-inch full-color LCD display, the UDP6700 series offers a clear and detailed view of multiple parameters. It streamlines data monitoring, reducing the need for repetitive readings and enhancing user interaction by allowing customizable settings tailored to your needs.

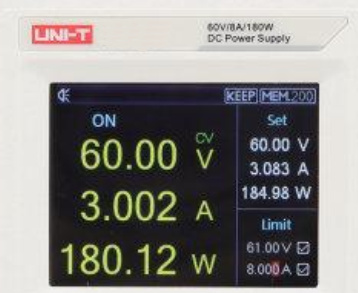

UDP6700 Screen
Comprehensive Protection Features
The power supply offers Over Voltage Protection (OVP) and Over Current Protection (OCP) settings, activated by pressing "V" and "A" for long durations. When enabled, these features trigger an alarm and shut off the output to safeguard connected equipment. The built-in intelligent fan adjusts based on system conditions, while Over Temperature Protection (OTP) engages when the instrument overheats, ensuring system longevity.
UDP6700 Over Protection
List & Delay Functionality
The UDP6700 series includes list and delayer functions, supporting up to 48 editable points. This allows for automatic measurements and customized power delays, enhancing automation for more efficient operations.
UDP6700 List Function
Preset Memory for Efficient Setup
With 600 memory groups (200 in each M1, M2, and M3), the UDP6700 series offers extensive storage for diverse user settings, speeding up configuration and ensuring quick access to frequently used setups.
Designed to meet the demands of professional electrical engineers, the UDP6700 series combines high performance with advanced functionality to streamline your testing and power supply needs.
Applications
Bench Development
Clean DC power for circuit prototyping and component evaluation. Direct numeric entry provides fast voltage/current setting without encoder scrolling.
Education
OVP/OCP protection prevents student-caused damage to circuits. Memory storage presets common lab configurations. Compact size fits teaching bench layouts.
Production Test
SCPI over USB/RS232 integrates into automated test sequences. List mode runs programmed test profiles. Consistent output quality ensures repeatable measurements.
Battery & LED Testing
CC mode for battery charging applications. CV mode for LED driver testing. Remote compensation ensures accurate voltage at the load.
Frequently Asked Questions
What's the difference between the UDP6700 and UDP6900B?
The UDP6900B adds auto-range output, slope control, built-in DVM, web remote control, RS485 and LAN interfaces, multi-machine communication, and Modbus RTU support. The UDP6700 provides core CV/CC functionality with list mode and remote compensation at a lower price point.
What's included with the UDP6720?
The UDP6720 ships with the instrument, power cable, and UNI-T's 3+2 warranty (3 years standard plus 2 additional years with free registration—5 years total).
Warranty
This instrument is backed by UNI-T's 3+2 Year Warranty — 3 years of standard coverage, plus 2 additional years free when you register your product. That's 5 years of total protection at no extra cost.
The warranty covers manufacturing defects and component failures under normal use conditions. UNI-T instruments are built for professional daily use, and our warranty reflects that commitment to long-term reliability.
