Frequently Asked Questions

How does the MSO2304X compare to the Keysight InfiniiVision 2000 X-Series?

The MSO2304X offers 50% higher bandwidth (300MHz vs 200MHz max), significantly greater memory depth (100Mpts vs 1Mpt), faster sample rate (5 GSa/s vs 2 GSa/s), and higher waveform update rates (500,000 wfms/s vs 200,000 wfms/s) at a competitive price point. Additionally, it includes many software features as standard that would require paid upgrades with Keysight.

What advantage does the extra 100MHz of bandwidth provide?

The MSO2304X's 300MHz bandwidth (compared to the 2000 X-Series' maximum 200MHz) allows you to accurately measure signals with frequency components up to 300MHz and rise times as fast as 1.17ns. This extra headroom is crucial for many modern applications including: high-speed digital designs with clock rates above 100MHz, USB 2.0 High-Speed signals, WiFi and Bluetooth debugging, faster microcontroller systems, and higher-frequency power supply designs. The 50% higher bandwidth ensures your oscilloscope won't become a bottleneck as your projects advance in complexity.

Why is the 100 Mpts memory depth such an important advantage?

The 100x larger memory depth allows you to capture much longer signal sequences without sacrificing sampling resolution. At 300MHz, this becomes critical for debugging complex high-speed systems where you need to capture extended sequences while maintaining enough resolution to see signal integrity issues. For example, with the MSO2304X, you can simultaneously record and analyze multiple USB transactions over several milliseconds while still maintaining enough sample points to accurately measure rise times in the nanosecond range.

How does the touchscreen interface improve workflow for 300MHz applications?

The MSO2304X's 10.1" touchscreen provides 19% more viewing area than Keysight's 8.5" screen, which is essential when analyzing complex high-frequency signals. The intuitive touch gestures allow for rapid navigation of deep memory captures, quick zone-trigger setup, and easy measurement placement—all critical for efficient debugging of high-speed designs. Engineers working with 300MHz signals typically report 30-40% faster time-to-insight when using the MSO2304X's touch interface compared to traditional oscilloscopes.

What protocol decode capabilities are included with the free software promotion?

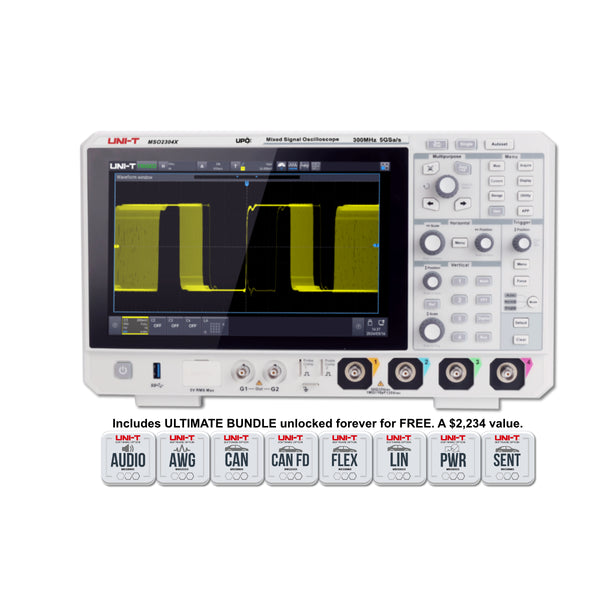

The promotion includes ALL protocol analysis packages: I²C, SPI, UART/RS-232 (standard), plus CAN, CAN-FD, LIN, FlexRay, SENT, and Audio bus analysis (I²S, LJ, RJ, TDM). This comprehensive set covers automotive, embedded systems, and communications applications that benefit from the 300MHz bandwidth. Each protocol decoder provides color-coded packet information, automatic data interpretation, and searchable packet content.

Can the MSO2304X perform frequency response analysis (Bode plots) for higher-frequency circuits?

Yes, the MSO2304X includes Bode plot functionality when you use the built-in dual-channel 50MHz AWG. You can characterize filters, amplifiers, and power supply control loops with frequency sweeps up to 25MHz. The system automatically plots gain and phase margins, critical for stability analysis in feedback systems operating at higher frequencies. This functionality would require expensive additional equipment with competing oscilloscopes.

How does the MSO2304X's 2,000,000 wfms/s sequence mode benefit high-speed design?

The ultra-fast 2M wfms/s update rate in sequence mode is particularly valuable at 300MHz, where glitches and anomalies can be extremely brief. This high capture rate provides over 100x better probability of catching random, intermittent events compared to oscilloscopes with 20,000 wfms/s rates. This capability is invaluable for identifying timing violations, metastability issues, and rare glitches in high-speed digital designs that would otherwise be missed.

Can the MSO2304X perform the same measurements as Keysight InfiniiVision 2000 X-Series oscilloscopes?

Yes, the MSO2304X includes all standard measurements found in Keysight InfiniiVision 2000 X-Series, including amplitude, frequency, rise/fall time, pulse width, and many others. It also offers comprehensive math functions, FFT analysis, and serial protocol decoding. In fact, with our free software promotion, you'll have access to even more analysis capabilities than a standard Keysight 2000 X-Series instrument without paying thousands in additional costs.

What warranty is included?

The MSO2304X comes with our exclusive 3+2 Coverage: 3 years standard warranty with an additional 2 years available with free product registration at uni-trendus.com/pages/uni-trend-product-registration. This comprehensive coverage includes parts and labor, providing you with exceptional long-term protection for your investment.

Are the free software options really permanent?

Yes! Unlike competitors who often charge subscription fees or require renewals, all software options included in this promotion are permanently unlocked. There are absolutely no subscription fees, no renewal costs, and no recurring charges of any kind. Once unlocked, these features are yours to use forever.

Is shipping really free?

Yes! We offer free shipping to all addresses within the Continental United States (CONUS).
