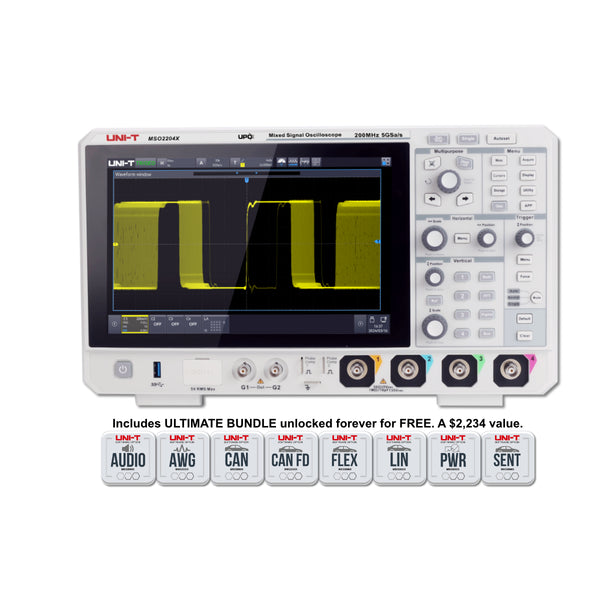

The Ultimate Professional Oscilloscope Value
📊
Bandwidth
200 MHz
💾
Memory Depth
100 Mpts
⚡
Sample Rate
5 GSa/s
🔄
Waveform Rate
2M wfms/s
〰️
AWG
Dual 50 MHz
25X More Memory + 2M Waveforms/s + 9 Instruments in 1 = Superior Testing Capabilities at Lower Cost
With our limited-time promotion, you'll receive ALL software options worth $2,234 completely FREE - something Keysight would charge thousands extra for.
Why Choose UNI-T MSO2204X Over Keysight InfiniiVision 3000 X-Series?
Superior Memory Depth
The MSO2204X features an impressive 100 Mpts memory depth - 25X more than Keysight's 4 Mpts (with paid upgrade). This means you can capture much longer signal sequences at high sample rates, enabling you to see the complete picture of your signal's behavior over time. Longer captures with high resolution allow you to spot anomalies and details that would be impossible to see with the limited memory of competing oscilloscopes.
Higher Waveform Update Rate
With an impressive 500,000 wfms/s standard capture rate and up to 2,000,000 wfms/s in sequence mode, the MSO2204X delivers twice the update rate of Keysight's 1,000,000 wfms/s. This higher capture rate dramatically increases the probability of capturing rare events and glitches that would otherwise be missed, making it ideal for debugging complex digital systems with intermittent issues.
Superior AWG Capability
While Keysight offers only a single 20MHz function generator as an optional paid upgrade, the MSO2204X includes a dual-channel 50MHz arbitrary waveform generator. This powerful built-in tool allows you to generate complex signals for comprehensive testing, simulate circuit responses, and perform Bode plot analysis - all without the need for additional external equipment.
Industry-Leading Warranty
UNI-T offers an exceptional 3+2 year warranty - that's 5 total years of coverage when you register your product, compared to Keysight's standard 3-year warranty. This demonstrates our confidence in the MSO2204X's quality and reliability, and provides you with long-term investment protection and peace of mind.
All-in-One Value
The MSO2204X integrates 9 instruments into one compact package: oscilloscope, logic analyzer, dual-channel AWG, spectrum analyzer, digital voltmeter, frequency counter, protocol analyzer, bode plot analyzer, and power analyzer. This comprehensive functionality saves valuable bench space and eliminates the need to purchase multiple separate instruments.
Comprehensive Feature Comparison
| Feature | UNI-T MSO2204X | Keysight InfiniiVision 3000 X-Series | Advantage |
|---|---|---|---|
| Bandwidth | 200 MHz | 200 MHz (DSOX3024A/T) | Equal |
| Analog Channels | 4 | 4 | Equal |
| Digital Channels | 16 (with optional probe) | 16 (on MSO models) | Equal |
| Maximum Sample Rate | 5 GSa/s | 5 GSa/s | Equal |
| Memory Depth | 100 Mpts/CH | 2 Mpts standard, 4 Mpts optional | UNI-T ✓ (25X more) |
| Waveform Update Rate | 500,000 wfms/s standard 2,000,000 wfms/s sequence mode |
1,000,000 wfms/s | UNI-T ✓ |
| Display | 10.1" capacitive touchscreen (1280 x 800) |
8.5" capacitive touchscreen (800 x 480) |
UNI-T ✓ |
| Waveform Technology | Ultra Phosphor 3.0 (256 temperature levels) |
InfiniiVision | UNI-T ✓ |
| Function/AWG Generator | Dual-channel 50 MHz 16-bit resolution 250 MSa/s |
Single-channel 20 MHz (optional paid upgrade) |
UNI-T ✓ |
| Serial Protocol Analysis | RS232/UART, I2C, SPI standard CAN, LIN, FlexRay, SENT, Audio (FREE with promotion) |
Optional paid upgrades for all protocols | UNI-T ✓ |
| Bode Plot Analysis | Yes (with AWG) | Optional paid upgrade | UNI-T ✓ |
| Multi-instrument Integration | 9-in-1 | Up to 6-in-1 (with all paid options) | UNI-T ✓ |
| Warranty | 3+2 Years (5 years total with free registration) |
3 Years | UNI-T ✓ |
| Base Price Range (USD) | $1,799 | $4,290-$5,500 | UNI-T ✓ |
* Specifications based on manufacturer published data. Prices subject to change.
Understanding Keysight InfiniiVision 3000 X-Series Variants
The Keysight InfiniiVision 3000 X-Series offers multiple variants with different capabilities, each requiring separate purchases for full functionality:
| Keysight Model Suffix | Included Features | What You'll Pay Extra For |
|---|---|---|
| Base Models (e.g., DSOX3024A) | Basic oscilloscope functionality | All software options, protocol analysis, function generator |
| T Models (e.g., DSOX3024T) | Includes touch screen | Protocol analysis, function generator |
| MSO Models (e.g., MSOX3024T) | Includes 16 digital channels | Protocol analysis, function generator |
UNI-T Advantage: Everything Included
With our limited-time promotion, the MSO2204X includes ALL of the following software options at no extra cost ($2,234 value). You get the full-featured oscilloscope with every capability unlocked permanently - no hidden costs, no subscription fees, no renewal charges.
FREE Software Bundle vs. Keysight's À La Carte Pricing
| Software Option | UNI-T MSO2204X | Keysight InfiniiVision 3000 X-Series |
|---|---|---|
| Arbitrary Waveform Generator | Included FREE ($280 value) | Optional paid upgrade |
| CAN/CAN-FD Bus Analysis | Included FREE ($558 value) | Optional paid upgrade |
| LIN Bus Analysis | Included FREE ($279 value) | Optional paid upgrade |
| FlexRay Bus Analysis | Included FREE ($279 value) | Optional paid upgrade |
| SENT Bus Analysis | Included FREE ($279 value) | Optional paid upgrade |
| Audio Bus Analysis | Included FREE ($279 value) | Optional paid upgrade |
| Power Analysis | Included FREE ($280 value) | Optional paid upgrade |
| Total Software Value | $2,234 (All FREE with promo) | Additional $3,000+ if purchased separately |
All software options are permanently unlocked - no subscriptions, no renewals, no recurring fees!
Looking for More Options?
Check out other models in the MSO2000X series to match your bandwidth requirements:
MSO2104X: 100MHz bandwidth - ideal for entry-level applications
MSO2304X: 300MHz bandwidth - perfect for advanced applications and high-speed digital design
MSO3034X: 350MHz bandwidth - for even more demanding high-frequency applications
Perfect For:
Electronic Design & Debugging for 200MHz Applications
The MSO2204X's 200MHz bandwidth and impressive memory depth make it ideal for a wide range of development and troubleshooting tasks in modern electronics. The 200MHz bandwidth is perfect for analyzing high-speed digital circuits, microcontrollers, embedded systems, power supply designs, and FPGA-based projects.
USB Interface Testing & Debugging
With its 200MHz bandwidth, the MSO2204X is well-suited for analyzing and debugging USB Full Speed (12 Mbps) interfaces and can provide valuable insights into USB High Speed (480 Mbps) signal integrity issues. The generous memory depth allows for long-duration captures necessary when monitoring USB packet transfers.
Automotive Electronics Development
The MSO2204X's comprehensive CAN, LIN, and FlexRay protocol analysis capabilities combined with its 200MHz bandwidth make it perfect for modern automotive electronics development and testing. Analyze ECU communications, verify body control module operation, and debug ADAS systems with ease.
Industrial Control Systems
The 200MHz bandwidth provides sufficient headroom for analyzing industrial control systems, including PLCs, motor controllers, and industrial communication networks. The MSO2204X's mixed-signal capabilities and long memory depth enable comprehensive system analysis from analog sensors through digital processing.
Communications Equipment Testing
Test and validate communication equipment operating within the 200MHz bandwidth range, including radio equipment, network interfaces, and data communication modules. The MSO2204X's advanced triggering capabilities and protocol analyzers make it easy to identify and isolate issues in complex communication systems.
Frequently Asked Questions
How does the MSO2204X compare to the Keysight InfiniiVision 3000 X-Series?
The MSO2204X offers significantly greater memory depth (100Mpts vs 4Mpts), a larger touchscreen display (10.1" vs 8.5"), dual-channel AWG (vs. single optional), and a comprehensive software bundle included at no extra cost. All of this comes at a substantially lower price point, making it an exceptional value compared to the Keysight 3000 X-Series.
What makes the 100Mpts memory depth so important?
Memory depth determines how long you can capture signals at high sample rates. With 100Mpts - 25X more than Keysight's maximum 4Mpts - the MSO2204X allows you to record much longer signal sequences while maintaining full resolution. This is critical for capturing and analyzing complex behaviors that occur over extended time periods, such as startup sequences, intermittent glitches, or serial bus communications with long idle periods.
Is the 200MHz bandwidth sufficient for my applications?
A 200MHz bandwidth is suitable for a wide range of applications including most digital designs, microcontroller systems, power electronics, automotive systems, and general-purpose electronics. As a rule of thumb, your oscilloscope bandwidth should be at least 5 times the maximum frequency of interest in your circuit. So a 200MHz oscilloscope can accurately measure signals up to about 40MHz, covering most common digital logic families and many communication interfaces.
How does the Ultra Phosphor 3.0 technology enhance signal visualization?
The MSO2204X features Ultra Phosphor 3.0 technology with 256 temperature levels, providing exceptional signal detail and making it easier to identify rare events and signal anomalies. This advanced display technology, combined with the high waveform update rate, allows you to see subtle signal variations and intermittent glitches that would be missed by conventional oscilloscopes.
What is included in the free software bundle?
The limited-time promotion includes ALL available software options ($2,234 value): CAN/CAN-FD bus analysis, LIN bus analysis, FlexRay bus analysis, SENT bus analysis, Audio bus analysis, Power analysis, and Arbitrary Waveform Generator functionality. All these features are permanently unlocked with no subscription fees or renewal costs ever.
What warranty is included?
The MSO2204X comes with our exclusive 3+2 Coverage: 3 years standard warranty with an additional 2 years available with free product registration at uni-trendus.com/pages/uni-trend-product-registration. This comprehensive coverage includes parts and labor, providing you with exceptional long-term protection for your investment.
Are the free software options really permanent?
Yes! Unlike competitors who often charge subscription fees or require renewals, all software options included in this promotion are permanently unlocked. There are absolutely no subscription fees, no renewal costs, and no recurring charges of any kind. Once unlocked, these features are yours to use forever.
Is shipping really free?
Yes! We offer free shipping to all addresses within the Continental United States (CONUS).
Explore Our Other Professional Oscilloscopes
Looking for different specifications? Check out our complete range of professional oscilloscopes:
- MSO2104X: 100MHz bandwidth, 4 channels - ideal for entry-level applications
- MSO2304X: 300MHz bandwidth, 4 channels - perfect for advanced applications
- MSO3034X: 350MHz bandwidth, 4 channels - for high-performance needs
- MSO3054X: 500MHz bandwidth, 4 channels - our premium research-grade oscilloscope
Visit our Oscilloscopes collection to see all available models, including our premium 12-bit HD oscilloscopes with up to 1GHz bandwidth.
Ready to Upgrade Your Oscilloscope?
The UNI-T MSO2204X offers professional performance at an unbeatable price compared to Keysight InfiniiVision 3000 X-Series!
Includes 3+2 Year Warranty & Free Technical Support
Register at uni-trendus.com/pages/uni-trend-product-registration to extend your 3-year standard warranty to a full 5 years at no extra cost!
FREE Software Bundle Offer valid through December 31, 2025
Disclaimer: Keysight® and InfiniiVision® are registered trademarks of Keysight Technologies, Inc. UNI-T® is a registered trademark of Uni-Trend Technology (China) Co., Ltd. The comparison provided is based on publicly available information and is intended for informational purposes only. This comparison is not endorsed by, affiliated with, or sponsored by Keysight Technologies. All trademarks, product names, and company names mentioned herein are the property of their respective owners.
